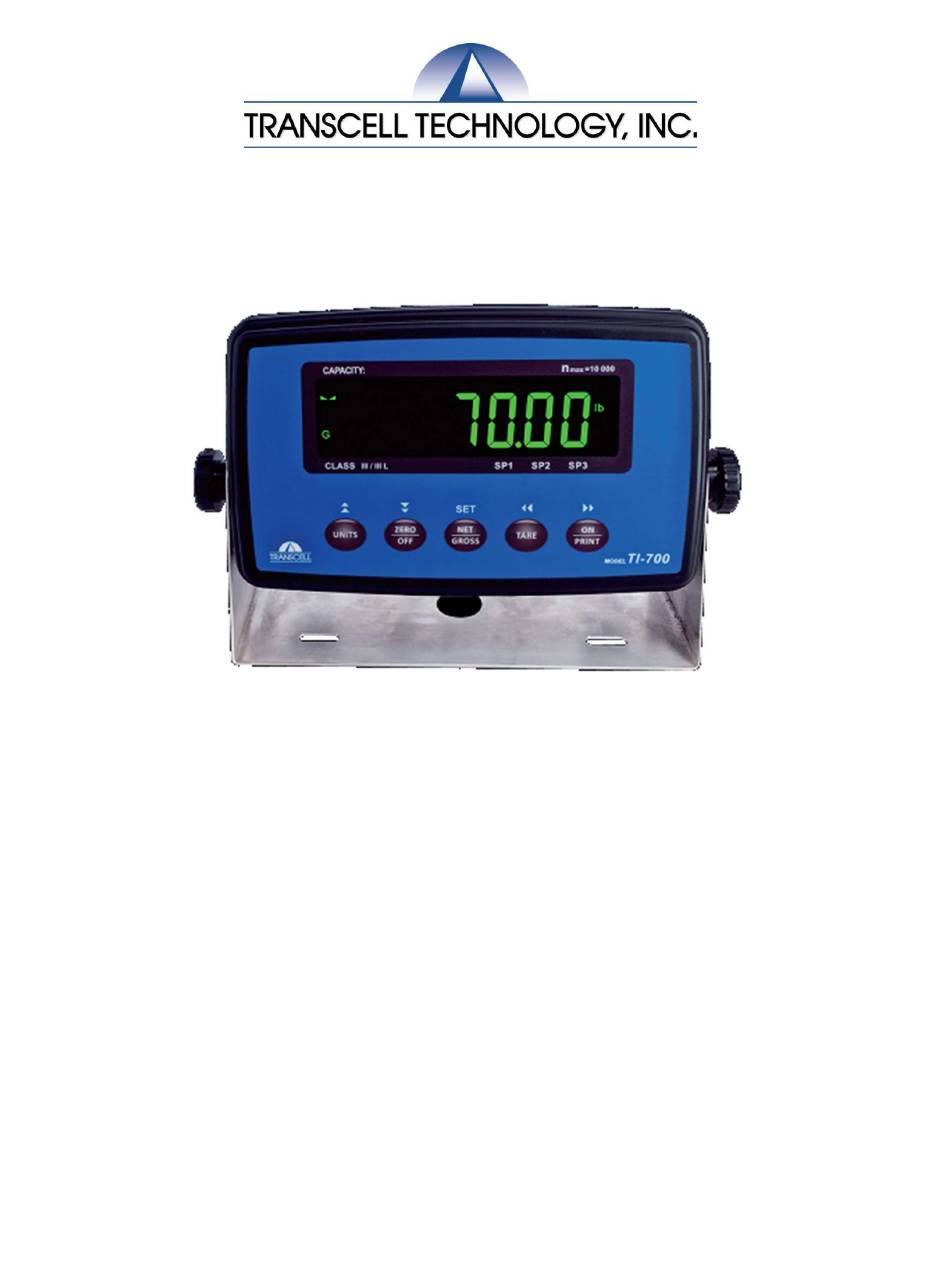

- Page 1 MODEL TI-700 User Manual Digital Weight Indicator Revision 3.0 July 31, 2017 (with wireless weighing capability)
-
Page 2: Table Of Contents
Table of Contents OVERVIEW ..........................3 Scope of TI-700 ........................3 BASIC OPERATION ....................... 4 Getting Started – Cabled Systems..................4 Getting Started – Wireless Systems ................... 4 Operation – TI-700 ......................4 Operation – TI-500 RFTM ....................4 Replacing the batteries – TI-500 RFTM ................5 Optional Rechargeable battery information ................ - Page 3 ©Transcell Technology, Inc. 2016-2017. All rights reserved. The information contained herein is the property of Transcell Technology and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copy- right and the foregoing restriction on reproduction and use extend to all media in which the information may be embod- ied.
-
Page 4: Overview
OVERVIEW Scope of TI-700 Out of the box, the TI-700 indicator operates as a basic, cabled digital weight indicator. The load cell(s) and/or j-box is connected to the indicator’s internal A/D convertor. This configuration is depicted in the following diagram: When sold with an external TI-500 RFTM (Radio Frequency Transceiver Module) and an op- tional wireless radio, your TI-700 indicator is transformed from “wired”... -
Page 5: Basic Operation
After a brief initialization period, the scale will revert to a zero (“0”) weight display. Your wireless scale is now ready for operation! Operation – TI-700 Before weighing it is necessary to check if the scale is unloaded and indicating zero weight in the desired unit of measure, for example lb for pounds. -
Page 6: Replacing The Batteries - Ti-500 Rftm
6. Re-install the metal battery cylinder Optional Rechargeable battery information The TI-700 may contain an optional rechargeable battery which is internal to the unit. Before us- ing the indicator for the first time, please charge the battery overnight. The indicator’s battery should operate for about 85 hours if left on continuously. The display unit is configured to power down after 5 minutes of inactivity but this parameter can be changed thru the A1-10 menu setting. -
Page 7: Balance Of This Page Intentionally Left Blank
HOW TO CHARGE THE INTERNAL BATTERY This version ships with a pre-installed power connector and an external battery charger. Simply link the two up, and plug the battery charger into a suitable AC wall outlet. Note that the external battery charger is rated for IP54 only. Balance of this page intentionally left blank... -
Page 8: Display & Keypad Details
DISPLAY & KEYPAD DETAILS This model utilizes a 7-digit reverse LCD (Liquid Crystal Display) with adjustable LED backlight. The Table below summarizes the display annunciators: Symbol Display Indicates that the scale is on Zero. 0 Indicates that the indicator is displaying net weight (Gross weight minus Tare weigh). Indicates that the indicator is displaying gross weight Indicates that a push-button tare weight has been established in the system Indicates that the indicator is in PEAK HOLD mode... - Page 9 The capacitive touch keypad is composed of a total of five (5) function keys. Keypad Functions Units This key toggles the indicator between lb and kg. Zero/Off This key sets the indicator to display zero weight provided the following conditions are met: 1.
-
Page 10: Advanced Operation
ADVANCED OPERATION Hold operation: This mode of operation is enabled by setting F30 to “5” in the Setup Menu (see separate in- staller’s guide for more information). This mode captures the weight of an unstable load, e.g. livestock, by freezing the weight on the display. Use the Motion Band setting (F5) and the Per- centage Hold setting (F36) to adjust this mode to your specific application. -
Page 11: Piece Counting
User Menu (see separate installer’s guide for more information). This mode is used to indicate and hold the peak weight recorded during a specific process. The most common application is testing the breaking point of a part or assembly. The TI-700 records both positive and negative peak weights. -
Page 12: Accumulation (Totaling)
3. To toggle between positive and negative peak weights, use the NET/GROSS key. 4. To reset both peak values to zero, press the ZERO key. 5. To exit peak hold mode, press the UNITS key again; the “P” annunciator turns OFF. Accumulation (Totaling) This mode of operation is enabled by setting F30 to “1”... -
Page 13: Adjusting The Time And Date On The Printout
Adjusting the Time and Date on the Printout Your indicator will keep track of the current time and date for you, which can then be printed on the print ticket. To adjust the time and date, you must first enter the User Menu Mode. 1. -
Page 14: Checkweigher
16. After entering the exact value, press the NET/GROSS key to save the value and revert back up to the parameter level, e.g. ”A1-20”. Checkweigher NOTE: If you wish to drive a light tree or a set of buzzers/alarms, then this mode requires an op- tional digital I/O board Use the A1-25 menu to set the logic of the outputs. - Page 15 TI-700 checkweigher operation: If the displayed weight (net or gross) is less than the Low (Min) value, then: Digital Output #1 is activated SP1 light is ON Backlight colors is BLUE If the displayed weight (net or gross) is more than the High (Max) value, then: ...
-
Page 16: Error Messages
Both TI-500 RFTM #1 and #2 batteries have been depleted and need to be replaced. WIRELESS SYSTEMS ONLY Battery in TI-700 indicator need to be recharged or replaced. Battery in digital indicator need to be recharged or replaced and TI-500 RFTM #1 batteries need to be replaced. -
Page 17: Specifications
- Up to 100m unobstructed - (ISM) band at 2.4 to 2.485 GHz Optional Digital Indicator Battery – TI-700 - 7.4 volt 3 Ah internal Li-Ion rechargeable battery - 85+ continuous hours of operation on full charge under typical operating conditions OPTIONAL TI-500 RFTM Battery Holder - Holds 1.5-volt x 4 “C”... -
Page 18: Troubleshooting
Transcell Tech Support: (847) 419-9180 Limited 12-month Warranty This product is warranted by Transcell Technology against manufacturing defects in material and workmanship under normal use for twelve (12) months from the date of purchase. For complete warranty details and service information, please contact us at the address below.
