1. Set the cutting height lever to the most adverse position.
2. Remove the locking screws from the lower bar at
the upper fixation (exact position see picture 3, red arrow)
and store them well for the next use of your mower.
3. Open the wing screws on the lower spar.
4. Fold up the handlebar.
5. Fasten the handle with the rubber band provided.
6. Now stow your mower to save space.

12. Care, maintenance, and storage

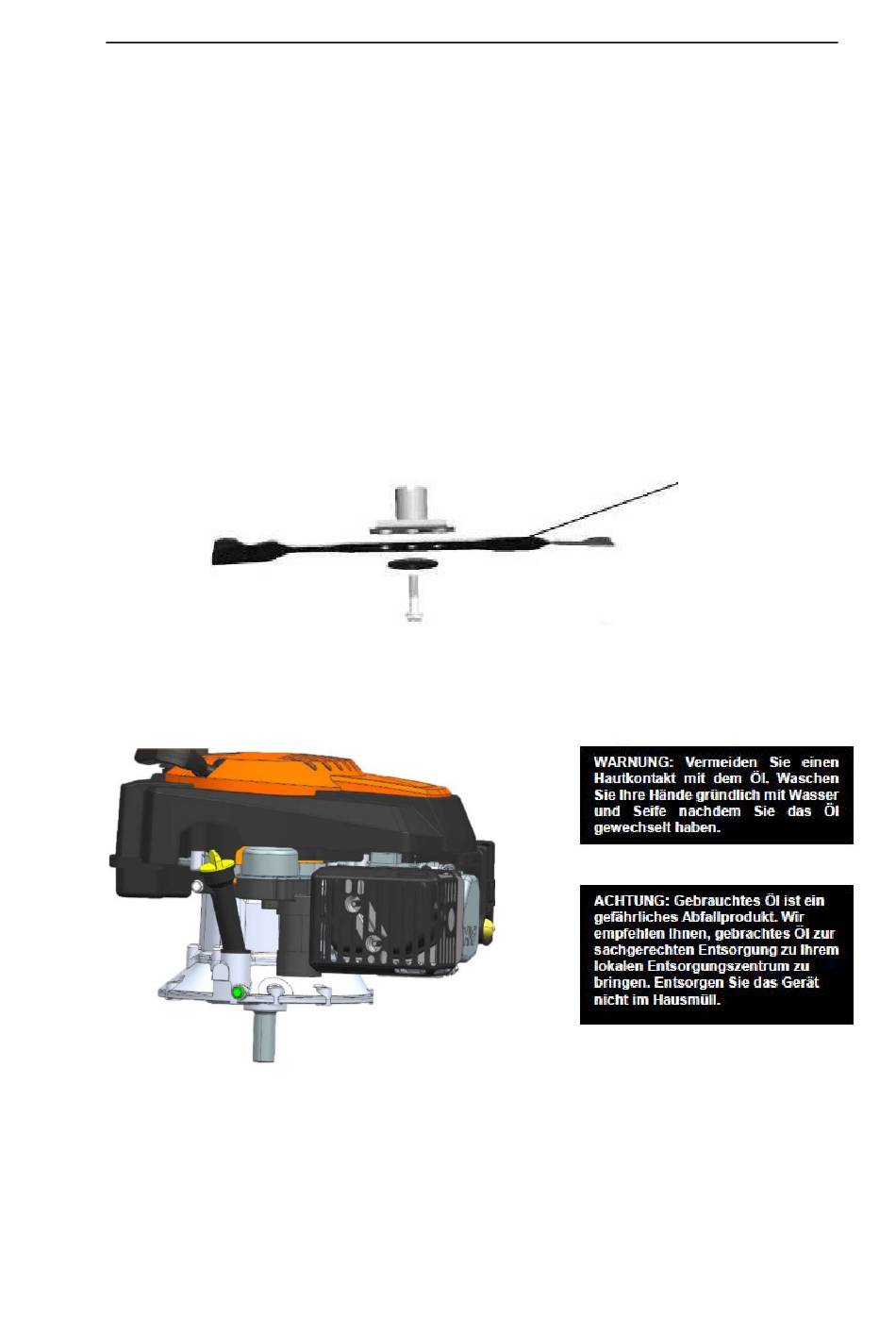

CHANGING THE CUTTING BLADES
Remove the screw to replace the blade. Empty the fuel tank before removing the blade.
Replace everything, as shown. Fasten the screw properly. The fastening torque is 45Nm. Also, replace the blade screw when
replacing the blade.
OIL CHANGE
1. Switch off the engine and let it stop completely.
2. Disconnect the spark plug cable and keep it away from the spark plug.
3. Empty the oil into a suitable container. Tilt the lawnmower by 45 degrees and use a FUXTEC suction pump to suck off the oil
through the filler neck. Alternatively, you can tilt the mower more to drain the oil through the filler neck.
4. Keep the engine balanced. Remove the dipstick. Slowly add approximately 0.5L of new recommended oil (FUXTEC 4MAX 4
stroke oil) into the container until the dipstick reads the top of the container. Do not overfill the container.
