Summary of Contents for Thiele Mission 6K Series

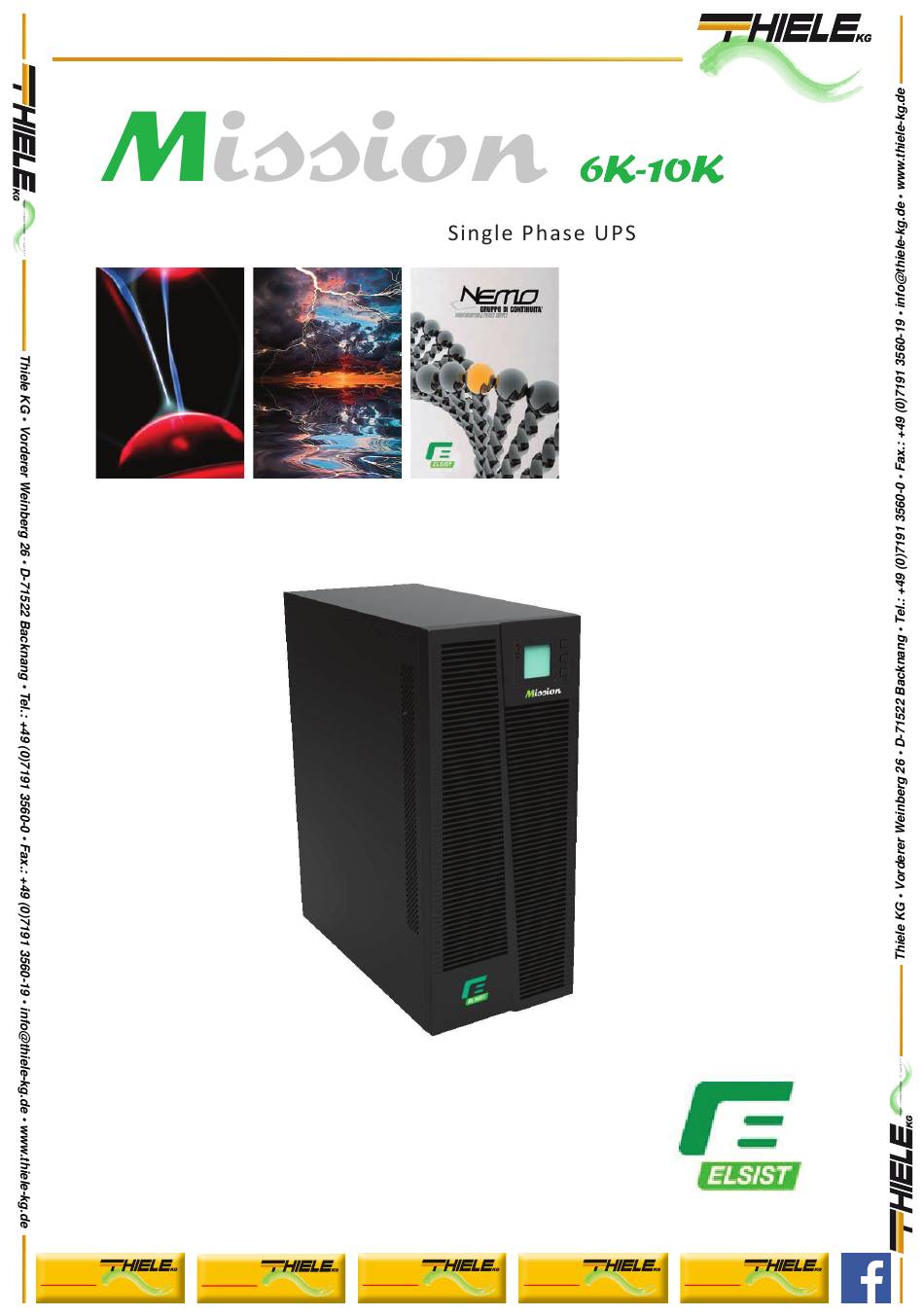

- Page 1 YOUR CONNECTION TO SAFETY Electrical System for Continuity klick to klick to klick to klick to klick to u-s-v Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y Y O U R C O N N E C T I O N TO S A F E T Y...
-
Page 2: Table Of Contents
YOUR CONNECTION TO SAFETY Contents 1. Safety ..............................3 Safety.............................. 3 Symbol Description ........................3 2. Product Introduction ..........................5 The appearance of the product ...................... 5 The principle of the product ......................6 Product Category ........................... 6 3. Installation .............................. 7 Unpacking and inspection ...................... -
Page 3: Safety
YOUR CONNECTION TO SAFETY 1. SAFETY This chapter mainly introduces the safety signs and security considerations of MISSION 6K/10K series high frequency online ups. Before any operation of equipment, you should read the content of this chapter carefully. Safety There exists dangerous voltage and high temperature inside the UPS. During the installation, operation and maintenance, please abide the local safety instructions and relative laws, otherwise it will result in personnel injury or equipment damage. - Page 4 YOUR CONNECTION TO SAFETY There are three levers of safety grade: Dangerous, Warning and Attention. The remark is on the right side of the safety symbol, the detailed comments are shown as following: Dangerous: Indicate risk of serious injury or death or seriously damage of the equipment. Warning: Indicate risk of serious injury or damage of the equipment.
-
Page 5: Product Introduction
YOUR CONNECTION TO SAFETY 2. PRODUCT INTRODUCTION The appearance of the product 6KVA Front Panel view 6KVA Rear Panel view 10KVA Front Panel view 10KVA Rear Panel view Rev. 02 –13 October 2015 klick to klick to klick to klick to klick to u-s-v Y O U R C O N N E C T I O N TO S A F E T Y... -
Page 6: The Principle Of The Product
YOUR CONNECTION TO SAFETY The principle of the product Fig. 2-1 UPS Principle Diagram 1. Input filter: Complete filtering the input AC utility power to provide the clean power for UPS. 2. AC/DC converter: Convert the filtered AC mains to DC and boost the DC for DC/AC inverter. 3. -
Page 7: Installation
YOUR CONNECTION TO SAFETY INSTALLATION Unpacking and inspection 1. Unpacking the box and check the UPS. If damaged or some parts missing, don’t start the machine and inform your supplier. 2. Check the box content (please consult Box Content Table). 3. -
Page 8: Ups Input And Output Connection
YOUR CONNECTION TO SAFETY UPS input and output connection Minimum 6AWG copper wires are required for the 6KVA, and 10AWG for 10KVA, including input/output cables and battery cables. 1) Switch off all breakers before connecting cables. 2) Remove the cover of the terminals, refer to chapter 2.1, follow fig. 3-3 to connect the cables Fig.3-3 I/O terminals connection CAUTION! Connector are required so as to ensure the connections have a better clamping. -
Page 9: Parallel Card (Optional)
YOUR CONNECTION TO SAFETY Parallel Card (Optional) Parallel installation steps as below: Loosen the screws in the parallel card slot and remove the cover, please keep the cover for future use. Insert the parallel card into the slot and tighten the screws. Connect the UPS with parallel cables. -
Page 10: External Battery Conection (For Extend Model Only)
YOUR CONNECTION TO SAFETY 3.6 External battery connection (for extend model only) Make sure battery quantity complies with the specs (16/18/20 pieces of 12V battery in parallel). Measure the voltage of battery bank after finishing connection and the battery voltage should be around 192/216/240Vdc. - Page 11 YOUR CONNECTION TO SAFETY Warning: Before installing battery, make sure that the UPS and breaker are all turned off. Remove all your metallic adornment such as finger ring, watch, and so on before connecting battery. No anti-connection or short circuit between the battery anode and cathode forever. Red cable connect with battery anode “+”...
-
Page 12: Panel Display, Operation And Running
YOUR CONNECTION TO SAFETY 4. PANEL DISPLAY, OPERATION AND RUNNING The operation is simple, operators only need to read the manual and follow the operation instructions listed in this manual, no need any special training. Start up and turn off UPS 4.1.1 Start up operation 1 Turn on the UPS with Main present. -
Page 13: Lcd Display
YOUR CONNECTION TO SAFETY ALARM LED BYPASS LED BATTERY LED INVERTER LED LCD display Scroll button: enter to next item OFF button ON button 4.2.2 LCD display NOTICE! The display provides more functions than those described in this manual. There are 10 interfaces available in the LCD display: ITEM Interface Description... - Page 14 YOUR CONNECTION TO SAFETY 1. When the UPS is connecting with the Utility or Battery at cold start mode, it shows as drawing below: (1) Operational Status and mode 1) Operational Status and mode When the UPS at single mode, it shows “NOA” or “ECO”, but If the UPS at parallel mode, it shows “PAL”...
- Page 15 YOUR CONNECTION TO SAFETY ( 8 ) Alarm Code 9 Software version & model ( 10 Bus voltage 1. If some of above interfaces have battery charging, it will display the charging information at the same time as shown below. Charging status Input Input...
-
Page 16: Parameters Setting
YOUR CONNECTION TO SAFETY Parameters setting The setting function is controlled by 3 buttons (Enter , Off , On ): Enter ---goes into the setting page and value adjustment; Off & On ---for choosing different pages. After the UPS turn ON, press buttons & for 3 seconds and then goes into the setting interface page. -
Page 17: Input/Output Frequency Class Setting
YOUR CONNECTION TO SAFETY 4.3.3 Input/Output frequency class setting Input Frequency setting (Note: Inside the broken-line is the flashing part.) When under the output voltage setting press On or when under battery capacity setting press Off , it goes to the frequency setting. -
Page 18: Battery Quantity Setting
YOUR CONNECTION TO SAFETY 4.3.5 Battery quantity setting Battery Battery quantity setting (Note: Inside the broken-line is the flashing part.) When under the battery capacity setting press On or when under bypass voltage upper limit setting press Off , it goes to the battery quantity setting. The battery quantity line flashes as in above picture. •... -
Page 19: Bypass Volt-Low Setting
YOUR CONNECTION TO SAFETY 4.3.7 Bypass Volt-Low setting Bypass voltage lower limit setting (Note: Inside the broken-line is the flashing part.) When under the bypass voltage upper limit setting press On or when under parallel ID setting press Off , it goes to the bypass lower limit setting. -
Page 20: Battery Test Setting
YOUR CONNECTION TO SAFETY 4.3.9 Battery Test Setting Battery self-test setting This page is the introduction to the Battery self-test setting. The default Settings is “OFF” when the UPS has no need of the battery self-test function. When turn to “ON”, batteries can do the self-test automatically per 30 days. Three kinds of Battery Self-test Time can be chose as below. -
Page 21: Parallel Id Setting
YOUR CONNECTION TO SAFETY When choosing On3, UPS can transfer to Battery Mode automatically per 30 days. And the Battery Self-test Time is EOD. 4.3.10 Parallel ID setting Parallel ID setting (Note: Inside the broken-line is the flashing part.) When under the bypass voltage lower limit setting press On or when under parallel quantity setting press Off , it goes to the parallel ID setting. -
Page 22: Parallel Redundancy Quantity Setting
YOUR CONNECTION TO SAFETY When under the parallel ID setting press On or when under parallel redundancy quantity setting press Off , it goes to the parallel quantity setting. The parallel quantity flashes as in above picture. • Use button Enter to set the parallel quantity. -
Page 23: Display Messages/Record
YOUR CONNECTION TO SAFETY DISPLAY MESSAGES/ RECORDS This section lists the event and alarm messages that the UPS might display. The messages are listed in alphabetical order. This section is listed with each alarm message to help you troubleshoot problems . 4.4.1 Operational Status and Mode Item Content Displayed... -
Page 24: Maintenance
YOUR CONNECTION TO SAFETY Item UPS Alarm Warning Buzz Battery reverse Twice per second Fault LED lit Cable connection error Twice per second Fault LED lit CAN comm. Fault Twice per second Fault LED lit Parallel load sharing fault Twice per second Fault LED lit Battery over voltage Once per second... -
Page 25: Troubleshooting And Performance Of The Product
YOUR CONNECTION TO SAFETY NOTICE Before replacing batteries, first please turn off the UPS and break off the mains. Remove your metallic adornment such as finger ring, watch and so on. When replace batteries, please use the screwdriver with insulating handle. Do not lay the tools or metallic goods on the battery. -
Page 26: Product Performance
YOUR CONNECTION TO SAFETY 6.3 Product Performance TYPE MISSION 6KVA MISSION 10KVA Capacity 4.8 KW 8 KW Input Single phase & Ground Power factor 0.8 (input THDV 1%) Rated voltage 220VAC / 230VAC / 240VAC Rated frequency 50Hz/60Hz Automatically selected Voltage range 120 276Vac Frequency range... - Page 27 YOUR CONNECTION TO SAFETY Between Normal and battery mode Between inverter and bypass Noise <55dB (1m) Display LED+LCD Safety Meeting IEC62040-1 GB4943 Conduction IEC 62040-2 Radiation IEC 62040-2 Harmonics IEC 62040-2 IEC 62040-2 > 2M 500Vdc Isolation resistance Isolation intension 2820Vdc <3.5mA 1min Surge...
-
Page 28: Rs232 Communication Port Definition
YOUR CONNECTION TO SAFETY RS232 COMMUNICATION PORT DEFINITION Definition of Male port: DEFINITION 1-4-6-7-8-9 Not used Connection between PC RS232 port and UPS RS232 port: PC RS232 port UPS RS232 port Pin 2 Pin 2 UPS send, PC receive Pin 3 Pin 3 PC send, UPS receive Pin 5...
