Display Menus; Default Menu - Tekmar Difference Setpoint Control 156 Data Brochure

Display Menus

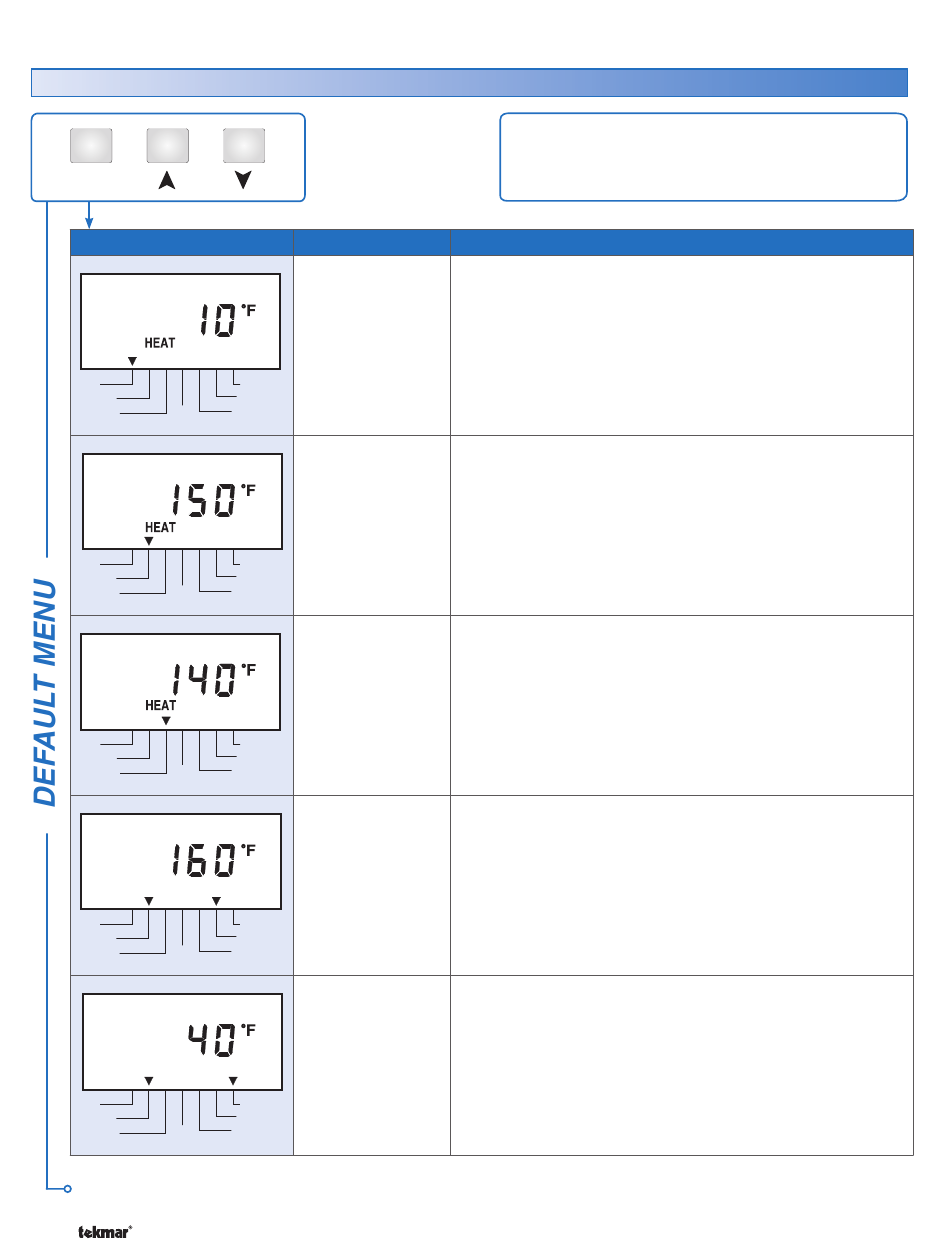

Default Menu (1 of 2)
Item
Item Field
ΔT
Source
Storage Diff'l
ΔT
Source
Storage Diff'l
ΔT
Source
Storage Diff'l
ΔT
Source
Storage Diff'l
ΔT
Source
Storage Diff'l
Continued on next page.
© 2010 D 156 - 06/10
Range
0 to 284°F
(0 to 158°C)
Minimum
Maximum
ΔT • hours
-76 to 284°F
(-60 to 140°C)
Minimum
Maximum
ΔT • hours
-76 to 284°F
(-60 to 140°C)
Minimum
Maximum
ΔT • hours
-76 to 284°F
(-60 to 140°C)
Minimum
Maximum
ΔT • hours
-76 to 284°F
(-60 to 140°C)
Minimum
Maximum
ΔT • hours
Use the Item button to view items in this menu.
Some items can be cleared by pressing the Up and
Down buttons simultaneously.
ΔT TEMPERATURE
Current temperature difference between the source and storage
sensors. This is also the default display for the control. HEAT
is displayed if the relay is closed.
SOURCE TEMPERATURE
Current source temperature as measured by the source sensor.
HEAT is displayed if the relay is closed.
STORAGE TEMPERATURE
Current storage temperature as measured by the storage
sensor. HEAT is displayed if the relay is closed.
MAXIMUM SOURCE TEMPERATURE
Maximum source temperature since this item was last
cleared. To clear, press and hold the up and down buttons
for 1 second.
MINIMUM SOURCE TEMPERATURE
Minimum source temperature since this item was last cleared.
To clear, press and hold the up and down buttons for 1
second.
8 of 12
Description
