Related Manuals for THOMSON GRASS VALLEY KayakDD-1
Summary of Contents for THOMSON GRASS VALLEY KayakDD-1
- Page 1 KayakDD™ DIGITAL PRODUCTION SWITCHER User Manual SOFTWARE VERSION 6.7.1 071826206 JUNE 2005...
- Page 2 +33 1 45 29 73 00 Germany, Europe +49 6150 104 782 +49 6150 104 223 Copyright © Thomson Broadcast and Media Solutions All rights reserved. Grass Valley Web Site www.thomsongrassvalley.com web site offers the following: — Current versions of product catalogs, brochures, data sheets, ordering Online User Documentation guides, planning guides, manuals, and release notes in .pdf format can be downloaded.
-
Page 3: Table Of Contents
KayakDD - Digital Production Switcher Contents Page PREFACE ...............................15 ..........................15 BOUT ANUAL .......................15 TANDARD OCUMENTATION ..........................15 THER OCUMENTATION CONCEPT...............................17 ............................17 NTRODUCTION 2.1.1 KayakDD-1............................18 2.1.2 KayakDD-2............................19 DD S ..................20 AYAK YSTEM ONFIGURATION VERVIEW )......................21 NSTALLATION NGINEERING ETUPS ............................21 ONFIGURATIONS ..........................22 ERSONALITY ETTINGS ............................23 IGNAL... - Page 4 KayakDD - Digital Production Switcher 2.10.7 S-Shaped Key Signals ........................38 2.10.8 Additional Keying Controls....................... 38 2.10.9 Linear Key ............................40 2.10.10 Luminance Key and Self Key ....................... 41 2.10.11 Chroma Key..........................42 2.10.12 Primary and Secondary Color Suppression ................. 43 2.10.13 Flare Suppression ........................
- Page 5 KayakDD - Digital Production Switcher 3.6.13 Freeze Key Button ..........................89 3.6.14 DPM Button............................89 ..........................90 OSITIONER UBPANEL 3.7.1 Positioner ............................91 3.7.2 Positioner Button ..........................91 3.7.3 Positioner Delegation........................92 3.7.4 Axis Lock Buttons ..........................93 ...........................94 FFECTS UBPANEL 3.8.1 DPM ..............................95 3.8.2 Ram ..............................99 3.8.3 MP (Media Player) ..........................102 E-MEM ..............................104...
- Page 6 KayakDD - Digital Production Switcher ............................137 NSTALL ENUS 5.2.1 Install - Calibration Menu ....................... 137 5.2.2 Install – E-Box ..........................139 5.2.3 System Setup Menu........................155 5.2.4 Licenses Menu ..........................164 5.2.5 Diagnosis Menu ..........................166 ............................167 ONFIG ENUS 5.3.1 Application Control .........................
- Page 7 KayakDD - Digital Production Switcher ............................280 EYER RIORITY 6.3.1 To Change the Current Keyer Priority ....................280 6.3.2 To Transition Between Different Keyer Priorities................281 ......................283 HROMA PERATING OTES 6.4.1 Auto Setup ............................283 6.4.2 To Chroma Key Using Auto Setup ....................284 6.4.3 To Chroma Key Using Auto Setup with FGD Fade ................285 6.4.4 Manual Chroma Key Adjustments ....................285...
- Page 8 KayakDD - Digital Production Switcher ..........................340 NSTALLATION 7.8.1 Install Main Menu ........................... 340 7.8.2 Install E-Box Menu ......................... 342 7.8.3 Install Panel Menu.......................... 359 ............................366 YSTEM 7.9.1 Dialog Buttons..........................366 7.9.2 Diagnosis Menu ..........................369 7.10 C ..........................371 ONFIGURATION 7.10.1 Config Main Menu ..........................
- Page 9 KayakDD - Digital Production Switcher Table of Figures Figure 1 KayakDD-1 Control Panel.........................18 Figure 2 KayakDD-2 Control Panel.........................19 Figure 3 Buses with Crosspoints ........................24 Figure 4 Multiple Crosspoint Control.......................25 Figure 5 Simplified Mix Effects (M/E) Subsystem ...................26 Figure 6 Effects Send Diagram ........................27 Figure 7 Normal and FAM Mixes........................30 Figure 8...
- Page 10 KayakDD - Digital Production Switcher Figure 50 Subpanel Keyers..........................83 Figure 51 Key Type Buttons..........................84 Figure 52 Subpanel Positioner ......................... 90 Figure 53 Positioner ............................91 Figure 54 Subpanel Effects ..........................94 Figure 55 Components of Timeline ........................ 111 Figure 56 Components of Timeline ........................
- Page 11 KayakDD - Digital Production Switcher Figure 104 Config – M/E Menu .........................176 Figure 105 Config – Cleanfeed Layer .......................176 Figure 106 Config – DPM Menu ........................177 Figure 107 Config – DPM Menu ........................178 Figure 108 Config – Panel Assignment Menu ....................179 Figure 109 Config –...
- Page 12 KayakDD - Digital Production Switcher Figure 158 DPM – Timeline – Insert Buttons ....................228 Figure 159 DPM – Timeline – Delete Buttons....................229 Figure 160 DPM – Timeline – Duration / Start Time Buttons................229 Figure 161 DPM – SpecFx – Kurl Menu (Off) ....................231 Figure 162 DPM –...
- Page 13 KayakDD - Digital Production Switcher Figure 209 Sidepanel – M/E Main Menu......................313 Figure 210 Sidepanel – Auto Times Menu M/E ....................318 Figure 211 Sidepanel – Auto Times Menu P/P....................319 Figure 212 Sidepanel – Color Background Menu.....................320 Figure 213 Sidepanel – Remote Menu ......................323 Figure 214 Sidepanel –...
- Page 14 KayakDD - Digital Production Switcher Figure 263 Sidepanel – Index Card ME Settings, 2nd page................394 Figure 264 Sidepanel – Index Card Editor ....................... 396 Figure 265 Sidepanel – Index Card Aux Names....................397 Figure 266 Sidepanel – Index Card Aux Couple....................398 Figure 267 Sidepanel –...
-
Page 15: Preface
KayakDD - Digital Production Switcher Preface About This Manual This KayakDD User Manual Instructions is designed as reference manual for operators of KayakDD-1 and KayakDD-2 Production Switcher systems. Standard Documentation Set The standard KayakDD documentation set consists of a: • User Manual, •... - Page 16 KayakDD - Digital Production Switcher User Manual...
-
Page 17: Concept
KayakDD - Digital Production Switcher Concept Introduction In general, any video switcher receives multiple video inputs, performs signal processing on selected input signals, and then outputs the processed video. Efficient real time switcher operation is essential for live production, and can save valuable time in post production environments as well. -
Page 18: Kayakdd-1

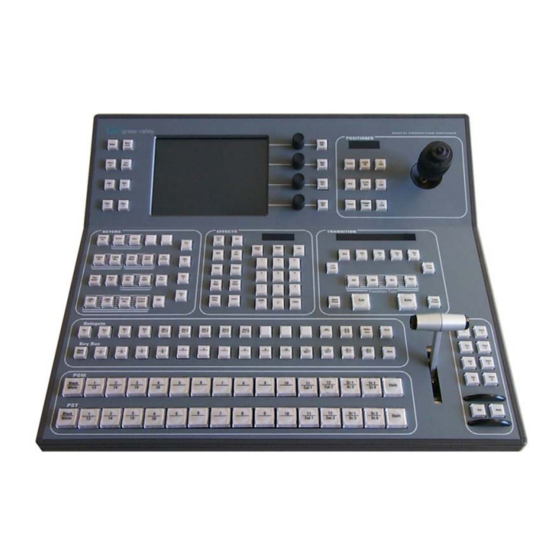

KayakDD - Digital Production Switcher 2.1.1 KayakDD-1 Figure 1 KayakDD-1 Control Panel One M/E production switcher with the following features: • Switchable between 525-line and 625-line formats • Fully digital 10-bit, 4:2:2 inputs, outputs, and video processing • Compact, lightweight 2 RU video processing frame •... -
Page 19: Kayakdd-2
KayakDD - Digital Production Switcher 2.1.2 KayakDD-2 Figure 2 KayakDD-2 Control Panel Two M/E production switcher with the following features: • Switchable between 525-line and 625-line formats • Fully digital 10-bit, 4:2:2 inputs, outputs, and video processing • Compact, lightweight 3 RU video processor frame •... -
Page 20: Kayak Dd System Configuration
KayakDD - Digital Production Switcher KayakDD System Configuration Overview The KayakDD Digital Production Switcher is designed for operational flexibility, and can be configured to fit various applications. Different KayakDD systems can have different capabilities, or the same KayakDD system can be re-configured to have different capabilities at different times. -
Page 21: Installation (Engineering Setups)
KayakDD - Digital Production Switcher Installation (Engineering Setups) Engineering Setups control how the KayakDD Digital Production Switcher’s major components behave and interact, and how the KayakDD system interacts with the rest of the facility. Engineering Setups are not likely to change on a daily basis and so are grouped separately from Configurations and Personality Settings. -
Page 22: Personality Settings
KayakDD - Digital Production Switcher Personality Settings Personality Settings allow users to customize a KayakDD control surface to suit their personal operational style. User Preferences do not change KayakDD system capabilities. Loading and Storing Personal Settings is possible via the Sidepanel Program Personality Settings include: •... -
Page 23: Signal Routing
KayakDD - Digital Production Switcher Signal Routing 2.6.1 Inputs and Sources Incoming video signals are connected to the KayakDD system via BNC connectors on the rear of the KayakDD Digital Processor frame. All inputs are serial digital (SMPTE 259M, CCIR 601). Signals from external devices not operating in this standard will need to be converted. -
Page 24: Key Memory
KayakDD - Digital Production Switcher 2.6.4 Key Memory Key parameters can be saved to a separate key memory for every KayakDD system source. These parameters can be applied automatically whenever that source is selected. 2.6.5 Buses and Crosspoints A bus is technically defined as a signal path where one of several available inputs can be selected to feed a single output. -
Page 25: Shifted Sources
KayakDD - Digital Production Switcher In the upper part of Figure below, the video component of source 2 in the figure has been selected on the key fill bus and becomes the key fill signal for subsequent keying. The key component of source 2 selected on the key cut bus becomes the key cut signal for keying. -
Page 26: The Mix/Effects (M/E) Stage
KayakDD - Digital Production Switcher A useful configuration is to have sources normally used for backgrounds (e.g. VTRs) mapped to unshifted buttons, and sources normally used as keys (e.g. character generators) mapped to shifted buttons. Then you can then set all the background buses to an unshifted preference, and all the key buses to a shifted preference. -
Page 27: Alternate Buses And Delegation
KayakDD - Digital Production Switcher 2.7.1 Alternate Buses and Delegation Many earlier generation switchers had M/Es equipped with two keyers, and each M/E could accept two background sources. This permitted mixing or wiping between two backgrounds, and keying up to two additional sources over the background. Dedicated rows of control panel buttons were used to select these key and background signals. -
Page 28: Outputs
KayakDD - Digital Production Switcher If the KayakDD system is equipped with the optional Transform Engine option, the effects become part of the internal M/E’s mixer. 2.7.4 Outputs Video production switchers generate several different video outputs (Program, Preview, etc.). A final program output from PGM is typically sent to the transmitter for broadcast and/or to output devices for recording. -
Page 29: Resource Sharing And Point Of Use
KayakDD - Digital Production Switcher Resource Sharing and Point Of Use The KayakDD system can share some resources for use at different locations. The location where a resource is being used is called a point of use. The wipe pattern generator resources can be used for an M/E wipe transition, as a preset pattern, as a mask, or at other points of use. -
Page 30: Mix
KayakDD - Digital Production Switcher 2.9.2 A mix is a transition from one picture to another where the new picture fades in as the existing picture fades out. During a standard mix transition a superimposition of both pictures, each at a lower intensity, is visible. The KayakDD system allows mixing from one background to another and to mix up to four separate keys on or off over a background. -
Page 31: Other Wipe Pattern Generator Uses
KayakDD - Digital Production Switcher 2.9.5 Other Wipe Pattern Generator Uses Wipe pattern generator circuitry can be used for purposes that do not involve transitions. Each KayakDD M/E has the two complex wipe pattern generators described above, and each of its four Keyers also has a simple pattern generator and a box pattern generator, making a total of six wipe generators. -
Page 32: Look Ahead Preview
KayakDD - Digital Production Switcher 2.9.10 Look Ahead Preview If a preview monitor is configured for Look Ahead Preview mode, the end result of the upcoming transition can be viewed on that monitor. This lets the operator know in advance what will occur for that next transition. 2.9.11 Current and Next Stack KayakDD uses a current and next stack approach for transitions that involve multiple... -
Page 33: Keying
KayakDD - Digital Production Switcher 2.10 Keying Keying inserts part of one picture into another to create a composite picture. Keying involves three signals: • Background, • Key cut, used to specify where to cut a hole in the background, and •... -
Page 34: Matte Fill Key Example
KayakDD - Digital Production Switcher 2.10.1 Matte Fill Key Example One of the earliest keying techniques was to use an art card and camera to perform a luminance key with a matte fill. This type of key is a good example for explaining basic keying principles because three separate and independent incoming signals are used. -
Page 35: Shaping Video
KayakDD - Digital Production Switcher 2.10.2 Shaping Video In the matte key example above, the key fill signal was a full raster color that did not match the shape of the key cut signal. This key fill signal is accurately called non- shaped video, but may also be referred to as unshaped video since both signal types are processed identically during keying. -
Page 36: Clip And Gain
KayakDD - Digital Production Switcher 2.10.4 Clip and Gain The Clip and Gain operation selects a threshold of the selected key cut video that will be used to cut the hole in the background video. Clip controls the threshold, and Gain controls the softness of the key edges and any translucent areas. -
Page 37: Clip Hi And Clip Lo
KayakDD - Digital Production Switcher On the KayakDD system, Gain has a percentage value. A Gain value of 50% requires a luminance change of 50% of the distance between black and white to produce a keying signal ranging from transparent to opaque. A gain value of 100% (unity gain) uses the entire range between black and white for this transparent to opaque transition. -
Page 38: S-Shaped Key Signals
KayakDD - Digital Production Switcher 2.10.7 S-Shaped Key Signals On the KayakDD system, an S-shaping function is applied to the edges of luminance keys. S-shaping smooths the sharp corners of a luminance key control signal, which helps prevent banding artifacts. S-shaping a signal minimally affects the key edges, and does not move key thresholds or affect the overall gain of the key. - Page 39 KayakDD - Digital Production Switcher 2.10.8.3 Opacity The opacity of a key can be adjusted. When opacity is reduced below 100% some background video is allowed to show through areas where it is normally excluded. Key opacity is an adjustment to the overall intensity of the key, and is separate from Clip and Gain controls.
-
Page 40: Linear Key
KayakDD - Digital Production Switcher 2.10.9 Linear Key A linear key typically uses separate key cut and key fill input signals that are intended to be used for linear keying. The key cut and key fill are usually anti-aliased (soft edged) shaped signals created by a character generator or graphics system. -
Page 41: Luminance Key And Self Key
KayakDD - Digital Production Switcher 2.10.10 Luminance Key and Self Key A luminance key uses the luminance of an incoming source to specify where to cut the hole in the background. The earlier example of a matte fill key is a type of luminance key. -
Page 42: Chroma Key
KayakDD - Digital Production Switcher 2.10.11 Chroma Key A chroma key is a key that detects color (rather than luminance) in a video image and replaces it with a new background. For example, a reporter may be in a studio sitting in front of a backdrop with a blue or green backing color, and the new background can be a mountain scene. -
Page 43: Primary And Secondary Color Suppression
KayakDD - Digital Production Switcher Chroma keys are performed by suppressing the backing color in the foreground scene, cutting a hole in the background, and then combining the two processed signals. When conditions are ideal, complete suppression of the backing color is possible and the hole cut in the background will match the suppressed foreground, permitting these two signals to be added successfully. -
Page 44: Preset Pattern
KayakDD - Digital Production Switcher 2.10.15 Preset Pattern A preset pattern uses a wipe pattern generator, rather than an incoming key cut signal to define the hole cut in the background. Key clip and gain controls are not available for a preset pattern, but controls over the location, size, border, opacity, and edge softness are available. -
Page 45: Properly And Improperly Shaped Video
KayakDD - Digital Production Switcher Split keys should normally treat the fill as unshaped since by definition a split key uses a fill that is not related to the cut, . that means the normal mode for keying is Luminance or Linear Key Mode. 2.10.17 Properly and Improperly Shaped Video The following illustrations show the results of using correctly and incorrectly shaped... -
Page 46: Figure 18 Correctly Shaped Dpm Key Example
KayakDD - Digital Production Switcher Figure 18 Correctly Shaped DPM Key Example Figure 19 Incorrect Key with Dark Halo User Manual... -
Page 47: Figure 20 Incorrect Keying With Shaped Input
KayakDD - Digital Production Switcher In this case the shaped input is incorrectly shaped again, sometimes called a double- multiply. Luminance Key was used for shaped key fill signal. Figure 20 Incorrect Keying with Shaped Input When the DPM provides an unshaped video output but the key is processed as though it were shaped, excessive luminance occurs where the key fill video and key hole edges overlap, producing a white halo around the key. -
Page 48: Figure 22 Incorrect Keying With Unshaped Key Fill
KayakDD - Digital Production Switcher In this case the unshaped video fails to be shaped at all. Figure 22 Incorrect Keying with Unshaped Key Fill Recognizing the appearance of improperly shaped video helps you know how to correct the problem should it occur. User Manual... -
Page 49: 3-D Digital Effects Concepts
KayakDD - Digital Production Switcher 2.11 3-D Digital Effects Concepts The KayakDD Transform Engine options provide 3-D planar image translation and transformation from within each M/E of the KayakDD system. Image translation has special basic concepts and terminology you should understand in order to get the most out of using the option. -
Page 50: Figure 24 Rotate
KayakDD - Digital Production Switcher 2.11.1.2 Rotate Picture rotation about the reference axis in the X, Y, and Z dimensions (Figure 24). Rotate is limited to ± one half revolution, and will always take the shortest path to the new position. Rotate uses Quaternion math to calculate the move with increased accuracy. - Page 51 KayakDD - Digital Production Switcher 2.11.1.4 Aspect Scaling the X or Y components of the picture. X axis changes affect horizontal size, Y axis changes affect vertical size (Figure 25). Z axis changes affect both X and Y dimensions, and is the same as Size. 2.11.1.5 Skew Slanting the picture in the X (horizontal) and Y (vertical) directions (Figure 25).
-
Page 52: 2.11.2 Axis Location
KayakDD - Digital Production Switcher 2.11.2 Axis Location The axis location of the channel determines the center point of translations, spins, and rotations for that channel. You can move the axis to a new location to change the behavior of that channel. The axis location can be within or outside the screen area. Z Axis Rotation at Different Axis Locations Figure 26 Frame of Reference Axis Locations... -
Page 53: 2.11.3 Source And Target Space
KayakDD - Digital Production Switcher 2.11.3 Source and Target Space The KayakDD Transform Engine uses source and target space frames of reference. • Source space for a control channel uses that channel’s coordinate system for reference. • Target space for a channel uses the next higher level’s coordinate system for reference. -
Page 54: Figure 29 Channel Translate With Global Rotated
KayakDD - Digital Production Switcher If the channel is controlled by a global channel, and the global channel itself has been rotated, an X axis translation will depend on whether the channel itself or the global channel is being manipulated, and whether source or target space is being used (Figure 29 and Figure 30). -
Page 55: 2.11.4 Post Transform Space
KayakDD - Digital Production Switcher 2.11.4 Post Transform Space Post transform (Post Xform) is a special transform function that only affects size and location operations. It does not change the perspective of the image (Figure 31). This can be used as a convenient method to quickly project pictures onto new locations of the screen. -
Page 56: 2.11.5 Front And Back, Near And Far
KayakDD - Digital Production Switcher 2.11.5 Front and Back, Near and Far Pictures manipulated by a KayakDD Transform Engine have front and back sides, each of which is revealed in turn as the picture spins or rotates. After a picture has been translated it can be difficult to determine which side was originally on the front and which was originally on the back. -
Page 57: 2.11.7 Screen Coordinates
KayakDD - Digital Production Switcher 2.11.7 Screen Coordinates The KayakDD Transform Engine accommodates two different aspect ratios, 4 x 3 and 16 x 9, selectable via the Video Standards menu. In 4 x 3 mode, the screen is six units high and eight units wide. - Page 58 KayakDD - Digital Production Switcher For perspective calculations the factory default viewpoint places the viewer -16.67 screen units from the monitor screen surface (4 x 3 aspect ratio). In this case, moving a full screen image 16.67 screen units back behind the screen makes the picture appear half its normal size to the viewer.
-
Page 59: 2.11.8 Spin And Rotation Relationship
KayakDD - Digital Production Switcher 2.11.8 Spin and Rotation Relationship It is possible to use both Spin and Rotation at the same time in an effect. When both are used, the transforms are nested so that the values of one transform are applied after the previous transform values have been calculated. -
Page 60: 2.11.9 Path Control
KayakDD - Digital Production Switcher 2.11.9 Path Control 2.11.9.1 Paths Keyframes specify parameter values at specific times in an effect. Most of the duration of an effect, however, occurs between these keyframes. The KayakDD system interpolates parameter values between keyframes (in-betweening). The trajectory, or path, a manipulated picture travels between keyframes is determined by how these in-between values are interpolated. - Page 61 KayakDD - Digital Production Switcher The path concept can also be applied to functions that do not move a picture across the screen, like matte hue changes. For these functions, the rate of change of the parameter follows the same path types above. For example, an S-Linear hue rotation will accelerate and decelerate the speed of the hue change at the beginning and end of the keyframe.
-
Page 62: Figure 36 Path Vectors
(entry) and out of (exit) the keyframe. The path through KF2 is parallel to an imaginary line drawn between KF1 and KF3. Figure 36 Path Vectors 2.11.9.4 Vector Values Path vector setting values of ± 1.0 are available, same as the Thomson Grass Valley Kaleidoscope DPM. User Manual... -
Page 63: Tension Control
KayakDD - Digital Production Switcher 2.11.10 Tension Control In the example below, the keyframes comprise a right angle, so the TENSION control operates on a 45° line drawn through the keyframe. This line is referred to as the Tension Vector and is parallel to a line drawn between adjacent keyframes (Figure 37). The TENSION soft knob controls the length of the tension vector. -
Page 64: Figure 38 Tension Control Setting 1.0
KayakDD - Digital Production Switcher Figure 38 Tension Control Setting 1.0 In the example below, the TENSION control has been set to -1.0. This lengthens the Tension vector, causing the path through the middle keyframe to be longer and broader (Figure 39). The longer path will appear to make the image speed up through KF2 as it travels from KF1 to KF3. -
Page 65: Continuity Control
KayakDD - Digital Production Switcher 2.11.11 Continuity Control The continuity adjustment determines the angle of the path into and out of the keyframe. It is represented by a vector 90 degrees to the tension vector (Figure 40). The unmodified path shown is identical to the unmodified path of the other controls. Figure 40 Continuity Control Setting Zero With continuity set to 1.0, the entry path through the keyframe is pulled positively along... -
Page 66: Figure 42 Continuity Control Setting - 1.0
KayakDD - Digital Production Switcher With continuity set to -1.0, the paths between the keyframes become straight lines, accelerating into the keyframe and decelerating as it leaves the keyframe. Figure 42 Continuity Control Setting - 1.0 User Manual... -
Page 67: Bias Control
KayakDD - Digital Production Switcher 2.11.12 Bias Control The BIAS control determines whether the path will be pulled towards the previous or the following keyframe. With extreme settings, all of the biasing will occur either before or after KF2. With bias set to 0 (zero), the curve through the keyframe is gentle as shown in Figure 43. -
Page 68: Figure 44 Bias Control Setting 1.0
KayakDD - Digital Production Switcher With the bias set to 1.0, the path is pulled towards the following keyframe. Entry into and exit from the keyframe is a straight line from the previous keyframe, and the path of the effect travels completely through KF2 before turning towards KF3. Figure 44 Bias Control Setting 1.0 With the bias set to -1.0, the path is pulled towards the previous keyframe. -
Page 69: Sure Touch
KayakDD - Digital Production Switcher 2.11.13 Sure Touc “Sure Touch” changes th e way in which effects behave during recall and playback, roviding more control and flexibility. An effect can be safely recalled using two new modes which eliminate abrupt changes: hence the name “sure touch” is being used. When using a Sure Touch mode, the effect adapts itself to the switcher’s current state. - Page 70 KayakDD - Digital Production Switcher 2.11.13.2 Parallel Mode Example For example, suppose we have the following effect. • Effect 3: The channel is at 50% size and on screen in the upper left. It is moved off screen to the right. •...
- Page 71 KayakDD - Digital Production Switcher 2.11.13.4 Converge Mode Example Sure touch converge mode begins in the same way as parallel mode, but the effect converges to the absolute end state of the effect over the course of the effect. • Effect 2: Starts with the image centered and 30% size.
- Page 72 KayakDD - Digital Production Switcher 2.11.13.5 Comparing Parallel and Converge Modes Suppose we have an effect 5 which is as follows: • Effect 5: The channel is 5% size, off screen to the left, and moves in a sweeping path towards the lower left screen and finally ending in upper right at 25% size. •...
-
Page 73: Control Panels
KayakDD - Digital Production Switcher Control Panels Overview KayakDD-1 Panel • Sources are selected in the crossbar section on the left bottom side of the panel. • Basic key control, DPM/Ram/MP/E-MEM/MaKe selection and transition control are handled in the middle sections. •... -
Page 74: Overview Kayakdd-2 Panel
KayakDD - Digital Production Switcher Overview KayakDD-2 Panel • The top section of the panel with Keyer subpanel, Effect subpanel, Positioner subpanel, Display and gadgets buttons can be delegated to M/E or P/P, • Sources are selected in the M/E1 and P/P crossbar section on the left bottom side of the panel. -
Page 75: Background Bus Selection
KayakDD - Digital Production Switcher Background Bus Selection Example KayakDD-1 black Shift white Col1 Col2 Col3 black Shift white Col1 Col2 Col3 Figure 48 Subpanel Background Bus Selection Sources are selected on the PGM and PST row. Each row contains 15 source buttons and a Shift button. -
Page 76: Miscellaneous Bus Selection
KayakDD - Digital Production Switcher Miscellaneous Bus Selection Example KayakDD-1 The top row of this section is the bus delegation row. Since there are more than 16 uses to be delegated, a shift button is used to access the according delegations. Within the bu s delegation row the buttons can be unshifted and shifted in the same manner as the Backgr... - Page 77 KayakDD - Digital Production Switcher 3.4.1.4 Utility Selecting the Util button delegates the selection bus to be the Utility bus source selector. A crosspoint selected on the Utility bus can be used as a key signal. 3.4.1.5 Macro Selecting the Macro button delegates the selection bus to be a set of macro function buttons.
-
Page 78: Transition Control
KayakDD - Digital Production Switcher Transition Control 3.5.1 Overview Example KayakDD-1 Cam1 Key1 Key2 Key3 Key4 Enbl Prior Wipe Black Auto Trns AUto Figure 49 Subpanel Transition Control The transition control is performed in 3 sections. • Main Transition Subpanel with all main controls for transitions •... - Page 79 KayakDD - Digital Production Switcher 3.5.1.1 Main Transition Subpanel The transition controls are used to select the signal elements that will be involved in the transition (background or keys), define the type of transition, and perform the transition. 3.5.1.2 2nd Transition Subpanel These transition controls allow the operator to cut or mix the separate keyers with individual transition times.
-
Page 80: Transition Types
KayakDD - Digital Production Switcher 3.5.2 Transition Types The DPM, Add, Mix, Wipe, and User Tran transition type buttons select what type of transition will be used on the elements selected above for the next transition. Pressing these buttons does not change the appearance of the current output of the switcher. Only one transition type can be selected at a time. -
Page 81: Performing Transitions
KayakDD - Digital Production Switcher Performing Transitions 3.5.3 The Cut and Auto Trans buttons and the Transition Lever Arm are used to perform main transitions. After a transition completes, the background source selections flip- flop, readying the PST bus for the next source selection. The progress of a transition is indicated by the up and down arrows to the left of the lever arms. -
Page 82: Transition Preview
KayakDD - Digital Production Switcher 3.5.5 Transition Preview The transition preview feature allows a main transition to be previewed without affecting the program output. A transition preview cannot be performed if the Transition Lever Arm or main transition is off limit, if an auto transition is in progress, or when Preset Black has been selected. -
Page 83: Keyer Subpanel
KayakDD - Digital Production Switcher Keyer Subpanel Example KayakDD-1 Border Cursor Auto Fade Prior Inhibit Force Over Invert Mask Mask Freeze Freeze Self Matte Fill Split Chrom Preset Lin - - Lin a-Key Pattern Figure 50 Subpanel Keyers 3.6.1 Key 1...4 These buttons delegate the Keyers Panel and indicate which keyer is currently delegated to the Keyers Panel. -
Page 84: Key Types
KayakDD - Digital Production Switcher 3.6.2 Key Types Chrom Preset Lin - - Lin a-Key Pattern Figure 51 Key Type Buttons NOTE! The Add Lin and Lum Lin buttons allow selecting three different operational modes (see below). The buttons are lit as follows: Key function Add/Lin (Lin Key) Lum/Lin (Lum Key) -
Page 85: Preset Pattern Key
KayakDD - Digital Production Switcher 3.6.3 Preset Pattern Key The Preset Pattern button selects Preset Pattern, which cuts the hole in the background using an internal wipe pattern generator (or Utility Bus video), rather than a source’s key cut signal. Wipe pattern selection and other preset pattern adjustment such as softness of the preset pattern edge and size of the preset pattern shape can be adjusted in the Wipe menu. - Page 86 KayakDD - Digital Production Switcher 3.6.4.3 Self/Couple Key Button / Split/Couple Key Button (Software V622 and higher) When the Miscellaneous Bus is delegated to a keyer, a source selection always selects the Fill signal for the according keyer. The Self/Couple and Split/Couple buttons define the way in which the key signal is selected.
-
Page 87: Automatic Key Adjustment
KayakDD - Digital Production Switcher 3.6.5 Automatic Key Adjustment 3.6.5.1 Auto The Auto button serves to start various automatic functions in the different key modes. • In Add Key, the key control is switched to 1:1 transfer so that key signals e.g. from the caption generator are effective without change. -
Page 88: Fgd Fade
KayakDD - Digital Production Switcher 3.6.5.3 Border On The border function enables the user to provide the key signals with a border effect which can be adjusted individually. The border selected in the Keyer menu can be switched on with the Bord on button. For further information please refer to the sections Key Menu. -
Page 89: Mask Delegation Buttons
KayakDD - Digital Production Switcher 3.6.10 Mask Delegation Buttons Masks help clean up keys by defining picture areas that are prevented from keying (inhibit mask) or are forced to key (force mask). Separate inhibit and force masks may be set up for each keyer. Masks can be created by pattern generators, or can be based on a video source that has been clip and gain adjusted to create the mask control signal. -
Page 90: Positioner Subpanel
KayakDD - Digital Production Switcher Positioner Subpanel Example KayakDD-1 Keyer 3 Mask Wipe 2 Wipe Lock Wipe Wipe Lock Dele Cent gate Lock Lock Figure 52 Subpanel Positioner The Positioner Subpanel is used to control Positioner functions of the Transform Engine image and wipe pattern placement, size, angle, and other attributes in conjunction with the menus for the Transform Engine. -
Page 91: Positioner
KayakDD - Digital Production Switcher 3.7.1 Positioner The Kayak system Positioner is a precision three-axis device. Moving the Positioner towards or away from you controls the Y-axis, moving the Joystick left and right controls the X-axis, and rotating the Joystick controls the Z axis. Figure 53 Positioner 3.7.2... -
Page 92: Positioner Delegation
KayakDD - Digital Production Switcher 3.7.3 Positioner Delegation Because the Positioner is used for many different functions, multiple stages of delegation can be required to access and control a specific set of parameters. There are two ways of delegation: • Delegation by Menu: A selection in the menu delegates the according digipots parameters to the positioner, if the parameters are suitable to be positioner controlled. -
Page 93: Axis Lock Buttons
KayakDD - Digital Production Switcher 3.7.4 Axis Lock Buttons Activating the X, Y, and Z axis lock buttons individually or in any combination locks parameter changes for the selected axes. For example, if the X button is active while the Positioner is moved, then only Y and Z axis deflection can be performed. Axis locking also applies to centering functions. -
Page 94: Figure 54 Subpanel Effects
KayakDD - Digital Production Switcher Effects Subpanel Example KayakDD-1 Register 87 Additional Information Trans Store Bank Edit 7 << 9 >> E-MEM MaKe 4 < 5 || 6 > H TM TR TM TRAJ Auto Undo Recall <- VIEW -> Auto Pause Abort... -
Page 95: Effects Subpanel Dpm
KayakDD - Digital Production Switcher To perform the different tasks, the Effects Subpanel has 5 Delegation buttons: • store, edit, recall DPM effects • store, recall RAM Recorder stills, play RAM Recorder clips • external machine control • E-MEM store, edit, recall E-MEM registers •... - Page 96 KayakDD - Digital Production Switcher 3.8.1.2 Enabling and Disabling Bank Mode The Bank mode in the DPM panel permits access to a stored effect with a single key (hotkey). The bank number is the tens digit of the register. The hotkeys are the units digits of the register.
- Page 97 KayakDD - Digital Production Switcher 3.8.1.5 Display If no editing function or store function is selected, the “??” digit display of the subpanel may show the following indications: ???? No register is selected. The register is empty. Register 24 is selected. The register is empty. Register 24 is selected in Bank mode 2 (This corresponds to register 24).
- Page 98 KayakDD - Digital Production Switcher 3.8.1.6 Selecting a Register for Storing / Editing When you press the Store or the Edit button, the current register is prompted in the display. If you want to use this register just press the Enter button for confirmation or select first another register by entering a one- or two-digit number with the numeric keypad.
-
Page 99: Ram
KayakDD - Digital Production Switcher 3.8.2 In Ram Mode the Effects Subpanel serves to control the internal RAM Recorders. To select the desired RAM Recorder channel for control, either toggle through the channels by repeatedly pressing the Ram button, or hold down the Ram button and select the according channel number. - Page 100 KayakDD - Digital Production Switcher 3.8.2.1 Button Functions 7 << rewind stop, shows the input signal of the channel 9 >> fast forward 4 < reverse play 5 || still 6 > play single step back (when the channel is in still) decrease variable speed (when the channel is in variable speed) decrease shuttle speed (when the channel is in shuttle mode) variable speed...
- Page 101 KayakDD - Digital Production Switcher 3.8.2.3 Recalling a Still • Select a number • Press the Cut button to recall the still 3.8.2.4 Deleting a Still • Press the Clear button • Select a number • Press the Enter button to confirm 3.8.2.5 Hint Auto Recall...
-
Page 102: Mp (Media Player)
KayakDD - Digital Production Switcher 3.8.3 MP (Media Player) In MP Mode the Effects Subpanel serves for controlling external machines. This can be any type of device, which can be controlled by one of the machine control protocols, like video/audio tape machines, hard disk recorders, etc. To select the desired machine for control, either toggle through the available machines by repeatedly pressing the MP button, or hold down the MP button and select the desired machine number. - Page 103 KayakDD - Digital Production Switcher 3.8.3.2 Hint Bank No functionality in MP Mode. Auto Recall Cut/Pause Auto/Abort User Manual...
-
Page 104: E-Mem
KayakDD - Digital Production Switcher E-MEM In E-MEM mode the Effects subpanel serves for storing and recalling switcher statuses and processes. E-MEM thus permits storing and recalling individually prepared operating statuses and timelines with different background, key sources, borders, wipe pattern positioning, coloring etc. -
Page 105: Definition Of Terms
KayakDD - Digital Production Switcher 3.9.1 Definition of Terms SNAPSHOT (SNAP) is a switcher status or the status of a switcher part. KEYFRAME (KF) is a static switcher status within one timeline. TIMELINE (TIML) is a stored sequence of switcher statuses (keyframes). DISSOLVE is a dissolve between static switcher statuses. -
Page 106: Display
KayakDD - Digital Production Switcher 3.9.2 Display If no editing function or store function is selected, the “??” digit display of the subpanel may show the following indications: S N A P 0 5 S N T L 1 6 T L 1 6 – – – – T L B 1 6 T L 1 6 –... -
Page 107: Enabling And Disabling Bank Mode
KayakDD - Digital Production Switcher 3.9.3 Enabling and Disabling Bank Mode The Bank mode in the E-MEM panel permits access to a stored snapshot or timeline with a single key (hotkey). The bank number is the tens digit of the register. The hotkeys are the units digits of the register. -
Page 108: Selecting A Register During Recalling
KayakDD - Digital Production Switcher 3.9.5 Selecting a Register During Recalling When a snapshot or a timeline is recalled, there are several ways to select a corresponding register. If the register shown in the display is to be used, no further selection is necessary. To select the next used register, press the NEXT key. -
Page 109: Dissolve Functions Depending On Snapshot Or Timeline Preselection
KayakDD - Digital Production Switcher 3.9.8 Dissolve Functions Depending on Snapshot or Timeline Preselection Button Snapshot preselected Timeline preselected Dissolve to the snapshot in Auto Playing the timeline in the the time set with Trans dur. time set with Trans dur. Recall the snapshot Playing the timeline in the stored time. -
Page 110: Other Button Functions
KayakDD - Digital Production Switcher 3.9.9 Other Button Functions 3.9.9.1 Trans Dur Entry of the Auto transition duration. • Hold down the Trans dur button and press the E-MEM button. • Enter transition duration with numeric keypad. • The time is indicated in the FRAMES display. •... -
Page 111: Timeline Editing
KayakDD - Digital Production Switcher 3.9.10 Timeline Editing 3.9.10.1 Components of a Timeline A timeline is stored as a chain of keyframes with related transitions between the keyframes and other timeline objects (e.g. waits, triggers). Figure 55 Components of Timeline The dissolve between the keyframes is set to linear for default. - Page 112 KayakDD - Digital Production Switcher User Manual...
- Page 113 KayakDD - Digital Production Switcher User Manual...
- Page 114 KayakDD - Digital Production Switcher User Manual...
- Page 115 KayakDD - Digital Production Switcher Due to a limited number of buttons only some of the objects described above can be inserted and edited by the Effects su bpanel. For full timeline edit control please use the Sidepanel program. 3.9.10.2 Generating a Timeline To gen...
- Page 116 KayakDD - Digital Production Switcher 3.9.10.4 Functionali ty of the Buttons in the Edit Mode NOTE! Mo difications of an existing timeline always relate to the last timeline object indicated in the display. This object is the currently selected timeline object. Store Inserts a keyframe (with the related transition) in the timeline.
- Page 117 KayakDD - Digital Production Switcher 1 / <- The button permits a successive selectio n of the individual objects of a timeline. Changes the cursor position to the previous object. / VIEW th VIEW function enabled (button lights up) the sw itcher is switched to the status stor ed n the keyfram...
- Page 118 KayakDD - Digital Production Switcher 3.9.10.5 Changing the Hold Time of a Snapshot or Keyframe The following procedure is used: • Select Keyframe / Snapshot (button <- and ->) • Press HTM • Enter hold tim e with numeric keypad •...
- Page 119 KayakDD - Digital Production Switcher 3.9.10.9 Inserting a Loo p in an Existing Timeline The following procedure is used: • Select the timeline object after which the loop should start, or select transition before which the loop should start. • Press LOOP NOTE! The loop end is before the next ELOOP or LOOP object or the end of e timeline if no other loop follows.
-
Page 120: Make
KayakDD - Digital Production Switcher 3.10 MaKe In MaKe mode the Effects Subpanel serves for recording and playing Panel Macros. The total num ber of registers available for macros is 96. 3.10.1 Selecting a Register for Record Start rec rd start of a macro the register to be used for storage m ust be selected. -
Page 121: Recalling A Macro
KayakDD - Digital Production Switcher 3.10.2 Recalling a Macro For recalling a macro there are two b asic ways to select a corresponding register. 3.10.2.1 Register Mode If the register shown in the display is to be used, no further selection is necessary. •... -
Page 122: Menu Subpanel
KayakDD - Digital Production Switcher 3.11 Menu Subpanel Menu Home Lock Live Last Mode Menu Example KayakDD-1 User User User User Figure 56 Components of Timeline The Menu subpanel allows easy navigation in the menu display 3.11.1 Home Brings you to the top menu, allowing further navigation. 3.11.2 Menu Lock Locks the menu to the actual screen. -
Page 123: Last Menu
KayakDD - Digital Production Switcher 3.11.4 Last Menu Brings you back to the last menu, allowing to toggle between 2 Menus with one keystroke. 3.11.5 User1 – User4 User definable preferred menus. Select a menu, hold down the UserX button for two seconds. - Page 124 KayakDD - Digital Production Switcher User Manual...
-
Page 125: Menus Overview
KayakDD - Digital Production Switcher Menus Overview Introduc tion he KayakDD Menu panel provides capabilities that complement the operation of the ain panel. The Menu panel controls most system functions, and has additional controls not available on t he Main panel (for example, wipe pattern selection, chroma key manual con trols, and configuration menus). -
Page 126: Touch Screen
KayakDD - Digital Production Switcher 4.1.2 Touch Screen CAUTION ! Do not apply any sharp or rigid object (no pens or pencils) to the touch screen display surface. The Menu panel touch screen allows direct interaction with menu controls displayed on the screen. The screen is designed to work with a finger or other soft object. -
Page 127: Menu Screen Organization And Components
KayakDD - Digital Production Switcher 4.1.4 Menu Screen Organization and Components KayakDD system menus are context sensitive. They display different information and provide various types of controls depending on what area of the system is involved. Menus are organized into categories of related controls, which can b e directly selected with touch buttons located at the bottom left of the screen. -
Page 128: Data Pads And Touch Buttons
KayakDD - Digital Production Switcher 4.1.5 Data Pads and Touch Buttons The KayakDD system menus make extensive use of data pads. Data pads are active areas on the screen that display a summary of the status of an object, and when touched bring up additional controls and information for that object. -
Page 129: Menu Title
KayakDD - Digital Production Switcher 4.1.6 Menu Title The menu title is identical in all the KayakDD system menus. The left portion of the menu title identifies the name of the current menu. The selected subcategory or specific mode is also displayed when appropriate. 4.1.7 Menu Category Selection Menu category selection touch buttons are arranged along the bottom left of the... -
Page 130: Additional Function Buttons
KayakDD - Digital Production Switcher 4.1.11 Additional Function Buttons In the Keyer menu, some functions are available for all delegated objec ts and their odes. Touch buttons for these functions can be located outside the Parameter Control area. .1.12 Menu Access Touch Button In some cases it is handy to jump to a different menu and delegation to adjust related controls. -
Page 131: Alphanumeric Keypad
KayakDD - Digital Production Switcher 4.1.14 Alphanumeric Keypad Touching the pad for a text parameter brings up an alphanumeric keypad. Figure 61 Alphanumeric Key Pad User Manual... -
Page 132: Menu And Panel Interactions
KayakDD - Digital Production Switcher 4.1.15 Menu and Panel Interactions The Main panel and the Menu panel graphical user interface operate as a single control surface, and so these components interact with one another. Many controls on e Main panel are duplicated on the Menu panel screens. For example, a keyer can be set to use a Chroma key with a Main panel button or a Menu touch button. -
Page 133: Menu Summaries
KayakDD - Digital Production Switcher Menu Summaries n the remainder of this chapter, figures of sev eral KayakDD system menus are resented to familiarize you with various screen layouts. Cross references are provided for more detailed information. Because each menu controls different aspects of the KayakDD system, the screen parameters and organization will vary, but the basic principles previously described are followed. -
Page 134: Home Menu
KayakDD - Digital Production Switcher Home Menu The Home menu is used to access the KayakDD system menus. Touch the button of the desired menu type to go directly to that menu. If multiple menus are available for that type, the last selected menu will be displayed. Figure 62 Home Menu When controlling Kayak menu via mouse on PS/2 connector, a 'right mouse click' can... -
Page 135: Home Menu Buttons
KayakDD - Digital Production Switcher 5.1.1 Home Menu Buttons Some buttons on the Main control pane l will open a specific menu automatically when ressed. For example, selecting the Wipe button in the Transition subpanel will open the Wipe menu. The Home menu is used to navigate manually to the desired menu. -
Page 136: Figure 63 Home Menu - Recall Preset
KayakDD - Digital Production Switcher 5.1.1.8 Color Corr Menus for Color Correction adjustment 5.1.1.9 enus for adjustment of the DPM (Transform Engines) channels (optional) 5.1.1.10 RAM Recor Menus for adjustment of the RAM Recorder (optional) 5.1.1.11 E-MEM Menus for E-MEM editing 5.1.1.12 Media Player Menus for media player control... -
Page 137: Install Menus
KayakDD - Digital Production Switcher Install Menus Install menu contains system setups. Most of them are only setups during ins llation. Some more advanced system functions are not yet support ed by the menu. If you want to set these functions now, we ad vice to run the Sidepanel ap lication on a separate personal computer. - Page 138 KayakDD - Digital Production Switcher 5.2.1.2 Joystick Calibration ress Start Calibr. button and follow the instructions: • Move joystick to the bottom right corner , twist to left stop and press OK • Let joystick return to the center position and press OK •...
-
Page 139: Install - E-Box
KayakDD - Digital Production Switcher 5.2.2 Install – E-Box Figure 65 Install – E-Box Setup Dialog fter touch the E-Box button in th e Home menu a new dialog appears with the following setup items: • Genlock • Editor • •... -
Page 140: Figure 66 Install - Genlock Menu
KayakDD - Digital Production Switcher 5.2.2.1 Install - Gen lock Menu igure 66 Install - Ge nlock Menu • Button Video Std. Select the desired standard • Button GL Input Type Select desired genlock input type Analog or Digital • Button GL Dig Inp Src If Digital as genlock input type selected the reference source can be selected When source signals are fed into the switcher, it must be ensured that the time... -
Page 141: Figure 67 Install - Genlock Menu With Asynchronous Buses
KayakDD - Digital Production Switcher When adjusting the genlock phase, all sources have to be successively checked for their timing by switching up on the bus Aux1. Select the inputs with the GL Dig Inp rc button. Phase, the phase relation of the mixer can be shifted +15/–15 lines in comparison with the genlock reference signal. - Page 142 KayakDD - Digital Production Switcher 5.2.2.2 How to Adjust the Genlock Phase • Make sure that the switcher is set to the same standard as the external reference and the sources. • The video standard of the switcher can be modified by selecting the parameter Video Standard in the Install E-Box menu.
-
Page 143: Figure 68 Install - Editor Menu
KayakDD - Digital Production Switcher 5.2.2.3 Install - Editor Menu Figure 68 Install - Editor Menu The Editor menu permits to configure the serial ports 1 … 6. • Select Port # (Port 1 –6) • Select protocol type • some remote protocols... -
Page 144: Figure 69 Install - Editor Menu
KayakDD - Digital Production Switcher Special Editor Protocol BVE-2000 Options: . Wipe Mapping: “GVG Pattern Numbers”, “XtenDD Pattern Numbers ” DSK Support: “BVE2000”, “default ” 3. DSK Mapping: “to Key4”, “to Key3” Default settings are underlined! igure 69 Install - Editor Menu User Manual... -
Page 145: Figure 70 Install - Gpi Menu
KayakDD - Digital Production Switcher 5.2.2.4 Install - GPI Menu Figure 70 Install - GPI Menu • Select Modify to determine wheatear the rising or falling edge of the arriving signal GPI1 ... 8 is to be used. NOTE! A GPI is considered Active when current flows through the LED of the opto-coupler at the GPI input. -
Page 146: Figure 71 Install - Gpo Menu
KayakDD - Digital Production Switcher 5.2.2.5 Install - GPO Menu Figure 71 Install - GPO Menu Select Modify … to change the parameters: • Shape: Pulse / Static • Idle State: open / closed • Pulse Duration: Enter the preroll time in frames (max 255 frames) User Manual... -
Page 147: Figure 72 Install - Misc Menu
KayakDD - Digital Production Switcher 5.2.2.6 Install - Misc Menu Figure 72 Install - Misc Menu • Pressing Store Presets the panel user settings are saved. To recall the settings use the Recall Preset button in the Home menu. User Manual... -
Page 148: Figure 73 Install - Machine Control Menu
KayakDD - Digital Production Switcher 5.2.2.7 Install – Ma ine Control Figure 7 Install – Machine Control Menu • to four external machines (VTR, DiscRecorders, LaserDiskPlayers) can b nected via Port 1…4. The menu serves to set the resp ective port numbers and protocol types. -
Page 149: Figure 74 Vdcp Protocol Options
KayakDD - Digital Production Switcher Special Machine Control Options: VDCP Protocol Options: Figure 74 VDCP Protocol Options 1. VTR 1 – 4: Use this options to select the disk servers local video ports 2. Cue mode: “by jog command”, “default cue” When a clip is cued (“Go To Timecode”, “Go To MarkIn/MarkOut”) most disk servers are (re)initializing their local video port. -
Page 150: Figure 75 Odetics Protocol Options
KayakDD - Digital Production Switcher ODETICS Protocol Options: Figure 75 ODETICS Protocol Options 1. Clip select: mode1 (cue up ), default (in preset) If clip selection with ODETICS doesn’t work on default, use the “mode 1 (cue up)” option 2. Show duration: supported , not supported If the connected disk server supports an ODETICS protocol variant that supports clip duration requests, use the option “supported”. -
Page 151: Figure 76 Bvw-75 Protocol Options
KayakDD - Digital Production Switcher BVW-75 Protocol Options: Figure 76 BVW-75 Protocol Options 1. Record Inihibit: “on” / “off” Prevents deleting already recorded material. The Rec command will be switched to a Play command. 2. Synch.Play: “on” / “off” Synchronized the Play command for 4 machines. This option is needed to synchronize all 4 machines (or these machines which have switched on this option). -
Page 152: Figure 77 Odetics Protocol Options
KayakDD - Digital Production Switcher AMP Protocol Options: Figure 77 ODETICS Protocol Options 1. Variable speed: “m-series”, “default” If a M-Series server cannot be controlled by using the Variable Speed controls with in the Sidepanel PC or the KayakDD panel menu, select the option “m-series”. -
Page 153: Figure 78 Install - Vtr Emulation
KayakDD - Digital Production Switcher 5.2.2.8 Install – VTR Emulation Figure 78 Install – VTR Emulation VTR Emulation provides a mechanism to control internal VTR based switcher components by external editors using the BVW75 protocol. VTR based components in KayakDD are TiM/E-Memo (Master, PP, ME1) and RAM Recorder (Channel 1 - 4). It is possible to control up to 5 component instances simultaneously. -
Page 154: Figure 79 Install - Select Vtr Emulation
KayakDD - Digital Production Switcher Figure 79 Install – Select VTR Emulation Figure 80 Install – Select VTR Emulation Devices User Manual... -
Page 155: System Setup Menu
KayakDD - Digital Production Switcher 5.2.3 System Setup Menu he System Setup menus can be selected via Home – Install – System menu Figure 81 System Setup Dialog After touching the System button a new dialog appears with the following setup items: •... -
Page 156: Figure 82 Device Control Menu
KayakDD - Digital Production Switcher 5.2.3.1 Device Control Menu The Device Control menu shows on the left all in the network connected devices (Kayak-MF = Mainframe, Kayak-CP = Control Panel) with IP address and software version installed. On the right details of the selected device are listed. Figure 82 Device Control Menu •... -
Page 157: Figure 83 Device Control Menu With Software Update Dialog
KayakDD - Digital Production Switcher 5.2.3.2 Software Update Plug-in the memory stick in the control panel's USB 2 or USB 4 slot. In case that your stick doesn't fit (mechanically) in USB4 slot, please use the enclosed extension cable as adapter. If the control panel software has recognized a valid Kayak release version on the memory stick, the Device Control menu is called automatically. -
Page 158: Figure 84 Start Installation Procedure
KayakDD - Digital Production Switcher • After pressing the Start Install button the available versions are shown. Select the version to install. The installation procedure starts. F igure 84 Start Installation Procedure • The progress of the installation procedure is displayed in percent. The currently installed file (file name) is shown as well. -
Page 159: Figure 86 Cancel Installation Procedure
KayakDD - Digital Production Switcher Figure 86 Cancel Installation Procedure • After canceling the installation, the Status "inst. failed" is displayed. • The respective partition can not be used and not be activated. • After finishing the installation procedure, the system ask you “Do you want to reset the device now?”... - Page 160 KayakDD - Digital Production Switcher Important NOTE! • Do not cancel the installation by switching off the devices! • Do not pull out the memory stick during the installation procedure! • Cancel the installation with the Abort Install button only! •...
-
Page 161: Figure 88 Cpld Update
KayakDD - Digital Production Switcher 5.2.3.3 Updating the CPLD Firmware At the end of each installation process the system checks whether an CPLD update is necessary. This is done by comparing the versions of the installed CPLD firmware files on flash w the current CPLD version tags stored within an EEPROM of each ardware board. -
Page 162: Figure 89 Configure Devices
KayakDD - Digital Production Switcher 5.2.3.4 Configure Device Menu Figure 89 Configure Devices With the menu "Configure Device" the following configuration data of a device can be changed: • The date and time of the selected device (Set Date) • The date and time of all connected devices (Set all Data) •... -
Page 163: Figure 90 Reset/Clear/Check Devices Menu
KayakDD - Digital Production Switcher 5.2.3.5 Reset / Che / Clear Device Menu he menu „Reset/Check/Clear Device“ should be used by qualified users only! The following functions can be configured: ouch Reset Device to Start/Restart/Check the following devices: • Reset to Kernel •... -
Page 164: Licenses Menu
KayakDD - Digital Production Switcher 5.2.4 Licenses Menu he Licenses menu can be selected via Home – Install – System menu Figure 9 1 Install Licenses Menu User Manual... - Page 165 KayakDD - Digital Production Switcher 5.2.4.1 License Handling with USB Stick (recommended) • Copy the file “sp_license.txt” directly of your USB Stick. • Insert the USB Stick at the control panel USB port 2 or 4 and enter the “Install / System licenses / Licenses”...
-
Page 166: Diagnosis Menu
KayakDD - Digital Production Switcher 5.2.5 Diagnosis Menu The Diagnosis menu can be selected via Home – Install – System menu The Diagnosis system shows all internal Error Messages from the selected devices. utton Diagn Enable enables / disable s the diagnosis in the attached control panel or in the co nnected mainframe. -
Page 167: Config Menus
KayakDD - Digital Production Switcher Config Menus After touching the Config button in the Home menu a new dialog appears with the following configuration items: • Application Control • E-Box Configuration (GPI, GPO, …) • Panel Assignment All configuration setups are part of an application and can be stored and recalled as an application. -
Page 168: Figure 94 Config - Application Control - Edit Devices
KayakDD - Digital Production Switcher The Application menu shows a list of the available applications of the connected Mainframe. NOTE! If no memory stick is plugged in, the buttons are not active (light gray). Op rating buttons: • Save button, saves the current application •... -
Page 169: Figure 95 Config - Application Control - Change Devices
KayakDD - Digital Production Switcher Figure 95 Config – Application Control – Change Devices User Manual... -
Page 170: E-Box Configurations
KayakDD - Digital Production Switcher 5.3.2 E-Box Co nfigurations After touching the E-Box button in the Config menu a new dialog appears with the following configuration items: • • • Key Couple • • • • Misc Figure 96 Config – E-Box Configuration User Manual... -
Page 171: Figure 97 Config - Gpi Menu
KayakDD - Digital Production Switcher 5.3.2.1 Config - GPI Menu Figure 97 Config - GPI Menu User Manual... -
Page 172: Figure 98 Config - Gpi Functions
KayakDD - Digital Production Switcher Touching the Modify button calls a pop–up lists. The selected function will be triggered on the edge defin ed in Install menu. Figure 98 Config - GPI Functions User Manual... -
Page 173: Figure 99 Config - Gpo Menu
KayakDD - Digital Production Switcher 5.3.2.2 Config - GPO /Tally Menu Figure 99 Config - GPO Menu Touching the Modify button calls a sub-menu. In this menu the tally mode of the selected GPO channel 1 – 32 can be configured. Figure 100 Config - GPO / Tally Mode Selection User Manual... -
Page 174: Figure 101 Config - Key Couple Menu
KayakDD - Digital Production Switcher 5.3.2.3 Config - Key Couple Menu igure 101 Config - Key Couple Menu ouching the Modify button calls a sub-menu. In this menu the coupled key to the elected fill source can be configured. Figure 102 Config –... -
Page 175: Figure 103 Config - Aux Menu
KayakDD - Digital Production Switcher 5.3.2.4 Config - Aux Menu Figure 103 Config - Aux Menu he Config - Aux menu serves to Aux bus delegation and Title configuration. The safe Title adjusting elements enable fading–in different auxiliary lines (Box , Cross) into each individual Aux bus. -
Page 176: Figure 104 Config - M/E Menu
KayakDD - Digital Production Switcher 5.3.2.5 Config - M/E Menu Figure 104 Config – M/E Menu The Config – M/E menu serves to configure the cleanfeed layer. Figure 105 Config – Cleanfeed Layer User Manual... -
Page 177: Figure 106 Config - Dpm Menu
KayakDD - Digital Production Switcher 5.3.2.6 Config - DPM Menu igure 106 Config – DPM Menu The production crop settings allow you to adjust an overall crop for the DPM channels. dditional cropping per channel is possible in the DPM/Transform/Crop menu. User Manual... -
Page 178: Figure 107 Config - Dpm Menu
KayakDD - Digital Production Switcher 5.3.2.7 Config - Mis c Menu Figure 107 Config – DPM Menu Format Select TY size standard 4:3 or 16:9 Field Dominance The button can be used to switch over between Any Field, Field1 and Field2. The setting concerns the switching of the crosspoints on all busses, the start of auto transitions, switching with Cut and the recalling of snapshots and timelines. -
Page 179: Config - Panel Assignment
KayakDD - Digital Production Switcher 5.3.3 Config – P anel Assignment Figure 108 Config – Panel Assignment Menu Th Panel Assign menu serves to assign the hardware inputs and internal sources to the source buttons of the KayakDD control panel. User Manual... -
Page 180: Figure 109 Config - Panel Assignment - Bus Row Selection Menu
KayakDD - Digital Production Switcher All Bus Rows pre-selects the panel’s bus rows for which the Input Assignment should be changed. Figure 109 Config – Panel Assignment - Bus Row Selection Menu User Manual... -
Page 181: Figure 110 Config - Panel Assignment - Reset
KayakDD - Digital Production Switcher Pressing Reset Assignment opens an dialog with some pre-defined input assignments: Figure 110 Config – Panel Assignment – Reset • Like Bgnd copies the input assignment from the Bgnd bus row into the key bus row (only for key buses) •... -
Page 182: Personal Settings Menus
KayakDD - Digital Production Switcher Personal Settings Menus The menu permits personality settings for the panel. Figure 111 Personal Settings Menu igi Sp. Digipot Speed Sensitivity of the digip ots can be adjusted to personal needs. User Manual... -
Page 183: Figure 112 Personal Settings - Xbar Tally Mode
KayakDD - Digital Production Switcher Touc hing the XBar Tally button calls a sub-menu. In this menu the tally mode of cros sbar buttons can be configured. Figure 112 Personal Settings – XBar Tally Mode Touching the Macro Attachment Play Mode button calls a sub-menu. In this menu the Play mode of the selected macro can be configured. -
Page 184: Wipes Menus
KayakDD - Digital Production Switcher Wipes Menus The Wipe menus allow selection and modification of wipe patterns. The Wipe menus, like the Keyer menus, have a delegation popup button In the upper left area, the butto ght to it contains a pattern touch pad, which displays the currently selected shape. The Wi pe button in the Transition subpanel is a DPOP button (double-pressing it... -
Page 185: Point Of Use
KayakDD - Digital Production Switcher 5.5.1 Point of Use Only the controls which affect the pattern generator itself are adjusted in the wipe menu. Other parameters like size, border, direction, which are different per point of u are set in the according ME or Keyer menus. For operating simplicity, you may decide to use the Complex wipe generators (Wipe1 and Wipe2) for main transitions, and the simpler Box and Keyer wipe pattern... -
Page 186: Figure 115 Typical Wipe Switching Matrix And Point Of Use
KayakDD - Digital Production Switcher Figure 115 Typical Wipe Switching Matrix and Point of Use User Manual... -
Page 187: Pattern Selection Menu
KayakDD - Digital Production Switcher 5.5.2 Pattern Selection Menu Touching the Pattern touch pad brings up the palette of wipe shapes available (Figure elow). Selecting a pattern will change the shape of the pa ttern in the Pattern touch pad to indicate the new pattern. The available patterns are grouped in 4 submenus: •... -
Page 188: Wipe Pattern Number Code
KayakDD - Digital Production Switcher 5.5.3 Wipe Patt ern Number Code The availabl e wipe patterns and their assigned codes are included in the figures below. Codes are n amed according to ANSI/SMPTE 258M. Code names in [xx] are GVG pattern numbers! 5.5.3.1 Page 1 –... - Page 189 KayakDD - Digital Production Switcher Page 3 – Stars and ZigZag Respective Code Number: [40] [41] [27] [42] [43] [44] [59] [15] [18] [25] [26] [36] [35] 5.5.3.3 Page 4 – Matrix Wipes (in preparation) Respective Code Number: [51] [48] [49] [19] [50]...
-
Page 190: Wipe Modifier
KayakDD - Digital Production Switcher 5.5.4 Wipe Modifier Using the modifiers like H/V Multi, Mix/Ratio/… or Mod/Lock/… the standard wipe patterns ca be changed and new patterns can be created. In dependen e of the chosen Modifier the me nu changed. The soft knobs on the left of e screen are used to control the various parameters. -
Page 191: Figure 118 Wipe Menu - Modifier 3
KayakDD - Digital Production Switcher Figure 118 Wipe Menu – Modifier 3 Mix, Ratio, … – Allows control of the pattern mix function. Patterns may be mixed or non-add mixed with the Mix Type control data pad. The ratio may be chosen by touching the Ratio data pad to bring up the numeric keypad. -
Page 192: Keyers Menus
KayakDD - Digital Production Switcher Keyers Menus The Keyer menu controls are organized into several subcategories, each with different menu selection based on the type of key. These menus are accessed by touching the Keyer button in the Home menu. Keyer selections like key type, Key Invert, Matte Fill, can be made for any keyer from the Main panel using the Keyers subpane l. -
Page 193: Key Mode
KayakDD - Digital Production Switcher 5.6.1 Key Mode Figure 121 Keyer Menu – Mode Selection The Mode menu allows you to select the type of key for any of the four keyers in each /E or P/P. Touching the Mode subcategory button brings up the Keyer Mode menu. Touch the keyer data pad you wish to select, then select the Mode from one the selections described below. -
Page 194: Keyer Priority Misc Menu
KayakDD - Digital Production Switcher 5.6.2 Keyer Priority Misc Menu Touching the Priority Misc subcategory button takes you to the Priority menu (Figure below). The Priority menu is used to change the stacking order of the keys. The parameter control area on the right has two columns, labeled Current and Next. The stacking order of the selected item in a column is controlled with the Top, Move Up, Move Down, and Bottom touch buttons. -
Page 195: Keyer Mask Menu
KayakDD - Digital Production Switcher 5.6.3 Keyer Mask Menu Touching the Mask subcategory button takes you to the Keyer Mask Point of Use menu (Figure below). The Mask menu allows selection and control of the keyer mask(s). Key masking defines areas that are protected from keying (Inhibit) or always key (Force). -
Page 196: Figure 124 Keyer Menu - Mask Source
KayakDD - Digital Production Switcher 5.6.3.1 Mask Sourc s For either type of selected mask (Force or Inhibit) five different mask sources are available and will appear as popup selection when you press the Mask Source button. Only one mask source can be selected at a time. Figure 124 Keyer Menu –... -
Page 197: Figure 126 Keyer Menu - Wipe Mask
KayakDD - Digital Production Switcher 5.6.3.1.2 Keyer Wipe A Keyer Wipe mask source allows selection of a wipe pattern from the dedicated pattern generator for the keyer. Touch the Patt. Sel/Adj button in the menu to bring up e wipe pattern selections available (Figure below). Select a pattern from the display. selected pattern will a ppear in the Patt. -
Page 198: Figure 127 Keyer Menu - Utility Bus Mask
KayakDD - Digital Production Switcher 5.6.3.1.4 Utility Bus The Utility Bus mask sources originate from the utility bus in the chosen M/E. Typically these are used to bring in garbage masks from a Still Store or some external device. Figure 127 Keyer Menu – Utility Bus Mask 5.6.3.1.5 Mask On Button The Mask may be turned on or off by selecting the Mask On button. -
Page 199: Keyer Mattes Menu
KayakDD - Digital Production Switcher 5.6.4 Keyer Mattes Menu The Matte menus give you control over matte color, type, and appearance. There are no local matte controls on the Main panel; all matte adjustments are made in the menus. The Popup delegation button in the top left of the menu allows you to select the mattes of the different keyers. -
Page 200: Chroma Key
KayakDD - Digital Production Switcher 5.6.5 Chroma K When a chroma key is selected, the menu (Figure 129) will display a summary of all chroma key parameter values at the same time. The parameter groups should be adjusted in the following order: 1. -
Page 201: Preset Pattern
KayakDD - Digital Production Switcher 5.6.6 Preset Pattern A preset pattern uses a wipe pattern generator, rather than an incoming key cut signal to define the hole cut in the background. When Preset Pattern is chosen as the keyer mode, the menu will appear as in Figure below. When the Pattern data pad is touched, the Wipe menu (see Wipe Menus) will come up to allow pattern selection. -
Page 202: Background Mattes Menus
KayakDD - Digital Production Switcher Background Mattes Menus When Bgnd Mattes is selected, the menu displays two panes for control of Color BGD 1, Color BGD 2 and Color BGD 3 , including base and wash colors, wash direction and ffset, and wash edge texture attributes. -
Page 203: Figure 132 Background Mattes Menu - Wash
KayakDD - Digital Production Switcher Touch the Color Output pad, then select the desired color output: Figure 132 Background Mattes Menu - Wash User Manual... -
Page 204: M/E Menus
KayakDD - Digital Production Switcher M/E Men s menu controls are organized into two subcategories, each with different menu sele ction based on the ty pe of transition. These menus are accessed by touching the M/E button in the Home menu. Typical selections are Pattern Source, Pattern Direction, Border and Softness. -
Page 205: Figure 134 M/E Menu - Border Matte
KayakDD - Digital Production Switcher Figure 134 M/E Menu – Border Matte User Manual... -
Page 206: Yuv Bus Correction Menus
KayakDD - Digital Production Switcher YUV Bus Correction Menus The YUV Correc tion menu serves to adjust brightness, contrast, saturation and color balance related to the bus. Figure 135 YUV Bus Correction Menu The correction can be made in the following buses: •... -
Page 207: Rgb Input Correction Menus
KayakDD - Digital Production Switcher 5.10 RGB Inp ut Corre tion Menus GB Input Color Correction is a software enabled feature that converts the video ignal on a particular video bus from color difference format to RGB (red, green, blue) olor component format, applies separate offset, gain, and gamma to each RGB omponent, then converts from RGB back to color difference (Y, Cb, Cr) format. - Page 208 KayakDD - Digital Production Switcher When the Reset button is touched, the following modes can be selected: • Reset Color • Reset Input • Reset all Inputs hen one of the Red, Green, or Blue color component's button is selected, the knobs for Gain, Lift, and Gamma are delegated for the specific component.
-
Page 209: Dpm (Transform Engines) Menus
KayakDD - Digital Production Switcher 5.11 DPM (Transform Engines) Menus The KayakDD system supports one DPM channel per keyer, that means a KayakDD-1 may have up to 4 DPM channels, a KayakDD-2 up to 8 DPM channels. For units currently shipping the DPM channel for the first keyer per ME-bank is standard, the remaining 3 channels per ME are options. -
Page 210: Misc. Setup Menu
KayakDD - Digital Production Switcher 5.11.2 Misc. Setup Menu Figure 137 DPM – Misc - Setup Menu This menu is the start menu for building an effect. In the top row you select which channels should be part of the effect. Channels that are not included will not be stored and will not be affected when the register is recalled. -
Page 211: Figure 138 Key Selection For Dpm Channels
KayakDD - Digital Production Switcher In the Key – Pr iority – Misc menu you can switch on DPM effect loop for the chosen eyers (Loop On ) and select the flipside of an effect (Use Src). This information is not part of a DPM effect and should be set manually or recalled by an E-MEM recall (like the keyer parameter settings). -
Page 212: Drop Shadow
KayakDD - Digital Production Switcher 5.11.3 Drop Shadow he Drop Shadow feature is turned on with the Drop Shadow button. When turned on, soft knob controls become available on the right. Different soft knob controls appear, depending on which data pad has been selected in that pane. The current parameter names and values are displayed on each data pad. -
Page 213: Figure 140 Dpm - Misc - Drop Shadow 2
KayakDD - Digital Production Switcher When Shadow Color is selected soft knobs for Hue, Saturation, and Brightness are availa ble. Figure 140 DPM – Misc – Drop Shadow 2 Drop Shadow Controls The DPM button near the 3D positioner delegates it to drop shadow control. The 3D positioner X and Y axis adjust the drop shadow offset from the prima ry image and the... -
Page 214: Figure 141 Dpm - Misc - Shadow Crop
KayakDD - Digital Production Switcher 5.11.3.1 Shadow Crop The Shadow Crop controls are used to adjust shadow cropping and edge softness. he current parameter names and values are displayed on the data pads. Figure 141 DPM – Misc – Shadow Crop When Use Image Crop is selected, crop values of the shadow match the crop values used for the primary image. -
Page 215: Transform Menus
KayakDD - Digital Production Switcher 5.11.4 Transform Menus Figure 142 DPM – Key 1 -Transform Menu All parameter manipulations for the DPM channels are performed in the variou ansform menus. The main gr ps Locate, Skew, and Crop are selecte d in the bottom right corner of the creen. -
Page 216: Figure 143 Dpm - Edit Gang Selection
KayakDD - Digital Production Switcher 5.11.4.1 Edit Gang The Edit Gang button shows you for which channels parameters are adjusted in parallel. If more than one channel is selected, the values of the top channel are displayed. Figure 143 DPM – Edit Gang Selection You can select all Keyer channels which are included in this effect. -
Page 217: Figure 145 Dpm - Spin Selection
KayakDD - Digital Production Switcher 5.11.4.3 X, Y, Z Spin For the subgroup Spin the path type can be different for the X,Y, and Z spin igure 145 DPM – Spin Selection To adjust the parameters for Tension, Continuity, and Bias press the relevant button in the path control section. -
Page 218: Figure 147 Dpm - Key 1 - Transform - Crop
KayakDD - Digital Production Switcher 5.11.4.4 Crop Figure 147 DPM – Key 1 – Transform - Crop The menu serves to trim the image. In addition the softness of the edges can be adjusted and the image can be mirrored horizontal and vertical with Reverse Front and Reverse Back. -
Page 219: Timeline Menus
KayakDD - Digital Production Switcher 5.11.5 Timeline Menus he timeline menus consist of two main groups, Save/Recall and Edit. 5.11.5.1 Save/Recall Menu Figure 148 DPM – Timeline – Save/Recall Menu This menu gives you an overview of all 100 registers. You can select any register for recall, edit or modify. -
Page 220: Figure 149 Dpm - Timeline - Save/Discard
KayakDD - Digital Production Switcher 5.11.5.2 Save / Discard This button is only enabled when you have modified the current effect in the Timeline/ it menu. Once you have made changes the pop-up menu shown below allows you to either save the changes permanently or discard them. -
Page 221: Figure 150 Dpm - Timeline - Modify
KayakDD - Digital Production Switcher 5.11.5.4 Modify The modify button allows you to rename or to delete the selected register. Figure 150 DPM – Timeline – Modify User Manual... -
Page 222: Figure 151 Dpm - Timeline - Video Sources
KayakDD - Digital Production Switcher 5.11.5.5 Use Priority If the Use Prio. button is activated, the key priority of the included keyers will be set by the DPM effect on a keyframe by keyframe base. If such a DPM register is recalled by an E-MEM register, any priority information stored in the E-MEM register will be ignored. -
Page 223: Figure 152 Dpm - Timeline - Video Sources
KayakDD - Digital Production Switcher 5.11.5.7 Loop This function allows you to put the selected effect in an endless loop: Loop: Run from begin to end. ounce: Run begin to end, then reverse to begin, etc. Figure 152 DPM – Timeline – Video Sources 5.11.5.8 Protect rotects the register against save, delete or rename. -
Page 224: Show Timeline Menu
KayakDD - Digital Production Switcher 5.11.6 Show Timeline Menu Figure 153 DPM – Timeline – Edit Menu The Edit menu allows you to insert/modify/delete keyframes for the selected channels for the current effect. User Manual... -
Page 225: Figure 154 Dpm - Timeline - Delegation Selection
KayakDD - Digital Production Switcher 5.11.6.1 Delegation The Delegation button shows you for which channels the actions are executed. Figure 154 DPM – Timeline – Delegation Selection You can select all Keyer channels which are included in this effect. The last selected channel is the displayed one. - Page 226 KayakDD - Digital Production Switcher 5.11.6.2 Sure Touch “Sure Touch” changes the way in which effects behave during recall and playback, providing more control and flexibility. An effect can be safely recalled using two new modes which eliminate abrupt changes: hence the name “sure touch” is being used. When using a Sure Touch mode, the effect adapts itself to the switcher’s current state.
-
Page 227: Figure 155 Dpm - Timeline - Direct Mode Buttons
KayakDD - Digital Production Switcher 5.11.6.3 Cursor Control The top row buttons Go To, Begin, Rev Pl ay, Pause, Play, and End let you run the urrent effect or position the cursor to a specific keyframe. The effect position can also be adjusted by the Eff . -
Page 228: Figure 157 Dpm - Timeline - Modify Keyframe
KayakDD - Digital Production Switcher 5.11.6.5 Modify Keyframe Figure 157 DPM – Timeline – Modify Keyframe NOTE! When the cursor is at a keyframe, the parameters of this keyframe will be modified to the current values, When the cursor is between keyframes, modify inserts a keyframe at the current position without adding any time. -
Page 229: Figure 159 Dpm - Timeline - Delete Buttons
KayakDD - Digital Production Switcher 5.11.6.7 Delete Keyframe Figure 159 DPM – Timeline – Delete Buttons OTE! hen deleting a keyframe its duration is also deleted causing effect duration to change. 5.11.6.8 Keyframe D uration Figure 160 DPM – Timeline – Duration / Start Time Buttons NOTE! The Keyframe Duration button is NOT used to change the keyframe duration of the current keyframe. - Page 230 KayakDD - Digital Production Switcher 5.11.6.9 Constant D uration Th function of this button is the same in both modes. If selected, inserting or deleting will not change the total duration of the effect. Inserting a keyframe while the cursor i at a keyframe position, the new keyframe will add the time specified by Keyfra Duration, but the total effect duration will be rescaled...
-
Page 231: Specfx Kurl Menu
KayakDD - Digital Production Switcher 5.11.7 SpecFX Kurl Menu he Kurl effects are grouped into modes, each of which has its own set of menu panes and related soft knob controls. The Kurl modes are: • Page Turn • Page Roll. •... -
Page 232: Figure 162 Dpm - Specfx - Kurl Mode Selection
KayakDD - Digital Production Switcher 5.11.7.1 Selecting the Ku rl Mode Kurl Mode button allows you to select different operating modes. Figure 162 DPM – SpecFx – Kurl Mode Selection User Manual... -
Page 233: Figure 163 Dpm - Specfx - Kurl Menu (Page Turn Mode)
KayakDD - Digital Production Switcher 5.11.7.2 Page Turn / Roll Mode F igure 163 DPM – SpecFx – Kurl Menu (Page Turn Mode) Page Turn is a transition effect with the video being mapped to an original plane, a cylinder, and a final plane parallel to the original plane. Page Roll maps the video to an original plane and a cylinder. - Page 234 KayakDD - Digital Production Switcher Page Fold: When the Page Fold data pad is selected, the following soft knob controls are available: • Radius Adjusts the radius of the page turn cylinder affecting the sharpness of the curl. • Angle Defines the orientation of the page turn cylinder with respect to the source X and Y axes, and specifies the direction of the turn.
-
Page 235: Figure 164 Dpm - Specfx - Kurl Menu (Pos/Size Mode)
KayakDD - Digital Production Switcher 5.11.7.3 Pos / Size Mode Figure 164 DPM – SpecFx – Kurl Menu (Pos/Size Mode) Position and Size Modulation are effects in which the source video is position- or size- modulated through an additive process with either a single wave train, or two wave trains with the second wave at a right angle to the first. -
Page 236: Figure 165 Dpm - Specfx - Kurl Menu (Horiz. Mode Selection)
KayakDD - Digital Production Switcher • Phase When Phase Lock is on, the Phase soft knob is available to control the static location of the phase of the pattern. When Phase Lock is off, the Speed soft knob is available to adjust the speed of the pattern’s motion. -
Page 237: Figure 166 Dpm - Specfx - Kurl Menu (Pattern Selection)
KayakDD - Digital Production Switcher Pattern Pane: he ty pe of wave pattern to be applied to the selected axis and modulation type is selected in the Pattern pane. Figure 166 DPM – SpecFx – Kurl Menu (Pattern Selection) Figure 167 Available Wave Patterns User Manual... -
Page 238: Figure 168 Dpm - Specfx - Kurl Menu (Pos/Size Mode)
KayakDD - Digital Production Switcher Figure 168 DPM – SpecFx – Kurl Menu (Pos/Size Mode) • Cycle Limiting The Button activates the Cycles soft knob. This control can be used to limit the number of wave pattern cycles visible. • Pattern + Only The Button acts like a rectifier and converts all wave excursions to positive. -
Page 239: Figure 169 Dpm - Specfx - Kurl Menu (Slits Mode)
KayakDD - Digital Production Switcher 5.11.7.4 Slits Mode lits is an effect in which the source video is split into a number of parallel slits. The width of the slits may be uniform or rand om, and an angle may be specified. An offset nction is provided which controls the amount of displacement of alternating slits in pposite directions (to cause a transition type effect). -
Page 240: Figure 170 Dpm - Specfx - Kurl Menu (Slits Mode)
KayakDD - Digital Production Switcher When the Slits d ata pad is selected a menu similar to Figure 180 appears. Figure 170 DPM – SpecFx – Kurl Menu (Slit s Mode) Soft knob controls are provided to control the following attributes of the slits: •... -
Page 241: Misc Menu
KayakDD - Digital Production Switcher 5.11.8 Misc Menu Figure 171 DPM – Kurl Mode – Misc Selection 5.11.8.1 Setup Select the included keyer and allow global control. Figu re 172 DPM – Misc Setup User Manual... -
Page 242: Figure 172 Dpm - Set To Default
KayakDD - Digital Production Switcher 5.11.8.2 Set to Defaults reset all transform engine parameters or groups of them to default you can use the Set to Defaults menu which is accessible through the Misc selection in the button row. To reset only geometric parameters, i.e. those which affect position, size etc., use the "Geom Parms"... -
Page 243: Figure 174 Dpm - Timeline - Modify
KayakDD - Digital Production Switcher 5.11.8.3 Drop Shadow The Drop Shadow feature is turn ed on with the Drop Shadow button. When turned on, soft knob controls become available on the right. Different soft knob controls appear, depending on which data pad has been selected in that pane. -
Page 244: Digital Effects Library
KayakDD - Digital Production Switcher 5.11.9 Digital Eff ects Library 5.11.9.1 What is it? How do I Use it? This DPM effect library is provided to give users examples of the capabilities of the internal DP M as well as a starting point to create own effects. The library is in 2 sections:... - Page 245 KayakDD - Digital Production Switcher 5.11.9.3 How to Loa d the Effects to Your S witcher Use the memory stick for your system to make a copy of your working application. • Inser t your stick in USB slot 2 or 4. •...
- Page 246 KayakDD - Digital Production Switcher With this folder highlighted press OK. Windows will ask you to confirm that the existing te_eff0 or te_eff1 folder may be overwritten as all data within it wi ll be replaced with the library effects. If you are happy that you have highlighted the correct application a nswer “yes”.
-
Page 247: Catalog Of Effects
KayakDD - Digital Production Switcher 5.11.10 Catalog o f Effects 5.11.10.1 C1fx – for Channel 1 Only. Naming: sl = slide ps = perspective slide lb = linear motion bounce spir = spiral bnc = multi position bounce sw = swoop bri = barrel roll in bro = barrel roll out ositions in or out of frame:... - Page 248 KayakDD - Digital Production Switcher Bank 01: Corner slides and spin zooms with shadows. Effects are 1.00 SpinZoom Out C1sl-TLC C1sl-TRC C1sl-BLC C1sl-BRC SpinZoom IN C1sl-CTL C1sl-CTR C1sl-CBL C1sl-CBR Bank 02: Perspective slides and spiral zooms C1spir-OUT C1ps-LC 1ps-RC C1ps-TC 1ps-BC 1spir-IN C1ps-CL...
- Page 249 KayakDD - Digital Production Switcher Bank 05: Barrel Rolls C1-OUT C1bri-L 1bri-R 1bri-T 1bri-B 1-IN C1bro-L C1bro-R 1bro-T C1bro-B User Manual...
- Page 250 KayakDD - Digital Production Switcher 5.11.10.2 C4fx for Ka yakDD™ Sy stem with 4 DPM Channels per M/E and Advanced Effects Option ank 00: Push on/off QUAD-ON Brings all 4 channels in from corners C12sl-LR Slides C1 off screen, slides C2 on screen C12sl-RL Slides C1 off screen, slides C2 on screen C12sl-TB...
- Page 251 KayakDD - Digital Production Switcher Bank 30: Page Rolls full size C1pgr-ON C2pgr-ON C3pgr-ON C4pgr-ON C1pgr-OFF C2pgr-OFF C3pgr-OFF C4pgr-OFF Bank 40: Double sided page turns and page rolls C12pgt-ON All effects are 2 seconds C34pgt-ON C12pgt-OFF Key 1 is front, K2 back C3 pgt-OFF Key 3 is front, K4 back.
- Page 252 KayakDD - Digital Production Switcher 5.11.10.3 Notes 5.11.10.3.1 Use of GLOBAL Channel Although GLOBAL channel is supported, certain aspe cts may behave unintuitive. ost of the effects in these libraries do not use GLOBAL, but cubes and push/pull effects do. You may find that when you first load the effects library some effects are not running as intended.
-
Page 253: Ram Recorder Menus
KayakDD - Digital Production Switcher 5.12 RAM Recorder Menus ou access the RAM Recorder menu via the Home Menu. Figu re 177 Home Menu he RAM recorder is a solid state video server with 4 input/output channels. This eans that all stills and clips are stored within a common data pool and may be accessed by all 4 output channels. -
Page 254: Stills Menu
KayakDD - Digital Production Switcher 5.12.1 Stills Menu The Stills menu allows the user to store or load stills using the delegated channels. Figure 178 RAM Recorder - Stills Select the desired channel with the Delegation button. 5.12.1.1 Delegation Figure 179 Delegation Buttons User Manual... -
Page 255: Figure 179 Ram Recorder - Readout Buttons
KayakDD - Digital Production Switcher 5.12.1.2 Readout Figure 180 RAM Recorder – Readout Buttons • Field1/2 Field 1 or field 2 is replicated to make a frame and Previous Still /Next Still advances to the next field, which results in single stepping in field resolution. •... -
Page 256: Figure 180 Ram Recorder - Vid/Key Mode Buttons
KayakDD - Digital Production Switcher 5.12.1.3 Vid/Key Mo de Figure 181 RAM Recorder – Vid/Key Mode Buttons Vid/Key Mode button hen this button is active each video signal will have an associated key signal stored too. At re call the key signal will only be recalled if the Vid/Key Mode button is active. RAM 1 uses RAM 2 as its associated key cha nnel for record and recall, while RAM 3 ses RAM 4. -
Page 257: Figure 181 Ram Recorder - Stills
KayakDD - Digital Production Switcher Stills Video/Key Mode: Video/Key this mode Ram1+2 (Ram3+4) work together as a video/key pair. Ram1 and Ram3 are always the video path and Ram2 and Ram4 are the Key path. • Load Still Load the video part of the still into Ram1 (Ram3) and the key part into Ram2 (Ram4). -
Page 258: Clip Select Menu
KayakDD - Digital Production Switcher 5.12.2 Clip Select Menu he Clip Select menu allows the user to load, rename, and delete clips. Figure 183 RAM Recorder – Clip Select • Load Clip Selects the clip to the output of the delegated channel. •... -
Page 259: Clips Play Menu
KayakDD - Digital Production Switcher 5.12.3 Clips Play The Clips Play menu provides the control for playing a clip. Figure 184 RAM Recorder – Clips Play Begin Moves clip to the beginning Moves clip to the end < Play Reverse >... -
Page 260: Figure 184 Modify Buttons
KayakDD - Digital Production Switcher Modify Allows you to modify the values displayed in the main display area Figure 185 Modify Buttons Go to timecode Go to a timecode specified by the numeric popup panel Mark In Set a Mark In point via numeric popup panel Mark Out Set a Mark Out point via numeric popup panel Offset... - Page 261 KayakDD - Digital Production Switcher 5.12.3.1 Readout In Still mode • Field 1: Field 1 is replicated to make a frame and Previous Still / Next Still advance s to field 1 of the next still • Field 2: Field 2 is replicated to make a frame and Previous Still / Next Still advances to field 1 of the next still •...
-
Page 262: Clips Record Menu
KayakDD - Digital Production Switcher 5.12.4 Clips Record Menu The Clips Record menu allows the u ser to create or re-record clips. o create a new clip, press the Record New button. Recording starts immediately and the clip name is set to a default name. To stop recording press Still or E/E. The Record Edit button allows you start recording in an existing clip at the current position. - Page 263 KayakDD - Digital Production Switcher Trim This function is used to select the exact range out of a recorded clip, e.g. to create an ndless loop without any disturbance. When pressed the total clip is trimmed to the “In” and “Out” values. Delay Line When switched on, the according channel behaves like a delay line, the desired delay can be specified via Modify/Record Length.
-
Page 264: Ram Recorder Live Mode Menu
KayakDD - Digital Production Switcher 5.12.5 RAM Recorder Live Mode Menu Selecting the Liv e Mode button (left of the display) reduces the number of parameter adjustments to the most essential ones, allowing faster control with less selection steps. By pressing the button during RAM Recorder operation, a keypad with direct access to the stored stills and clips appears. - Page 265 KayakDD - Digital Production Switcher NOTE! Stills containing video and key are displayed in yellow characters, video only in white. In this Live-Menu the “Key-Only” video/ key mode (only used for recording) is not upported. User Manual...
-
Page 266: Ram Transfer Menu
KayakDD - Digital Production Switcher 5.12.6 RAM Tran sfer Menu The RAM Transfer menu provides possibilities to transfer clips or stills from/to RAM store or USB flash memory sticks: Figure 188 RAM Recorder – Clips/Stills Transfer User Manual... -
Page 267: Figure 188 Ram Recorder - Transfer Stills To Usb
KayakDD - Digital Production Switcher In the different submenus (Stills to USB, Stills to RAM, Clips to RAM and Clips to USB) the clips or s tills are listed, can be renamed and the transfer started. Figure 189 RAM Recorder – Transfer Stills to USB In the submenu Stills to RAM and Clips to RAM clips an d stills stored in the RAM can... -
Page 268: E-Mem Menus
KayakDD - Digital Production Switcher 5.13 E-Mem Menus Figure 191 E-Mem – Define Memo PP The Define Memo menu serves to define the function groups of the KayakDD switcher, which are be stored or recalled in an E-Mem snapshot or timeline. The top level buttons;... -
Page 269: Figure 188 E-Mem - Define Memo Me1
KayakDD - Digital Production Switcher Page for selecting the ME1 switcher functions: Figure 192 E-Mem – Define Memo ME1 Page for selecting miscellaneous internal ME independent switcher functions: Figure 193 E-Mem – Define Memo Misc Intern User Manual... -
Page 270: Figure 190 E-Mem - Define Memo Misc Extern
KayakDD - Digital Production Switcher Page for selecting miscellaneous external switcher functions: Figure 194 E-Mem – Define Memo Misc Extern User Manual... -
Page 271: Media Player Menus
• Disk Recorders • other media players The list of servers that have at least one of the protocols implemented includes: • Thomson Grass Valley: Profile, Profile XP, M-Series • Thomson: Nextore • Philips: Mediapool™ • Leitch (ASC): VR300, VR400 •... -
Page 272: Clip Select Menu
KayakDD - Digital Production Switcher 5.14.1 Clip Select Menu In the clip menu a clips list generated from a media server can be loaded. Color coding in the list: • Green marked clips: selected clip • Blue marked clips: next selected clip Figure 195 Media Player –... -
Page 273: Clips Play Menu
KayakDD - Digital Production Switcher 5.14.2 Clips Play Menu The Clips Play menu allows the user to control the conn ected machine. Figure 196 Media Player – Clips Play User Manual... -
Page 274: Figure 193 Media Player - Delegation
KayakDD - Digital Production Switcher 5.14.2.1 Machine Delegation The external machines can be selected with the delegation buttons. Gang mo de is possible by selecting more than one but ton. Figure 197 Media Player – Delegation User Manual... -
Page 275: Other Menus
KayakDD - Digital Production Switcher 5.15 Other Menu As t he KayakDD software is enhanced, additional menus, su bcategories, and controls will b ecome available. Once you understand the principles of KayakDD system menu ganization and operation, you will be able to quickly learn these new menus and use them effectively for your work. - Page 276 KayakDD - Digital Production Switcher User Manual...
-
Page 277: System Operation
KayakDD - Digital Production Switcher System Operation Introduction The basic KayakDD system is operated using button and lever control on the control panel, and touch screen and knob controls on the Menu panel. Text and number entry is also possible via a popup keyboard. The Main control panel is used during live operation for fast, real time control. -
Page 278: Matte Menu Controls
KayakDD - Digital Production Switcher Matte Me nu Controls se the following procedure to change matte settings in any of the Matte menus. • Go to the according Mattes menu. • If not already selected, touch the Wash Control data pad to bring up the Wash urce selection and the control for Size/Offset and Softness via digipot trols. -
Page 279: Figure 195 Matte Menu, Base Color Selected
KayakDD - Digital Production Switcher • Touch the Base Color data pad and use the top three digipots to adjust Hue, Saturation, and Luminance of the base fill color (Figure below). • Touch the Wash Color data pa d to delegate the digipots on the right to adjust Hue, Saturation, and Brightness of the wash fill color. -
Page 280: Keyer Priority
KayakDD - Digital Production Switcher Keyer Priority Video s witchers with only two keyers per bank use a simple key over, key und echanism to control the stacking of the keys. Only one key can be located over the other. The KayakDD system has four keyers, so more complex stacking is possible. Keys can b e placed between other keys, using key priority. -
Page 281: To Transition Between Different Keyer Priorities
KayakDD - Digital Production Switcher 6.3.2 To Transition Between Different Keyer Priorities Key priority transitions use a Current priority stack and a Next priority stack. The ansition occurs between the two stacks. 1. Press th e Key Prior Transition element button in the Transition subpanel ansition Subpanel Key1 Key2... -
Page 282: Figure 197 Keyer Priority Menu, Next Stack Selected
KayakDD - Digital Production Switcher Figure 201 Keyer Priority Menu, Next Stack Selected 7. Select the type of transition, using the Mix or Wipe buttons in the Transition subpanel. If you selected a wipe, go to the Wipes menu by double pressing one of the Wipe buttons, and then touch the pattern and any modifiers to be used with the wipe. -
Page 283: Chroma Key Operating Notes
KayakDD - Digital Production Switcher Chroma Key Operating Notes The KayakDD system features chroma keyers with powerful controls. These controls offer subtle adjustments to allow successful keying of difficult subject matter (fine hair, smoke, translucent objects, etc.), and to overcome some problems resulting from imperfect chroma key set coloring or lighting. -
Page 284: To Chroma Key Using Auto Setup
KayakDD - Digital Production Switcher 6.4.2 To Chroma Key Using Auto Setup 1. Go to the Keyer – Mode menu by touching the Keyer button in the Home menu, then touch the Mode category and select Chroma Key as key mode. 2. -
Page 285: To Chroma Key Using Auto Setup With Fgd Fade
KayakDD - Digital Production Switcher 7. If this chroma key is acceptable, you are done. If set, lighting, or other conditions prevent the result from being acceptable, you need to decide wh ther to adjust the chroma key manually or use Auto Setup with FGD Fade •... -
Page 286: Primary Suppression
KayakDD - Digital Production Switcher 6.4.5 Primary Suppression Primary suppression is the most critical chroma key parameter, and the easiest to set. Auto Setup should take care of this, but manual adjustments can be made if desired. If primary suppression is set wrong, however, it will be impossible to achieve a good chroma key with the other controls. - Page 287 KayakDD - Digital Production Switcher 2. Adjust Hue, Selectivity, Chroma, and Luma primary suppression to eliminate the backing color. • Hue can be set accurately with Auto Setup. Hue should center on the primary color of the backing area of the foreground scene. Depending on where Luma and Chroma primary suppression are set, adjusting Hue may not make any noticeable change on the scene.
-
Page 288: Key Controls
KayakDD - Digital Production Switcher 6.4.6 Key Controls The purpose in adjusting Clip Hi and Clip Low is to cause the proper hole to be cut in the background. All areas of the backing color should be full background while all areas of the foreground should make the background completely invisible. -
Page 289: Fgd Fade
KayakDD - Digital Production Switcher djust Clip Hi so that all areas of the foreground objects are white. If Clip Hi is set too low (too far clockwise), much of the translucent areas will be forced to be fully opaque, hardening the key and darkening the transition area between background and foreground. -
Page 290: Secondary Color Suppression
KayakDD - Digital Production Switcher 6.4.8 Secondary Color Suppression Secondary color suppression is intended to improve the color of translucent areas (e.g., glass or smoke) or fine detail near the edge of a foreground subject (e.g., hair). These areas can be take on some of the backing color. Much less secondary suppression will be needed than is used for primary suppression, because the foreground color is only partially corrupted by the backing color. - Page 291 KayakDD - Digital Production Switcher 2. Adjust secondary suppression Selectivit y so that the translucent area is affected, but opaque areas of the foreground are n ot. The final hue will lie somewhere between the backing color (primary s uppression hue) and the uncorrupted foreground color.
-
Page 292: Other Chroma Key Controls
KayakDD - Digital Production Switcher 6.4.9 Other Chroma Key Controls Additional chroma key controls are available by touching the Other data pads (Figure below). Coring, frin ge, and shadow controls can be individually activated by touching the labeled buttons Data Pad 1 contain s Shadow Clip / Sha dow Gain / Shadow Opacity Data Pad 2 contains Coring and Fringe... -
Page 293: Pattern Mix
KayakDD - Digital Production Switcher Pattern Mix The KayakDD system can combine the complex wipe pattern generators (Wipe1 and Wipe2), to create a wide variety of customized wipes. 6.5.1 To Create a Pattern Mix 1. Double press the Wipe button in the Transition subpanel on the Main panel. This selects Wipe as the next transition type and also opens the Wipes menu with Wipe1 delegated for control. - Page 294 KayakDD - Digital Production Switcher User Manual...
-
Page 295: Sidepanel Program
Program Introduction The Sidepanel program is a Windows based program, which is used a the menu part of the Thomson Grass Valley DD35/XtenDD control system. Since the KayakDD is also a member of this control system, the Sidepanel program can be used to enhance the possibilities of the KayakDD switcher. -
Page 296: Sidepanel Glossary
KayakDD - Digital Production Switcher 7.1.1 Sidepanel Glossary Button Control element of the graphical user interface which in appearance and function corresponds to a button. Such as on/off-buttons, action buttons, etc. Control Element All graphic elements of the user interface that are able to react to user inputs. -
Page 297: Color Coding
KayakDD - Digital Production Switcher A definition of the various areas of a control dialog is given in the following diagram: Figure 208 Sidepanel Menu Strucure 7.1.3 Color Coding Attention (as the traffic signboard) Medium blue Active bars in bar-graphs Green ON state in the case of on/off buttons Light blue... -
Page 298: Fixed Softkeys
KayakDD - Digital Production Switcher 7.1.4 Fixed Softkeys These buttons have the same function in most menus: This button opens a button-overlay for direct selection of a similar hardware resource. 7.1.4.1 Delegation NOTE! The overlay is displayed in default for approx. 5 seconds. The time can be changed in the menu Personality / Sidepanel! 7.1.4.2 Transfer... - Page 299 KayakDD - Digital Production Switcher 7.1.4.3 Lock Menu As long as this button is switched on, the Auto Menu function is inhibited. 7.1.4.4 Digits This button is an on/off key that controls the numeric readout of analog values. The default setting of this button is a personality preference. A ”double click” on this button enables the numeric keypad.
-
Page 300: Bar Graphics
KayakDD - Digital Production Switcher 7.1.5 Bar Graphics A bar gra ph visualizes parameters with a continuous (analog) range of values. A bar raph is also used to adjust settings with a number of distinct values. It is assumed that the average user associates a potentiometer and not a switch with the setting. A bar graph has the control state relevant/irrelevant and delegated/nondelegated which is represented optically. -
Page 301: Digipot Designator
KayakDD - Digital Production Switcher 7.1.6 Digipot Designator A digipot designator is a control element which is used to describe the digipot function. It is represented in the digipot area on the right side, in each case in the height of the pertinent digipot. -
Page 302: List Boxes And Index Cards
KayakDD - Digital Production Switcher 7.1.8 List Boxes and Index Cards Listboxes are used to display and change lists of values. Most setup menus will have listboxes. A menu that uses a listbox must have cursor keys, a ”Click” key Modify and a select key OK. -
Page 303: Typewriter
KayakDD - Digital Production Switcher 7.1.9 Typewriter When the user is requested to make a character input, a keyboard with typewriter layout (style US English) can be selected appear in the dialog window. Figure 210 Sidepanel – Typewriter There are two types of input, normal input and password input. If a password is requested, for each typed character, a star appears. -
Page 304: Using A Mouse
KayakDD - Digital Production Switcher Double-clicking on the digit button modifies the last Slider that was modified with the mouse or side panel di gipot. 7.1.10 Using a M use The menu can also be controlled by means of a mouse. Doing so, all functions contained in the menu are controllable with the mouse, thus enabling an operation without softkeys and digipots. -
Page 305: Menu Groups And Hierarchy
KayakDD - Digital Production Switcher 7.1.12 Menu Groups and Hierarchy The root menu is the Status menu. From Status the top level menus of each group can be selected (when clicking the right mouse button) via the pop-up menu or ressing the respective menu buttons. - Page 306 KayakDD - Digital Production Switcher In some cases it is necessary for convenient and fast operation that a menu in the context of an o bject provides a ”link” into a menu of another object. Example: The Paint Store Menu has a link to the Wipe Main Menu if a pattern is selected as Paint Store source.
-
Page 307: Startup Menu
KayakDD - Digital Production Switcher Startup Menu fter program start, the Startup menu is shortly called with the DD35 logo and then automatically the menu available last with all selected parameters. With initial st artup, the Startup menu is called in order to enable selection of the main ame and establishing the connection. -
Page 308: Selection Of The Mainframe
KayakDD - Digital Production Switcher 7.2.1 Selection of the Mainframe Actuating the E-Box button calls a listbox in which the main frames connected to the ains are listed with IP Net Address. After selection of a main frame, the Connect and Discon n buttons are activated. -
Page 309: Close / Minimize / Shut Down
KayakDD - Digital Production Switcher 7.2.3 Close / Minimize / Shut Down • Close A click (button or mouse) closes the XtenDD application. • Minimize A click (button or mouse) minimizes the DtenDD GUI on the screen to the Windows95 Task bar. A minimized state can be restored to its original size by pressing any key •... -
Page 310: Status Menu
KayakDD - Digital Production Switcher Status Menu The root menu of the switcher is the Status menu. From Status the top level menus of other group can be selected (when clicking the right mouse button) via the pop-up menu or pressing the respective menu buttons. Figu re 12 Sidepanel –... -
Page 311: Selecting The M/E Main Menus
KayakDD - Digital Production Switcher 7.3.1 Selecting the M/E Main Menus M/E1 - M /E2 - M/E3- P/P Press t he associated dialog button to select the associated M/E Main menu which serves to modify the switcher parameters. In KayakDD-1 only PP, KayakDD-2: ME-1 and PP is available. -
Page 312: Attached Macros
KayakDD - Digital Production Switcher 7.3.4 Attached Ma cros This me nu can be accessed in two ways: • ia Config / Attached Macros menu • by clicking to “attached macros” button, which is visible in all menus at the right side between the middle digipots. This button is only visible when there is at least one macro attachment. -
Page 313: M/E Menu
KayakDD - Digital Production Switcher M/E Menu 7.4.1 M/E Main Figure 213 Sidepanel – M/E Main Menu The inner dialog area shows the status of the respective M/E stage. All transition functions (Cut, Auto, Trans PVW, Trans Duration, ...) can be controlled by trackball or mouse. - Page 314 KayakDD - Digital Production Switcher 7.4.1.1 Select Trans Duration Time • Click on Duration field • Enter desired value using numeric keypad • Click E (enter) or C (clear) 7.4.1.2 Dialog Buttons • Auto Times For details refer to section Auto Times Menu. •...
- Page 315 KayakDD - Digital Production Switcher • stop Press the associated button to stop or reset the following functions: stops ongoing auto transitions sets inactive (100%) sets transition oves BGND transition start position removes keyers Next Transition BGND resets Next Transition other compon ents.
- Page 316 KayakDD - Digital Production Switcher • BlkPSTMode The BlkPST Mode button permits selection of different modes of fading: To select a fading mode, activate the button and then select a mode with the overlay button X-Fade, V-Fade1, V-Fade2, V-Fade3 V-Fade4. NOTE! Defaults back...
- Page 317 KayakDD - Digital Production Switcher • Limit Limit set and Limit on buttons serve to create reproducible partial transitions. This mode is possible with all types of transitions. Limit set permits storing the desired value set with the fader. • Limit Limit on enables the mode.
-
Page 318: Auto Times Menu
KayakDD - Digital Production Switcher 7.4.2 Auto Times M n Figure 214 Sidepanel – Auto Times Menu M/E The menu permits setting the auto transition times. 7.4.2.1 Dialog Buttons • Main Selecting M/E Main menu. • Previous Menu Return to the previous menu. For details refer to section Introduction. User Manual... - Page 319 KayakDD - Digital Production Switcher 7.4.2.2 Function Buttons • Start Starts the transition selected in the list box. • Trigger Press the associated function button to start the Auto times manually. The button is only active when a GPI in the Trigger columne is pre-selectet. •...
-
Page 320: Color Background Menu
KayakDD - Digital Production Switcher 7.4.3 Color Backgr ound Menu Figure 216 Sidepanel – Color Background Menu User Manual... - Page 321 KayakDD - Digital Production Switcher 7.4.3.1 Function Bu tton • Delegate details refe section Introduction. • Matte Matte The Matte 1 (Matte 2) b utton delegates the digipots so that the desired colors can be adjusted. There are seven preadjusted matte colors selectable. The Hue control serves to adjust the color.
- Page 322 KayakDD - Digital Production Switcher • Flat Matte Flat matte 1 selects matte 1 as output. • Flat Matte Flat matte 2 selects matte 2 as output. • Select ing Wash serves to select a matte that is composed of a color wash betwee n matte 1 and m atte 2.
-
Page 323: Remote Menu
KayakDD - Digital Production Switcher Remote Menu 7.5.1 Main Menu Figure 217 Sidepanel – Remote Menu 7.5.1.1 Dialog Butt • GPI-Out Selecting GPI-Out menu • P-Bus Selecting P-Bus (Periveral Bus) menu. • Previous Menu Return to the previous menu. For details refer to section Introduction. •... - Page 324 KayakDD - Digital Production Switcher • Enable Enab les the VTR control • Enable Edit Enables Editor control. • Enable Enables GPI inputs • Enable P-Bus Enables Editor control. • Enable Enables GPI outp User Manual...
-
Page 325: Gpi-Out Menu
KayakDD - Digital Production Switcher 7.5.2 GPI-Out Menu Figure 218 Sidepanel – GPI Menu 7.5.2.1 Dialog Buttons • Remote Return to the Remote main menu. • P-BUS Selecting P-Bus menu • Previous Menu Return to the previous menu. For details refer to section Introduction. User Manual... - Page 326 KayakDD - Digital Production Switcher 7.5.2.2 Function Buttons • Menu Lock For details refer to section Introduction. • Tr g ig er attached GPOs – – M/E1 In preparation • Cursor Up/Down Moving the bar in the list box and select a GPO channels 1 to 32 •...
-
Page 327: Remote P-Bus
KayakDD - Digital Production Switcher 7.5.3 Remote P-Bus Figure 219 Sidepanel – Remote P-Bus Menu 7.5.3.1 Dialog Butt • Remote Return to the Remote main menu. • Selecting GPI-In menu. Not yet implemented. • Previous Menu Return to the previous menu. For details refer to section Introduction. User Manual... - Page 328 KayakDD - Digital Production Switcher 7.5.3.2 Function Buttons • Remote P-Bus / Trigger The Remote / P_Bus enables to manually trigger with Trigger the machines defined in the Install / E-Box / P-Bus menu. At present, only 1 trigger can be output on the P-Bus, which then reaches all machines for which in this case a trigger is adjusted.
- Page 329 KayakDD - Digital Production Switcher • Remote P-Bus / Register ubdialog of the trigger. Register are device-specific states. These registers can be read out or written in just as the trigger for a defined number of machines. The concerned machines are indicated in the field Trigger/Register where only Recall / No ecall can be selected.
-
Page 330: External Dve Menu
KayakDD - Digital Production Switcher External DVE Menu Figure 220 Sidepanel – External DVE Menu 7.6.1 Dialog Buttons • revious Menu Return to the previous menu. For details refer to section Introduction. User Manual... -
Page 331: Function Buttons
KayakDD - Digital Production Switcher 7.6.2 Function Buttons • Menu Lock For details refer to section Introduction. • DVE1 DVE2 Selecting channel external DVE. DVE effects can be selected either by positioning the blue cursor box with the digipots or by clicking with the mous e on the desired effect and confirm with OK. -
Page 332: Media Player Menu
KayakDD - Digital Production Switcher Media Player Menu 7.7.1 MP Status Menu Figure 221 Sidepanel – Media Player Status Menu The Status menu shows the status of up to four “Media Playern“ defined in the Install / EBox / Machine menu. Display: •... - Page 333 KayakDD - Digital Production Switcher 7.7.1.1 Dialog Buttons • Clips Selecting the Media Player Clip menu. • Selecting the internal RAM Recoder menu. • Previous Menu Return to the previous menu. For details refer to section Introduction. 7.7.1.2 Dialog Buttons •...
-
Page 334: Media Player Clip Menu
KayakDD - Digital Production Switcher 7.7.2 Media Player Clip Menu Figure 222 Sidepanel – Media Player Clip Menu The Media Player Clip menu serves the drive control at VTR. For this purpose, the buttons in the Motion Control are provided. In addtionen, in this menu the clips list from a Media Server (e.g. - Page 335 KayakDD - Digital Production Switcher 7.7.2.2 Function Buttons • Start Clip Load the chosen clip from the Media Server • Update Cliplist Update Cliplist requests a table of contents of all clips of the Media Server. This procedure may take some time. •...
-
Page 336: Ram Recorder Transfer Menu
KayakDD - Digital Production Switcher 7.7.3 RAM Recorder Transfer Menu The RAM Recorder Tran sfer menu allows the user to transfer images to and from the AM Recorder. The Image Converter is used to convert images from and to PC formats like *.bmp, *.jpg or *.avi. - Page 337 KayakDD - Digital Production Switcher 7.7.3.2 Clips To PC Figure 224 RAM Recorder - Transfer Delete Deletes the selected clip on the RAM Recorder (in current software release enabled) Rename Renames the selected clip on the RAM Recorder (not yet supported) Start Transfer Starts the file transfer of the selected clip to the RAM Recorder.
- Page 338 KayakDD - Digital Production Switcher 7.7.3.3 Stills To Ram Figure 225 RAM Recorder - Transfer The list of available clips is displayed from the directory path “c:\Programme\DD35\ramrecStills” Delete Deletes the selected still on your hard disk Rename Renames the selected still on your hard disk Start Transfer Starts the file transfer of the selected still to the RAM Recorder.
- Page 339 KayakDD - Digital Production Switcher 7.7.3.4 Selection of the Memory Position for the Still to be Transferred Figure 226 RAM Recorder - Transfer Select a position and press Continue Transfer to start the actual transfer User Manual...
-
Page 340: Installation Menu
KayakDD - Digital Production Switcher Installation Menu 7.8.1 Install Ma in Men Figure 227 Sidepanel – Install Main Menu Main menu with displays of the current control panel and mainframe port assignment. 7.8.1.1 Dialog Buttons • E-Box Selecting E–Box Install menu. •... - Page 341 KayakDD - Digital Production Switcher 7.8.1.2 Saving Operation Preset Data Saving operation data as user defined preset i s possible with the button Store Preset in the Install / E-Box menu. • The complete mainframe operational setting is saved as to be the new “operational preset”...
-
Page 342: Install E-Box Menu
KayakDD - Digital Production Switcher 7.8.2 Install E-Box Menu Figure 228 Sidepanel – Install E-Box Menu 7.8.2.1 Dialog Buttons • Install Selecting Install main menu. • Panel Selecting Install Panel menu. • System Selecting System menu. • Diagnose Selecting Diagnose menu. •... - Page 343 KayakDD - Digital Production Switcher 7.8.2.2 Function Buttons / Index Cards 7.8.2.2.1 Copy With the softkey Copy it is possible to store or load the files ENVIRON.INI and License.txt (E-Box) or ENVIR_CP.INI (panel) from a floppy disk or harddisk. CAUTION! After loading the environment file, the switcher will reset! User Manual...
- Page 344 KayakDD - Digital Production Switcher 7.8.2.2.2 Input Index card for setting the input name transfer parameters and the Software patch anel. Figure 229 Sidepanel – Index Card Copy ext. Name: Enable / Disable the name transfer mode with Yes/No Patched to: Option “Software Patch Panel”: Software License Key is required! With the buttons Reset Patch Panel and Patch Panel On/Off...
- Page 345 KayakDD - Digital Production Switcher 7.8.2.2.3 Index card for modifying the GPI parameters. Figure 230 Sidepanel – Index Card GPI Select Modify to determine wheatear the rising or falling edge of the arriving signal (GPI 1 ... 8) is to be u sed.
- Page 346 KayakDD - Digital Production Switcher 7.8.2.2.4 Index card for selecting and modifying the 32 GPO parameters. Figure 231 Sidepanel – Index Card GPO Select Modify to change the parameters: Shape: Pulse / Static Idle State: Open / Closed Pulse Duration: Enter the preroll time in frames (max 255 frames) Attached to: Assign a fixed video source to the 32 GPI channel...
- Page 347 KayakDD - Digital Production Switcher 7.8.2.2.5 Index card for selecting and modifying the DVE parameters. Figure 232 Sidepanel – Index Card DVE For details refer to the respective section Digital Video Effect System Integration in your Planning & Installation Manual. User Manual...
- Page 348 KayakDD - Digital Production Switcher 7.8.2.2.6 Router Index card for selecting and modifying the parameters of external routers. Figure 233 Sidepanel – Index Card Router Two protocols and the assigned ports are selectable: Mnemonic Transfer: Name transfer from the external router to the switcher control.
- Page 349 KayakDD - Digital Production Switcher 7.8.2.2.7 Ext DSK Index card for installation the external DSK parameters. igure 234 Sidepanel – Index Card External DSK For details refer to the section External Downstream Keyers in your Planning & Installation Manual. User Manual...
- Page 350 KayakDD - Digital Production Switcher 7.8.2.2.8 Aux Bus Index card for installation the Aux Bus parameters. Figure 235 Sidepanel – Index Card Aux Busses All 10 Aux buses of the KayakDD are generally phased. Output coding and Permanent Input can be selected by pressing the Modify button. User Manual...
- Page 351 KayakDD - Digital Production Switcher 7.8.2.2.9 Tally Index card for selecting Tally ports and setting the MI-3040 box addresses. Figure 236 Sidepanel – Index Card Tally NOTE! Two MI–3040 boxes can be addressed as to be one box with 80bits if they have the same MPK address and if they are installed in neighbor columns in the table above.
- Page 352 KayakDD - Digital Production Switcher Pressing the button Tally Out Assignment opens a new dialog page for Tally Assignment: Figure 237 Sidepanel – Index Card Tally Assignment With the following buttons the Tally Assignment can be changed: Tally Out Assign: dialog page appears/disappears Tally Assign: switched assignment on/off...
- Page 353 KayakDD - Digital Production Switcher 7.8.2.2.10 Aux CP Index card for installing the Aux Control Panels co nnected with the mainframe. For Details refer to the Planning and Installation Manual. Figure 238 Sidepanel – Index Card Aux CP Type: Opens a pop-up window with all types of Aux Control Panels. Port: Opens a pop-up window with all ports plus ”None”...
- Page 354 KayakDD - Digital Production Switcher 7.8.2.2.11 Ext Aux Index card for selecting and modifying the external Aux parameters. Figure 239 Sidepanel – Index Card Ext Aux The card enables the ability to select a special output at a defined level of the router. Example: If you select in the column Router Output the number 6 and in the column Router Level the number 1 then it corresponds to the specification that External Aux Bus 1 ist...
- Page 355 KayakDD - Digital Production Switcher 7.8.2.2.12 Index card for installation the Under Monitor Displays and set the tally mode. Figure 240 Sidepanel – Index Card UMD or det ails ef r er to the section “Under Monitor D isplays” in your Installation Manual. User Manual...
- Page 356 KayakDD - Digital Production Switcher 7.8.2.2.13 Machine Index card for installation the machine parameters (e.g. VTR) for Machine Control and VTR Emulation. Figure 241 Sidepanel – Index Card Machine The setting can b e chang ed by navigating the parameter and pre ssing the Modify button.
- Page 357 KayakDD - Digital Production Switcher 7.8.2.2.14 Editor Index card for installation the Editor parameters. igure Sidepanel – Index Card Editor For details ref er to the se ction “Editor Control” in your Installation Manual. User Manual...
- Page 358 KayakDD - Digital Production Switcher 7.8.2.2.15 P-Bus Index card for setting the P-Bus parameters. The Install E-Box / P-Bus ( = Peripheral B us) menu defines the machines which can be ontrolled via an RS422 bus. In the left list box of the P-Bus index card, these machines can be provided with a name and can be activated or deactivated.
-
Page 359: Install Panel Menu
KayakDD - Digital Production Switcher 7.8.3 Install Pan el Menu Figure 244 Sidepanel – In a st ll Panel Menu 7.8.3.1 Dialog Buttons • Install Selecting Install ma in menu. • E-Box Selecting E–Box Ins ll ta menu. • System Selecting System menu. - Page 360 KayakDD - Digital Production Switcher 7.8.3.2 Function Buttons / Index Cards 7.8.3.2.1 Menu Lock For details refer to section Introduction. 7.8.3.2.2 Cursor Up/Down/Left/Right The cursor buttons are used to navigate within the table 7.8.3.2.3 Aux CP Index card for installing the Aux Control Panels connected to the switcher control panel.
- Page 361 KayakDD - Digital Production Switcher 7.8.3.2.4 Global Index card for performing global panel settings and fader adjustment. Figure 246 Sidepanel – Index Card Aux Global Fader/Joystick Adjustment: Adjustment of the fader end-position values (fine adjustment of the A/D converters): Lower end-position: signal, Upper...
- Page 362 KayakDD - Digital Production Switcher 7.8.3.2.5 UPK (User programmable ke ys/buttons) this index card, many buttons available in the panel sections, can be assigned to other functions. The functions are individual for each button. Select the desired function with pressing the Modify button. Figure 247 Sidepanel –...
- Page 363 KayakDD - Digital Production Switcher The following functions are programmable for the respective buttons described above: • Default function (button specific) • None • Limit Set • Limit On • Wipe 1 • Wipe 2 • • • GPO 1 •...
- Page 364 KayakDD - Digital Production Switcher 7.8.3.2.6 Index card for installation the Under Monitor Displays and set the tally mode. Figure 248 Sidepanel – Index Card UMD For details refer to the section Under Monitor Displays in your Planning & Installation Manual.
- Page 365 KayakDD - Digital Production Switcher 7.8.3.2.7 Sat Panel dex card for installation the Satellite Panel RSAT. Figure 249 Sidepanel – Index Card Sat Panel Select Modify to set the port number and protocol type. User Manual...
-
Page 366: System Menu
KayakDD - Digital Production Switcher System Menu Figure 250 Sidepanel – System Menu 7.9.1 Dialog Buttons • Install Selecting Install main menu. • E-Box Selecting E–Box Install menu. • Panel Selecting Panel Install menu. • Diagnose Selecting Diagnose menu. • Previous Menu Return to the previous menu. - Page 367 KayakDD - Digital Production Switcher 7.9.1.1 Drives Figure 251 Sidepanel – Index Card Drives The Drives menu defines all drives which are provided with application data on the switcher. The drive in the top line (separated by a horizontal line from the other drives in the lis enables lo din g and storing applications.
- Page 368 KayakDD - Digital Production Switcher 7.9.1.2 Devices Figu re 252 Sidepanel – Index Ca rd Devices Device name of control panel a nd mainframe can be renamed by using the Modify button. User Manual...
-
Page 369: Diagnosis Menu
KayakDD - Digital Production Switcher 7.9.2 Diagnosis Menu Figure 253 Sidepanel – Diagnosis Menu 7.9.2.1 Dialog Butt • Install Selecting Install main menu. • E-Box Selecting E–Box Install menu. • Panel Select ing Panel Install menu. • System Selecting System menu. •... - Page 370 KayakDD - Digital Production Switcher 7.9.2.2 Enable / Disable Diagnosis Menu • Diagnose Enable Enables / Disables the diagnosis in the attached control panel and in the connected mainframe. • Redundant Power Includes / Excludes the option redundant power supply of control panel and mainframe in the diagnosis.
-
Page 371: Configuration Menu
KayakDD - Digital Production Switcher 7.10 Configur tion Menu 7.10.1 Config Main M Figure 254 Sidepanel – Config Main Menu The application main menu is designed to handle the use of applications within a switcher system. Applications can be loaded from harddisk and started, stopped, modified or created new. - Page 372 KayakDD - Digital Production Switcher The list box ”Running Applications” displays all known running applications of the mainfram e connected to the local si depanel. It has a fixed number of entries. The ”Default” application that is always available is the top entry. It is followed by two user- defined applications.
- Page 373 KayakDD - Digital Production Switcher 7.10.1.2 Function Buttons • his function is used to join the local sidepanel to a running application. The utton is only relevant for the list box ”Running Applications”. • eave his function is used to leave the application the local sidepanel i s joined to.
- Page 374 KayakDD - Digital Production Switcher • Menu Lock For details refer to section Introduction. • Stop Stops the running application where the cursor points to. All allocated resources given default application. • Creates a new application. The button is relevant if the cursor points to a free applic ation entry in ”Running Application”...
-
Page 375: Copy Config
KayakDD - Digital Production Switcher 7.10.2 Copy Config • Simple To save or exchange applications or user-specific data from the switcher harddisk to a floppy or vice versa, a new Copy function with new menus is implemented. Select the new me nu in the Config menu: Complete applications... -
Page 376: Config Copy Simple Menu
KayakDD - Digital Production Switcher 7.10.3 Config Copy Simple Menu the Copy Simple menu, whole applications can be copied. The menu shows lists for source and destination. In the lists, the available storage devices, the stored applications or the connected devices of an application can be shown. After copying an application from another switcher, the application might use devices which are not available here. - Page 377 KayakDD - Digital Production Switcher • Change Devices Alloca tes a different device (E-Box, Panel) for the currently selected application in the list box. A list of currently available devices is shown. Select the desired device. After copying an application from another switcher, the application might use devices which are not available here.
-
Page 378: Config Copy Detailed Menu
KayakDD - Digital Production Switcher 7.10.4 Config Copy Detailed Menu In the Copy Detailed menu, selected files can be copied between two existing pplications. The menu shows two lists for source and destination. In each list, a specific art of an application can be viewed. NOTE! In the copy detailed mode only one file can be copied per procedure. - Page 379 KayakDD - Digital Production Switcher • Show Names Shows the object names of the files. • Copy Direction Changing the copy direction from the left to the right and vice versa. • Refresh Reads the drive. • Level +/– Changing the direc tory level.
-
Page 380: Config E-Box Menu
KayakDD - Digital Production Switcher 7.10.5 Config E-Box Menu Figure 257 Sidepanel – Config E-Box Menu 7.10.5.1 Dialog Butt • Config Selecting Config menu. • Panel Selecting Panel menu. • Allocate Resource Selecting Allocate Resource menu. • Allocate Panel Selecting Allocate Panel menu. - Page 381 KayakDD - Digital Production Switcher 7.10.5.2 Function Bu tons • Menu Lock • Cursor Up/Down/Left /Right All cursor softkey s and cursor digipots are used to navigate the cursor. The complete curso control always relevant. • Modify This button is only enabled if the cursor is set on an entry belonging to the own application.
- Page 382 KayakDD - Digital Production Switcher The buttons Add Source and Delete Source enable to vary them. The respective internal audio channel is marked green for this purpose. To each video input can be ssigned an internal audio channel. This is indicated in the third list box. he list box Audio Settings is used to perform ba sic adjustments.
- Page 383 KayakDD - Digital Production Switcher Operating: The audio switcher follows only PGM (PST). Only PGM is always to be heard. The rossbar selection only is swit ched. If there is no audio assigned to the video, the last audio source stays. CUT PGM and PST sources swap acc ording to the video...
- Page 384 KayakDD - Digital Production Switcher 7.10.5.3.2 Global dex card for global settings. Figure 2 Sidepanel – Index Card Global button Modify the followi ng parameters are selectable: Color Limit Active: No /Yes The level limitation for the internal m atte signals will be switched On or Off.
- Page 385 KayakDD - Digital Production Switcher Replace Async: On/Off Modify button permits the selection of different modes for the tre atment of asynchronous sources in the switching levels (M/E1, M/E2, P/P): On: If Background/Program are asynchronous, enabled keyers disabled. Background/Program asynchronous and the fill signal of a keyer becomes asynchronous, enabled keyer...
- Page 386 KayakDD - Digital Production Switcher 7.10.5.3.3 Input Index card for input settings Figure 2 Sidepanel – Index Card Input Entries belonging to the own application are marked with a green bac kground, entries belonging to other applications are marked with a yellow background. Take: Takes the input source selected with the cu rsor to the own...
- Page 387 KayakDD - Digital Production Switcher 7.10.5.3.4 dex card for GPI settings Figure 262 Sidepanel – Index Card GPI Double-click or pressing the Modify button calls a pop-up menu and in some cases pop–up lists. The selected function will be triggered on the edge defined in Install menu when button GPI Enable is On.
- Page 388 KayakDD - Digital Production Switcher GPI Functions: None: GPI has no function. Command: User-defined command code. See note below. Misc: Switch over the Video Standard or Video Format Video Format (4x3, 16x9) Inactive = 4x3 Active = 16x9 Video Standard (625/50, 525/60) Inactive = 625/50 Active = 525/60 This is a very redundant function because the switcher can...
- Page 389 KayakDD - Digital Production Switcher 7.10.5.3.5 Index card for GPO settings. Figure 263 Sidepanel – Index Card GPO With the Modify button, names can be assigned to the GPOs. User Manual...
- Page 390 KayakDD - Digital Production Switcher 7.10.5.3.6 Aux CP dex card for configuration the Aux Control Panels connected to the mainframe. igure 264 Sidepanel – Index Card Aux CP Modify Opens a pop-up window with the functions that can be programmed. None: no function This button is used as 2...
- Page 391 KayakDD - Digital Production Switcher This button is used as 3 button i.e. shifts the source selection buttons AUX n - M/E Bus - P/P Bus: This buttons delegates the AUX-CP to crosspoint selection for the given bus. Ext. AUX n: These buttons delegate the AUX-CP to crosspoint selection fo r the given external aux bus.
- Page 392 KayakDD - Digital Production Switcher Button Assign: When the Aux Control Panel is used for crosspoint selection of internal busses, the ources can be assigned freely to the source selection buttons of the AUX-CP. To do this, Assign changes the contents of the index card. See below. The procedu for input assignment is very sim ilar to the input assignment for the...
- Page 393 KayakDD - Digital Production Switcher Button Insert Position: Insert the selected input at the current cursor position and moves the previous inputs ownwards to the end. At the end of the levels, the last assignment get lost! Button Delete Position: Deletes the selected input at the current cursor position and moves the all the next inputs upwards.
- Page 394 KayakDD - Digital Production Switcher 7.10.5.3.7 Index card for global settings for M/E1, M/E2, M/E3 and P/P Figure 266 Sidepanel – Index Card ME Settings, 1st page Figure 267 Sidepanel – Index Card ME Settings, 2nd page User Manual...
- Page 395 KayakDD - Digital Production Switcher Edit Input Name: tton is only active when one of the M/E Output configuration entries is selected (e.g. Util A...). The button serves to rename the input name of the respective output. ith button Modify the following parameters are selectabl - Look-Ahead PVW - Defines the signal for PVW output: - OFF PVW output = ME output...
- Page 396 KayakDD - Digital Production Switcher 7.10.5.3.8 Editor Index card for editor settings. Figure 268 Sidepanel – Index Card Editor For details refer to your Installation Manual User Manual...
- Page 397 KayakDD - Digital Production Switcher 7.10.5.3.9 Aux Name Index card for aux bus name settings. Figure 269 Sidepanel – Index Card Aux Names This configuration card is to be used if you want to have source names at the External Aux Bus and the router control protocol excludes the name transfer.
- Page 398 KayakDD - Digital Production Switcher 7.10.5.3.10 Aux Couple Index card for coupling the aux bus to other switcher buses (masters). If the source on e master is changed, the source on the coupled aux bus follows. Figure 270 Sidepanel – Index Card Aux Couple Coupled To: Select the desired switcher bus Mode:...
- Page 399 KayakDD - Digital Production Switcher 7.10.5.3.11 Subst. Table Index card for generating and editing a substitution table. Figure 271 Sidepanel – Index Card Subst Table he index card contains 15 substitution tables. These tables can be used by coupled aux buses or coupled M/Es to exchange the source when the coupled aux bus follows his mast er.
- Page 400 KayakDD - Digital Production Switcher 7.10.5.3.1 Index card for DVE settings. Figure 272 Sidepanel – Index Card ME Settings or DVE control, the Aux busses supplying the video and key signal have to be irectly indicated in the GVG200 protocol. In order to keep an assignment variable, this index card is available enabling an Aux bus mapping.
- Page 401 KayakDD - Digital Production Switcher 7.10.5.3.13 Title de card for fixed title settings. Figure 273 Sidepanel – Index Card Title These adjusting elements enable fading-in different auxiliary lines (Box , Center Cross) to each individual Aux bus. The fading serve as an auxiliary mea ns to mark at productions defined picture areas (e.g.
- Page 402 KayakDD - Digital Production Switcher 7.10.5.3.14 Tally In Index card for tally in settings. Figure 274 Sidepanel – Index Card Tally In User Manual...
-
Page 403: Config Panel Menu
KayakDD - Digital Production Switcher 7.10.6 Config Pan l e Menu igure 275 Sidep anel – Config Panel Menu 7.10.6.1 Dialog Butt • Config Selecting Config menu. • E-Box Selecting Config E-Box menu. • Attached Macros Selecting Attached Macro menu. •... - Page 404 KayakDD - Digital Production Switcher 7.10.6.2 Function Buttons / Index Cards Make Memo 7.10.6.2.1 ke Memo can store commands as macros (e.g. Cut, Auto, GPO trigger, etc.). By serting Pa between commands it can also store a macro sequence. The difference b ween TiM/E Memo with snapshot s and timelines to Make Memo is, that iM/E Memo store states and sequences of states, Make Memo stores commands...
- Page 405 KayakDD - Digital Production Switcher • Edit Macro View Macro – Modify details refer next section Macro ditor. • Cursor Up/Down The vertical cursor softkeys and the vertical cursor digipot are used to navigate within a list box. The complete cursor control is always relevant. How to Store a Macro: ake sure that in the Config menu the Running Application is selected to witch you ant to add the macros.
- Page 406 KayakDD - Digital Production Switcher 7.10.6.2.2 Assign Index card for Input Assignment. The menu is selectable only when a control panel is attac hed. Only a user with permit ”APPLICATION MODIFY” can make changes. Figure 277 Sidepanel – Index Card Config Panel Box Bus Rows: Pre-selects the panel’s bus rows for which the Input Assignment should be changed.
- Page 407 KayakDD - Digital Production Switcher Box Button: Shows a sorted list of all assignable crosspoint buttons. The arrow in column 1 indicates the buttons which are assigned input currently marked Input. Column numeric list buttons. Column 3 is a helper to show whether the Button is in first level.
- Page 408 KayakDD - Digital Production Switcher • Reset Assign Resets the assignment to the following states: pens an overlay with some pre-defined input assignments: Like Bgnd Copies the input assignment from the Bgnd bus row into the key bus row (o y nl for key buses): Like AUX All:...
- Page 409 KayakDD - Digital Production Switcher 7.10.6.2.3 AUX CP Index card for configuration the Aux Control Panels connected with the switcher control panel. Figure 278 Sidepanel – Index Card Aux CP odify: For details refer to Config E-Box Menu. Delegation: Pressing a delegation button delegates the AUX-C P to that function.
- Page 410 KayakDD - Digital Production Switcher Source Buttons: Pressing a source button performs the function according to the delegation. I.e., selects the crosspoint or recalls the register or macro. The response to a recall is a short flash of the source button. The response to a crosspoint selection indication...
- Page 411 KayakDD - Digital Production Switcher 7.10.6.3 Macro Edito • Edit Macro Pressing the button actually enters a sub-dialog of the MaKE page (see below). View Macro Pressing the button enters the same dialog as “Edit Macro”, but without any buttons to change the contents Figure 279 Sidepanel –...
- Page 412 KayakDD - Digital Production Switcher Insert: Insert ne w comm. at select. Insert an empty command line before the selected command. In e s rt new comm. at end Insert an empty command line after the last command. sert exist. macro at select. Insert an existing macro before the selected command.
- Page 413 KayakDD - Digital Production Switcher Principles of the Macro Editor: With the macro editor you can view and edit the contents of a macro. You can delete ommands from the macro by just pressing the delete button. Insert a command can be done in two ways: •...
- Page 414 KayakDD - Digital Production Switcher Depending whether the command deals with a switch value, an analog value, or an vent you will find one of the following selection pop-ups: witch value (e.g. Wipe Rotation Mode): Set by value Sets rotation mode to a fixed value. Next selection will be: Angle / Speed / Coupled Toggle up When you execute this macro, the result depends on...
- Page 415 KayakDD - Digital Production Switcher Analog value (e.g. Wipe Border Width): set by value Sets border width to a fixed value. Next selection will allow you numeric entry. set to minimum Sets the border width to minimum set to maximum Sets the border width to maximum set to neutral Some analog value like the border width have a symmetrical...
- Page 416 KayakDD - Digital Production Switcher Event (e.g. Transition Cut): trigger For this type there is only one selection possible: to trigger the event User Manual...
-
Page 417: Attached Macros Menu
KayakDD - Digital Production Switcher 7.10.7 Attached Macros Menu Figure 280 Sidepanel – Attached Macros Menu 7.10.7.1 Dialog Butt • Config Selecting Config menu. • E-Box Selecting Config E-Box menu. • Attached Macros Selecting Attached Macro menu. • Allocate Panel Selecting Allocate Panel menu. - Page 418 KayakDD - Digital Production Switcher 7.10.7.2 Viewer for Attached Macros his menu can be accessed in two ways: ia Config / Attached Macros menu by clicking to “attached macros” button, hich is visible in all menus at the right side between the middle digipots. This button only visible when there is at least one macro attachment.
- Page 419 KayakDD - Digital Production Switcher Available panel types: Selects automatically the connected panel type! Left/Right/Up/Down Arrow: Scrolling the display in the according direction. Zoom In: Zoom in display. Starting from a certain zoom factor the text labels per button are displayed. Zoom Out: Zoom out display.
- Page 420 KayakDD - Digital Production Switcher Attachment Display: a macro is attached to a button in a certain section (e.g. Aux row, M/E1 row) this section is displa yed with a yellow background. The buttons with attached macros are displ ayed in red. To s ee the details of the attachment, move the cursor to the according button (or click n it...
-
Page 421: Personality Menu
KayakDD - Digital Production Switcher 7.11 Personality Menu Figure 282 Sidepanel – Personality Menu The menu permits personality settings for the panel and sidepanel (PC and display). With the T ransfer button, the settings can be saved (Export) on a diskette or aded (Import) from a diskette. - Page 422 KayakDD - Digital Production Switcher 7.11.1.1.1 Panel Inde x card for panel settings. Figure 283 Sidepanel – Index Card Panel, 1 page Figure 284 Sidepanel – Index Card Panel, 2 page Use Modify button to set your settings. User Manual...
- Page 423 KayakDD - Digital Production Switcher 7.11.1.1.2 SidePanel dex card for sidepanel settings. Figure 285 Sidepanel – Index Card SidePanel Use Modify button to set your settings. User Manual...
-
Page 424: Tim/E M Emo Menu
KayakDD - Digital Production Switcher 7.12 TiM/E M emo Menu 7.12.1 TiM/E Me mo Selec t Menu Figure 286 Sidepanel – Master TiM/E Memo Menu The Select menu enables to directly select the individual register 0 ... 99. The info field on the left side displays the short name, the long name and the text of the register just marked with the cursor frame. - Page 425 KayakDD - Digital Production Switcher 7.12.1.2 Function Buttons • Delegate If this button is pressed, the user can select another TiM/E Memo to go to. So it is possible to switch over to the PP, M/E1, M/E2, M/E3 or Master TiM/E Memo Select Menu.
- Page 426 KayakDD - Digital Production Switcher • Cut – snapshot selected: Recall – If timeline selected: Timeline Play • Auto If this button is pressed and a snapshot is selected, a dissolve operation with the Auto transition time for this snapshot will be done. If a timeline is selected and then the Auto button is pressed, the selected timeline will be played in the given Auto Time.
- Page 427 KayakDD - Digital Production Switcher • Rename Renames the currently selected register. The user can rename the 4, 8 and 20 character names change character comment. • Store Stores the currently in Define Memo e nabled entities to the selected (blue cursor frame) register as a snapsh •...
-
Page 428: Define Memo Menu
KayakDD - Digital Production Switcher 7.12.2 Define Mem o Menu Figure 287 Sidepanel – Define Memo Menu The menu indicates which switcher resources are stored in snapshots and timelines. For this purpose, a symbolic representation of the switcher appears in the menu. - Page 429 KayakDD - Digital Production Switcher The X-Bar object in the menu Define Memo got the sub-entries pgm and pst. Thus, PGM sources and PST sources can be selected individually. The states of both are tored but only the activated bus will be recalled. Example: If PGM is disabled during Recall, the PGM row of the selected M/E is not affected by the snapshot recall (or timeline).
-
Page 430: Edit Menu
KayakDD - Digital Production Switcher 7.12.3 Edit Menu Figure 288 Sidepanel – Master TiM/E Memo Edit Menu 7.12.3.1 Dialog Butt • Define Selecting Define menu. • Previous Menu Return to the previous menu. For details refer to section Introduc tion. OTE! If the edit mode is activated. - Page 431 KayakDD - Digital Production Switcher 7.12.3.2 Function Bu tons • View On: If the user is g oing to edit a timeline, then he will see the results of his modifications and curso r movement in the video, i.e. if a keyframe or snapshot object will be selected, it will be recalled and displayed in t he video.
- Page 432 KayakDD - Digital Production Switcher Exchange Buttons: This function changes only values which have a certain value. In order to set this value pressed previously the Set KF Ref button. Then enter the desired new value press Exchange Buttons button. Example: Exchange the circles in the time line through stars.
- Page 433 KayakDD - Digital Production Switcher • Mark This button enables selection of a range in the timeline. If a range is selected, the button Modify all changes its inscription into Modify Range. All modifications are performed in the selected range only. •...
- Page 434 KayakDD - Digital Production Switcher 7.12.3.3 Object Overview and Parameter Entr The following section give s an overview on the objects with their parameters which can be inserted into a time line. S tart: Object is always available. Cannot be erased or inserted. rans ition: automatically inserted before keyframe or snapshot.
- Page 435 KayakDD - Digital Production Switcher Wait Frames Parameters: Frames Wait G Parameters: GPI No. Loop loop can be changed on the Loop Begin as well on the Loop End symbol Parameters: Loop count ait User Parameters: – Wait TOD Parameters: Time of Day Trigger GPO Parameters:...
- Page 436 KayakDD - Digital Production Switcher TriggerP-Bus Trigger Parameters: Trigger No Machine 1: recall, no recall Machine 24: recall, no recall Trigger P-Bus Register Parameters: Register No Machine 1: recall, no recall Machine 24: recall, no recall Trigger MaKE Memo Parameters: Memo No. Object is always available.
-
Page 437: Aux Menu
KayakDD - Digital Production Switcher 7.13 Aux Men u Figure 289 Sidepanel – Aux Menu The Aux menu enables to select the sources on the individual internal and external aux usses. This is the only way to select aux sources from a sidepanel without pushbuttons (e.g. - Page 438 KayakDD - Digital Production Switcher Select the aux bus with the cursor button and press Modify. Then select the desired aux source in a popup menu. User Manual...
-
Page 439: Glossary
KayakDD - Digital Production Switcher Glossary Auto Transition A transition having a predefined d uration generally initiated by pressing a control panel button. spec The ratio of a p icture’s horizontal and vertical dimensions when correctly displayed (4:3, 16:9). ackg round Bus A row of buttons on the M/E used to select background video signals. - Page 440 KayakDD - Digital Production Switcher Clip A threshold level adjustment to which the keying attribute (luminance, chrominance) is compared for generating the internal key control signal. Clip, in conjunction with gain, sets the switching point between the background and the y fill.
- Page 441 KayakDD - Digital Production Switcher Deserializer A device that converts serial digital information to parallel. Disso See Mix. DPOP (Double Press Open) Pressing a control panel button twice rapidly to open a related menu. On the KayakDD system, buttons supporting DPOP are labeled with a graphical indicator.
- Page 442 KayakDD - Digital Production Switcher Frame One complete scan of a video image. For interlace video, alternate lines are scanned, and so a frame containing all the picture information consists of two fields. Frame Rate The number of frames presented per se cond.
- Page 443 KayakDD - Digital Production Switcher Key Invert Reversing the polarity of a key, such that material formerly keyed out will be keyed in, and vice versa. ey Mask A key mode which allows use of a wipe pattern generator to prevent some undesirable portions of the key cut signal from cutting holes in the background video.
- Page 444 A picture element. A pixel is a digital sample of the luminance and color values of a picture at a single point. Profile Model name of a Thomson Grass Valley Video Disk Recorder. Point of Use A location in the system where a resource is used. A resource is generally used at different locations at different times.
- Page 445 KayakDD - Digital Production Switcher Programmable Clean Feed A type of clean feed where different keys can be selected for inclusion or exclusion from the clean feed. Recall To restore a previous panel setup that has been learned using E-MEM. Reclocking The process of clocking the data with a regenerated clock to remove jitter.
- Page 446 KayakDD - Digital Production Switcher SPOP (Single Press Open) Automatically opening a related menu when a control panel button is pressed. On the KayakDD system, buttons supporting SPOP are labeled with a graphical indicator. Stack See Key Priority. Still Store A device that captures, saves, and outputs a still video image.
- Page 447 KayakDD - Digital Production Switcher Wipe A transition between two video signals that occurs in the shape of a selected pattern. Wipe Pattern Generator Circuitry that creates patterns that can be used to create wipe transitions, preset patterns, key masks, and matte washes. User Manual...
