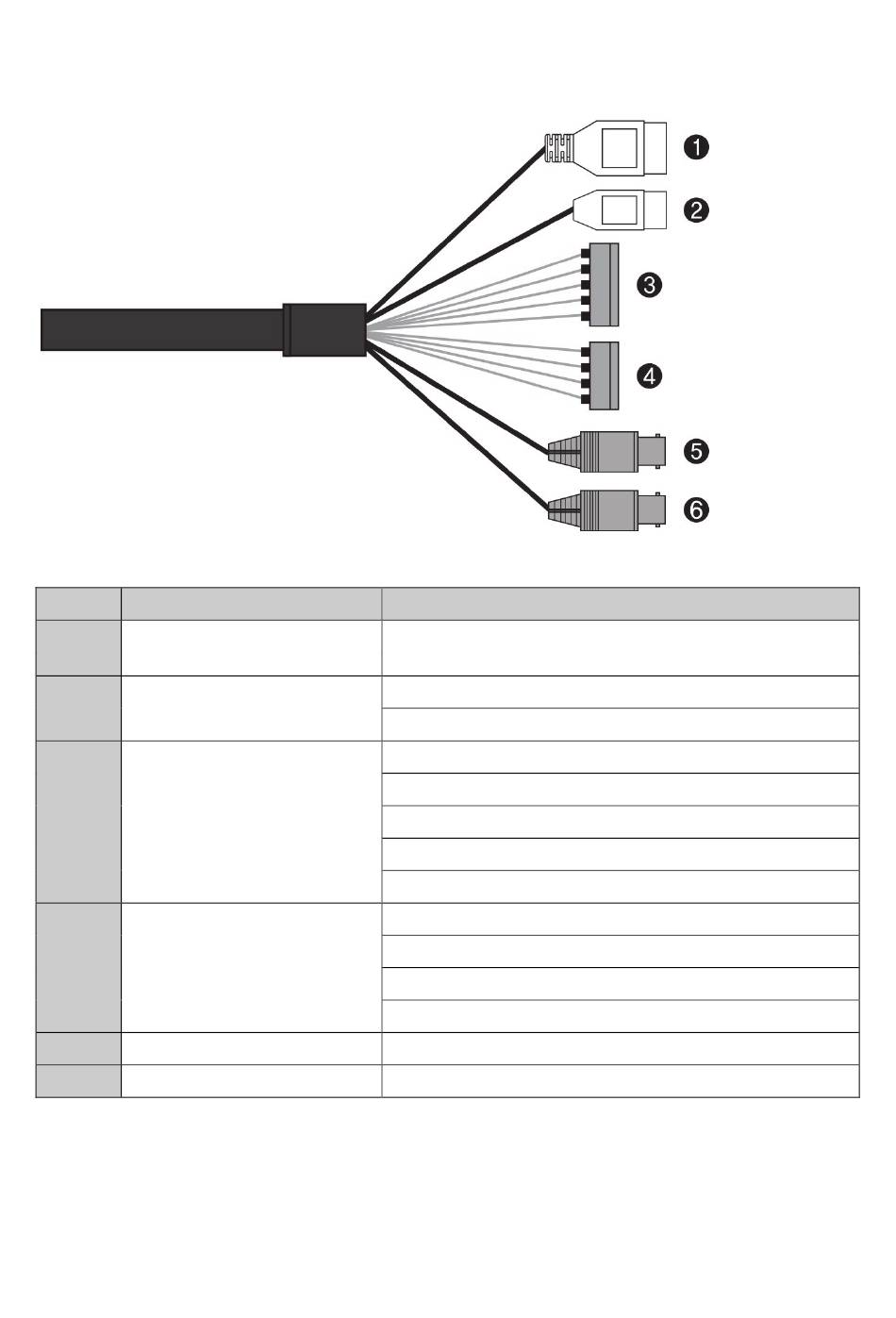

2.4 Cabling the PTZ camera

No. Type
3-pin
1
terminal block
2-pin
2
terminal block
5-pin
3
terminal block
4-pin
4
terminal block
5 BNC black
6 BNC yellow
Description
Camera power
Tx+: RS485+ (A)
TX-: RS485- (B)
A1: alarm input 1
A2: alarm input 2
A3: alarm input 3
A4: alarm input 4
GND
AO1: alarm output 1
GND
AO2: alarm output 2
GND
HD-TVI/ HD-Analog output
CVBS output
