Summary of Contents for DW Star-Light Plus DWC-PTZ220XW

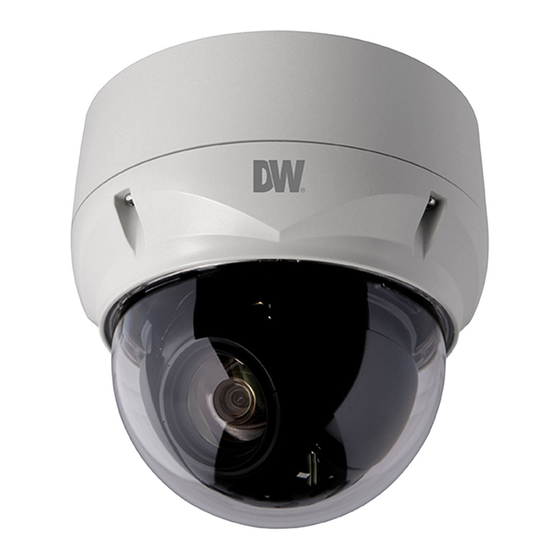

- Page 1 Star-Light Plus 2.1MP/1080p PTZ Camera PTZ220XW User’s Manual 04/20...
-
Page 4: Table Of Contents
Table of Contents Chapter 1 — Introduction ..........................5 1.1 Features ..................................5 Chapter 2 — Installation and configuration ................... 6 2.1 Package contents ..............................6 2.2 Preparing the installation ............................6 2.3 Mounting the camera .............................. 7 2.4 Cabling the PTZ camera ............................8 2.5 Setting the camera’s DIP switch ......................... -
Page 5: Chapter 1 - Introduction
Chapter 1 — Introduction 1.1 Features • Universal HD over Coax® technology with HD-Analog, HD-TVI and all legacy analog signal support • Star-Light™ super low-light technology • 2.1MP/1080p 1/2.8" Sony image sensor at real-time 30fps • Analog legacy analog output (720x480) •... -
Page 6: Chapter 2 - Installation And Configuration
Chapter 2 — Installation and configuration 2.1 Package contents Make sure the following are included in the box with your camera: • 1x PTZ camera • 1x quick setup and download guides • 1x mounting plate • 1x mounting template •... -
Page 7: Mounting The Camera
2.3 MOUNTING THE CAMERA 1. Fix the mounting bracket to the mounting surface using the included anchors and screws. 2. Connect the camera’s safety wire to the mounting bracket. A silicone rubber sealant must be applied to seal the housing to secure waterproofing. -
Page 8: Cabling The Ptz Camera
2.4 Cabling the PTZ camera Type Description 3-pin Camera power terminal block Tx+: RS485+ (A) 2-pin terminal block TX-: RS485- (B) A1: alarm input 1 A2: alarm input 2 5-pin A3: alarm input 3 terminal block A4: alarm input 4 AO1: alarm output 1 4-pin terminal block... -
Page 9: Setting The Camera's Dip Switch
2.5 Setting the camera’s DIP switch To access the camera’s DIP switch, open the DIP switch cover at the bottom of the camera and change the setting of the DIP switch as needed. Once the settings are updated, close the cover tightly to ensure waterproofing. 1. -
Page 10: Setting The Camera's Id
2.6 Setting the camera’s ID To prevent damage, each camera must have a unique address (ID). The factory default ID is 1. Refer to the “3.10 Camera Communication” section for detailed information. 2.7 Connections • Connecting to the RS-485 – The camera can be controlled remotely by an external device or control system, such as a control keyboard, using RS-485 half-duplex serial communications signals. -
Page 11: Getting Started
2.8 Getting Started Once the camera is mounted, turn the power on to the camera. The camera will start a configuration sequence. Focus and AE Function TITLE AF AE status Information EMPTY DATA display Alarm display ALARM:1 Camera title and ID PTZID:0001 360.0 090.0 OSD position... -
Page 12: Camera Selection
Chapter 3 — Program and Operation 3.1 Camera selection IF you use a keyboard, before you program or operate the camera, select the camera by pressing No. + CAM keys. Example: Pressing 1, 0 + CAM keys will select camera 10. The selected camera ID will be displayed on the keyboard’s LCD monitor. -
Page 13: Auto Scan
3.4 Auto scan The ‘auto-scan’ feature supports up to 17 programmed angles at user-programmable speeds. AUTO SCAN SETUP NUMBER : 01 TITLE : A01 MODE : NORMAL SPEED 5 STEP START ANGLE : ----- ----- -- END ANGLE : ----- ----- -- SCAN DIR : CCW SWAP... - Page 14 TITLE EDIT MENU (CTRL KEY) A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ( ) ALL DELETE EXIT(ESC TO EXIT) 5.
-
Page 15: Preset
3.5 Preset If you need to view specific places routinely, you should program Presets. A Preset is a programmed video scene with automatic pan, tilt, zoom, focus, and AE settings. Also, Presets may be assigned the “home” position for the PTZ camera. As many as 240 Presets, whose positions are saved in the PTZ camera’s firmware, may be programmed. - Page 16 Select “MOTION SETUP” and press the Right or Left key. Then the MOTION setup displays. MOTION SETUP SENSITIVITY : 10 POSITION : ALL DELAY : 00 SEC OUTPUT : OFF HOLD TIME : 03 SEC EXIT(ESC TO EXIT) Set SENSITIVITY 00 ~ 20 Set POSITION ALL, CENTER...
-
Page 17: Tour
3.6 Tour There are 8 programmable Tours. Each Tour consists of up to 40 Preset positions, Patterns, Scans, or other Tours (second-level). Using second-level Tours, it can be expanded to over 300 functions in a single Tour. TOUR SETUP NUMBER : 01 TITLE : T01... - Page 18 8. Repeat steps 2 through 6 for each desired position. Each title will be displayed on top of the line. 9. To edit the “TITLE”, follow the procedure of the Auto Scan above to edit titles. 10. Select “SAVE AND EXIT” and press the Right or IRIS Open key. Press the IRIS Close key to exit the program without saving.
-
Page 19: Pattern
3.7 Pattern The Pattern feature records user control of the selected PTZ camera. Up to 8 Patterns can be stored and played back by pressing No. + PTRN keys subsequently. PATTERN SETUP (CTRL KEY) TITLE PERCENT 00.0% 00.0% 00.0% 00.0% 00.0% 00.0% 00.0%... -
Page 20: Privacy Zone
3.8 Privacy Zone Hide up to 16 unwanted scenes in a camera. There are four pages of the Privacy Zone menu. Each page has 4 Privacy Zones. PRIVACY ZONE SETUP (CTRL KEY) METHOD COLOR BLOCK BLACK BLOCK BLACK ----- BLACK ----- BLACK NEXT PAGE... -
Page 21: Camera Menu
3.9 Camera Menu CAMERA SETUP FOCUS CONTROL WB CONTROL AE CONTROL CAMERA CONTROL SHARPNESS : 02 DIGITAL ZOOM : OFF IMAGE FLIP : OFF PRESET FREEZE : OFF RESOLUTION : 1080P/25 SAVE AND EXIT(ESC TO CANCEL) FOCUS CONTROL See section 3.9.1. WB CONTROL See section 3.9.2. -
Page 22: Wb (White Balance) Control
3.9.2 WB (White Balance) CONTROL WB SETUP MODE : AUTO R GAIN : --- B GAIN : --- SAVE AND EXIT(ESC TO CANCEL) MODE AUTO, MANUAL, INCANDESCENT, FLUORESCENT, OUTDOOR AUTO Computes the white balance value output using color information from the entire screen automatically. INCANDESCENT Auto white balance mode that is compatible with incandescent lamps. -
Page 23: Camera Control
NOTE: Values in ( ) are for NTSC Camera. The NIGHT SHOT option removes the IR cutoff filter of the camera and makes the camera sensitive to near-infrared. AUTO Camera goes into B&W mode at low light. GLOBAL Controlled by the keyboard (NOTE: GLOBAL function operates F2E protocol only) The operator can enable NIGHT SHOT for all PTZ cameras at the same time. -
Page 24: Ptz Communication
CHROMA 0 ~ 20 GAMMA 0 ~ 4 OFF, LOW, MID, HIGH OFF, ON 3.10 PTZ Communication Each PTZ camera must have a unique address (ID). The factory default setting is 1. PTZ COMMUNICATION PTZ ID : 0001 PROTOCOL : AUTO BAUDRATE : 9600 PARITY... -
Page 25: Alarm
3.11 Alarm ALARM SETUP (CTRL KEY) NO PRI FUN IN HOLD LATCH 001 NO OUT1 03 --- OFF --- OFF --- OFF DWELL : 03 SEC ALARM OUT SETUP SAVE AND EXIT(ESC TO CANCEL) NO (Number) Alarm input number PRI (Priority) The lower number has a higher priority. -
Page 26: Ptz Setup
3.12 PTZ Setup CONFIGURATION MENU HOME FUNCTION SETUP VIEW ANGLE SETUP ORIGIN OFFSET FACTORY DEFAULT PTZ RESET OSD DISPLAY SYSTEM SETUP FUNCTION RUN SYSTEM INFORMATION EXIT(ESC TO EXIT) 3.12.1 HOME FUNCTION SETUP HOME FUNCTION SETUP FUNCTION : NONE NUMBER : --- WAITING TIME : 120 SEC ENABLE... -
Page 27: View Angle Setup
3.12.2 VIEW ANGLE SETUP VIEW ANGLE SETUP PANNING RANGE FLIP : 90° TILT ANGLE LIMIT : 07° SAVE AND EXIT(ESC TO CANCEL) FLIP OFF, AUTO, 90°, 100°, 110°, 120° OFF: The PTZ camera moves until 90° vertically. AUTO: When the camera reaches the floor directly above the moving object, it will stop. -
Page 28: Origin Offset
3.12.3 ORIGIN OFFSET OFFSET SETUP (CTRL KEY) PAN OFFSET : 000.0 TILT OFFSET : 000.0 ENABLE : OFF SAVE AND EXIT(ESC TO CANCEL) This feature is useful to align a new PTZ camera the same as the previously installed PTZ camera. PTZ camera’s origin set and all data initialize option do not override offset values. -
Page 29: Osd Display
3.12.6 OSD DISPLAY OSD DISPLAY SETUP LANGUAGE : ENGLISH TITLE : PTZID PTZ OSD : ON FOCUS/EXPOSURE : OFF COLOR : YELLOW SAVE AND EXIT(ESC TO CANCEL) LANGUAGE Select the desired language. TITLE up to 6 characters PTZ OSDON, POSITION, ON (ZOOM), ZOOM, TILTE&ID, OFF All display or title will disappear when PTZ OSD DISPLAY is set to OFF. - Page 30 MOTOR SETUP Motor setup menu provides the pan and tilt speed of a camera. Users can set the desired speed by pressing the Right or Left key. MOTOR SETUP PROPORTIONAL P/T P/T MODE : NORMAL SLOW PAN MAX SLOW TILT MAX NORMAL PAN MAX NORMAL TILT MAX TURBO PAN MAX...
-
Page 31: Function Run
ORIGIN CHECK If you find the PTZ camera in the wrong position during operation, execute this origin check and the PTZ camera will return to the right position after the origin check operation. ORIGIN CHECK ARE YOU SURE ? CANCEL 3.12.8 FUNCTION RUN This Function Run menu allows you to execute the function when you use the keyboard or DVR without the function keys (Preset. -
Page 32: System Information
ALARM OUT SETUP OUT1 : ALARM OUT2 : 1 MIN EXIT(ESC TO EXIT) You press the IRIS Open key then that alarm out operates during the setting time only. 3.12.9 SYSTEM INFORMATION SYSTEM INFORMATION CAMERA TYPE : xxxx-Vx.xx H/W VERSION : Vx.xx-xxxx ROM VERSION : Vx.xxxxxx... -
Page 33: Appendix A - Specifications
Appendix A — Specifications IMAGE Image sensor 2.1MP/1080p 1/2.8” CMOS sensor Active pixels 1945 (H) x 1097 (V) Scanning system Progressive scan Synchronization Internal HD-TVI: 2.1MP/1080p at 30fps, 720p at 30/60fps Resolution HD-Analog: 2.1MP/1080p at 30fps CVBS: 720 x 480 at 30fps Minimum scene illumination 0.35 lux (color), 0.013 lux (B/W) LENS... - Page 34 ENVIRONMENTAL Operating temperature 14°F ~ 122°F (-10°C ~ 50°C) Operating humidity 0–90% RH (non–condensing) IK rating IK-10 impact-resistant IP rating IP66 rated weather and tamper-resistant Other certifications FCC, CE, ROHS ELECTRICAL Power requirement 12VDC, 24VAC Power consumption Max. 1A (12W) @ 12VDC, 24VAC MECHANICAL Material Aluminum PTZ, polycarbonate PTZ...
-
Page 35: Appendix B - Troubleshooting
Appendix B — Troubleshooting If problems occur, verify the installation of the camera with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Problem Possible Solution Verify that power is connected to all pieces of... -
Page 37: Warranty
two (2...
