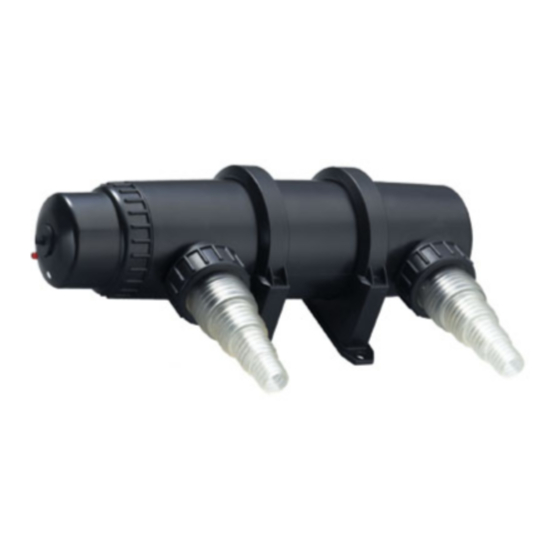

PondXpert Greenstop PXUV09000 Manual

PXUV09000
Model
PXUV09000
PXUV15000
PXUV23000
PXUV40000
All UVC supplied with 3-core electrical cable with IP44 rated ballast fitted externally.
All UVC models come complete with a pair of hosetail connections.
All UVC have a rated voltage of 220-240V, 50Hz

Introduction

Congratulations on the purchase of your pondXpert UVC. Once your uvc unit is connected
you can look forward to increased water clarity.
Your unit works by exposing your pond to UV light. This causes microscopic algae cells to
flocculate (stick together). These larger pieces can then get trapped in filter media as they
pass through your pond system.
This unit is designed for outdoor use only. It is weatherproof and should be situated safely
pondside. The unit should be sited where it cannot fall into the water or become
waterlogged.
NO PART OF THIS UNIT SHOULD EVER BE SUBMERGED IN WATER.
PondXpert products are carefully inspected and tested to ensure both safety and operating
performance. However, failure to follow the instructions and warnings in the manual may
result in product damage and/or serious injury. Be sure to read and save this manual for
future reference.

General safety Instructions

Read and observe all of the instructions before installing, connecting and operating.
Make sure the filter is securely and correctly installed before switching on.
Always disconnect the UV when not in use and when carrying out maintenance.
Always disconnect all equipment in the pond before starting to handle, maintain, repair or
install any pond equipment.
The appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
PXUV23000
Pond Ultra Violet Clarifier (UVC)
Power Dimensions
Rating LxDia (mm)
11W 310 x 83
18W 310 x 83
36W 503 x 83
55W 630 x 160
Greenstop
Max. Inlet Size
Flow mm
4500lph 20/25/32/40
7500lph 20/25/32/40
10000lph 20/25/32/40
20000lph 20/25/32/40
PXUV40000
Outlet Size
mm
20/25/32/40
20/25/32/40
20/25/32/40
20/25/32/40
