PondXpert Triple Action
Evolve 4500
How to set up your All In One

Advertisement

loading
Need help?

Need help?

Do you have a question about the Triple Action Evolve 4500 and is the answer not in the manual?

Questions and answers

Related Manuals for PondXpert Triple Action Evolve 4500

Summary of Contents for PondXpert Triple Action Evolve 4500

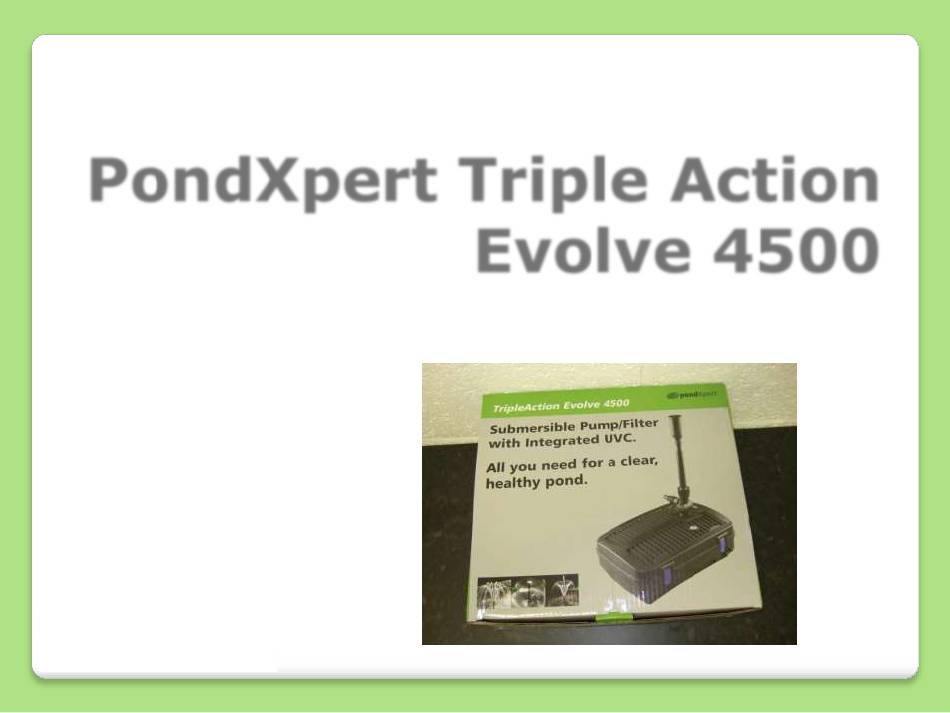

  • Page 1 PondXpert Triple Action Evolve 4500 How to set up your All In One...

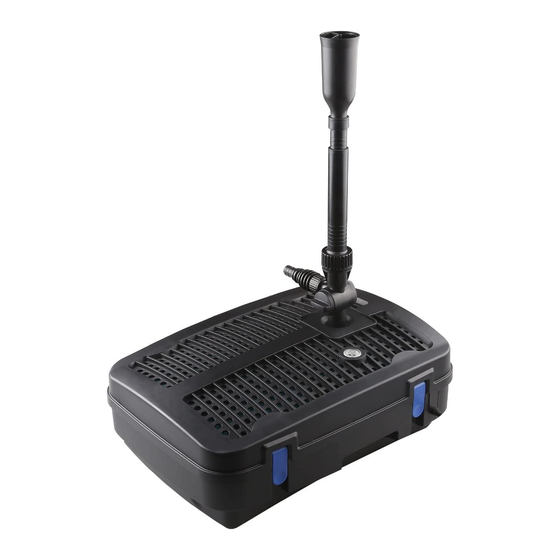

  • Page 2 Step One The unit is simplistic in design and easy to maintain. The removable fountain attachment screws in to the main base as shown. UVC viewing area.
  • Page 3 Fitments Below are the remaining fitments for the Triple Action Evolve. Fountain head Hostail for attachments T’ Piece diversion Hostail diverter T’ Piece fitment...

  • Page 4: Maintenance

    Maintenance The Triple Action Evolve is shown below with all attachments removed. The blue clips shown to the side allow the unit to be opened for maintenance. The unit should be checked at least every 6 months, the bulb will need to be replaced and the filter sponge rinsed to ensure...
  • Page 5 The TripleAction Evolve is shown once the Maintenance clips have been removed, this allows Continued… access to the interior of the unit. UVC bulb Filter housing Foam Water flow from, fountain fitment internal view viewing...
  • Page 6 Fountain Heads The fountain heads are  interchangeable to produce different water sprays. If you choose to change  the original attachment you will firstly need to turn this fitment (1) anti-clockwise. The chosen fitment has a  push and screw fitment as shown (2).
