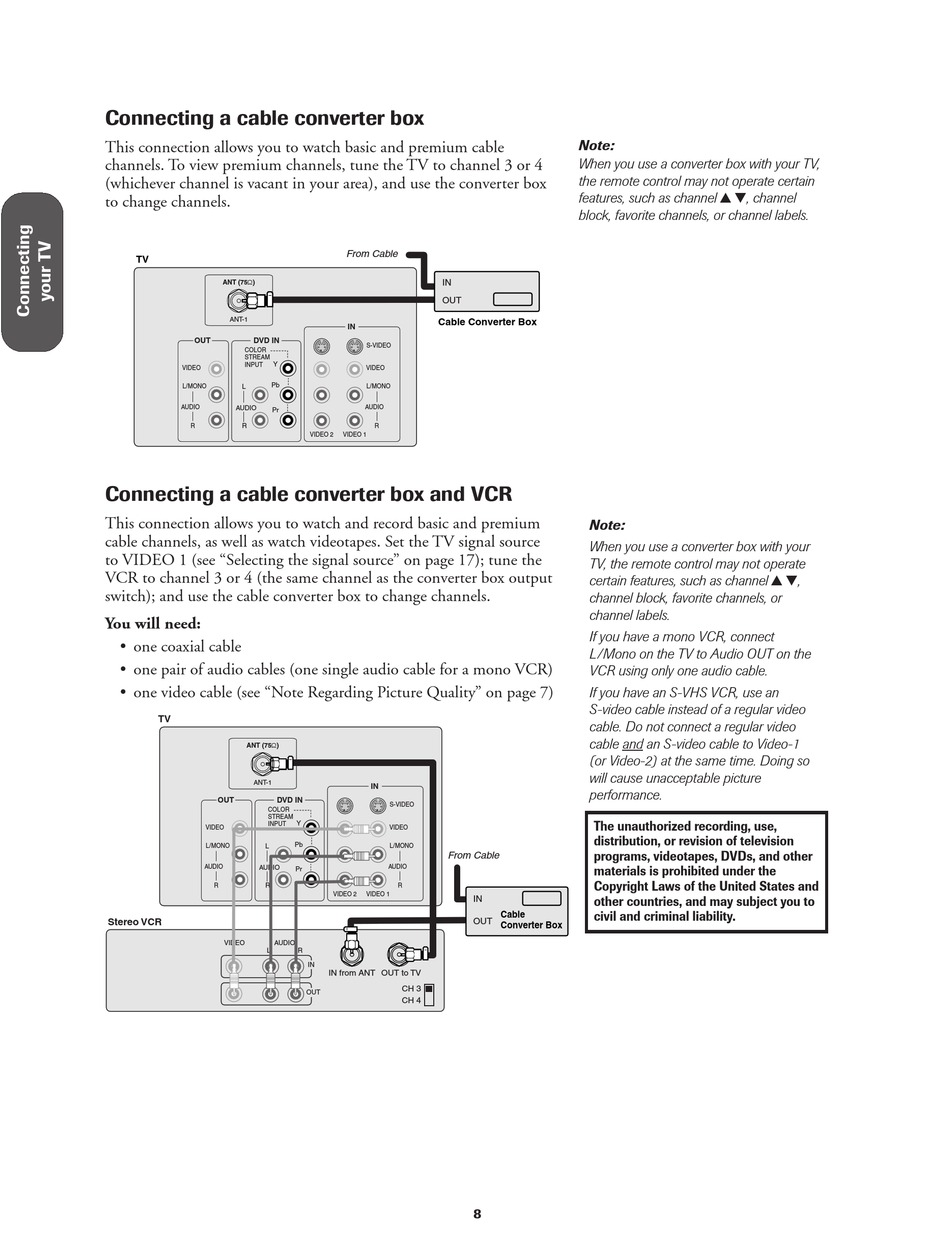

Connecting a cable converter box

This connection allows you to watch basic and premium cable
channels. To view premium channels, tune the TV to channel 3 or 4
(whichever channel is vacant in your area), and use the converter box
to change channels.
TV
ANT (75Ω)
ANT-1
OUT
DVD IN
COLOR
STREAM
Y
INPUT
VIDEO
Pb
L/MONO
L
AUDIO
AUDIO
Pr
R
R

Connecting a cable converter box and VCR

This connection allows you to watch and record basic and premium
cable channels, as well as watch videotapes. Set the TV signal source
to VIDEO 1 (see "Selecting the signal source" on page 17); tune the
VCR to channel 3 or 4 (the same channel as the converter box output
switch); and use the cable converter box to change channels.
You will need:
• one coaxial cable
• one pair of audio cables (one single audio cable for a mono VCR)
• one video cable (see "Note Regarding Picture Quality" on page 7)
TV
ANT (75Ω)
ANT-1
OUT
DVD IN
COLOR
STREAM
INPUT
VIDEO
L/MONO
L
AUDIO
AUDIO
R
R
Stereo VCR
VIDEO
AUDIO
L
From Cable
IN
OUT
Cable Converter Box
IN
S-VIDEO
VIDEO
L/MONO
AUDIO
R
VIDEO 2
VIDEO 1
IN
S-VIDEO
Y
VIDEO
Pb
L/MONO
From Cable
AUDIO
Pr
R
VIDEO 2
VIDEO 1
IN
OUT
R
IN
IN from ANT
OUT to TV
CH 3
OUT
CH 4
8
Note:
When you use a converter box with your TV,
the remote control may not operate certain
features, such as channel y z, channel
block, favorite channels, or channel labels.
Note:
When you use a converter box with your
TV, the remote control may not operate
certain features, such as channel y z,
channel block, favorite channels, or
channel labels.
If you have a mono VCR, connect
L/Mono on the TV to Audio OUT on the
VCR using only one audio cable.
If you have an S-VHS VCR, use an
S-video cable instead of a regular video
cable. Do not connect a regular video
cable and an S-video cable to Video-1
(or Video-2) at the same time. Doing so
will cause unacceptable picture
performance.
The unauthorized recording, use,
distribution, or revision of television
programs, videotapes, DVDs, and other
materials is prohibited under the
Copyright Laws of the United States and
other countries, and may subject you to
Cable
civil and criminal liability.
Converter Box
