Toshiba 27AF62 Service Manual

Toshiba 27AF62 Service Manual

N2f chassis
Hide thumbs Also See for 27AF62:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual

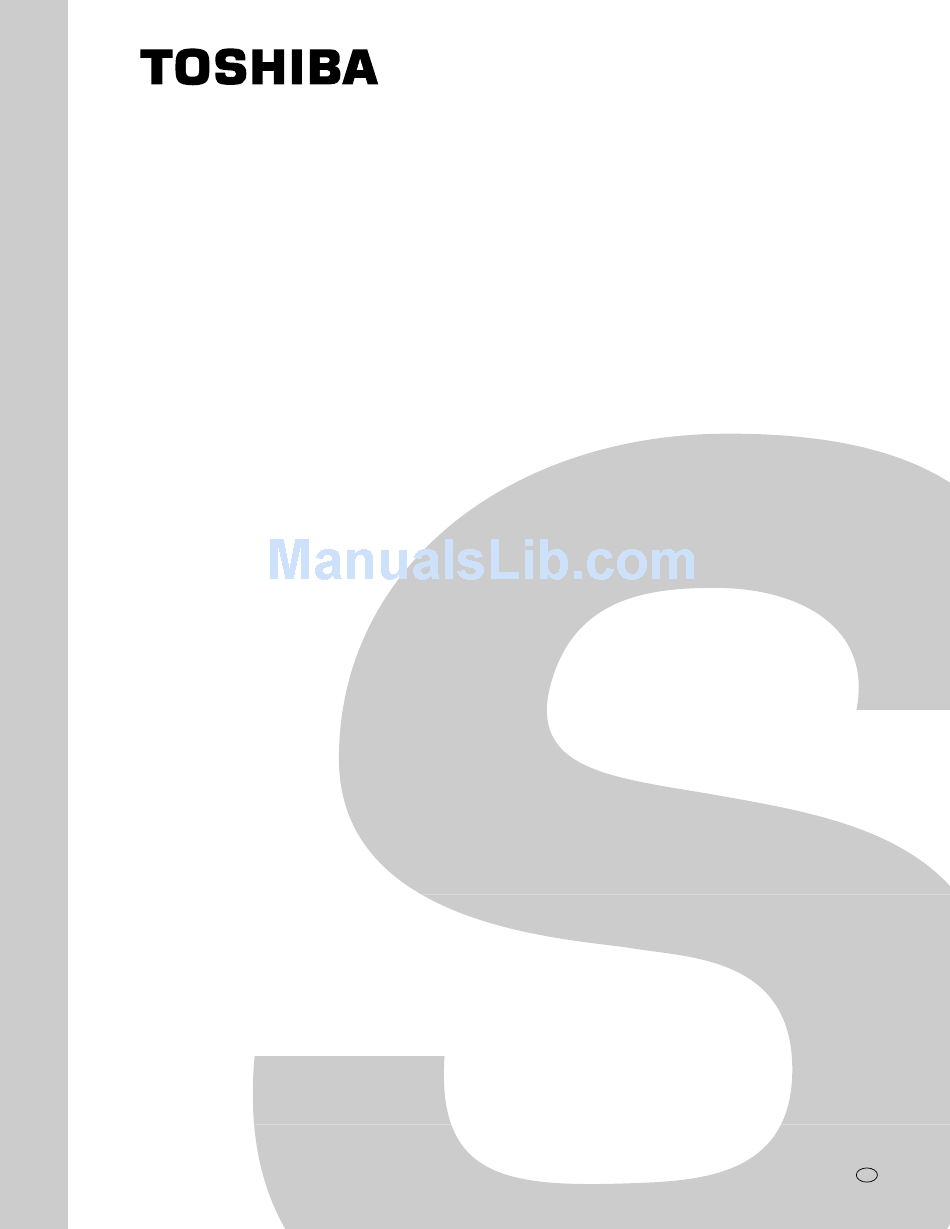

FILE NO. 020-200202

SERVICE MANUAL

COLOR TELEVISION
N2F Chassis
27AF62 , 27AF42
(TAC0201)
(TAC0202)
PUBLISHED IN JAPAN, Apr. 2002 So

Advertisement

Table of Contents
loading

Related Manuals for Toshiba 27AF62

Summary of Contents for Toshiba 27AF62

  • Page 1: Service Manual

    FILE NO. 020-200202 SERVICE MANUAL COLOR TELEVISION N2F Chassis 27AF62 , 27AF42 (TAC0201) (TAC0202) PUBLISHED IN JAPAN, Apr. 2002 So...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1 GENERAL ADJUSTMENTS SAFETY INSTRUCTIONS ............................3 SET-UP ADJUSTMENT ............................4 SERVICE MODE ..............................8 DESIGN MODE ..............................11 ELECTRICAL ADJUSTMENT ..........................12 CIRCUIT CHECKS ..............................15 CHAPTER 2 SPECIFIC INFORMATIONS SETTING & ADJUSTING DATA ..........................16 LOCATION OF CONTROLS ...........................

  • Page 3: Chapter 1 General Adjustments

    CHAPTER 1 GENERAL ADJUSTMENTS SAFETY INSTRUCTIONS WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU- TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW. X-RAY RADIATION PRECAUTION 1. Excessive high voltage can produce potentially hazardous 2. This receiver is equipped with a Fail Safe (FS) circuit which X-RAY RADIATION.

  • Page 4: Set-Up Adjustment

    WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU- TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL. SET-UP ADJUSTMENT (FOR 13”, 14”, 19”, 20”) The following adjustments should be made when a complete realignment is required or a new picture tube is installed. Perform the adjustments in order as follows : 1.
  • Page 5 CONVERGENCE ADJUSTMENTS CIRCUMFERENCE CONVERGENCE ADJUSTMENT NOTE: Before attempting any convergence adjustments, the 1. Loosen the clamping screw of deflection yoke slightly to receiver should be operated for at least fifteen min- allow the yoke to tilt. utes. 2. Temporarily put a wedge as shown in figure 1. (Do not remove cover paper on adhesive part of the wedge.) CENTER CONVERGENCE ADJUSTMENT 3.
  • Page 6 WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU- TION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL. (FOR 35”, 36”) The following adjustments should be made when a complete realignment is required or a new picture tube is installed. Perform the adjustments in order as follows : 1.
  • Page 7 CONVERGENCE ADJUSTMENTS 4-POLE NOTE: Before attempting any convergence adjustments, MAGNETS the receiver should be operated for at least fifteen 6-POLE minutes. MAGNETS CENTER CONVERGENCE ADJUSTMENT 1. Display built-in cross-dot pattern using the TEST SIG- NAL SELECTION function. 2. Adjust the BRIGHTNESS and CONTRAST Controls for well defined pattern.

  • Page 8: Service Mode

    SERVICE MODE 1. ENTERING TO SERVICE MODE 1) Press MUTE button once 2) Press MUTE button 3) While pressing the MUTE button, on Remote Control. again to keep pressing. press MENU button on TV set. MUTE (Service mode display) 2. DISPLAYING THE ADJUSTMENT MENU 1) Press MENU button on TV.
  • Page 9 4. SELECTING THE ADJUSTING ITEMS 1)Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2. (t button for reverse order) Refer to table-2 for preset data of adjustment mode. (See SETTING & ADJUSTING DATA on page 16) 5.
  • Page 10 8. SELF DIAGNOSTIC FUNCTION 1) Press “9” button on Remote Control during display of adjustment menu in the service mode. The diagnosis will begin to check if interface among IC’s are executed properly. 2) During diagnosis, the following displays are shown. SELF CHECK NO.

  • Page 11: Design Mode

    DESIGN MODE 1. ENTERING TO DESIGN MODE 1) Select the Service mode. 2) While pressing RECALL button on 3) Press MENU button on TV. Remote and press MENU button on TV. Item Press Data Press (Design mode) (Adjustment mode) When QA02 is initialized, items “OPT0” and “OPT1” and "OPT2" of DESIGN MODE are set to the data of the representative model of this chassis family.

  • Page 12: Electrical Adjustment

    ELECTRICAL ADJUSTMENT ITEM ADJUSTMENT PROCEDURE FOCUS VR ADJ 1. Enter the service mode, then select any register item. 2. Press the TV/VIDEO button on the Remote until the black cross-bar pattern ap- pears on the screen. 3. Adjust the FOCUS control (on T461) for well defined scanning lines on the picture screen.
  • Page 13 ITEM ADJUSTMENT PROCEDURE HORIZONTAL POSITION 1. Call up the adjustment mode display, then select the item HPOS or VPOS. (HPOS) 2. Press the TV/VIDEO button on Remote until the VERTICAL POSITION white cross-bar or black cross-bar pattern appears (VPOS) on the screen. 3.
  • Page 14 MTS ADJUSTMENT (FOR N2N, N2F, N2ES CHASSIS) ITEM INPUT SIGNAL ADJUSTMENT PROCEDURE • 1kHz 30% mod. → ANT ATTENUATOR 1. Connect rms meter to pin 34 of QG01. (ATT) terminal 2. Display item ATT on screen. 3. Change data by VOLUME s/t buttons so that the reading of meter becomes value as close as 137mVrms.

  • Page 15: Circuit Checks

    CIRCUIT CHECKS HIGH VOLTAGE CHECK Troubleshooting Guide for Fail Safe Circuit CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps Check that the set returns to normal operation when pin 12 below. of Z801(or emitter of Q472) is grounded with jumper wire.

  • Page 16: Chapter 2 Specific Informations

    CHAPTER 2 SPECIFIC INFORMATIONS SETTING & ADJUSTING DATA SAFETY INSTRUCTIONS 27" HIGH VOLTAGE AT ZERO BEAM: 28.5kV MAX HIGH VOLTAGE: 29.7kV Table-1 SERVICE MODE ADJUSTING ITEMS AND DATAS IN THE SERVICE MODE: Item Name of adjustment Preset Item Name of adjustment Preset Data Data...

  • Page 17: Location Of Controls

    LOCATION OF CONTROLS (Representative: 27AF62) Front view Rear view VIDEO/AUDIO terminals Antenna/Cable terminals POWER indicator POWER MENU TV/VIDEO VOLUME CHANNEL VIDEO-3 IN AUDIO VIDEO L/MONO POWER INSIDE DOOR VIDEO-3 IN MENU TV/VIDEO VOLUME CHANNEL Remote sensor T / S t/ s Rear Term ANT (75Ω)

  • Page 18: Remote Control

    Remote Control RECALL LIGHT RECALL POWER LIGHT POWER TV/CABLE/VCR switch MUTE TV/VIDEO TIMER CABLE Set to “TV” to control the TV. TIMER MUTE TV/VIDEO CHANNEL s/t Channel Number VOLUME s/t CH RTN CH RTN C. CAPT ADV/ MENU PIP CH ENTER PIP CH s FAV t...

  • Page 19: Programming Channel Memory

    PROGRAMMING CHANNEL MEMORY The channel memory is the list of TV channel numbers your TV will stop on when you press the CHANNEL s or t button. First, use the TV/CABLE and CH PROGRAM functions to preset all active channels in your area automatically. If necessary, arrange the preset channels with the ADD/ERASE functions so that you can tune into only desired channels.

  • Page 20: Chassis And Cabinet Replacement Parts List

    • The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model number and Description. • The PC board assembly with mark is no longer available after the end of the production. Model : 27AF62, 27AF42 Capacitors ..... CD Ceramic Disk : Plastic Film : Electrolytic Resistors ....
  • Page 21 – 21 –...
  • Page 22 RESISTORS – 22 –...
  • Page 23 – 23 –...
  • Page 24 – 24 –...
  • Page 25 – 25 –...
  • Page 26 SEMICONDUCTORS COILS & TRANSFORMERS – 26 –...
  • Page 27 MISCELLANEOUS – 27 –...
  • Page 28 PC BOARD ASSEMBLIES PICTURE TUBE TUNER ACCESSORIES CABINET PARTS – 28 –...

  • Page 29: Pc Boards Bottom View

    SIGNAL BOARD PD0654A BOTTOM (FOIL) SIDE – 29 – – 30 –...
  • Page 30 POWER/DEF BOARD PD0653A BOTTOM (FOIL) SIDE – 31 – – 32 –...
  • Page 31 CRT DRIVE BOARD PB9973H2 BOTTOM (FOIL) SIDE – 33 –...
  • Page 32 3L BOARD PB9398A BOTTOM (FOIL) SIDE – 34 –...

  • Page 33: Terminal View Of Transistors

    TERMINAL VIEW OF TRANSISTORS 2SD2253 2SC3852 2SC752GTM 2SC752 2SA1788 (old) 2SD1763A 2SA562TM 2SC2482 2SC5243 2SC1569 2SA1015 2SC2655 2SC4544 2SC4721P 2SC1815 2SA1788 2SC2878 2SA1306 2SC1740S 2SA1186A 2SC2120 2SA9335 2SD1554 ON4409 RN2203 RN2201 2SD2253 RN2004 2SD1556 RN1203 2SD2553 RN1204 2SC5143 RN2204 RN1205 RN1202 RN1201 –...
  • Page 34 THIS PAGE IS INTENTIONALLY LEFT BLANK. – 36 –...

  • Page 35: Schematic Diagram

    SCHEMATIC DIAGRAM MODEL : 27AF62 Chassis No. TAC0201 27AF42 Chassis No. TAC0202 WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL. CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list.
  • Page 36 – 38 –...

  • Page 37: Specifications

    SPECIFICATIONS (Representative : 27AF62) TELEVISION SYSTEM NTSC standard CHANNEL COVERAGE VHF: 2 through 13 UHF: 14 through 69 Cable TV: mid band (A-8 through A-1, A through I) super band (J through W) hyper band (AA through ZZ, AAA, BBB)

  • Page 38: Circuit Block Diagram

    TOSHIBA CORPORATION 1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN...
