Omnitron Systems Technology iConverter GX/TM2 Quick Start Manual

Management Options
Network Management
1: Chassis and Module Management
2: Set Module Name Preferences
Management Module Preferences
3: IP and Control Preferences
4: SNMP Preferences
5: Abandon Preference Changes
6: Save Preference Changes
7: Restore Factory Defaults
8: Restart Management Module
9: Other Networking Features
Management Module Maintenance
10: Firmware Update
11: Set Date/Time
IP Address = 192.168.1.220
Chassis Number = 1
Enter Choice, <H>elp, E<x>it >
Figure C: Command Line Interface Menu Options
The CLI interface allows for the detailed configuration of the module. It is recommended
to configure the module with an IP address associated with the attached network.
Also, SNMP traphost address should be configured if the module is managed with an
SNMP-based Management System. See the GX/TM2 User Manual for complete
information.
4) VERIFY OPERATION
Once the module has been installed
and configured per steps 1 - 3, verify
the module is operational by viewing
the LED indicators.
The Power LED indicates the
module is receiving power from the
chassis.
The Fiber Optic link LED indicates
the fiber optic connection has been
established. Verify the Link Mode
selection is set to Link Segment
(LS). Until a stable link is
established, leave the Link Mode
configured for LS. After a Link
presence is established, the Link
Mode selection can be modified.
The UTP link LED indicates the
module has established a
connection across its UTP port.
Omnitron Systems Technology * 140 Technology Dr.* #500 * Irvine, CA 92618
949.250.6510 tel * 949.250.6514 fax * www.omnitron-systems.com
iConverter, Serial Agent
LED Function
Color Off State On / Blinking State
"Legend"
Power "Pwr" Green No power On: Module has power
On: Power available from
Chassis Power installed Power Supply # X.
Power Supply
Green
Status # X Supply not installed Blinking: No power available
from installed Power Supply # X
1000Mbps
On: Fiber Link
Fiber Optics Green No Fiber Link
Blinking: Fiber Data Activity
"FO"
Chassis
On: Chassis Master Mode
Management Chassis in Slave
Green Blinking: Operating in OAM
Master/Slave
Mode
Mode
"Msr/Slv"
UTP port
Not linked at On: UTP linked at 100Mbps
100Mbps Green
100Mbps Blinking: UTP Data Activity
"100"
UTP port
Not linked at On: UTP linked at 1000Mbps
1000Mbps Green
1000Mbps Blinking: UTP Data Activity
"1000"
UTP port
Not linked at On: UTP linked at 10Mbps
10Mbps Green
10Mbps Brinking: UTP Data Activity
"100" + "1000"
Half-Duplex when
UTP port
On: Full-Duplex when any UTP
Full-Duplex Green any UTP link is
link is active
"FDX"
active
Figure D: LED Indicators
Form 040-8920N-002 B
iConverter
GX/TM2 Plug-in Module QUICK START GUIDE
iConverter ®

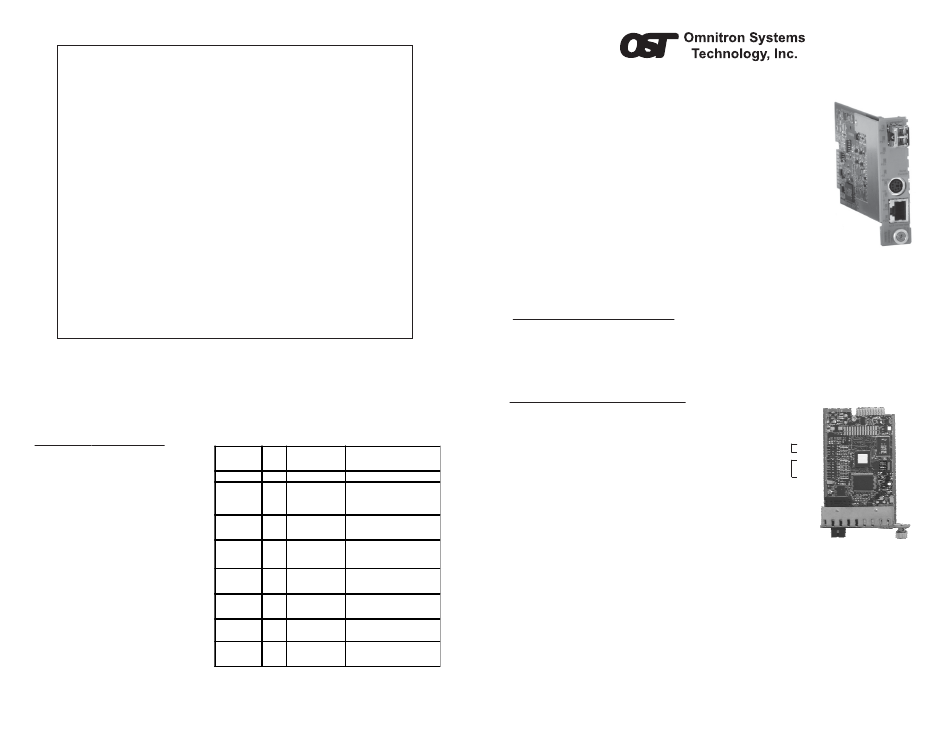

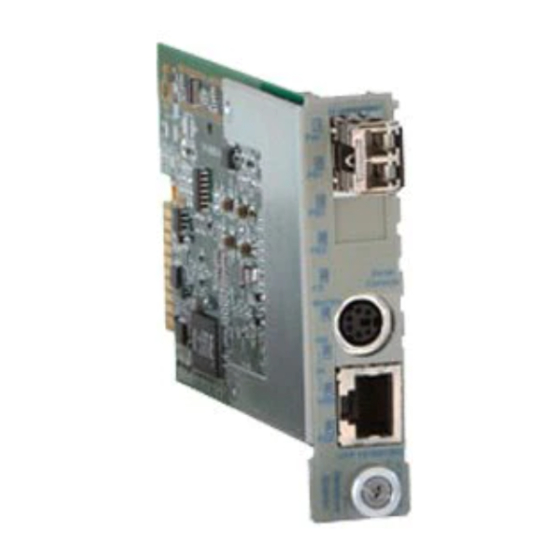

The Omnitron GX/TM2 Plug-In media converter and
Network Interface Device (NID) provides 10BASE-T ,100BASE-TX
or 1000BASE-T UTP to 1000BASE-FX fiber media conversion.
The GX/TM2 conforms to Ethernet in the First Mile (EFM) fiber
standards to support Fiber-to-the-X (FTTX) in Metropolitan access
and Enterprise LAN networks. Built-in Operation, Administration
and Maintenance (OAM) functionality enables the GX/TM2 to
operate as a managed demarcation point at the customer premises
and network edge, offering Quality of Service capabilities.
The GX/TM2 module can be managed using Omnitron's
NetOutlook TM SNMP Management Software, third-party SNMP Client,
Telnet or the Command Line Interface (CLI).
For more information, including the complete User Manual on the GX/TM2 Plug-in
module, access Omnitron's documentation download web page to view all relevant
documents: http://www.omnitron-systems.com/downloads.php
INSTALLATION PROCEDURE
1) Configure DIP-Switches
2) Install Module in Chassis and Connect Cables
3) Configure Module via Command Line Interface
4) Verify Operation
1) CONFIGURE DIP-SWITCHES
DIP-SWITCH BANK 1
SW1 - FIBER AUTO/MANUAL NEGOTIATION
"AN MAN"
When this DIP-switch is in the LEFT "AN" position
(factory default), the fiber optic port automatically
determines the duplex and pause modes of the
connecting fiber optic device. If the connecting
fiber optic device cannot provide the proper signal
to indicate its own mode of operation, the DIP-
switch should be set to the RIGHT fiber optic "Man"
position. When in manual mode, no capabilities
are advertised.
NOTE: The fiber optic port of the GX/TM2 is always in Full-Duplex mode.
SW2 - UTP AUTO/MANUAL NEGOTIATION "AN/MAN"
When this DIP-switch is in the LEFT UTP "AN" position (factory default), the UTP port
automatically determines the Speed, Duplex and Pause mode of the connecting UTP
device. If the connecting UTP device cannot provide the proper signal to indicate its
own mode of operation, then the DIP-switch should be set to "Man" position. Manual
mode requires manually configuring the UTP port to match the Speed and Duplex
mode of the connecting UTP device using the "10/100" and "FDX/HDX" DIP-switches.
Switch 1
Bank 2
Switch 4
Switch 1
Bank 1
Switch 8
Figure A: DIP-Switch Locations
