16
2.3

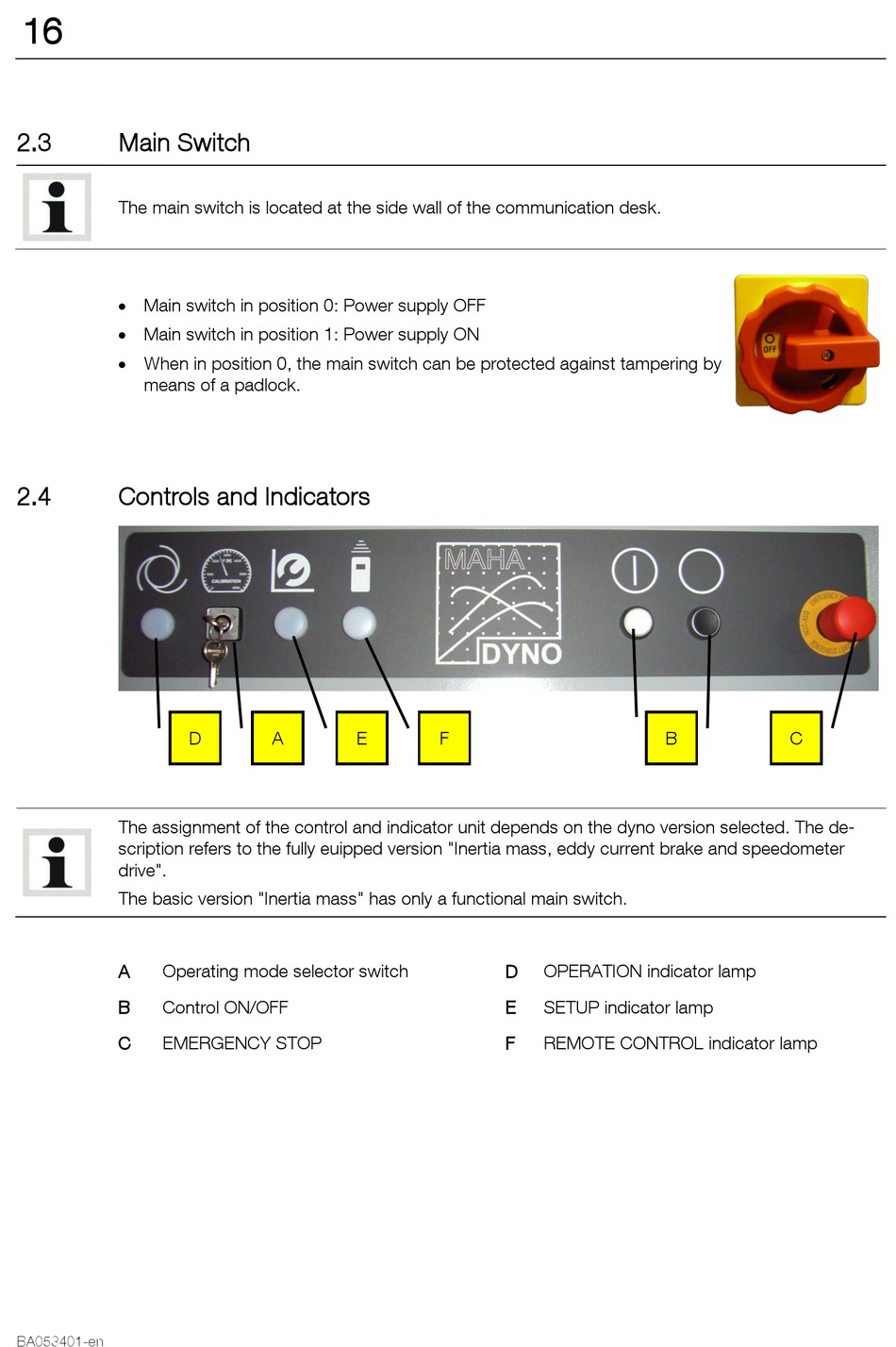

Main Switch
The main switch is located at the side wall of the communication desk.
Main switch in position 0: Power supply OFF
Main switch in position 1: Power supply ON
When in position 0, the main switch can be protected against tampering by
means of a padlock.
2.4
Controls and Indicators
The assignment of the control and indicator unit depends on the dyno version selected. The de-
scription refers to the fully euipped version "Inertia mass, eddy current brake and speedometer
drive".
The basic version "Inertia mass" has only a functional main switch.
A
Operating mode selector switch
B
Control ON/OFF
C
EMERGENCY STOP
BA053401-en
D
A
E
F
D
OPERATION indicator lamp
E
SETUP indicator lamp
F
REMOTE CONTROL indicator lamp
B
C
