MAHA Powerdyno MSR 400 Original Operating Instructions page 21

DRZ
PTH
OBD (Option)
P2T2 (Option)

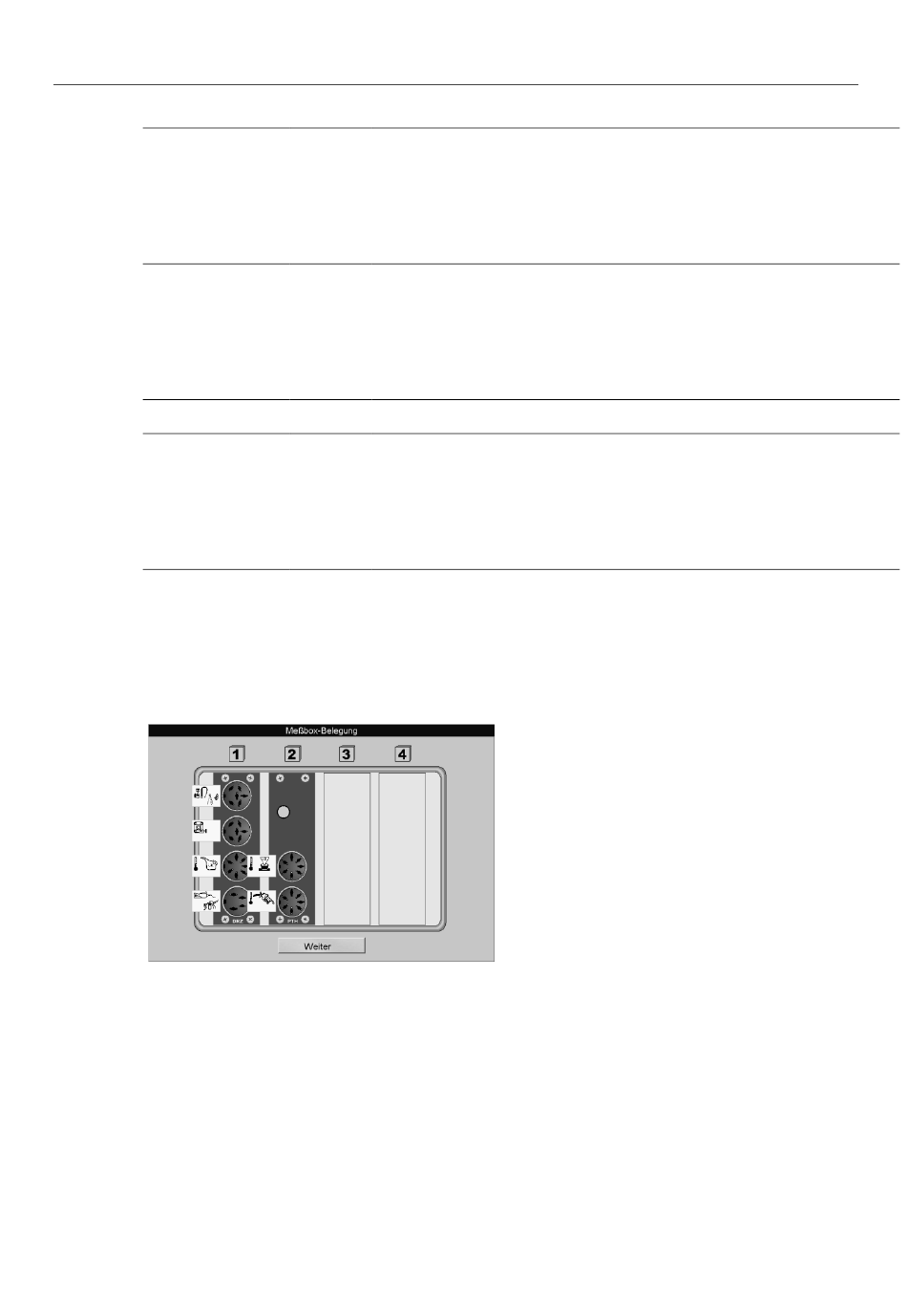

Display the Interface Box Assignment
1 The assignment of the interface box appears using the keys <SHIFT> + <F1> .
2 Use <CONTINUE> or <RETURN> to exit this screen.
A Piezo clamp, TDC sensor Light barrier
B Piezo clamp, TDC sensor Light barrier
C Oil temperature probe
D Trigger tongs
E Fuel temperature
F Intake air temperature
G Atmospheric pressure
H Humidity sensor
I OBD
J Pressure 1
K Pressure 2
L Temperature 1
M Temperature 2
