Summary of Contents for Sonoff DW2-RF

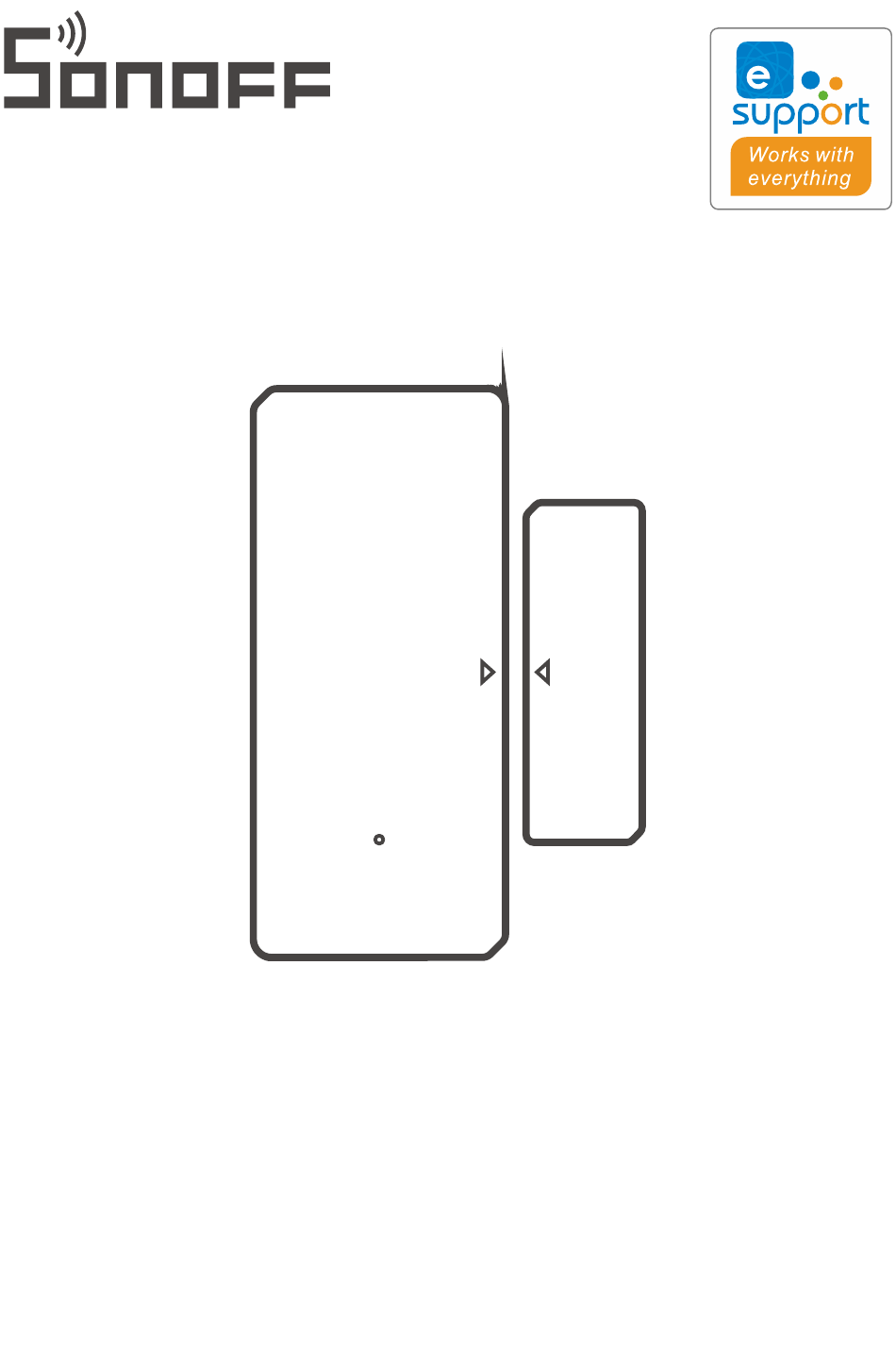

- Page 1 DW2-RF User manual V1.0 RF无线门窗传感器 RF Wireless Door/Window Sensor 中文---------------- 1-7 English-------------- 8-13...
- Page 2 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 本设备需要连接SONOFF 433MHz RF网关进行智能操作，可与 其他产品互联互通。 设备支持其他无线协议为433MHz的网关，具体以实际产品为准。 使用说明 1. 下载“易微联”APP eWeLink eWeLink works with everything...
- Page 3 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 2. 安装电池 2-1. 打开发射器后盖。 2-2. 根据正负极标识，装上电池。 > 2-3. 合上后盖。 电池需另行购买。...
- Page 4 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 3. 添加子设备 添加子设备前，请先连接网关。 ZBBridge 已添加遥控器:0 遥控器 暂无 ，请添加 > 添加 >20mm 打开eWeLink APP，选择要连接的网关，点击 "添加" 选择报警器， 听到“滴”网关进入配对模式，然后将“发射器”和“磁铁”分离 大于20mm直到LED指示灯长亮1-2秒，听到网关发出“滴滴”两声， 即添加完成。 如添加失败，请将设备移近网关后再重新添加。...
- Page 5 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 安装设备 1. 撕下3M胶保护膜。 2. 安装时发射器和磁铁上的安装对位标识尽量对齐。 3. 分别粘贴在所需开合区域。 <5mm 发射器和磁铁安装间隙门窗在闭合状态下小于5mm。 设备重量＜1Kg，建议安装高度＜2米。...
- Page 6 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 产品参数 产品型号 DW2-RF 433.92MHz ≤1.5uA 静态电流 发射电流 ≤20mA DC12V(型号：27A 12V) 工作电压 安装距离 <5mm 工作温度 -10℃~40℃ 材料 产品尺寸 发射器: 70x31x19mm 磁铁: 42x14x16mm 产品介绍 LED指示灯 安装对位标识 磁铁 发射器...
- Page 7 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 产品特点 DW2-RF是一款低功耗的无线门窗传感器，通过发射器与磁铁的靠 近与分开感知门窗开/合状态，通过添加场景联动设置控制其它设备。 低功耗 报警记录查询 场景联动 使用场景 门 窗户 注意事项： 请勿安装在户外容易被破坏的位置； 请勿安装在基础不牢固或有雨淋的位置； 请勿安装在线路旁或磁性物体附近；...
- Page 8 Shenzhen Sonoff Technologies Co.,Ltd. 中 文 更换电池 拆下外壳 取出电池...
- Page 9 Shenzhen Sonoff Technologies Co.,Ltd. English The device can be operated intelligently via working with the SONOFF 433MHz RF Bridge to communicate with other devices. The device can work with other gateways supporting 433MHz wireless protocol. Detailed information is in accordance with the final product.
- Page 10 Shenzhen Sonoff Technologies Co.,Ltd. English 2.Install batteries 2-1. Remove the back cover of the transmitter. 2-2. Insert batteries into the battery compartment based on identifiers of positive and negative poles. > 2-3. Close the back cover. The battery is not included, please purchase it separately.
-
Page 11: Install The Device
Shenzhen Sonoff Technologies Co.,Ltd. English 3. Add sub-devices Connect the Bridge before adding the sub-device. ZBBridge 已添加遥控器:0 遥控器 暂无 ，请添加 > 添加 >20mm Access the eWeLink APP and select the Bridge, tap "Add" to select the alarm, and a "Beep" means the Bridge enters the pairing mode. - Page 12 Shenzhen Sonoff Technologies Co.,Ltd. English 2. Try to align the mark line on the magnet with that on the transmitter during installation. 3. Install them in the opening and closing area separately. <5mm Make sure the installation gap is less than 5mm when the door or the window is closed.
-
Page 13: Specifications
Shenzhen Sonoff Technologies Co.,Ltd. English Specifications Model DW2-RF 433.92MHz ≤1.5uA Quiescent current ≤20mA Emission current Working voltage DC12V(Model: 27A 12V) Installation gap <5mm Working temperature -10℃~40℃ Material Transmitter: 70x31x19mm Dimension Magnet: 42x14x16mm Product Introduction LED indicator Align the mark lines... - Page 14 Shenzhen Sonoff Technologies Co.,Ltd. English Features DW2-RF is a ZigBee low-energy wireless door/window sensor that makes you know the opening/closing status of door and window by separating the magnet from the transmitter. Connect it with the Bridge and you can create a smart scene to trigger other devices.
-
Page 15: Replace Batteries
Shenzhen Sonoff Technologies Co.,Ltd. English Replace batteries Remove the back cover Take the batteries out FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could avoid the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. - Page 16 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide re a so n a b l e p ro te c ti o n a g a i n s t h a rmfu l interference in a residential installation.
