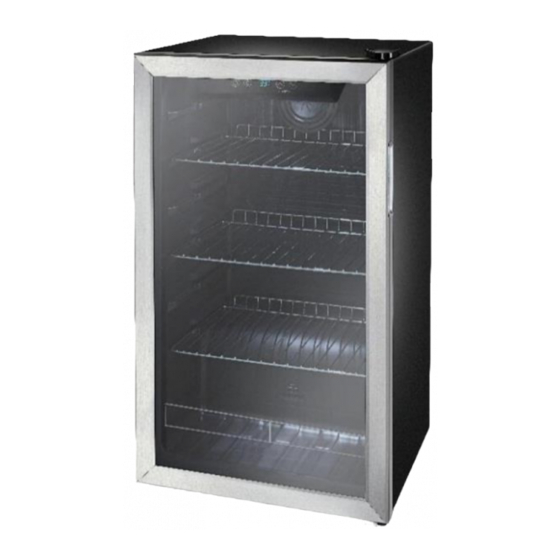

(The picture is only for reference, and specific appearance and configuration are subject to the real product)

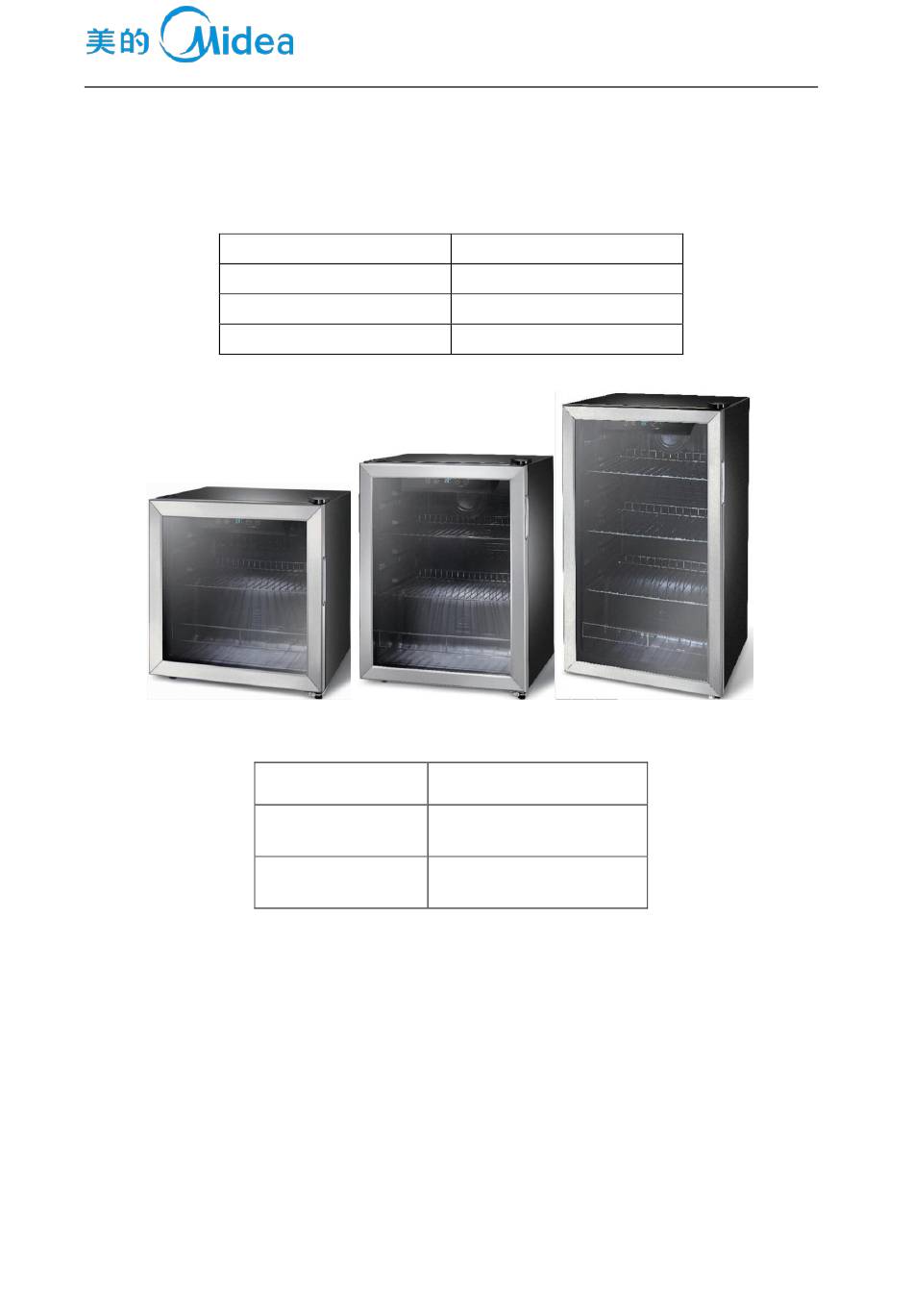

Service Manual
Applicable Models
UR-LC46GE-DR
UR-LC66GE-DR
UR-LC96GE
Prepared by
Reviewed by
Approved by
Service Manual, 2016-12
Model Code
22033010000481
22033010000442
22033010000441
R&D：Chen Feixiang
QA：Wang Tao
SVC：Zhang Kun
R&D：Zhang Huawei
SVC：Guang Taoshuai
1 / 42
