UM2516
5
Hardware layout and configuration
5.1
Block diagram
The B-G431B-ESC1 Discovery kit is a complete hardware platform (power and control)
based on several ST products as shown in the following block diagram:
The top side is mainly dedicated to the power section. It is composed of power MOSFETs,
gate drivers, and a DC-DC converter.

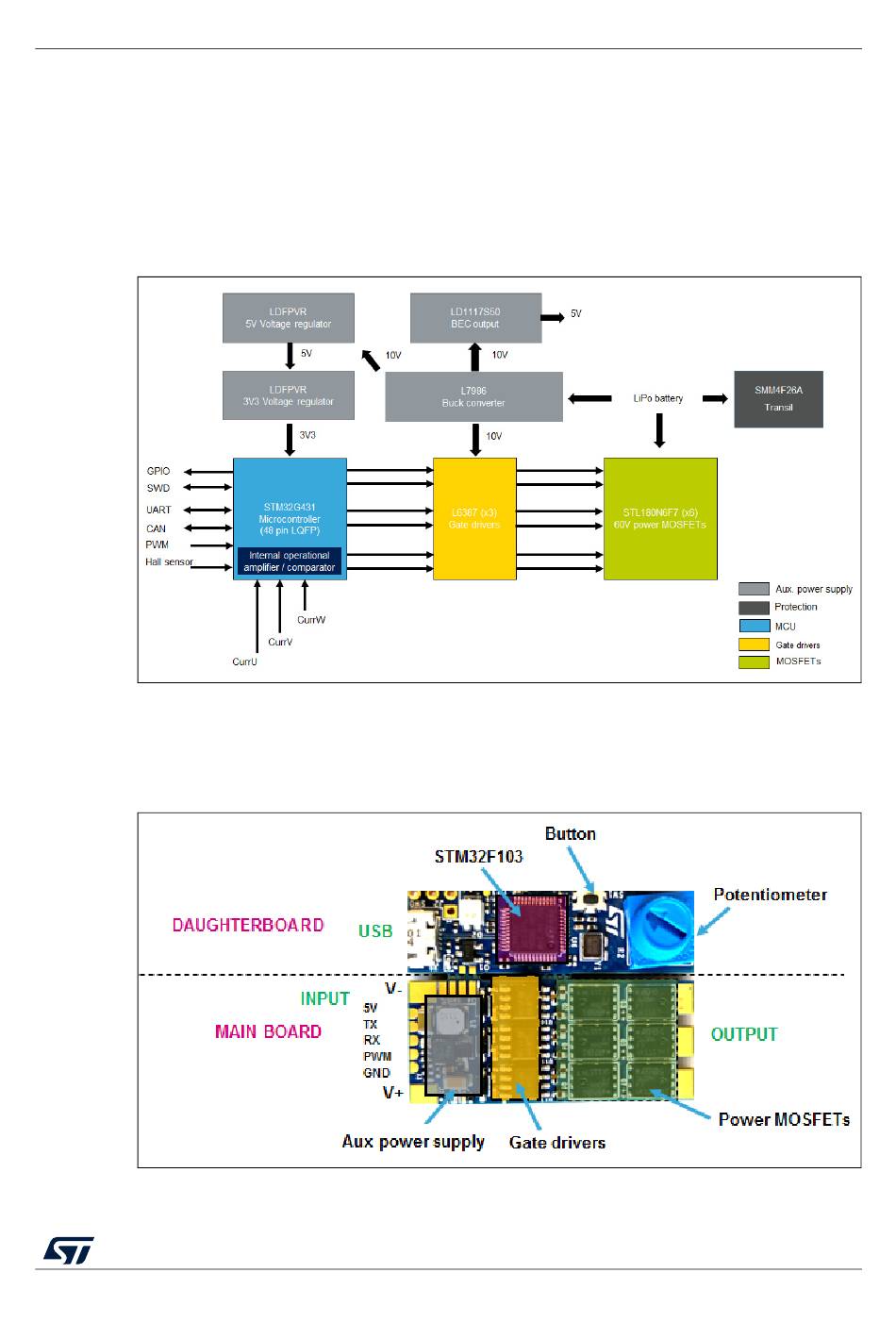

Figure 5. Block diagram with ST products
Figure 6. B-G431B-ESC1 top view
UM2516 Rev 4
Hardware layout and configuration
11/29
28
