- Page 1 Patient Guide Zmachine ® Insight & Insight+ 30 minutes before bedtime, begin the instructions on page 6...
- Page 3 The information in this guide has been carefully checked and is believed to be accurate. However, in the interest of continued product development, General Sleep Corporation reserves the right to make changes and improvements to this guide and to the product(s) that it describes, at any time, and without notice or obligation.
-
Page 4: Table Of Contents
Table of Contents About this Guide Table of Contents Introduction Indications for Use Symbol Descriptions Description of Components The Zmachine Indicators & Elements Warnings and Cautions Disposal Cleaning Interference Positioning the Zmachine Step 1: Clean/Prepare Skin Step 2: Apply Sensor Pads Step 3: Secure the Sensor Pads Step 4: Attach the Patient Cable Step 5: Connect the Patient Cable... -
Page 5: Introduction

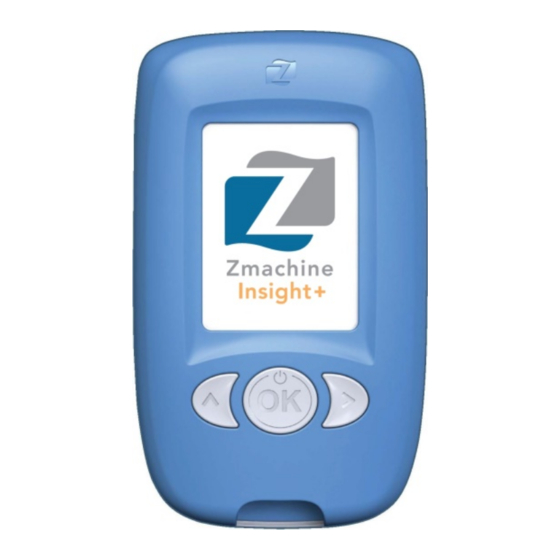

Introduction ® The Zmachine Insight and Insight+ are high technology sleep systems that use state-of-the-art brainwave monitoring technology to determine your unique sleep patterns. The Zmachine is typically used in the home to assist your healthcare provider in understanding and improving your sleep. Indications for Use The Zmachine is a single-channel, EEG acquisition and analysis system, designed for use in the home or clinical environments. -
Page 6: Description Of Components
The Zmachine system may include some or all of the following items: Zmachine Patient Cable Charger Sensor Pads Alcohol Swabs Patient Guide (this document) Hanging Cover Travel Case Note: Due to differences in brand and model numbers, part appearances may vary. Only use General Sleep approved parts and accessories. Patient Guide... -
Page 7: The Zmachine Indicators & Elements
The Zmachine Indicators & Elements System Display System Buttons MicroSD Sensor/Charger Socket Port Warnings and Cautions If you have any questions or concerns, you should contact your Healthcare Provider before using the Zmachine. Warnings and Cautions Do not use the Zmachine on newborns, infants, or children. The Zmachine has only been tested on adults. -
Page 8: Disposal
Warnings and Cautions The Zmachine should be kept away from transmitters, power transformers, motors and similar equipment that generate strong electromagnetic fields. Do not allow the conductive parts of the Zmachine sensor pads and connectors to contact other conductive parts, including earth ground. Do not immerse the Zmachine in liquid. -
Page 9: Positioning The Zmachine
Positioning the Zmachine ® If you received your Zmachine with a hanging cover and a 3M Command Medium Utility Hook (pictured), your system can be positioned to hang behind your head during sleep. This allows you to orient the patient cable toward the top of your head, thereby allowing the maximum freedom of movement during sleep. -
Page 10: Step 1: Clean/Prepare Skin
Step 1: Clean/Prepare Skin At least 30 minutes before going to bed, prepare skin for the sensor pads as shown: Using an alcohol swab, clean the three circled areas on your skin. One swab is enough for all three areas. Bony area behind... -
Page 11: Step 2: Apply Sensor Pads
Step 2: Apply Sensor Pads Apply the sensor pads as shown: Bony area behind left ← earlobe Center of → neck ← (approx.) Peel and discard the Bony area clear backing behind right ← earlobe Place sensor pads Warning! The clear backings are a choking hazard and should be kept away from children and pets. -
Page 12: Step 3: Secure The Sensor Pads
Step 3: Secure the Sensor Pads Never press the center portion of the sensor pad. Rub the outer edge of each sensor pad with your fingertip to secure the adhesive. Note: If you are not satisfied with the placement of a sensor pad, simply remove, discard, and repeat the steps above using a fresh sensor pad. -
Page 13: Step 4: Attach The Patient Cable
Step 4: Attach the Patient Cable When ready for bed, snap the individual patient cable wires onto the sensor pads as shown. BLACK wire to the NECK sensor pad WHITE wires to the EAR sensor pads CORRECT Note: The BLACK wire should ONLY be attached to NECK sensor. Note: Either white wire can be connected to either ear sensor. -
Page 14: Step 5: Connect The Patient Cable
Step 5: Connect the Patient Cable When you are in bed and ready to attempt sleep (not reading or doing any other activity), plug the free end of the patient cable into the Zmachine. The Zmachine will turn on automatically. →... -
Page 15: Step 6: Zmachine Sleep Functions
Step 6: Zmachine Sleep Functions When the Zmachine is collecting your sleep information, it will display the Recording screen. Recording Screen Insight+ Only: After about two nights of use, the Zmachine will automatically switch from Recording to Recording+. At this time, the Zmachine may display additional information about your sleep (updated and displayed each time you unplug the patient cable), and/or may produce an alert for you to leave bed (beeping sound while displaying an empty... -
Page 16: Step 7: Disconnect The Patient Cable
Step 7: Disconnect the Patient Cable When leaving bed for any reason or when you are no longer trying to sleep, unplug the patient cable from the Zmachine while lifting slightly on the connector to disengage the locking tab. → Disconnecting the Patient cable from the Zmachine Note: The Zmachine will automatically stop monitoring and finish... -
Page 17: Step 8: Remove The Sensor Pads
Step 8: Remove the Sensor Pads When you are finished trying to sleep and the patient cable has been disconnected from the Zmachine: 1. Unsnap the patient cable wires from the sensor pads. 2. Carefully peel the sensor pads from you skin and discard. 3. -
Page 18: Step 9: Charge
Step 9: Charge The Zmachine has enough battery power to run for one full night and should be charged during the day in preparation for the next night of use. 1. Plug the free end of the charger cable into the Zmachine. 2. -
Page 19: Frequently Asked Questions
Frequently Asked Questions Can I get out of bed for a drink, to use the bathroom, etc. when connected to the Zmachine? Yes, simply unplug the patient cable from your Zmachine and place the Zmachine on your pillow. The patient cable can stay connected to your sensor pads when you are out of bed. -
Page 20: Legal
Legal Trademark and Intellectual Property Rights The Z logo, Zmachine, and General Sleep are registered trademarks of General Sleep Corporation. The Zmachine has been designed and developed by General Sleep Corporation, Cleveland, Ohio, USA. At the time this manual was printed, the Zmachine was protected by the following patents:... - Page 21 The computer software (“Licensed Software”) loaded on the Zmachine (the “System”) is licensed, not sold, for your use under the terms of this license. Consolidated Research, Inc., d/b/a/ General Sleep Corporation (“GSC”) reserves any rights not expressly granted to you. While you may possess the System, GSC retains all ownership rights and title to the Licensed Software.
- Page 22 Agreement will remain in full force and effect. Should you have any questions concerning this License Agreement, you may contact GSC by writing to General Sleep Corporation, at 26250 Euclid Avenue, Suite 709, Euclid, Ohio 44132. Privacy Policy For purposes of this Agreement (“Agreement”), the following terms have the following meanings:...
