Epson EMP-7500 Owner's Manual

Hide thumbs Also See for EMP-7500:
Table of Contents

Advertisement

Quick Links

Download this manual
Downloaded from:
http://www.usersmanualguide.com/

Advertisement

Table of Contents
loading

Related Manuals for Epson EMP-7500

Summary of Contents for Epson EMP-7500

  • Page 1 Downloaded from: http://www.usersmanualguide.com/...
  • Page 2 Important Information About Your EMP-7500/5500 Please read the following im portant inform ation about your EMP-7500/ 5500 projector. Important Safety Information Warning: N ever look into the projector lens when the lam p is switched on as the bright light can dam age your eyes. N ever let children look into the lens when it is on.
  • Page 3 EMP-7500/5500 U ICK TART operation indicator operation panel remote speaker control reciver zoom ring focus ring speaker front foot foot adjuster lever Button Function Power Starts or stops projection. Source Switches the input source to Computer or Video. Menu Displays or hides the menu.
  • Page 4 EMP-7500/5500 U ICK TART Button Function Menu Displays or hides the menu. Source Menu Source Switches the input source to Computer or Video. Effects Effects buttons Use to display special effects 1 Pointer, 2 Box, 3 Line, 4 Maker, 5 Clear.

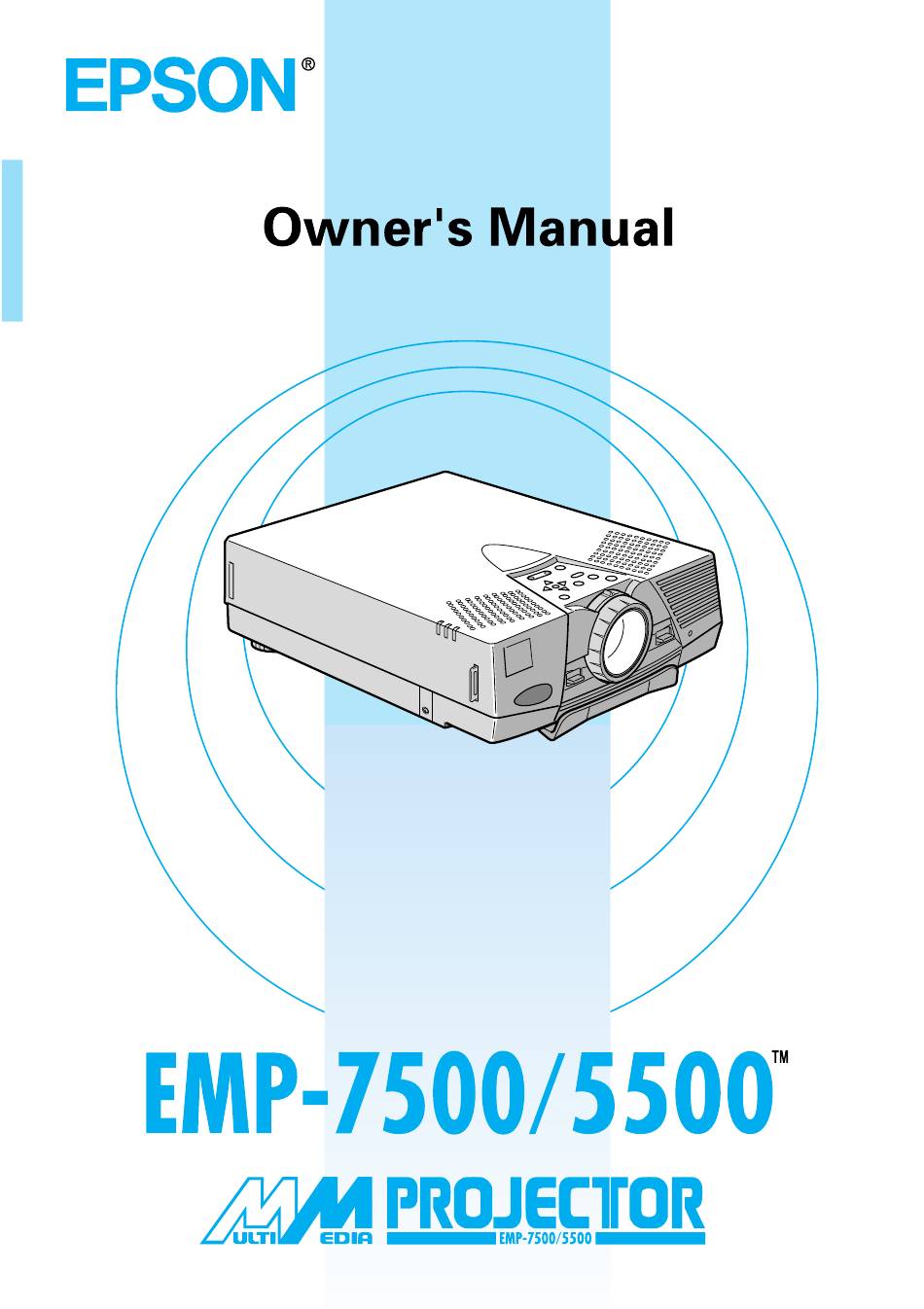

  • Page 5 ® D A T A / V I D E O P R O J E C T O R Owner’s Manual Downloaded from: http://www.usersmanualguide.com/...
  • Page 6 General N otice: The following trademarks and registered trademarks are the property of their respective owners and are used in this publication for identification purposes only. • EPSO N / Seiko Epson Corp. • Macintosh, Macintosh O S System 7, PowerBook, Q uadra, Centris, Power Mac/ Apple Computer Corp.

  • Page 7: Table Of Contents

    contents contents Introduction Getting the Most O ut of Your Projector ........ ix Remote control ................ix Sleep mode.................ix Control Panel ................ix O ptional Accessories..............x About This Manual..............xi Safety Instructions ..............xii Where to Get H elp .............. xiv World Wide Web site..............xv Transporting your projecotor ..........
  • Page 8 Using the Projector Turning the Equipment O n and O ff ........23 Turning the Projector O n and O ff ..........23 Sleep Mode ................24 Focusing and Positioning the Screen Image ......25 Resize Button ................27 Controlling the Projector............28 U sing the Remote Control ............
  • Page 9 Problems with the Image or Sound ........60 Technical Specifications Supported Monitor Displays (EMP-7500) ......65 Supported Monitor Displays (EMP-5500) ......66 Monitor and Computer connector pin assignments ....67 Glossary Index Downloaded from: http://www.usersmanualguide.com/...
  • Page 10 contents Downloaded from: http://www.usersmanualguide.com/...

  • Page 11: Introduction

    Images are displayed in true XGA(EMP-7500) and SVGA(EMP-5500) full color (16,670,000 colors) at a resolution of 1024 x 768(EMP-7500) and 800 x 600(EMP- 5500) pixels. The projector produces bright images that can be easily seen in rooms with enough light to take notes. Audio can be produced from the projector’s 1W+1W stereo, which...
  • Page 12 VGA and SXGA output. Whichever type of computer output is used, the result is a full-size video image of outstanding clarity. The EMP-7500/ 5500 Projector supports IBM-compatible PCs and laptops, as well as Apple® Macintosh®, Power Macintosh and PowerBook computers. The video source can be N TSC, PAL or SECAM in composite video, S-Video format.

  • Page 13: Getting The Most Out Of Your Projector

    Getting the Most Out of Your Projector The projector comes with a full set of features that allow you to control the settings for the image display, video and audio. To get the most out of your projector, read this section for a quick summary of the important features.

  • Page 14: Optional Accessories

    Optional Accessories To enhance your use of the projector, EPSO N provides the following accessories: • Spare lamp ELPLP06 • Computer cable ELPKC02 • Link set for PC ELPSW03 • Link set for MAC ELPSW04 • Multi View ELPD C01 •...

  • Page 15: About This Manual

    Chapter 5, “Troubleshooting”, tells you how to interpret the projector’s indicator lights and gives helpful information for avoiding errors, optimizing image quality and solving problems. Chapter 6, “Technical Specifications,” lists the technical specifications for your EMP-7500/ 5500 projector. About This Manual Downloaded from: http://www.usersmanualguide.com/...

  • Page 16: Safety Instructions

    Safety Instructions Always follow these safety instructions when setting up and using the projector: 1. D o not place the projector on an unstable trolley, stand or table. 2. D o not use the projector near water or sources of heat. 3.
  • Page 17 11. D o not block the slots and openings in the projector case. They provide ventilation and prevent the projector from overheating. D o not place the projector on a sofa, rug or other soft surface or in a built-in installation unless proper ventilation is provided.

  • Page 18: Where To Get Help

    Where to Get Help SEIKO EPSO N CO RPO RATIO N provides local customer support and service through a nationwide network of authorized EPSO N dealers and Service Centres. • Fax-on-D emand access to EPSO N ’s technical information library •...

  • Page 19: World Wide Web Site

    If you are connected to the Internet and have a Web browser, you can access EPSO N ’s World Wide Web site at http:/ / www. epson. com. EPSO N ’s home page links users to What’s N ew, EPSO N Products, EPSO N Connection, Corporate Info and EPSO N Contacts.
  • Page 20 When carry by hands • U se a hard travel case (optional accessories : ELPKS11) or a soft travel case (additional components). When traveling by an airplane • Be sure to bring the projector with you when traveling by an airplane. •...

  • Page 21: Installation

    Installation his chapter tells you how to unpack and set up your projector and connect it to other equipment. The projector must be connected to a computer or a video source such as a video tape deck, camcorder, digital camera or laser disk player. For example, you may want to connect the projector to both your computer and a video source, or set up the projector for one or more of the following:...

  • Page 22: Unpacking The Projector

    Unpacking the Projector When you unpack the projector, make sure you have all these components: • Projector • Remote Control • 2 AA batteries • Power cord • Computer cable • Audio cable • A/ V cable • Mouse cable (for PS/ 2 and Mac) •...

  • Page 23: Additional Items

    Additional Items The following items may also be required, depending upon how you plan to use the projector. • S-Video cable for S-Video signal input A separate cable is required for each video source. • Macintosh PowerBook output cable, and adapters. This cable is normally provided with PowerBook models with video output capabilities.

  • Page 24: Setting Up The Projector

    Setting Up the Projector 1. Place the projector on a sturdy, level surface within five feet of the computer or video source. ♦ Caution: Do not hold the projector by the lens. This can dam age the lens. 2. Place the projector the correct distance from the screen. The distance between the projector and the screen determines the actual image size.
  • Page 25 Screen size Horizontal distance from projector to screen 300 inches (610x460cm) 472.4 inches (12.0 m) ~ 614.2 inches (15.6 m) 200 inches (410x300cm) 315.0 inches (8.0 m) ~ 409.4 inches (10.4 m) 100 inches (200x150cm) 157.5 inches (4.0 m) ~ 204.7 inches (5.2 m) 80 inches (160x120cm) 126.0 inches (3.2 m) ~ 165.4 inches (4.2 m) 60 inches (120x90cm) 94.5 inches (2.4 m) ~ 122.0 inches (3.1 m)
  • Page 26 5. To insert the batteries in the remote control device, slide off the battery compartment cover as shown below. 6. Insert the two AA batteries included with the projector. Make sure the polarity of the batteries is correct. 7. Replace the battery compartment cover. Installation Downloaded from: http://www.usersmanualguide.com/...

  • Page 27: Connecting To A Computer

    When replacing batteries, take the following precautions: • D o not recharge used batteries or expose batteries to fire or water. • Replace batteries as soon as they run out. If the batteries leak, wipe away the fluid with a soft cloth. If battery fluid gets onto your hands wash them immediately.

  • Page 28: Connecting To A Pc Desktop Computer

    Connecting to a PC desktop computer Before beginning, make sure that the projector and computer are both turned off. 1. Connect the computer cable. Monitor cable Computer cable ♦ Note: Com puter configurations vary. See your com puter m anual for the location of the ports needed to connect your EMP -7500/ 5500 projector.
  • Page 29 c. If necessary, connect the monitor cable of the computer monitor to the projector’s Computer out. d. Tighten the screws on all connectors. 2. Connect the audio cable if needed. Audio cable a. Connect one end of the audio cable to the Audio In jack on the projector.

  • Page 30: Connecting To A Pc Laptop Computer

    Computer cable ♦ Note: Laptop configurations vary. See your com puter m anual for the location of the ports needed to connect your EMP-7500/ 5500 projector. a. Connect either end of the computer cable to the projector’s Computer In port.
  • Page 31 2. Connect the audio cable. Audio cable a. Connect one end of the audio cable to the Audio In jack on the projector. b. Connect the other end of the audio cable to your laptop. Connecting to a Computer Downloaded from: http://www.usersmanualguide.com/...

  • Page 32: Connecting To A Macintosh Desktop Computer

    Note: Macintosh com puter configurations vary. See your com puter m anual for the location of the ports needed to connect your EMP-7500/ 5500 projector. * Y ou m ay need adapters that cam e with your com puter or purchased from your com puter dealer for connecting.
  • Page 33 2. Connect the audio cable. Audio cable a. Connect one end of the audio cable to the Audio In jack on the projector. b. Connect the other end of the audio cable to your computer. Connecting to a Computer Downloaded from: http://www.usersmanualguide.com/...

  • Page 34: Connecting To A Macintosh Powerbook

    Connecting to a Macintosh PowerBook Remember that you can only use a PowerBook model that has video-out capability. See page 7 for more information. Before beginning, make sure that the projector and PowerBook are both turned off. 1. Connect the computer cable. * MAC desktop adapter...
  • Page 35 2. Connect the audio cable. Audio cable a. Connect one end of the audio cable to the Audio In jack on the projector. b. Connect the other end of the audio cable to your computer. Connecting to a Computer Downloaded from: http://www.usersmanualguide.com/...

  • Page 36: Connecting To A Video Source

    Connecting to a Video Source You can use this connection procedure to connect a video tape deck, a camcorder, a laser disc player or any other compatible video image source to the projector. The projector can receive composite video or S-Video signals. If your video source has a one-pin RCA video jack you have composite video.
  • Page 37 2. If your composite video uses an RCA-type composite video connector, you will need the audio/ video cable supplied with the EMP-7500/ 5500. If your video uses a S-Video, you will need to provide YO U R O WN S-Video or use the S-Video cable that came with your video source.

  • Page 38: Connecting To An External Speaker Or Pa System

    5. For S-Video, insert one end of the S-Video cable into the projector’s S-Video jack. Insert the other end in the S- Video O ut jack on your S-Video source. S-Video cable Connecting to an External Speaker or PA System Though the projector’s internal speakers are enough for most small-size or medium-size rooms, an external speaker can be connected to achieve the best results for large room...
  • Page 39 2. Connect the cable’s 3.5 mm stereo mini-plug to the projector’s Audio O ut jack. RCA/3.5 mm cable 3. Connect the other end of the cable to the external speaker or PA system.Ensure you to connect the red RCA plug to the right channel and the white RCA plug to the left channel.
  • Page 40 Installation Downloaded from: http://www.usersmanualguide.com/...

  • Page 41: Using The Projector

    Using the Projector his chapter provides the following information about using your projector: • Turning equipment on and off • Adjusting the screen image • Controlling the projector • Checking the status of the projector Downloaded from: http://www.usersmanualguide.com/...
  • Page 42 The illustration below identifies the parts of your projector. operation indicator operation panel remote speaker control receiver zoom ring focus ring speaker front foot foot adjuster lever Using the Projector Downloaded from: http://www.usersmanualguide.com/...

  • Page 43: Turning The Equipment On And Off

    Turning the Equipment On and Off Always turn on the projector and its attached equipment in the following order. 1. Projector 2. Computer 3. Video source 4. Audio source Turning the Projector On and Off 1 . Connect the power cord to the projector. 2.

  • Page 44: Sleep Mode

    Reverse the order shown above to turn off the projector and other equipment. After you press the Power button to turn off the projector, the fan will remain on and the operation indicator will flash orange for about 2 minute as the projector cools.

  • Page 45: Focusing And Positioning The Screen Image

    Focusing and Positioning the Screen Image After an image appears on the screen, check to see if it is in focus and whether it fits properly on the screen. zoom ring focus ring • To adjust the focus of the image, rotate the focus ring, which is the outer ring on the projector’s lens.
  • Page 46 If you need to raise or lower the image on the screen, extend or retract the two feet at the bottom of the projector as follows. 1. Stand behind the projector and support the front of it while you lift the foot adjuster lever located above the feet. This unlocks the feet so they can move up and down freely.

  • Page 47: Resize Button

    The Resize button allows you to switch between Resize display and Window display. The Resize button cannot be used with XGA(1024 x 768 pixels) for EMP-7500 and SVGA(800 x 600 pixels) for EMP- 5500. How to switch With images up to XGA(1024 x 768 pixels) size (for example a 600 x 480 pixels VGA image), press the Resize button alternately.

  • Page 48: Controlling The Projector

    Controlling the Projector N ormally you control the projector using the remote control. The buttons on the remote control allow you to do the following. • Switch power on and off. • Switch between input images. ( video - computer) •...

  • Page 49: Using The Remote Control

    Using the Remote Control Source Menu pointer button Effects bottom multi-purpose AV/Mute button Resize Custom multi-purpose Freeze Help button - Volume + Power Remote control When using the remote control, always point it towards the remote control receivers located at the front and at the back of the projector.
  • Page 50 ♦ Note: If you use the other m ouse except the PS/ 2 m ouse, you need to purchase the Link Set to connect. In addition to the remote control, you can also control the projector by using the buttons on the projector’s operation panel located on top of the projector.

  • Page 51: Using The Control Panel

    Using the Control Panel Enter button Operation Panel You can use the control panel to control the projector instead of the remote control. H owever, you can program and access the custom features only when you are using the remote control.
  • Page 52 The following table summarizes the functions on the control panel. Button Function Power Starts or stops projection. Source Switches the input source to Conmputer or Video. Menu Displays or hides the menu. Up, down arrows Synchronizes the computer’s graphic signal. (Sync+/Sync-) Use these buttons to adjust an overall image that is fuzzy or streaked, or to select menu items during menu...

  • Page 53: Projector Status Indicators

    Projector Status Indicators The power and lamp indicators at the top of the projector tell you the projector’s operating status. Operation Indicator Lamp Indicator Temperature Indicator ♦ Caution: A red indicator warns you if a serious problem occurs. See Chapter 6, “Troubleshooting,” for what to do if a warning light com es on.

  • Page 54: Lamp Indicator

    Lamp Indicator D isplays lamp condition. This indicator is off when the projector is in a normal condition. Color Status Meaning The projector is in a normal condition. Orange Flashing Projection lamp is reaching the end of its life and should be replaced with a new one.

  • Page 55: Using The Projector Menus

    Using the Projector Menus • The seven projector menus enable you to control your projector. • The Computer menu controls the computer image, such as brightness and contrast, when the computer is the image source. • The Video menu controls the video image, such as brightness and color saturation, when the image source is video, such as a VCR.

  • Page 56: Accessing The Main Menu

    Accessing the Main Menu The projector menus can be accessed using either the projector control panel or remote control. To display the Main menu, press the Menu button. The Main menu appears: Press the Menu button again to hide the menu. Changing a Menu Setting To change a menu setting: 1.
  • Page 57 2. Press the up or down arrows (control panel) or press the top or bottom of the pointer button (remote) to scroll through the menu choices. Source Menu Effects up and down buttons AV/Mute Resize Custom Freeze Help pointer button - Volume + Power Changing a Menu Setting...
  • Page 58 3. Press either the Enter button (control panel) or the top or bottom multi-purpose button (remote) to display a submenu. Source Menu Effects AV/Mute multi-purpose Resize Custom button Freeze Help Enter button - Volume + Power bottom multi-purpose button A sub-menu such as the following appears. ♦...

  • Page 59: Menu Options

    4. Press the up or down arrows (control panel) or the top or bottom of the pointer button (remote) to scroll through the menu choices. 5. Press either the left or right arrow buttons (control panel) or the right or left sides of the pointer button (remote) to change the setting.
  • Page 60 Menu item Description Position Select this item and then press either multi-purpose button(remote) or the <Enter> button(control panel) to enter the screen position adjustment mode. While in the screen position adjustment mode, use the pointing button or the <Up>, <Down>, <Left> and <Right> buttons to move the screen position in the corresponding direction.
  • Page 61 Menu item Description Auto Set Up Pressing AUTO automatically adjusts the computer input signal to the current projector settings. Press the AUTO button while the image fills the entire screen of your computer, like a Windows screen. Certain computer input signals may not be totally compatible with AUTO button settings.

  • Page 62: Video Menu (Image Source = Video)

    Video Menu (Image source = Video) The Video menu enables you to make adjustments to the projected image. The following options are available when the image source is Video. ♦ Note: The video source (such as a VCR or cam corder) m ust be connected and operating, and the im age source on the projector m ust be set to Video for you to access these m enu options.

  • Page 63: Audio Menu

    Audio Menu The Audio menu enables you to make adjustments related to audio. Menu item Description Volume Adjusts the volume level for the speakers and audio- out terminal. Increase the audio volume to raise the volume, or decrease it to lower the volume. Treble Adjusts the treble tone.

  • Page 64: Setting Menu

    Setting Menu The Setting menu enables you to adjust basic settings that normally do not need changing. Menu item Description Prompt Temporarily displays a prompt on the projector screen to identify which source (computer or video) is providing the image. Color Temp.
  • Page 65 Menu item Description Language To display the language selection window, press either multi-purpose button(remote) or the <Enter> button(control panel). Selects the menu language in the sequence: Japanese, English, French, German, Italian, Spanish and Portuguese. Reset Returns all Option Menu items to their factory defaults. Select this item and then press either multi-purpose button(remote) or the <Enter>...

  • Page 66: User's Logo Menu

    User’s Logo Menu The user’s logo menu allows you to set logos on the screen. H ow to set the user’s logo 1. Press the <Menu> button to open the Menu window. 2. Select the U ser’s logo by pressing the <Sync +/ -> buttons on the control panel or the Pointer button on the remote control.
  • Page 67 *If you don’t want to save the logo, select N o. The logo you made will be canceled. Instead of that, the previous logo you have made will be available. 9. Then press the <Enter> button (control panel) or either multi-purpose button(remote).

  • Page 68: Effect Menu

    Effect Menu The Effect menu allows you to select detailed settings for the effect buttons on the remote control. Also, you can change the cursor speed. Select the item you want to set, then press either multi-purpose button(remote) or the <Enter> button(control panel) to display the detailed setting window.

  • Page 69: About Menu

    About Menu The About menu displays the following information about your projector. Press either multi-purpose button(remote) or the <Enter> button (control panel) to display the information. • Image source is computer. Frequency Displays H/V frequency of the current computer. Resolution Displays Resolution of the current computer.
  • Page 70 N ext, select Yes and then press either multi-purpose button(remote) or the <Enter> button(cotrol panel) to reset all menu items. If you change your mind, select N o and then press either multi-purpose button(remote) or the <Enter> button(control panel) to clear the confirmation screen without changing any settings.

  • Page 71: Maintenance

    The only parts you should replace yourself are the lamp and the air filter. If any other parts need replacing, contact your EMP-7500/ 5500 dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first.

  • Page 72: Cleaning The Lens

    Cleaning the Lens Clean the lens whenever you notice dirt or dust on the surface. Wipe the lens surface gently with a soft, dry, lint-free cloth. To remove dirt or stains on the lens, moisten a soft cloth with water and a neutral detergent and gently wipe the lens surface. Cleaning the Projector Case To clean the projector case, first unplug the power cable.

  • Page 73: Cleaning The Air Filter

    Cleaning the Air Filter The air filter, which is located at the bottom of the projector, should be cleaned after every 100 hours of use. If it is not cleaned periodically, it can become clogged with dust and prevent the projector from being ventilated properly. This can cause overheating and damage the projector.

  • Page 74: Replacing The Lamp

    If the dirt is difficult to remove or if the filter is torn, replace it. An air filter come with replacement lamps. Contact your EMP-7500/ 5500 dealer or call an EPSO N Service Centre. Be sure to request part number. (ELPLP06) 4.
  • Page 75 3. U se a screwdriver, coin, or similar object to loosen one retaining screw on the lamp cover. When the screw is loose, lift off the lamp cover. (You cannot remove these screws.) 4. U se a screwdriver, coin, or similar object to loosen two screws holding the lamp in position.
  • Page 76 6. Gently insert the new lamp by lowering it into position. Make sure it is inserted securely. 7. Tighten the screws you loosened in step 4. 8. Replace the lamp cover and tighten the cover screw. (Make sure the lamp cover is securely fastened. The projector turns itself off if the lamp cover is open.) Maintenance Downloaded from:...

  • Page 77: Troubleshooting

    If you have a problem, refer to the appropriate section and follow all the suggestions which apply to your problem. If none of the suggested solutions solves the problem, call your EMP-7500/ 5500 dealer or call the EPSO N Service Centre. Downloaded from: http://www.usersmanualguide.com/...

  • Page 78: Problems With The Projector

    Problems with the Projector If you have problems with the projector, first turn it off and unplug it. Then plug the power cord back in and turn on the projector. If this does not solve the problem, check the warning lights at the top of the projector. These lights alert you to problems with projector operation.
  • Page 79 The temperature indicator is red. The projector is overheating, which turns the lamp off automatically. Let the projector cool for a few minutes, then turn it back on. Make sure nothing is blocking the ventilation vents. The air filter may be clogged. Clean it as described in Chapter 5 and then let the projector cool for a while.

  • Page 80: Problems With The Image Or Sound

    D isplay or another 1024 x 768 display is selected. For supported display settings, see “Supported Monitor D isplays (EMP-7500)” on page 65 or “Supported Monitor D isplays (EMP-5500)” on page 66. You also may need to modify existing presentation files if you created them for a different resolution.
  • Page 81 A blank screen is displayed. The computer signal cannot be interpreted by the projector. Verify the display format (see page 65 or 66). When you see a blank screen, you cannot access the projector menus. The image or parts of the image are blurred or not in focus.
  • Page 82 Troubleshooting Downloaded from: http://www.usersmanualguide.com/...

  • Page 83: Technical Specifications

    Poly-silicon TFT Size of liquid crystal panels 0.9 inches (22.9 mm) Resolution EMP-5500 : 800(h) x 600(v) pixels EMP-7500 : 1024(h) X 768(v) pixels Screen size 19 - 230 inch (Tele angle) 25 - 300 inch (Wide angle) Projection distance 3.28 - 53.46 feet (1.0 - 16.3 meters)
  • Page 84 Mechanical Width 9.3 inches (238.5 mm) Maximum dimension Depth 13.6 inches (346 mm) Maximum dimension Weight 9.4 lb (4.2 kg) Electrical 100 - 120 VAC and 200 - 240 VAC ± 10% Voltage Rated frequency 50/60 Hz Power supply 100 - 120 V, approximately 2.2 A 50/60 Hz 200 - 240 V, approximately 1.0 A 50/60 Hz...

  • Page 85: Supported Monitor Displays (Emp-7500)

    1152 x 870 ← TV(NTSC) 640 x 480 1024 x 768 ← TV(PAL, SECAM) 768 x 576 1024 x 768 The frequencies of some computers may not allow the image to be displayed correctly. Supported Monitor Displays (EMP-7500) Downloaded from: http://www.usersmanualguide.com/...

  • Page 86: Supported Monitor Displays (Emp-5500)

    Supported Monitor Displays (EMP-5500) The projector displays images at a resolution of 800 x 600 pixels. To display a higher resolution image (1024 x 768 mode), the projector compresses the image to 800 x 600 pixels. T h e fo llo win g t ab le list s t h e d isplay fo rm at s su ppo rt ed b y t h e pro ject o r: Format Pixels...

  • Page 87: Monitor And Computer Connector Pin Assignments

    Monitor and Computer connector pin assignments The Monitor and Computer connectors are female video RGB, 15-pin micro-D -style connectors. The pin assignments are: Input pin Signal Red analogue input Green analogue input Blue analogue input Red GND Green GND Blue GND Reserved Sync GND SDA (DDC)
  • Page 88 Technical Specifications Downloaded from: http://www.usersmanualguide.com/...

  • Page 89: Glossary

    Glossary Brightness. The balance of light and dark shades in an image. Composite video. A type of video signal that encodes colours, luminance and sychronization information so it can be carried in one signal. Contrast. A measure of the luminance differences between the highlights and shadows of an image.
  • Page 90 Serial. A type of communication interface that transmits data over a single wire. Sleep mode. The power cable is connected but the projector is switched off. In this mode the power LED lights up orange. If the projector is not used for 30 minutes the lamp switches itself off and after 30 seconds the projector goes into sleep mode.

  • Page 91: Index

    Composite video 69 Computer cable 2 Contrast 40, 69 Control Panel ix Index Custom 30 Effect Menu 48 A/ V cable 2 Effect menu 39 A/ V Mute 30, 32 Effects buttons 30 About Menu 49 ELP LINK III viii About menu 39 Enter button 31 Audio cable 2...
  • Page 92 Lamp Indicator 33, 34 Language 45 RCA/ 3.5 mm cable 19 rear feet clockwise 26 Rear Proj. 44 Main Menu 36 Refresh Rate 49 Maintenance xi, 51 Remote control ix Menu O ptions 39 Replacing the Lamp 54 Monitor Displays 65, 66 Reset 41 Mouse cable 2 RESET ALL Menu 49...
  • Page 93 Temperature Indicator 33 Tint 42 top multi-purpose button 29 Tracking 40 Treble 43 Troubleshooting xi, 57 true XGA vii U ser’s Logo menu 39 VGA viii Video Menu 39 Video menu 39 video source vii Volume 43 World Wide Web xv XGA viii Zoom ratio 63 zoom ring 25...
  • Page 94 Index Downloaded from: http://www.usersmanualguide.com/...
  • Page 95 Downloaded from: http://www.usersmanualguide.com/...
  • Page 96 Index Downloaded from: http://www.usersmanualguide.com/...
  • Page 97 After sales service contact addresses EPSON (UK) LIMITED EPSON HONG KONG LIMITED (01442) 261144 (852) 2585 4300 Campus 100 Rooms 4706-10 47 th Floor Maylands Avenue China Resources Building Hemel Hempstead 26 Harbour Road Wanchai Herts. HP2 7TJ Hong Kong United Kingdom EPSON FRANCE S.A.
