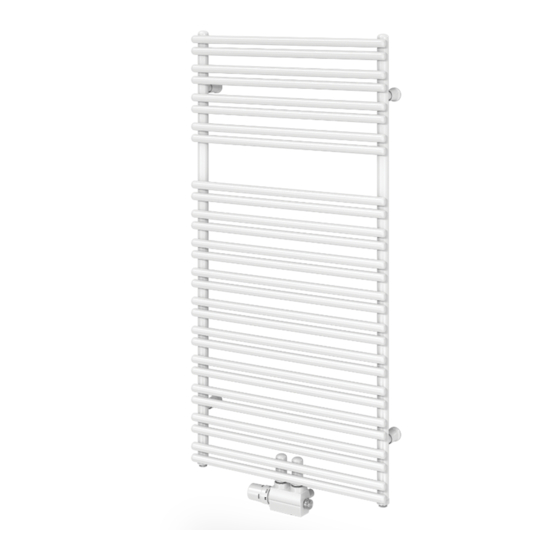

BAWA/BERLIN
DESIGNHEIZKÖRPER
DESIGN RADIATORS
MONTAGE- UND
BEDIENUNGSANLEITUNG
ASSEMBLY AND OPERATING
MANUAL
DBENZMAP0C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAWA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for VOGEL&NOOT BAWA

  • Page 1 BAWA/BERLIN DESIGNHEIZKÖRPER DESIGN RADIATORS MONTAGE- UND BEDIENUNGSANLEITUNG ASSEMBLY AND OPERATING MANUAL DBENZMAP0C...
