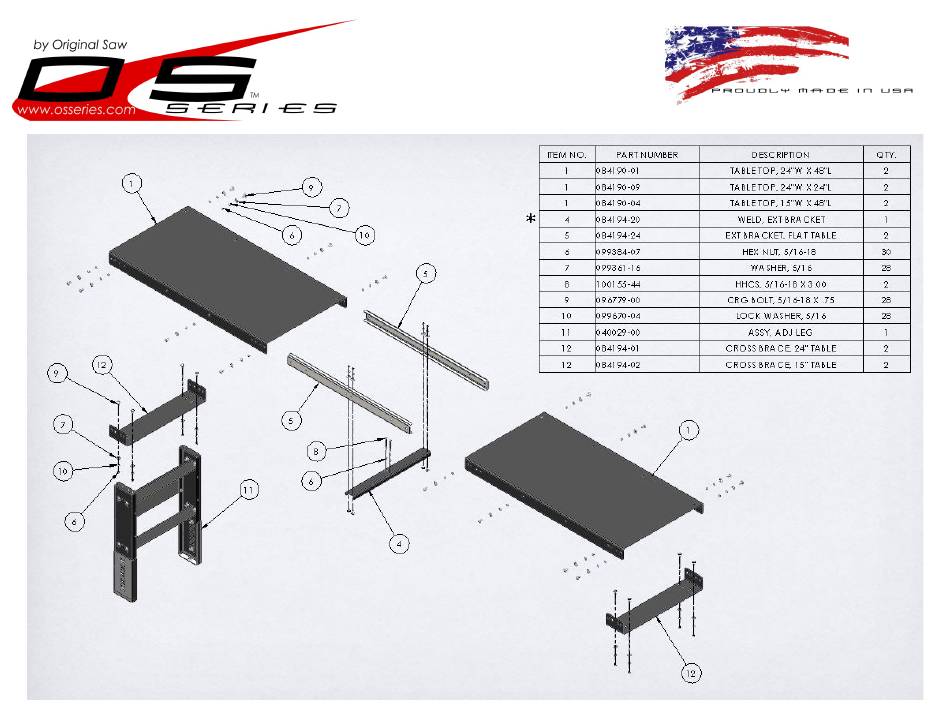

- Page 1 040032-06-24-00 040032-08-24-00 040032-08-15-00 6’ or 8’ Table Extension Kit (* Not used with narrow table assembly)
- Page 2 040032-06-24-00 040032-08-24-00 040032-08-15-00 6’ or 8’Table Extension Kit To assembly the 6’ or 8’ extension table kit please open box and remove all pieces and look over the components on the previous page. Then make sure you have a clear area to work in and use the cardboard box to lay down as a base on the floor so as not to scratch up the top of the table.
- Page 3 040032-06-24-00 040032-08-24-00 040032-08-15-00 6’ or 8’Table Extension Kit To attach the mounting bracket (after it has been bolted to the frame of the prospective machine) use the included 5/16 –18 x .75” carriage bolts (2), flat washers (2), and hex nuts (2) to attach the mounting bracket to the brace (index # 2) that has been attached to the extension table (note bracket appearance will vary by model of machine / machine stand to which it is being mounted.
- Page 4 3. Adjusting the leg to the proper height will re- quire assistance from another person. To adjust the leg to the proper height loosen the hex nuts on Original Saw Company the inside of the adjustable foot, then lift the leg 465 Third Ave SE - Britt, IA 50423 assembly to the proper height and tighten.
- Page 5 1/4”-20 x 3/4 046084 1/4” flat washer parts not shown: Logo labels Original Saw Company 465 Third Ave SE - Britt, IA 50423 PH 800.733.4063 641.843.3868 FX 641.843.3869 Email: customerservice@originalsaw.com www.originalsaw.com OS Series adj leg breakdown and assy 05.09.2012, (update 08.28.14 added narrow brace and roller part #), (update 02.10.16 added leg support brace and attaching hardware 10.23.17 update logos and table components for 6’...
