Pressure Value

Slider Bar and
Setpoint Values
Pressure Value
Slider Bar and
Setpoint Values

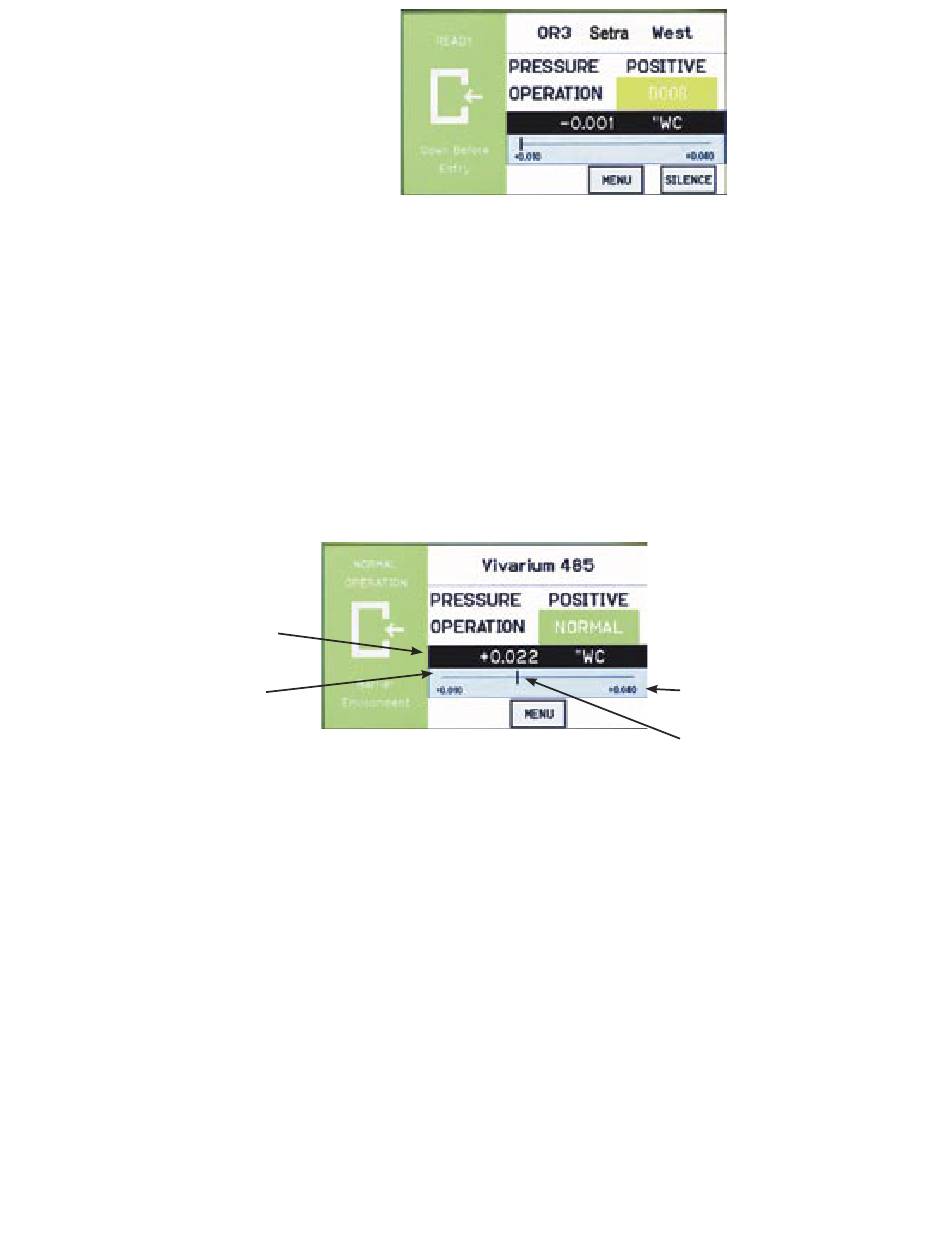

A black banner displays the actual pressure reading from the space, in either
Water Column inches (" WC) or Pascals (Pa). The resolution of display can
vary, depending on desired configuration; either 2, 3, or 4 significant digits. The
accuracy of measurement remains the same regardless of the number of digits
displayed.
The blue banner below the pressure value shows where the current pressure
reading is in relation to alarm setpoints. The value at the left of the blue banner
is the low setpoint value, and the value on the right is the high setpoint value.
The middle "Cursor" represents the curremt measured pressure value.
.
High alarm setpoint
"Cursor" representing where
the pressure value lies relative
to the alarm setpoint
