LOXONE Touch Surface Air Quick Start Manual

Technical Specifications
Surface Material Stone, Wood, Ceramic or
Glass – Please note that this
product will not work with
conductive materials.
Surface Thickness max. 30mm / 1 3/16"
Power Supply 9...28VDC PELV or Battery
Pack (Not included)
Power Consumption PELV typ. 67mW, max. 133mW
Powered (when LEDs on)
Power Consumption Battery typ. 0.25mW, max. 100mW
Powered (when LEDs on)
Approx. 2 years
Battery Lifetime
Radio Frequency 868MHz (SRD Band Europe),
915MHz (ISM Band Region 2)
max. Power 3.16mW
Ambient Temperature (PELV) -20...70°C / -4...158°F
-20...54°C / -4...129°F
Ambient Temperature
(Battery powered)
95% r.H. (non condensing)
Humidity
Safety Rating IP20
Dimensions 304x115x18 mm /
12x4.53x0.71" (LxWxH)
Connection
Wire Diameter 0.14...1mm2 / AWG18...AWG25
Exposed Wire Length 7mm / 9/32"
Push-In-Technology To make a connection, insert
the wire; to remove the wire
twist and pull at the same
time.
Information
Contains FCC ID: COR-ZWIR4512AC1
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received,
including interference that may cause undesired operation
No Gimmicks.
Real Smart Homes.
Need Help?
loxone.com/support
Loxone Electronics GmbH
Smart Home 1
4154 Kollerschlag
Austria
loxone.com

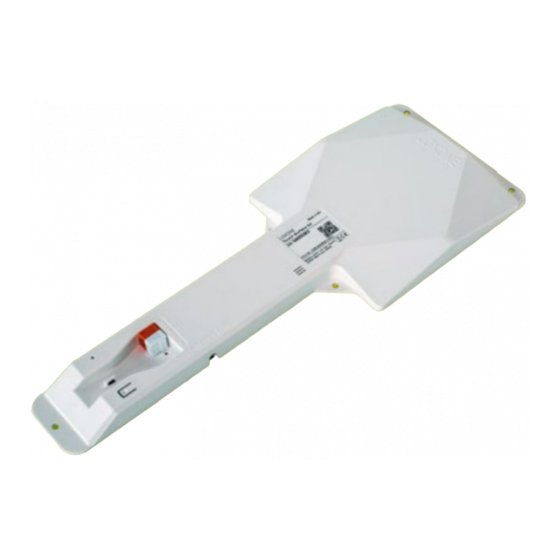

Touch
Surface Air
Part No.: 100285
