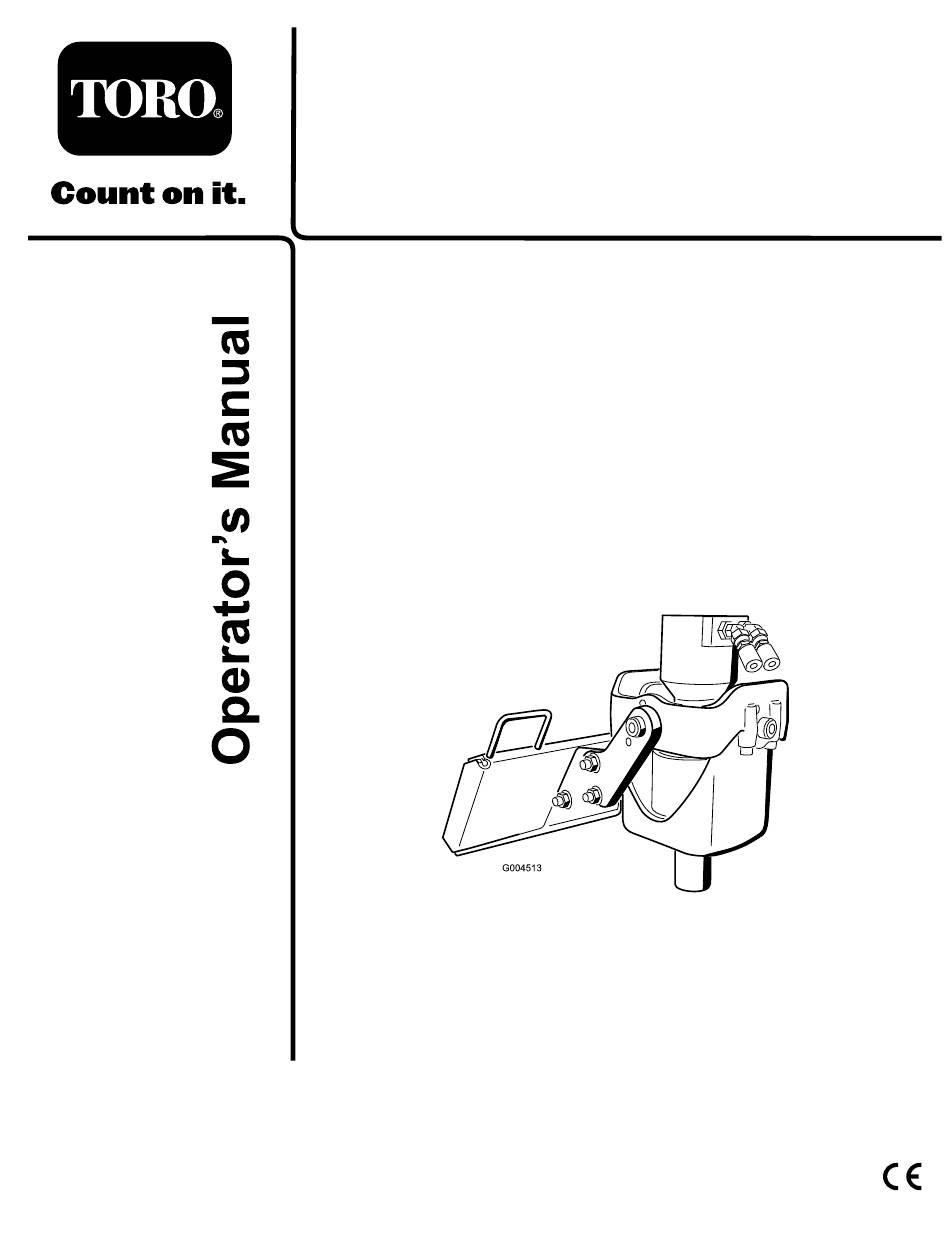

Form No. 3364-811 Rev B
Auger Head and Universal Swivel
Auger Head
for Compact Utility Loaders
Model No. 22805—Serial No. 310000001 and Up
Model No. 22806—Serial No. 310000001 and Up
To register your product or download an Operator's Manual or Parts Catalog at no charge, go to www.Toro.com.
Original Instructions (EN)

Advertisement

Table of Contents
loading

Related Manuals for Toro 22805

Summary of Contents for Toro 22805

  • Page 1 Auger Head for Compact Utility Loaders Model No. 22805—Serial No. 310000001 and Up Model No. 22806—Serial No. 310000001 and Up To register your product or download an Operator's Manual or Parts Catalog at no charge, go to www.Toro.com. Original Instructions (EN)

  • Page 2: Table Of Contents

    Introduction The machine is a hydraulically powered auger attachment Model No. for Toro compact utility loaders. It is designed to dig vertical holes in earth for the installation of posts, plants, and other construction and landscaping needs. It is not Serial No.

  • Page 3: Safety

    Safety Removing an Auger ..........8 Maintenance..............9 Recommended Maintenance Schedule(s) ....9 Improper use or maintenance by the operator or Greasing the Cradle Arm Pivot Points ....9 owner can result in injury. To reduce the potential Changing Planetary Gear Case Oil ......9 for injury, comply with these safety instructions and Storage...............

  • Page 4: Stability Ratings

    Stability with a 12 to 30 inch Auger WARNING Important: If you have a traction unit other than Lightning can cause severe injury or death. If a TX compact utility loader, use the counterweight lightning is seen or thunder is heard in the area, do on the traction unit when using the auger drive not operate the machine;...

  • Page 5: Safety And Instructional Decals

    Note: Specifications and design are subject to change distance from the auger. without notice. 3. Explosion and/or electric shock hazard—do not dig in areas with buried gas or power lines. Model 22805 Width 24.3 inches (62 cm) Length 15.8 inches (40 cm) Height 23.3 inches (59 cm)

  • Page 6: Operation

    Operation Lightly secure the bolt with a flange nut (1/2 inch) (Figure 5). Refer to your traction unit Operator’s Manual for more information on installing and removing attachments on your traction unit. Note: Always use the traction unit to lift and move the attachment.

  • Page 7: Digging A Hole

    Digging a Hole DANGER There may be buried power, gas, and/or telephone lines in the work area. Shock or explosion may occur if you dig into them. Figure 7 Have the property or work area marked for buried 1. Drive head 2.

  • Page 8: Removing An Auger

    DANGER If you are using model 22806, excessive downward force may cause the bit to wobble uncontrollably which could tip the traction unit. You or bystanders could be pined or seriously injured. When using model 22806, do not use excessive downward pressure on the bit.

  • Page 9: Maintenance

    Maintenance Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the planetary gear case oil. After the first 50 hours • Grease the cradle arm pivot points. (Grease all fittings immediately after every washing.) Before each use or daily •...

  • Page 10: Storage

    Storage 1. Before long term storage, wash the attachment with mild detergent and water to remove dirt and grime. 2. Check and tighten all bolts, nuts, and screws. Repair or replace any damaged or worn part. 3. Ensure that all hydraulic couplers are connected together to prevent contamination of the hydraulic system.

  • Page 11: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The drive head does not operate. 1. Hydraulic coupler not completely 1. Check and tighten all couplers. connected 2. Defective hydraulic coupler 2. Check couplers and replace any that are defective. 3. An obstruction in a hydraulic hose 3.
  • Page 12 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor’s service or have difficulty obtaining guarantee information, contact the Toro importer.
