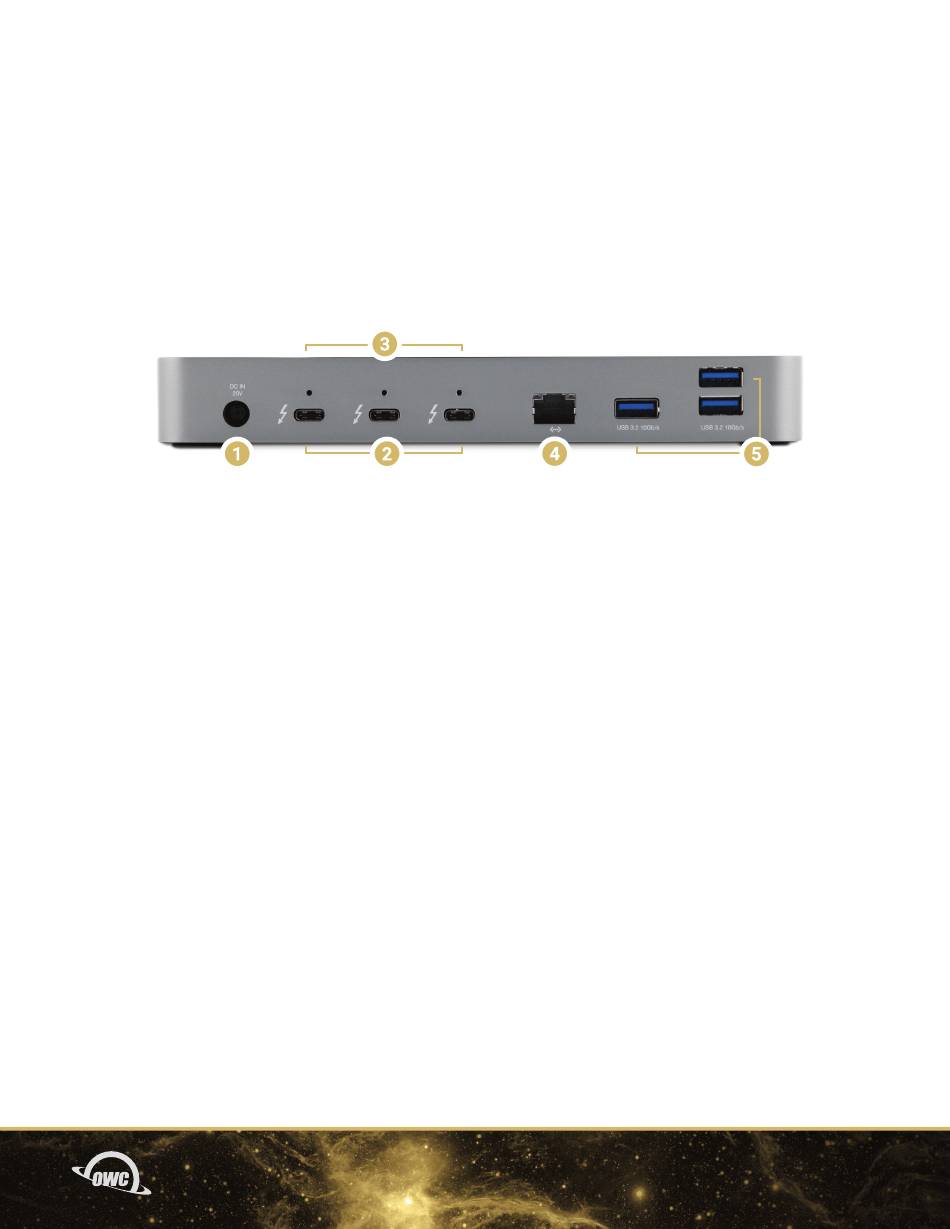

1.7 REAR VIEW
1. DC IN – connect the included power supply here.
2. Thunderbolt 4 ports – connect compatible Thunderbolt 4, Thunderbolt 3, or USB-C devices here. See Section 2.2
for display notes. Thunderbolt or Thunderbolt 2 devices can be connected via the Apple Thunderbolt 3 (USB-C)
to Thunderbolt 2 adapter.
3. ClingOn anchors – if you are using one or more OWC ClingOn anchors to secure the Thunderbolt 4, Thunderbolt 3,
or USB-C device cable(s), affix them here.
4. Gigabit Ethernet port – connect Ethernet cable here.
5. USB 3.2 Type-A ports – connect compatible USB devices here. Speeds up to 10Gb/s supported.
See Section 2.2 for limitations.
INTRODUCTION
05
