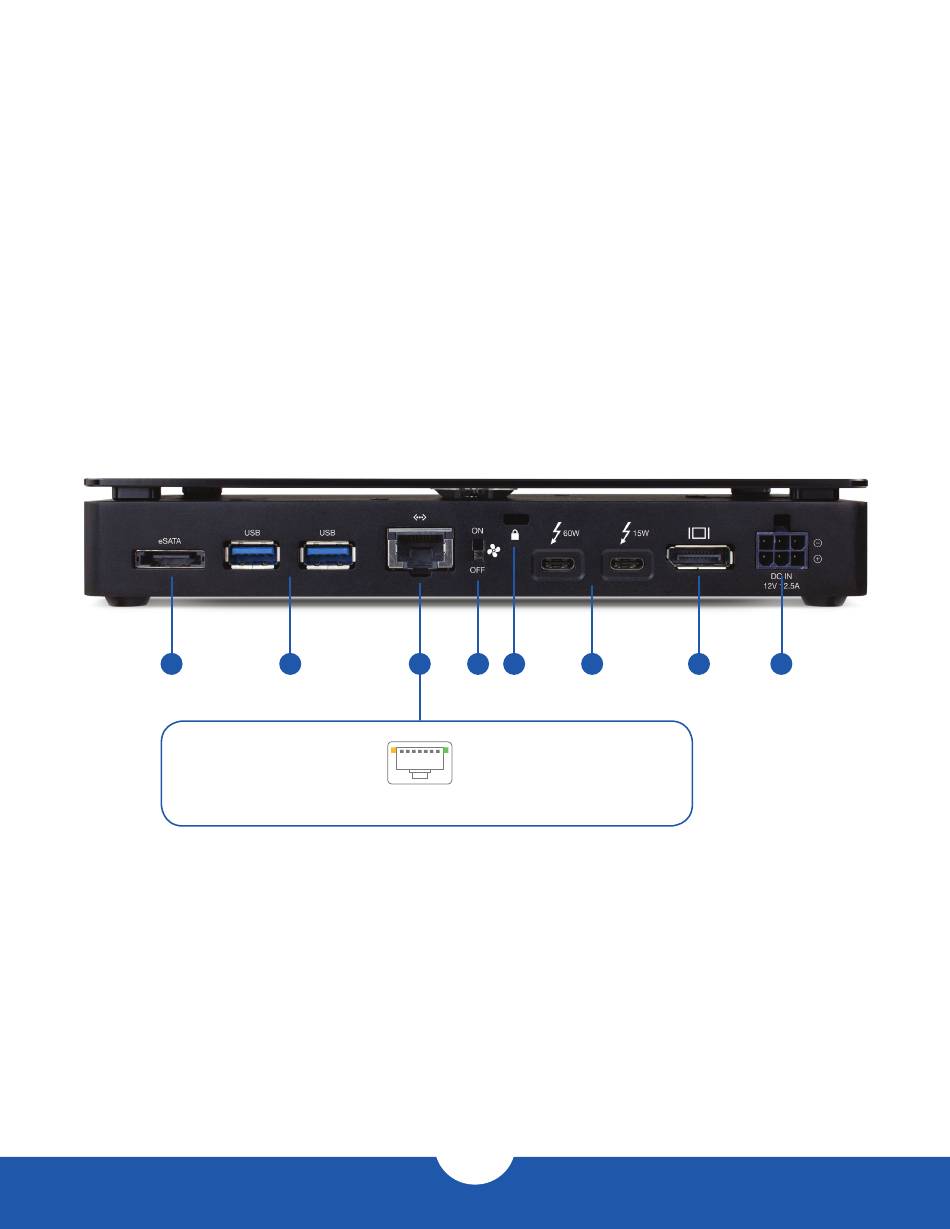

1.6 Rear View

1. eSATA port – connect eSATA devices here.
2. (2) USB 3.1 Gen 1 ports – connect bus-powered USB 3.1 Gen 1 devices here.
3. 10Gb Ethernet port – connect to Ethernet here.
4. Fan switch – temporarily disable fan here for silent operation.
IMPORTANT: We recommend that the device not be used continuously for more than 30 minutes with
the fan powered off.
5. Security slot – connect a security tether here.
6. (2) Thunderbolt 3 ports – connect your Thunderbolt 3 host and any additional Thunderbolt 3 devices
here. See Section 2.2 Usage Notes for power delivery recommendations.
7. DisplayPort 1.2 – connect to a DisplayPort display here.
8. 12V DC port – connect 6-pin 12V power cable here.
1
100M / 1G / 2.5G / 5G = Green
OWC Thunderbolt 3 Pro Dock
See Section 2.2 Usage Notes for details.
2 3
Link Speed Indicator
10G = Orange
4 5 6
Link Activity Indicator
Flashing green = Network activity
3
7 8
