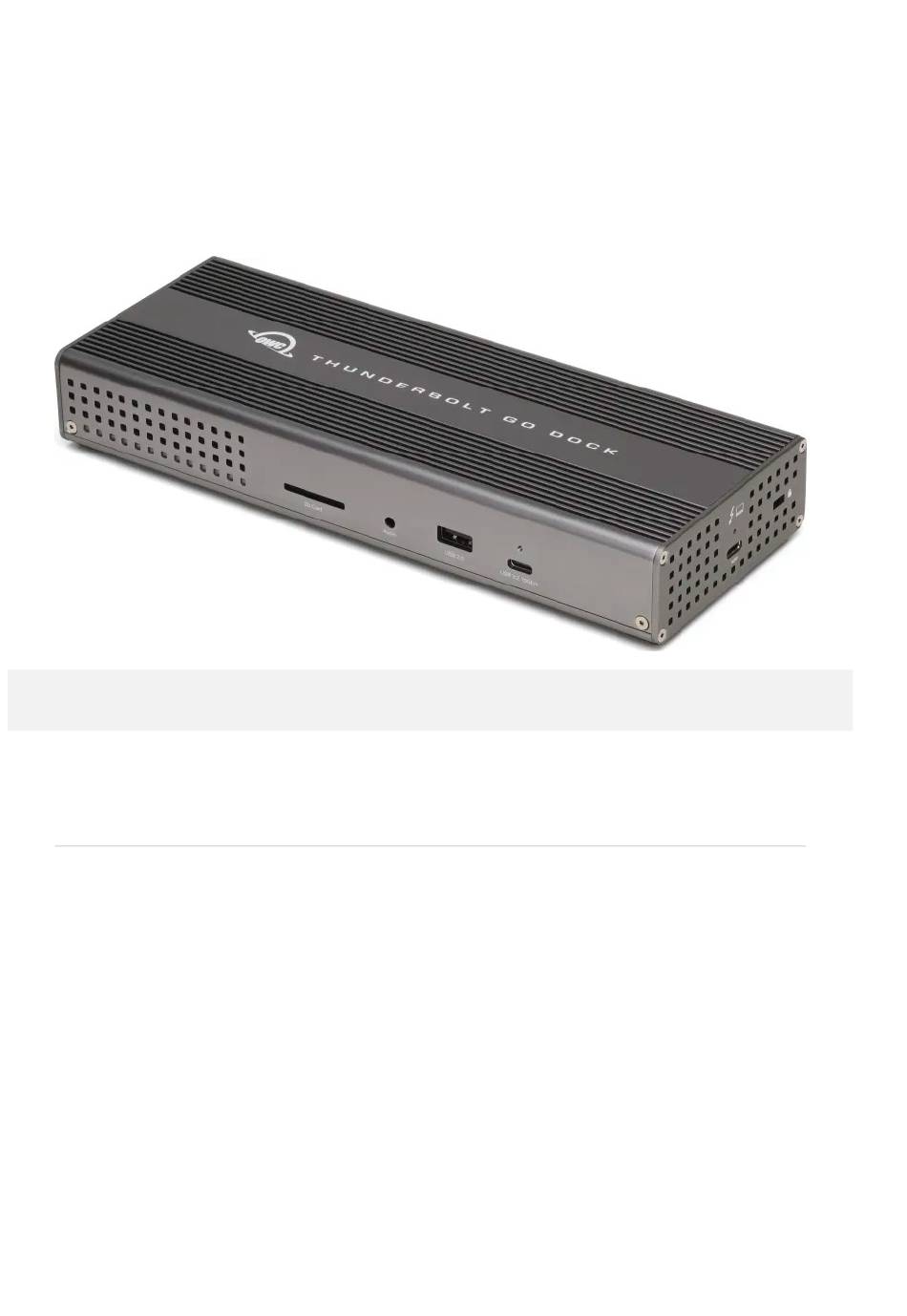

- Page 1 OWC Thunderbolt Go Dock Support Manual Introduction 1.1 System Requirements Operating System • : macOS 11 or later • : Windows 10 or later • Other : iPadOS, Chrome OS, Android, & Linux (latest version recommended)
- Page 2 B. (1) Combo Audio Port - Connect microphone, headphone, or headset with a 3.5mm connector C. (1) USB 2.0 Type-A Port - Supports USB devices with a Type-A connection D (1) OWC ClingOn-ready cable stabilizer mount – Affix ClingOn to help prevent accidental cable disconnections ( sold separately E.
- Page 3 (2) – Affix ClingOn to help prevent accidental cable disconnections (sold separately) B. (2) - Supports USB devices with a Type-C connection C. (1) HDMI 2.1 Port - Supports devices with a HDMI connection D. (1) 2.5 Gb Ethernet port – Left LED will show Green for 100M/1G/2.5G connections.
- Page 4 1.6 Botton View (1) - = Data Access Established (Read/Write) B. (1) Power Status LED - Solid White = Power Established Getting Started 2.1 Device Setup...
- Page 5 This section describes the process of connecting the OWC Thunderbolt Go Dock. 1. Plug the power cable into the OWC Thunderbolt Go Dock DC IN power port located on the back and into a power outlet. The Power LED will illuminate a solid white.
- Page 6 "iPad generations 1/2/3". The driver is packaged with the OWC Dock Ejector application download. Dock Ejector safely ejects all drives connected to the OWC Thunderbolt Pro Dock with a single click. OWC Dock Ejector can be download by visiting: go.owc.com/dockejector...
- Page 7 The OWC Thunderbolt Go Dock requires a driver to work properly with Windows or Linux. Locate your operating system and download the appropriate driver by visiting Realtek Driver Support Users are instructed to finish the on-screen instructions for completing the driver download.
- Page 8 Health, Sanitize and Field Firmware Upgradability. • The Health function allows the user to know how much life is left on their OWC Atlas media card • Sanitize removes ghost data on OWC Atlas media cards which will allow the media...
- Page 9 3.3 Thunderbolt™ Share • Enjoy an assured optimal computing experience when you pair the OWC Thunderbolt Go Dock with an Intel EVO certified laptop. With Thunderbolt™ Share, the ultimate digital KVM, you can easily share devices and content between two Thunderbolt equipped computers from one Thunderbolt port.
- Page 10 This docking station does not have built-in storage. • SD cards inserted into the OWC Thunderbolt Go Dock will not be recognized by Windows Disk Management or applications after being safely removed. Power cycle the entire OWC Thunderbolt Go Dock by disconnecting the power source. This will allow the OWC Thunderbolt Go Dock to create a new card session resulting in Windows recognizing the SD card.
- Page 11 • If issues continue to occur, please know that OWC support is here to help. Contacting support information can be found in section 4.4 "Contacting Support". Please have your serial number ready which is located on the bottom of the OWC Thunderbolt Pro Dock and printed on the original packaging.
- Page 12 • Phone, Chat, and Email support is available by visiting (owc.com/support) 4.5 About This Manual The images and descriptions may vary slightly between this manual and the unit shipped. Functions and features may change depending on the firmware version. The latest product details and warranty information can be found on the product web page.
- Page 13 OWC reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.
- Page 14 Copyrights and Trademarks © 2023 Other World Computing, Inc. All rights reserved. OWC and the OWC logo are trademarks of New Concepts Development Corporation, registered in the U.S. and/or other countries. Mac and macOS are trademarks of Apple Inc., registered in the U.S.
