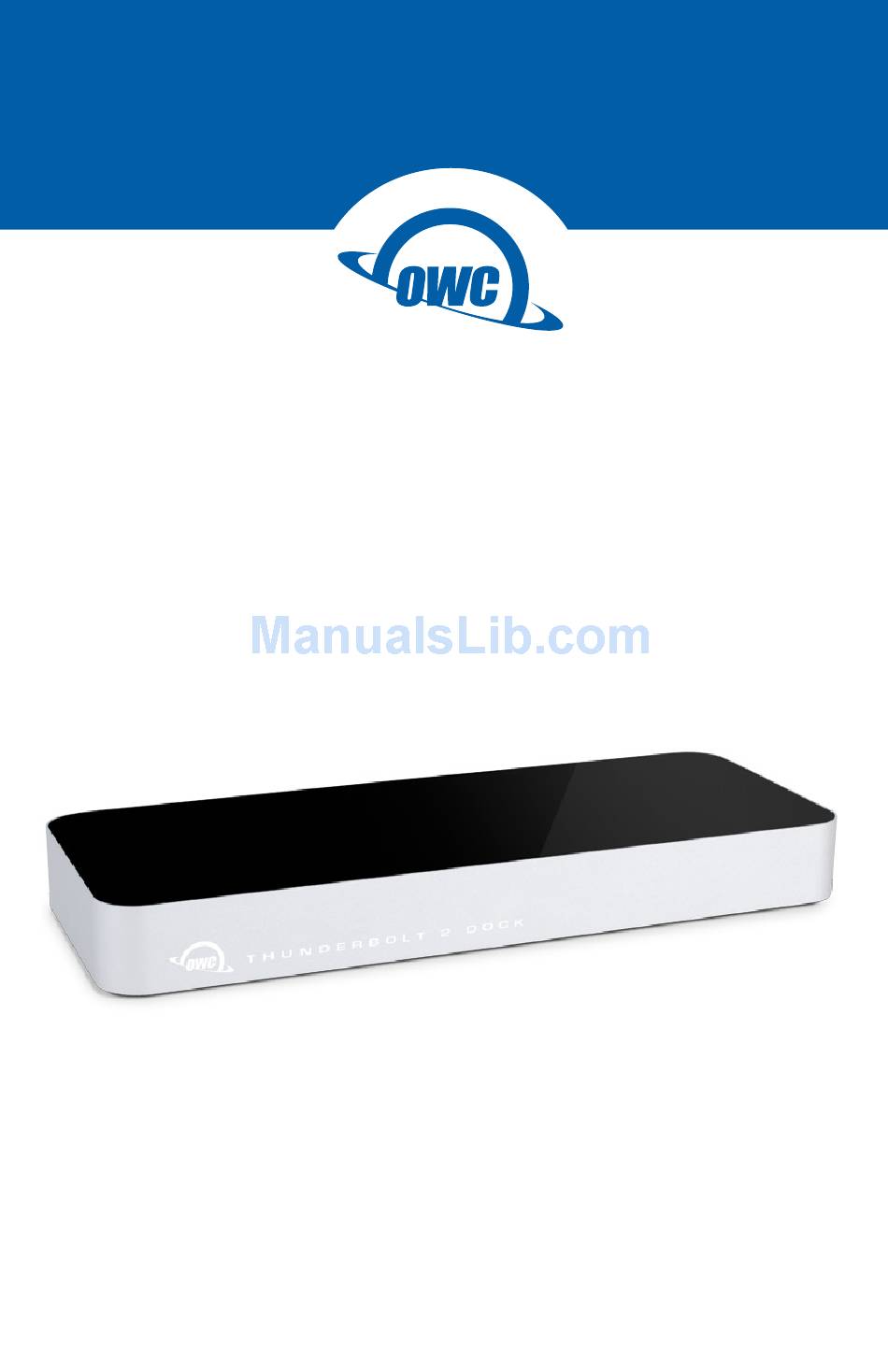

- Page 1 T H U N D E R B O L T D O C K User Guide...
- Page 2 1.1 Minimum System Requirements 1.2 Package Contents 1.3 About This Manual 1.4 Front View 1.5 Side View 1.6 Rear View Support Resources ................... 2.1 Connection 2.2 Usage Notes 2.3 Troubleshooting 2.4 Contacting Technical Support OWC THUNDERBOLT 2 DOCK TABLE OF CONTENTS...
- Page 3 The images and descriptions may vary between this manual and the unit shipped. Functions and features may change depending on the firmware version and/or the driver, if applicable. Please visit the product web page for the most recent product specifications. OWC THUNDERBOLT 2 DOCK INTRODUCTION...
- Page 4 1.4 FRONT VIEW NOTE: There are two LEDs on the bottom of the OWC Thunderbolt 2 Dock near the front, which are not pictured. Their functionality is described below. • Data LED (green) — This LED will glow green when the dock has an active data connection to a computer through the Thunderbolt cable.
- Page 5 7. HDMI port — Connect an HDMI display or television here. Supports HDMI 1.4b for up to 4K resolution at 30Hz. Note: certified HDMI High Speed cable recommended. 8. DC power input — Connect the included power supply here. OWC THUNDERBOLT 2 DOCK INTRODUCTION...
- Page 6 SUPPORT RESOURCES 2.1 CONNECTION 1. Connect the Thunderbolt 2 Dock to power using the included power supply and cable. 2. Connect the dock to a Thunderbolt port on your computer using either one of the Thunderbolt ports on the dock.
- Page 7 Begin your troubleshooting by verifying that the power cable is connected to the OWC Thunderbolt 2 Dock and to a power source. If the power cable is connected to a power strip, make sure that the power switch on the strip is turned on.
- Page 8 OWC reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.
