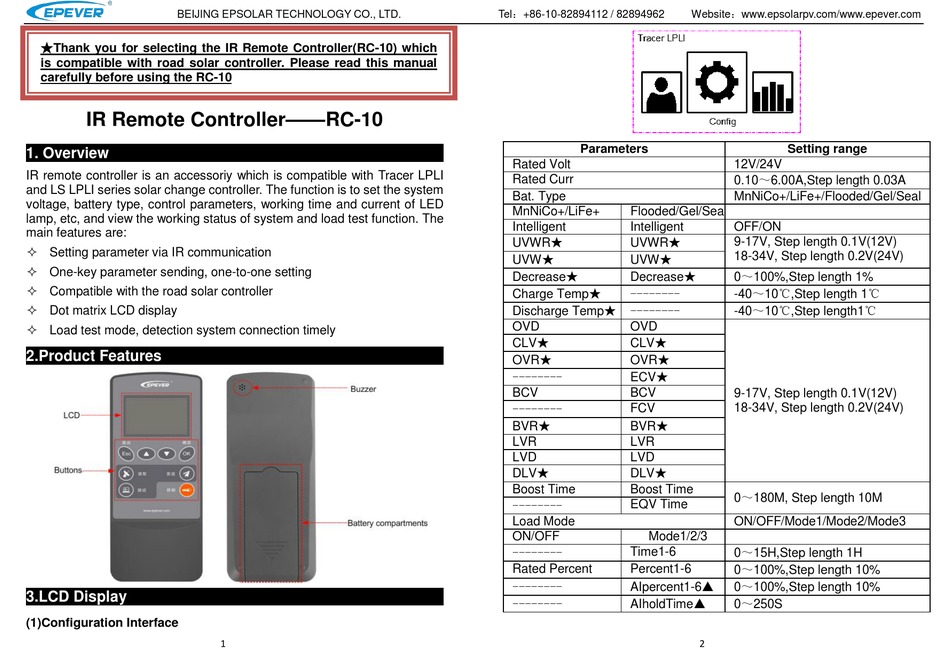

Epever RC-10 Quick Manual

BEIJING EPSOLAR TECHNOLOGY CO., LTD.
★Thank you for selecting the IR Remote Controller(RC-10) which
is compatible with road solar controller. Please read this manual
carefully before using the RC-10
※在使用本产品之前，请仔细阅读本产品说明书。

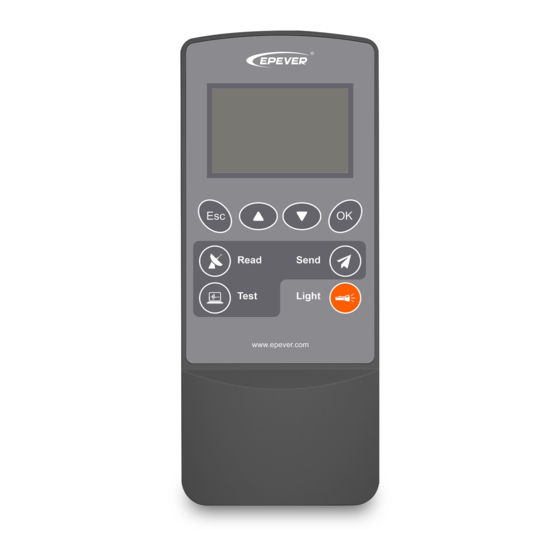

IR Remote Controller——RC-10
1. Overview
IR remote controller is an accessoriy which is compatible with Tracer LPLI
and LS LPLI series solar change controller. The function is to set the system
voltage, battery type, control parameters, working time and current of LED
lamp, etc, and view the working status of system and load test function. The
main features are:
 Setting parameter via IR communication
 One-key parameter sending, one-to-one setting
 Compatible with the road solar controller
 Dot matrix LCD display
 Load test mode, detection system connection timely
2.Product Features
3.LCD Display
(1)Configuration Interface
1
Tel：+86-10-82894112 / 82894962
Parameters
Rated Volt
Rated Curr
Bat. Type
MnNiCo+/LiFe+ Flooded/Gel/Seal
Intelligent Intelligent
UVWR★ UVWR★
UVW★ UVW★
Decrease★ Decrease★
--------
Charge Temp★
--------
Discharge Temp★
OVD OVD
CLV★ CLV★
OVR★ OVR★
--------
ECV★
BCV BCV
-------- FCV
BVR★ BVR★
LVR LVR
LVD LVD
DLV★ DLV★
Boost Time Boost Time
--------
EQV Time
Load Mode
ON/OFF Mode1/2/3
-------- Time1-6
Rated Percent Percent1-6
--------
AIpercent1-6▲
--------
AIholdTime▲
Website：www.epsolarpv.com/www.epever.com
Setting range
12V/24V
0.10～6.00A,Step length 0.03A
MnNiCo+/LiFe+/Flooded/Gel/Seal
OFF/ON
9-17V, Step length 0.1V(12V)
18-34V, Step length 0.2V(24V)
0～100%,Step length 1%
-40～10℃,Step length 1℃
-40～10℃,Step length1℃
9-17V, Step length 0.1V(12V)
18-34V, Step length 0.2V(24V)
0～180M, Step length 10M
ON/OFF/Mode1/Mode2/Mode3
0～15H,Step length 1H
0～100%,Step length 10%
0～100%,Step length 10%
0～250S
2
