HWH SPACEMAKER Operator's Manual page 9

"LEVEL-OUT" (ANGLE MOUNT) ROOM EXTENSION MECHANISM
MANUAL ROOM RETRACTION PROCEDURES
1. Determine which extend and retract solenoid valves are
assigned to the room. Manually open the valve release nuts
for the extend and retract solenoid valves by turning the 1/4"
release nuts counter clockwise 4 and 1/2 turns. Turning the
nuts more could damage the valves.
NOTE: The breather cap dip stick is also a 1/4" nut driver.
2. Gain access to the 13/16" Manual Retraction Bolts (one
on each mechanism) by raising the STORE-MORE access
panel.
3. Remove the Thumb Screws (one on each mechanism)
completely by turning them counterclockwise.
4. Using wrench provided, a personal wrench or a tire iron
with a 13/16" or 21mm opening rotate either mechanism's
Manual Retraction Bolt clockwise 6 complete turns.
5. Move to the second room extension mechanism, rotate
the Manual Retraction Bolt clockwise 12 complete turns.
6. Return to the first room extension mechanism and rotate
the Manual Retraction Bolt clockwise 12 complete turns.
7. Repeat steps 4 and 5 alternating from mechanism to
mechanism rotating each Manual Retraction Bolt 12
complete turns until room is sealed. (DO NOT exceed 15
ft.lbs) Make sure the room does not bind.
8. Replace both Thumb Screws. Leave the manual valve
releases open.
IMPORTANT: If at any stage something is not
understood or if the room begins to bind DO NOT force
the room, contact HWH Customer Service for assistance
1-800-321-3494.
Actual Mounting May Differ
OPERATING PROCEDURES
IMPORTANT: DO NOT EXTEND THE ROOM
UNTIL THE STEPS BELOW HAVE BEEN
COMPLETED!
1. Gain access to the 13/16" Manual Retraction Bolts (one
on each mechanism) by raising the STORE-MORE access
panel.
2. Remove the Thumb Screws (one on each mechanism)
completely by turning them counterclockwise.
3. If needed, using wrench provided, a personal wrench or
a tire iron with a 13/16" or 21mm opening rotate either
mechanism's Manual Retraction Bolt counterclockwise until
resistance is met.
4. Move to the second room extension mechanism and
repeat step 3.
5. Replace both Thumb Screws.
6. Close both manual valve releases assigned to the
room. Turn the valve release nuts clockwise until snug.
DO NOT over tighten.

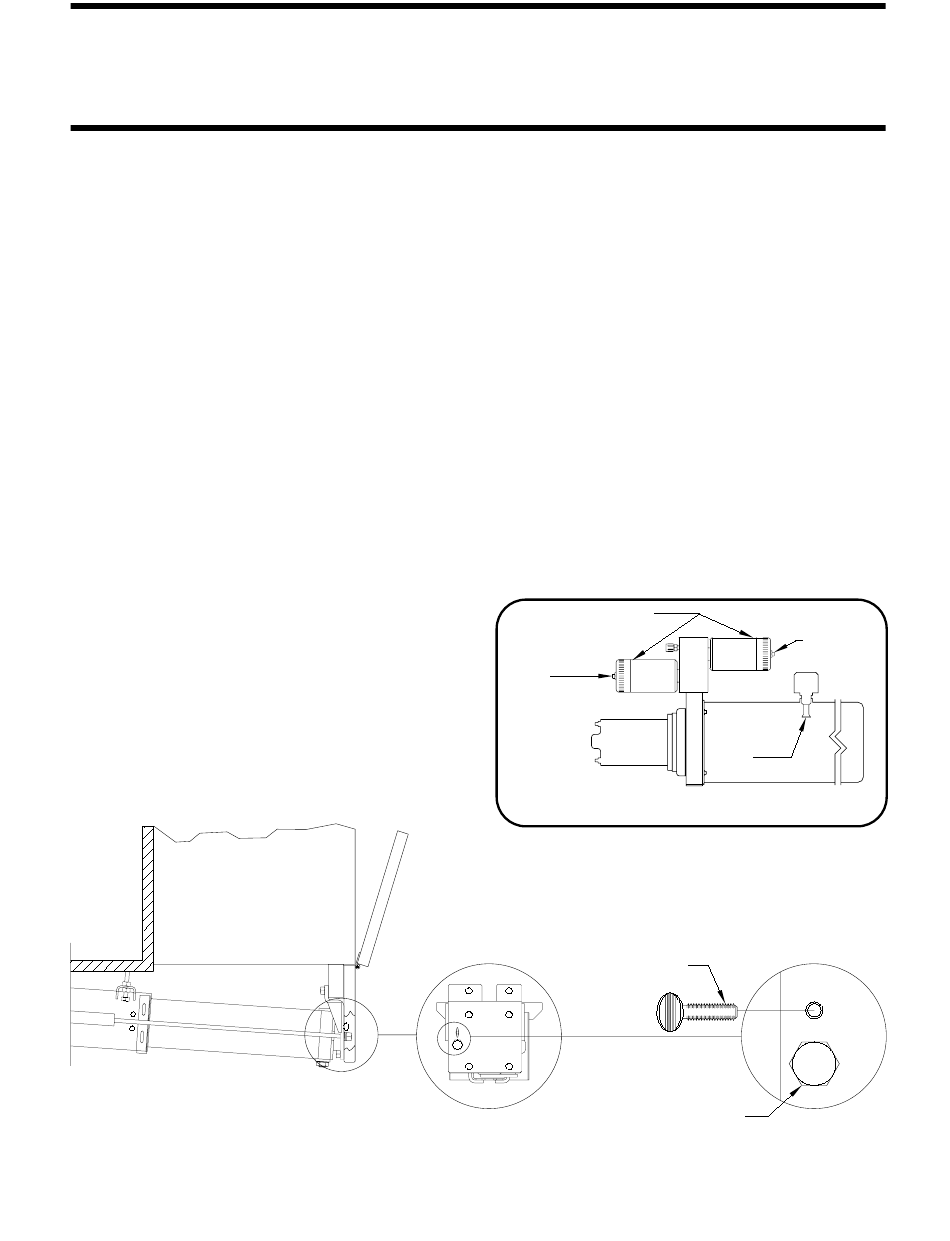

SOLENOID VALVES
VALVE
RELEASE
NUT
HYDRAULIC PUMP/MANIFOLD
LEVELING SYSTEM MANIFOLD NOT SHOWN
Thumb Screw
Manual Retraction Bolt
VALVE
RELEASE
NUT
BREATHER
CAP-DIP
STICK
MP34.9550
07FEB07
