Control Identification; Control Functions - HWH SPACEMAKER Operator's Manual

KEY SWITCH
KEY
KEY SWITCH: The KEY SWITCH controls power to the ROOM
CONTROL SWITCH. When the KEY SWITCH is in the "ON"
POSITION the room can be operated, and the key cannot be
removed. When the KEY SWITCH is in the "OFF" position
the room cannot be operated, and the key can be removed.
OEM PROVIDED ROOM SELECTOR SWITCH (IF APPLICABLE)

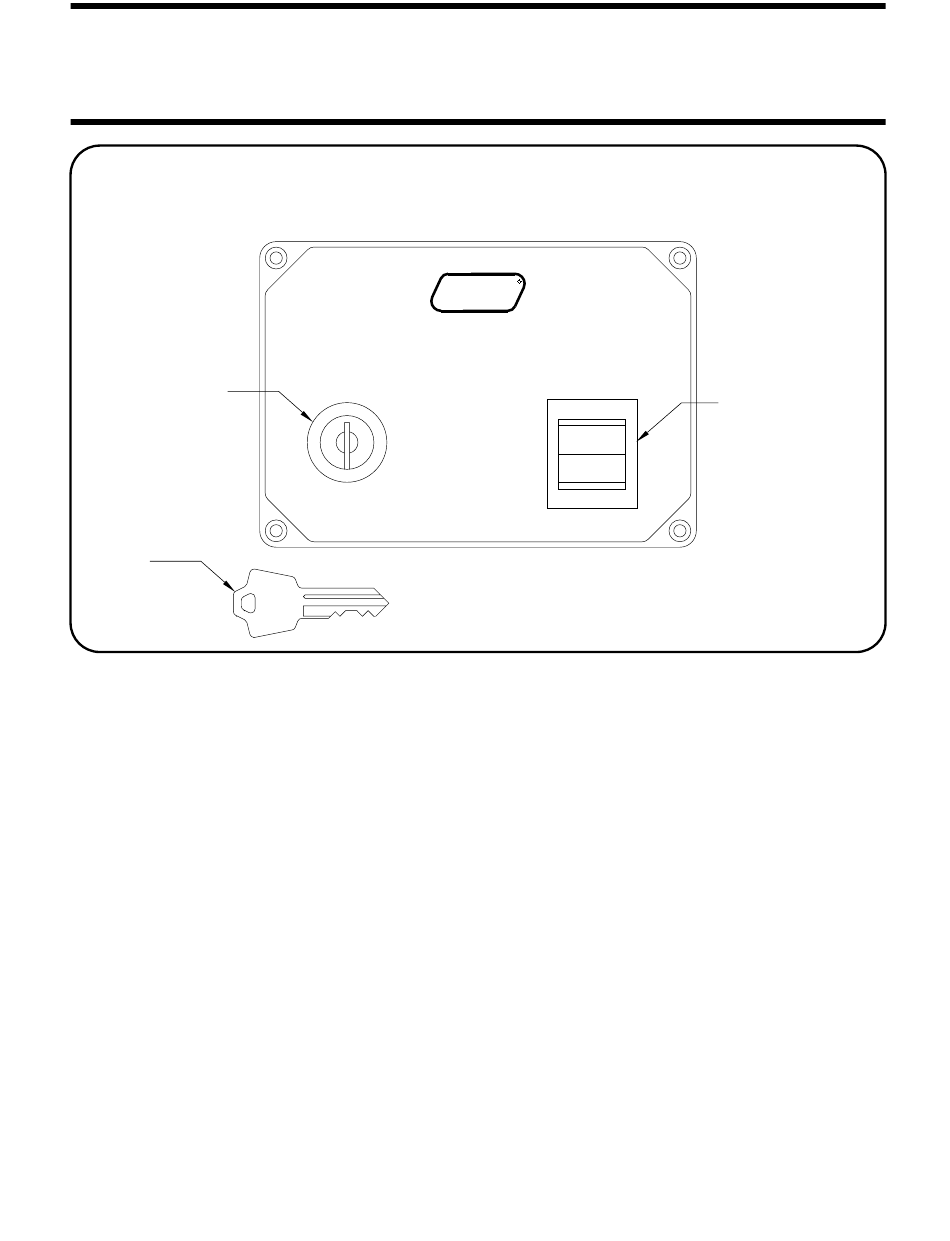

CONTROL IDENTIFICATION

ROOM OPERATOR'S PANEL
H W
CORPORATION
HYDRAULIC ROOM EXTENSION
OFF
ON
CAUTION!
UNDERSTAND OPERATOR'S MANUAL BEFORE
USING. KEEP PEOPLE AND OBSTRUCTIONS
CLEAR OF ROOM WHEN OPERATING.

CONTROL FUNCTIONS

ROOM SELECTOR SWITCH:
is OEM provided. Refer to OEM operator instructions.
H
R
EXTEND
RETRACT
ROOM CONTROL SWITCH:
is a two position momentary switch. Pressing the switch in
the EXTEND POSITION will extend the room. Pressing the
switch in the RETRACT POSITION will retract the room. Re-
leasing the ROOM CONTROL SWITCH will halt the operation
of the room.
This switch (not shown)
ROOM CONTROL
SWITCH
The ROOM CONTROL SWITCH
