Motherboard rear and audio connections

2.3.1

Rear I/O connection

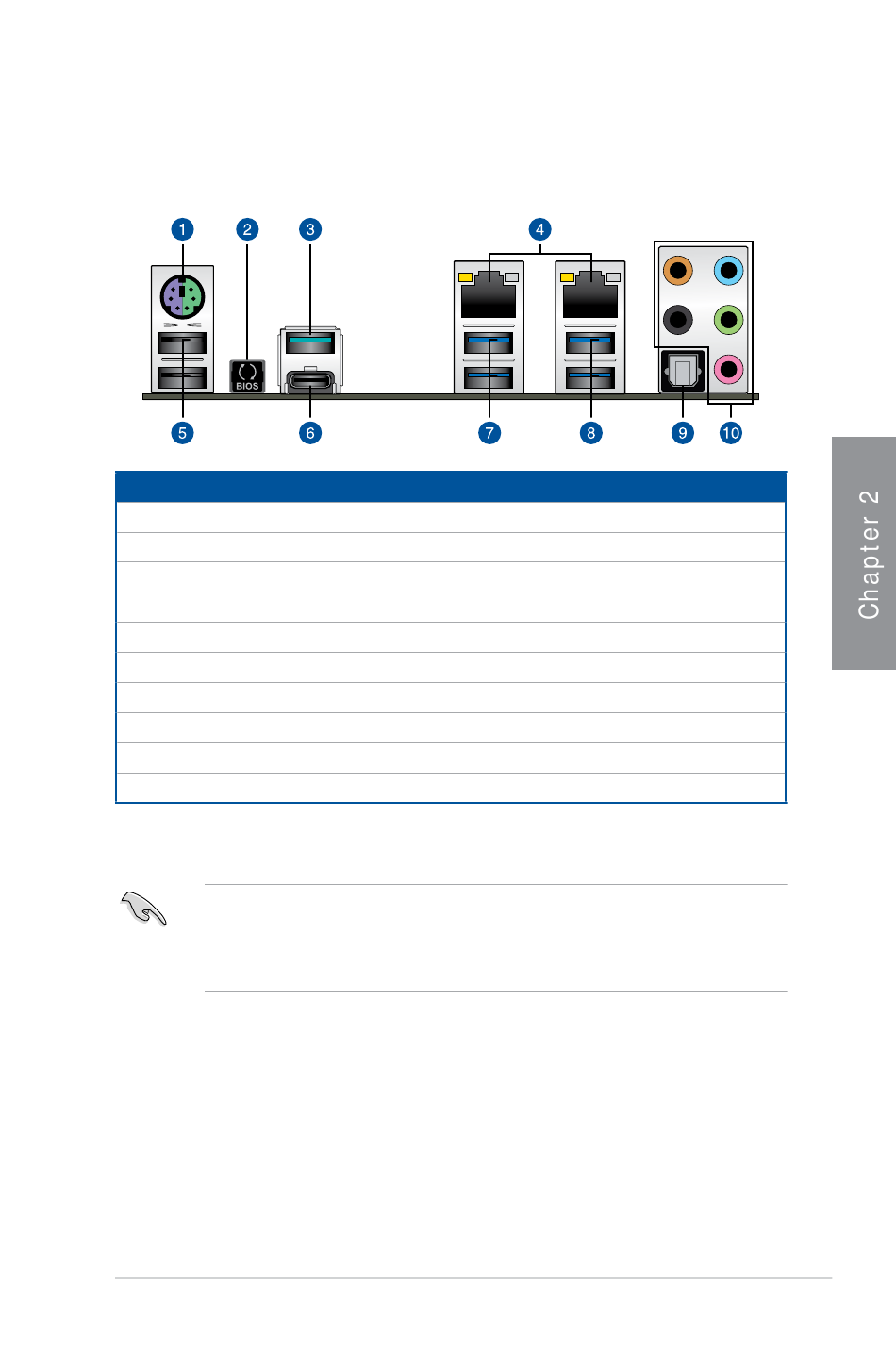

Rear panel connectors
1. PS/2 and keyboard Mouse port
2. USB BIOS Flashback button
3. USB 3.1 Type-A port EA2
4. LAN (RJ-45) ports 1, 2*
5. USB 2.0 ports 9, 10. Lower port supports USB BIOS Flashback function.
6. USB 3.1 Type-C™ port EC1
7. USB 3.0 ports 3, 4
8. USB 3.0 ports 1, 2
9. Optical S/PDIF OUT port
10.. Audio I/O ports**
* and **: Refer to the tables on the next page for LAN port LEDs and audio port definitions.
USB 3.0/3.1 devices can only be used as data storage only.
•
We strongly recommend that you connect your devices to ports with matching data
•
transfer rate. Please connect your USB 3.0 devices to USB 3.0 ports and your USB
3.1 devices to USB 3.1 ports for faster and better performance for your devices.
