11.

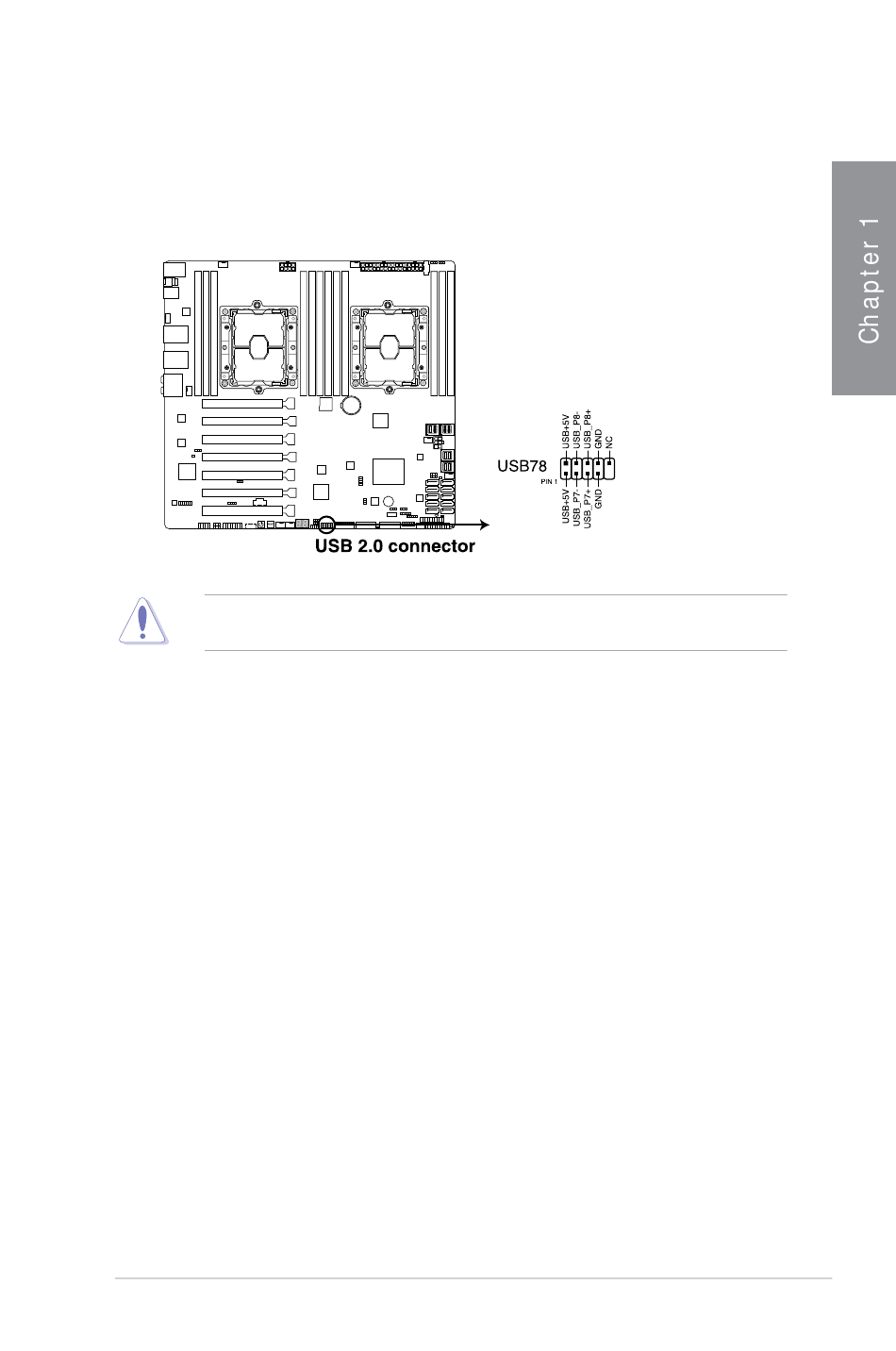

USB 2.0 connector (10-1 pin USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 ������ that supports up to
480 Mbps connection speed.
DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
1-23
