Summary of Contents for Dorma HZ 43-F Series

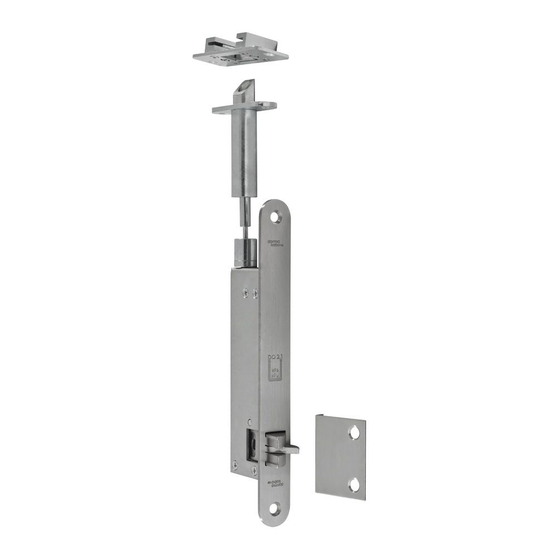

- Page 1 DORMA HZ 43-F HZ 43-F Option: 2 . 1 Bodenmulde PHA 2122 Floor keep PHA 2122 HZ 43-F L HZ 43-F R HZ 43-F R HZ 43-F L ø16 ø5,4 DO 2.1 DO 2.1 Führungshülse guide tube ø6,1 Sperrgegenstück Locking plate unit...
- Page 2 DORMA HZ 43-F DO 2.1 Standflügel Gangflügel Inactive leaf Active leaf Ansicht A / View A ø17...
- Page 3 DORMA HZ 43-F 2 .1 2 .1 max. 3 “click” 2 .1 2 .1...
- Page 4 Active leaf Kontaktstellen regelmäßig fetten. gegebenenfalls unterfüttern Lubricate contact points with grease at regular intervals. if nessesary use a shim plate DORMA GmbH + Co. KG DORMA Platz 1 D-58256 Ennepetal Tel. +49 2333 793-0 Fax +49 2333 793-4950 www.dorma.com...
