In order to maintain the highest quality standards and ensure a problem-free application, please read this guide
thoroughly before mounting the lock.
LA GARD recommends the following:
1. Complete all welds to the safe prior to installation of the electronic lock.
2. Keep metal dust, filings, etc. away from the lock.
3. Never remove the lock cover. This violates LA GARD's warranty policy.
4. Never oil, grease, lubricate or paint the lock.
5. Keep cables away from sharp edges and moving parts.
6. Never carry the keypad or lock by the cables.
7. Use ALKALINE batteries only. (LA GARD recommends Eveready™ or Duracell™)
Figure 1
Figure 2
© copyright 2008
3750-K Electronic Entry Device and Dual-Handed Swingbolt Lock
INSTALLATION INSTRUCTIONS

Safeguards for Mounting

1
The pin and spring are for use with
the Dual-Handed Swingbolt Lock
only. DO NOT use them with the
Deadbolt or Springbolt style locks.
(P/N)
734.018
1). 3750-K Entry
[Comes with hardware pack that includes
mounting screws for entry, pin and spring and
bearing plate]
2). Dual-Handed Swingbolt Lock
[Comes with hardware pack that includes
mounting screws for lock]

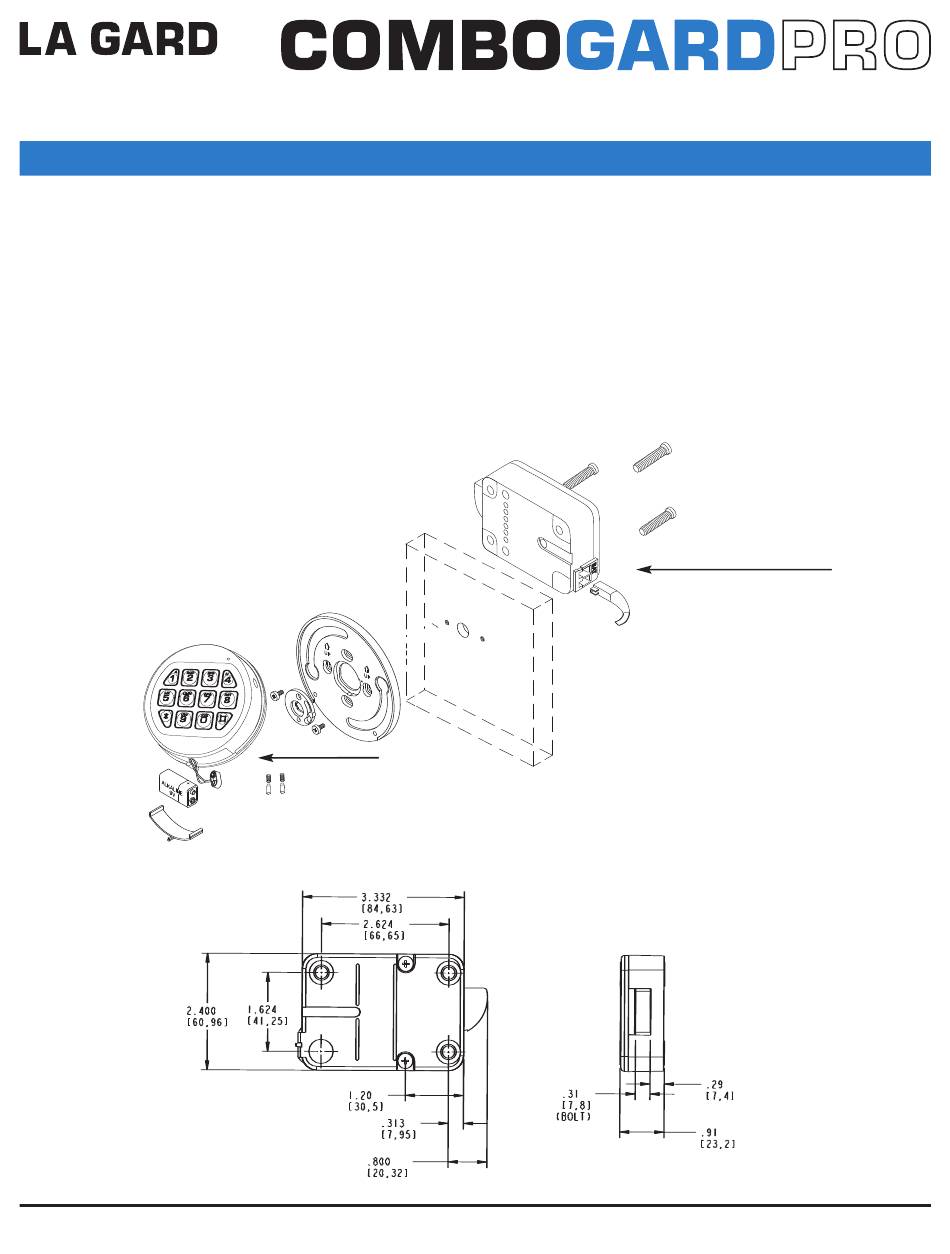

Dual-Handed Swingbolt
Dimensional Drawing
LA GARD - A Member of the Kaba Group
2
Page 1 of 3
