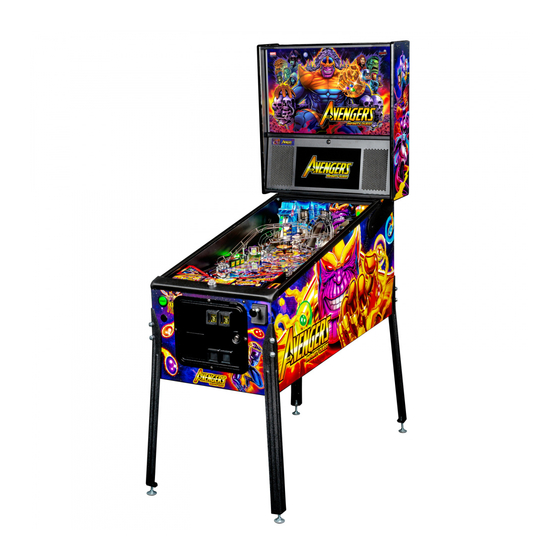

AVENGERS: INFINITY QUEST
SERVICE AND OPERATION MANUAL
SERVICE AND OPERATION MANUAL
WARNING
IMPORTANT HEALTH WARNING: PHOTOSENSITIVE SEIZURES - A very small percentage of people may experience a seizure when exposed to certain visual images,
including flashing lights or patterns. Even people with no history of seizures of epilepsy may have an undiagnosed condition that can cause "photosensitive epileptic
seizures" due to certain visual images, flashing lights or patterns. Symptoms can include lightheadedness, altered vision, eye or face twitching, jerking or shaking of arms or
legs, disorientation, confusion, momentary loss of awareness, and loss of consciousness or convulsions that can lead to injury from falling down or striking nearby objects.
IMMEDIATELY STOP PLAYING AND CONSULT A DOCTOR IF YOU EXPERIENCE ANY OF THESE SYMPTOMS.
ATTENTION! IMPORTANT WARRANTY INFORMATION
The electronics system, node network architecture, mechanical devices and associated software control systems in this pinball machine are designed to work with genuine
Stern Pinball accessories and devices.
Installation of non-authorized accessories, lamps, LED's, motors or other devices or modification of electro-mechanical devices may damage the system and will void your
warranty.
Stern Pinball machines are assembled in Elk Grove Village, Illinois, USA. Stern Pinball has inspected each game element to ensure it meets our quality standards.
Each pinball machine has unique characteristics that make it a one-of-a-kind American made product. Each will have variations in appearance resulting from differences
in the machine's particular wood parts, individual printed art and mechanical assemblies. No playfield is perfectly flat and varies depending on the season. Game play will
result in playfield dimpling as the harder steel ball contacts the wood and coating; over time multiple dimples will blend to make them less noticeable. Normal plastic insert
crazing (tiny stress cracks) and ghosting (small cloudy areas around insert edges) are often seen in pinball machines, due to a combination of plastic mold stress, pushing of
inserts into purposely undersized holes, and heating and breaking of inserts' plastic "skin" when the playfield is sanded.
© MARVEL
Games configured for North America operate on 60 cycle electricity only. These games will not operate in countries with 50 cycle electricity (Europe, UK, Australia).
AVENGERS INFINITY QUEST LE #500-55R2-01
AVENGERS INFINITY QUEST PREMIUM #500-55R3-01
1-800-KICKERS - parts.service@sternpinball.com
www.sternpinball.com - facebook.com/sternpinball
MANUAL #780-50R2-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVENGERS INFINITY QUEST Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Stern Pinball AVENGERS INFINITY QUEST Series

  • Page 1 Stern Pinball machines are assembled in Elk Grove Village, Illinois, USA. Stern Pinball has inspected each game element to ensure it meets our quality standards. Each pinball machine has unique characteristics that make it a one-of-a-kind American made product. Each will have variations in appearance resulting from differences in the machine’s particular wood parts, individual printed art and mechanical assemblies.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Ball Shooter Assembly ........43 Auto Launch Assembly ........43 5.10 Ball Trough Assembly......... 44 Setup and Moving ........3 5.11 Slingshot Assembly..........44 5.12 Flipper Assembly, Left ........45 First-Time Setup Instructions ....... 3 5.13 Flipper Assembly, Right ........45 Adjustments Menu ..........
  • Page 3: Setup And Moving

    MOVE AND MANEUVER THE SETUP INSTRUCTIONS TOOLS REQUIRED GAME. USE PROPER MOVING EQUIPMENT EXTREME Your brand new Stern Pinball Machine is • 5/8” Socket Wrench CARE WHILE HANDLING. STERN carefully packed for safety and security. • Utility Knife PINBALL MACHINES...
  • Page 4 SETUP AND MOVING FIRST-TIME SETUP CONTINUED 15. Cut nylon strapping and remove 18. Open the front coin door. 21. Store the backbox keys, if desired, protective strap corner guards. 19. Reach into the game and remove on the metal hook located in the 16.
  • Page 5 SETUP AND MOVING FIRST-TIME SETUP CONTINUED SPIKE PINBALL SOFTWARE 30. If pinballs were already installed into the lower ball trough, remove them before lifting the playfield. UPDATE INSTRUCTIONS 31. Grasp the lower arch between the flippers, and firmly but gently pull directly up to raise the playfield 8 to 12 Obtain game software update file (filename ends inches.
  • Page 6: Adjustments Menu

    SETUP AND MOVING 1.2 ADJUSTMENTS MENU STANDARD ADJUSTMENTS Go to the S.P.I. icon. Press SELECT. STANDARD ADJUSTMENT #1 appears with the adjustment Perform the below steps to review the adjustments. name flashing. While the adjustment name is flashing press [<] [>] to move between adjustments.
  • Page 7: Transporting The Game

    SETUP AND MOVING 1.3 TRANSPORTING THE GAME CAUTION When transporting the game, such as in the back of a truck or with a hand truck, the game’s backbox must be secured to prevent damage to the side rails. NEVER TRANSPORT THE GAME IN A MOVING VEHICLE WITH THE BACKBOX RAISED! TWO PEOPLE 1.
  • Page 8: Maintenance

    SETUP AND MOVING 1.4 MAINTENANCE REGULAR MAINTENANCE - (MONTHLY/500 COMMON PINBALL TOOLS GAMES) • Common nut drivers (¼”, 5/16”, 11/32", ⅜”) • Phillips screwdriver • Remove the playfield glass • Standard Allen wrench/Hex key set • Enter the software diagnostics menu, start lamp test, then •...
  • Page 9: Spike System And Node Guide

    48V system power. SPIKE standard I/O nodes are low-power nodes that read switch inputs and output to A Stern Pinball machine based on the SPIKE system will have at standard-brightness LEDs. Standard I/O nodes use the node bus...
  • Page 10: Spike Node Programming

    SPIKE SYSTEM AND NODE GUIDE SPIKE SYSTEM AND NODE GUIDE CONTINUED 2.5 SPIKE NODE PROGRAMMING INPUT/OUTPUT PROTECTIONS SPIKE features built-in short-circuit, static electricity, and other The SPIKE nodes are smart nodes that have on-board pro- protections to maximize reliability. If an LED, coil or other device cessors and run embedded code.
  • Page 11: Light, Switch, And Driver Reference

    LIGHT, SWITCH, AND DRIVER REFERENCE NODE BOARD ID INSTRUCTION SHEET 3. LIGHT, SWITCH, AND DRIVER REFERENCE PLAYFIELD FRONT NODE 8 PREMIUM & LE BACKBOX NODE 0 CN22 CN11 CPU NODE 0 Node Bus Cable (RJ45) CABINET 604-5004-08-XX CN13 Serial Data Cable 036-8054-XX NODE 9 When replacing node boards,...
  • Page 12: Driver Reference

    SPIKE SYSTEM AND NODE GUIDE 3.2 DRIVER REFERENCE Name Node Connector Ret. Pin Ret. Wire Voltage V+ V+ Color Location Type Address Part Number Trough ORG GRY GRY ORG Playfield Coil - 27-1500 8-DR-1 090-5004-ND Auto Plunger ORG WHT 48V GRY ORG Playfield Coil - 23-800 8-DR-4...
  • Page 13 SPIKE SYSTEM AND NODE GUIDE DRIVER REFERENCE CONTINUED 520-8466-00 520-8472-00 520-8475-00 520-8476-00 520-8477-00 Figure 3.2.1. Playfield driver locations (top view). AVENGERS INFINITY QUEST LE / PREMIUM MANUAL 500-55R2-01 © MARVEL...
  • Page 14: Switch Reference

    SPIKE SYSTEM AND NODE GUIDE 3.3 SWITCH REFERENCE Name Node Node Conn. Input Input Wire Ground Location Type Address Part Number Wire Left Outlane CN11 4 LGN RED 11-12 BLK ORG Playfield Rollover 8-SW-17 500-9935-03 Left Return Lane CN11 5 LGN ORG 11-12 BLK ORG...
  • Page 15 SPIKE SYSTEM AND NODE GUIDE SWITCH REFERENCE CONTINUED Name Node Node Conn. Input Input Wire Ground Location Type Address Part Number Wire Back Ramp Exit Opto CN10 6 GRY YEL 7/8/9 BLK BLU Playfield Opto 9-SW-16 515-0215-00 tx 515-0215-01 rx Subway Enter Opto CN13 4 PNK YEL...
  • Page 16 SPIKE SYSTEM AND NODE GUIDE SWITCH REFERENCE CONTINUED Name Node Node Conn. Input Input Wire Ground Location Type Address Part Number Wire Slam Tilt LGN RED Cabinet 1-SW-22 Disc Scoop Up CN12 2 PNK RED BLK BRN Playfield Mag Position 9-SW-0 520-8470-00 Disc Scoop Down CN12 3...
  • Page 17 SPIKE SYSTEM AND NODE GUIDE SWITCH REFERENCE CONTINUED 520-8472-00 520-8472-00 520-8466-00 520-8475-00 520-8476-00 520-8477-00 Figure 3.3.1. Playfield switch locations (top view). AVENGERS INFINITY QUEST LE / PREMIUM MANUAL 500-55R2-01 © MARVEL...
  • Page 18: Light Reference

    SPIKE SYSTEM AND NODE GUIDE 3.4 LIGHT REFERENCE Name Node Node Conn. Ret. Ret. Wire Src. Pin Src. Wire Location Type Light Address Part Number Ext. Color Coin Enable BLK GRY GRY RED Coin Door Digital Out 1-LP-0 Start Button YEL BRN Cabinet Feature...
  • Page 19 SPIKE SYSTEM AND NODE GUIDE LIGHT REFERENCE CONTINUED Name Node Node Conn. Ret. Ret. Wire Src. Pin Src. Wire Location Type Light Address Part Number Ext. Color Left Spinner-B BLU WHT Playfield Feature 8-LP-61 520-5333-00 Left Orbit Gem-R RED GRY 1/2/3/4 Playfield Feature...
  • Page 20 SPIKE SYSTEM AND NODE GUIDE LIGHT REFERENCE CONTINUED Name Node Node Conn. Ret. Ret. Wire Src. Pin Src. Wire Location Type Light Address Part Number Ext. Color Inner Loop-R LED23 - Playfield Feature 9-LP-36 520-8472-00 Inner Loop-G LED23 - Playfield Feature 9-LP-37 520-8472-00 Inner Loop-B...
  • Page 21 SPIKE SYSTEM AND NODE GUIDE LIGHT REFERENCE CONTINUED Name Node Node Conn. Ret. Ret. Wire Src. Pin Src. Wire Location Type Light Address Part Number Ext. Color Right Orbit Gem-G GRN YEL 1/2/3 Playfield Feature 9-LP-57 520-8471-00 Right Orbit Gem-B BLU YEL 1/2/3 Playfield...
  • Page 22 SPIKE SYSTEM AND NODE GUIDE LIGHT REFERENCE CONTINUED Name Node Node Conn. Ret. Ret. Wire Src. Pin Src. Wire Location Type Light Address Part Number Ext. Color Left Spinner Flash CN14 Playfield Flash White 8-LP-4 520-7000-00 VUK Flash CN14 BRN RED Playfield Flash White...
  • Page 23 SPIKE SYSTEM AND NODE GUIDE LIGHT REFERENCE CONTINUED Figure 3.4.1. Playfield light locations (top view). AVENGERS INFINITY QUEST LE / PREMIUM MANUAL 500-55R2-01 © MARVEL...
  • Page 24: Electronic Pinouts And Schematics

    ELECTRONIC PINOUTS AND SCHEMATICS 4. ELECTRONIC PINOUTS AND SCHEMATICS 4.1 SPIKE-2 CPU NODE 0 509-1003-01 DIRECT SWITCH MAPPING (CN25) The coin-door diagnostic switches are connected directly to the CPU node via the Cabinet Node. Note that both the CPU and Cabinet nodes are required for diagnostic switch operation.
  • Page 25 ELECTRONIC PINOUTS AND SCHEMATICS SPIKE-2 CPU NODE 0 CONTINUED AUDIO PINOUTS Type Description Minimum Impedance Power (RMS) CN1 .156" 5-pin Speaker Right Ground (-) 4 Ohms Header Speaker Right (+) 4 Ohms Speaker Left Ground (-) 4 Ohms Speaker Left (+) 4 Ohms CN3 .100"...
  • Page 26 ELECTRONIC PINOUTS AND SCHEMATICS USA & INTERNATIONAL (NON-EURO) STANDARD PRICING SELECT TABLE AVENGERS INFINITY QUEST LE / PREMIUM MANUAL 500-55R2-01 © MARVEL...
  • Page 27 ELECTRONIC PINOUTS AND SCHEMATICS EURO SUMMARY & INTERNATIONAL (EURO) STANDARD PRICING SELECT TABLE COIN MECHANISMS (SWITCHES) CPU/SOUND PCB COUNTRY PRICING SCHEME Requires SPI C O I N S T H R U . . . S L O T : DIP SWITCH SW1 SETTING Coin Card(s)
  • Page 28: Cabinet Node 1

    ELECTRONIC PINOUTS AND SCHEMATICS 4.2 CABINET NODE 1 520-6967-72 Type Description Wire Color .100" 8-Pin Header Universal Card Link Coin 1 Meter 1 Notch Coin Enable Ticket Enable Ground .100" 5-Pin Header Ground low ticket Ticket Low sw. Ticket Low 5V Out .100"...
  • Page 29: Lower Playfield 48V Driver Pinout Node 8

    ELECTRONIC PINOUTS AND SCHEMATICS 4.3 LOWER PLAYFIELD 48V DRIVER PINOUT NODE 8 520-7017-72 CN11 .100" 12-Pin Header 1 8-SW-26 Switch 8-SW-27 Switch 8-SW-17 Switch LGN-RED 8-SW-18 Switch LGN-ORG 8-SW-19 Switch LGN-YEL 8-SW-20 Switch LGN-BLU 8-SW-21 Switch LGN-VIO 8-SW-22 Switch LGN-GRY 8-SW-23 Switch LGN-WHT Ground...
  • Page 30 ELECTRONIC PINOUTS AND SCHEMATICS 4.4 MID UPPER PLAYFIELD 48V DRIVER PINOUT NODE 9 520-7017-72 CN11 .100" 12-Pin Header 1 9-SW-26 Switch 9-SW-27 Switch 9-SW-17 Switch 9-SW-18 Switch 9-SW-19 Switch 9-SW-20 Switch 9-SW-21 Switch TAN-VIO 9-SW-22 Switch TAN-WHT 9-SW-23 Switch Ground BLK-GRY Ground BLK-GRY...
  • Page 31: Lower Center Led Board 8B

    ELECTRONIC PINOUTS AND SCHEMATICS 4.6 MAGNETIC ANGLE SENSOR 4.5 LOWER CENTER LED BOARD 8B BOARD 8C 520-8477-00 520-8466-00 Type Description Wire Color .100" 8-Pin Header +5 VDC +5 VDC LED 2 ORG-YEL LED 3 ORG-BLU LED 4 ORG-WHT LED 5 ORG-VIO Type Description...
  • Page 32: Lower Left Led Board 8D

    ELECTRONIC PINOUTS AND SCHEMATICS 4.8 LOWER LEFT LED BOARD 8D 4.9 MID CENTER LED BOARD 8D1 520-8476-00 520-8483-00 Type Description Wire Color .100" 10-Pin Header +5 VDC +5 VDC +5 VDC LED 1 ORG-BRN LED 2 ORG-RED LED 3 ORG-YEL LED 4 ORG-GRN LED 5...
  • Page 33: Top Center Led Board 9A

    ELECTRONIC PINOUTS AND SCHEMATICS 4.10 TOP CENTER LED BOARD 9A 520-8472-00 .100" 6-Pin Header Ground MISO Output Data VIO-BLK MOSI Input Data VIO-BRN SCK Serial Clock VIO-RED RCK Register Clock VIO-ORG .100" 12-Pin Header +5 VDC +5 VDC +5 VDC +5 VDC LED 25 BRN-BLK...
  • Page 34: Top Left Led Board 9A1

    ELECTRONIC PINOUTS AND SCHEMATICS 4.11 TOP LEFT LED BOARD 9A1 4.13 MID LEFT LED BOARD 9B 520-8471-00 520-8475-00 Type Description Wire Color .100" 9-Pin Header +5 VDC +5 VDC LED 1-R RED-BRN Type Description Wire Color LED 1-G GRN-BRN .100" 11-Pin Header +5 VDC LED 1-B BLU-BRN...
  • Page 35: Top Left Led Board 9B1

    ELECTRONIC PINOUTS AND SCHEMATICS 4.14 TOP LEFT LED BOARD 9B1 4.16 STAR ROLLOVER BOARD 520-8471-00 520-6824-0X Type Description Wire Color Type Description Wire Color .100" 9-Pin Header +5 VDC .100" 6-Pin Header Ground BLK-WHT +5 VDC Switch Out WHT-BRN LED 1-R RED-YEL Blue LED 1-G...
  • Page 36: Trough Serial Opto Receiver 8A

    ELECTRONIC PINOUTS AND SCHEMATICS 4.19 TROUGH SERIAL OPTO 4.21 MAIN POWER SUPPLY RECEIVER 8A 011-5003-00 520-8509-00 Type Description Wire Color .100" 7-Pin Header Ground MISO Output Data VIO-BLK MOSI Input Data VIO-BRN SCK Serial Clock VIO-RED RCK Register Clock VIO-ORG +5 VDC IN Type Description...
  • Page 37: Power Distribution Board

    ELECTRONIC PINOUTS AND SCHEMATICS 4.22 POWER DISTRIBUTION BOARD 4.23 POWER PLUG WIRING 520-8096-00 CAUTION TO MAINTAIN SAFETY, GROUND WIRE FROM LINE FILTER IS TO BE MOUNTED FIRST ON GROUNDING STUD AND SECURED WITH NUT. ALL OTHER GROUNDS MAY THEN BE ATTACHED TO GROUNDING STUD.
  • Page 38: Parts Reference

    PARTS REFERENCE 5. PARTS REFERENCE 5.1 PLAYFIELD RUBBER PARTS RUBBER O-RINGS Size (ID) Size (OD) Durometer Color Part Number 3/16" Black 545-5348-01 3/4" Black 545-5348-04 1-1/4" Black 545-5348-06 2" Black 545-5348-08 2-1/2" Black 545-5348-09 7/16" Black 545-5348-17 Figure 5.1.2. Rubber o-ring part numbers and usage. ID: Inner Diameter, OD: Outer Diameter, Durometer: Higher number is firmer, less bounce, and more durable.
  • Page 39: Playfield Assemblies, Top

    PARTS REFERENCE 5.3 PLAYFIELD ASSEMBLIES, TOP Part Number Description 500-2534-R2 Bottom Arch Assembly [LE] 500-2534-R3 Bottom Arch Assembly [Premium] 755-51R2-12-Y Instruction Card 755-7665-00 SPI Card 535-8385-01 Welded Hanger Bracket 535-1388-00 Bracket Protector 500-6815-00 Bubble Level Assembly 535-0179-01 Spinner Bracket 515-7088-00 Spinner Target 515-2330-00 Wire Ramp Lower Left...
  • Page 40: Playfield Assemblies, Bottom

    PARTS REFERENCE 5.4 PLAYFIELD ASSEMBLIES, BOTTOM Part Number Description 520-7017-72 Core Node Driver Board 520-8477-00 LED Board - 8b 520-8476-00 LED Board - 8d 520-8475-00 LED Board - 9b 520-8483-00 LED Board - 8d1 520-8471-00 LED Board - 9a1, 9b1 520-8472-00 LED Board - 9a 520-8473-00...
  • Page 41: Backbox Parts

    PARTS REFERENCE 5.5 BACKBOX PARTS LCD BACKBOX LCD BACKBOX 5009995-XX DOMESTIC VERSION 500-9995-XX Figure 5.5.2. Backbox internal assemblies and components Figure 5.5.1. Backbox external assemblies and components INTERNAL EXTERNAL Part Number Description Part Number Description 509-1003-01 CPU Node Board 660-5052-00 Backglass 520-8096-00 Power Distribution Board...
  • Page 42: Cabinet Parts

    PARTS REFERENCE 5.7 CABINET PARTS ID Part Number Description 525-6026-01 Cabinet (Melamine Single Button) 535-5989-00 Slide & Pivot Bracket - Left Side 535-5990-00 Slide & Pivot Bracket - Right Side 535-2051-00 Cabinet Playfield Support Bracket 500-2440-54 Front Molding Assembly - Infinity Yellow [LE] 500-2440-00 Front Molding Assembly - Wrinkle Black [Premium] 1 535-7999-54L...
  • Page 43: Ball Shooter Assembly

    PARTS REFERENCE 5.8 BALL SHOOTER ASSEMBLY 5.9 AUTO LAUNCH ASSEMBLY 500-6146-00-07 500-9818-02 Part Number Description 535-5067-02 HOUSING ASSEMBLY 266-5001-07 COMPRESSED SPRING (LONG) - ORANGE 1 242-5014-00 WASHER 3/8 ID X 5/8 OD X 1/16" 515-6557-00 ROD ASSEMBLY 266-5010-00 COMPRESSED SPRING (SHORT) 270-5012-00 RETAINING RING, 3/8"...
  • Page 44: Ball Trough Assembly

    PARTS REFERENCE 5.10 BALL TROUGH ASSEMBLY 5.11 SLINGSHOT ASSEMBLY 500-9820-01 500-9920-01 Part Number Description 515-7811-00 MAIN BRKT. BALL TROUGH 515-7812-00 COIL BRACKET, BALL TROUGH 237-5975-04 SCREW, 8-32 X 1/4" HWH SWAGE SERR 266-5020-00 COMPRESSION SPRING-CONICAL 535-5203-03 COIL RETAINING BRACKET Part Number Description 545-5076-01 COIL SLEEVE...
  • Page 45: Flipper Assembly, Left

    PARTS REFERENCE 5.12 FLIPPER ASSEMBLY, LEFT 5.13 FLIPPER ASSEMBLY, RIGHT LOWER & UPPER: 500-6543-12-ND 500-6543-02-ND Part Number Description Part Number Description 515-6617-01 FLIPPER BASE PLATE LEFT KIT W/ 515-6617-00 FLIPPER BASE PLATE RIGHT KIT W/ BRACKET MOUNT HARDWARE BRACKET MOUNTING HARDWARE 515-6308-01 COIL STOP BRACKET 515-6308-01...
  • Page 46: Pop Bumper Assembly

    PARTS REFERENCE 5.14 POP BUMPER ASSEMBLY 516-6784-XX Part Number Description 515-6459-01L BUMPER/RING TOP ASSY, W/ LED 1 515-6459-04-ND BUMPER BOTTOM ASSY, NO DIODE ID Part Number Description 500-9934-01 POP BUMPER SWITCH ASSY-2 - LUG-LEFT 240-5005-00 6-32 NYLON STOP NUT 090-5044-ND COIL - 26-1200 10 237-5976-01 #6-32 X 1/4"...
  • Page 47: 3-Bank Drop Target Assembly

    PARTS REFERENCE 5.15 3-BANK DROP TARGET ASSEMBLY 500-1110-03-XX Part Number Description 237-5602-00 SCREW, 8-32 X 1/2" PPH MS ZINC 545-6163-03 LEDGE, 3-BANK DROP TARGET 237-6169-00 SCREW, 4-40 X 1/4 PPH MS 242-5091-00 WASHER, 1/2 X 17/64 X .03 - DT 530-5757-00 PLUNGER - D.T.
  • Page 48: Bottom Arch Front Lighting Assembly

    PARTS REFERENCE 5.16 BOTTOM ARCH FRONT 5.18 INNER LOOP OPTO ASSEMBLY LIGHTING ASSEMBLY 511-5742-00 511-2984-00 ITEM NO. PART NUMBER DESCRIPTION BRACKET, FRONT LIG 535-2358-00 BOTTOM ARCH 520-7000-00 SINGLE FLASH LED B 523-0003-00 FISCHE PAPER 237-5913-00 SCREW, 4-40 X 5/32" Part Number Description 535-2358-00 BRACKET, FRONT LIGHTING, BOTTOM ARCH 1...
  • Page 49: Ball Guide 03 Assembly

    PARTS REFERENCE 5.20 BALL GUIDE 03 ASSEMBLY 5.21 BALL GUIDE 06 ASSEMBLY 511-5743-03 511-5743-06 Part Number Description Part Number Description 535-2277-06 BALL GUIDE, AVENGERS, -06 535-2277-03 BALL GUIDE, AVENGERS, -03 ITEM 535-2277-08 BALL GUIDE, AVENGERS, -08 PART NUMBER DESCRIPTION QTY. 510-1034-00 RIVETED RAMP ASM, AVENGERS, BACK 535-2277-06...
  • Page 50: Plastic 05 Assembly

    PARTS REFERENCE 5.22 PLASTIC 05 ASSEMBLY 5.23 PLASTIC 07 ASSEMBLY 511-2986-05 511-2986-07 Part Number Description 830-1095-05 PLASTIC, AVENGERS, -05 Part Number Description 550-5510-04 HAT - TRIMMED - GREEN SB 830-1095-07 PLASTIC, AVENGERS, -07 520-7000-00 SINGLE FLASH LED BOARD 830-1095-51 PLASTIC, AVENGERS, -51 242-5001-00 #6 WASHER 242-5001-00...
  • Page 51: Plastic 12 Assembly

    PARTS REFERENCE 5.24 PLASTIC 12 ASSEMBLY 5.26 PLASTIC 16 ASSEMBLY 511-2986-12 511-2986-16 Part Number Description 830-1095-12 PLASTIC, AVENGERS, -12 237-5809-00 SCREW, #6 X 1/2" PTH A 550-5052-01 MINI POST - CLEAR Part Number Description 242-5001-00 #6 WASHER 5.25 PLASTIC 15 ASSEMBLY 232-5201-00 SCREW, 6-32 X 3/8"...
  • Page 52: Plastic 18 Assembly

    PARTS REFERENCE 5.27 PLASTIC 18 ASSEMBLY 5.28 PLASTIC 19 ASSEMBLY 511-2986-18 511-2986-19 Part Number Description 830-1095-19 PLASTIC, AVENGERS, -19 Part Number Description 550-5052-01 MINI POST - CLEAR 510-7815-18 RIVETED PLASTIC ASM, AVENGERS PREM, - 18 1 545-5348-17 7/16 O.D. RUBBER RING - BLACK 511-2986-90 PLASTIC ASM, AVENGERS LE, -90 237-5809-00...
  • Page 53: Plastic 52 Assembly

    PARTS REFERENCE 5.29 PLASTIC 52 ASSEMBLY 5.30 PLASTIC 72 ASSEMBLY 511-2986-52 511-2986-72 Part Number Description 510-7815-70 RIVETED PLASTIC ASM, AVENGERS LE, -70 510-7815-71 RIVETED PLASTIC ASM, AVENGERS LE, -71 510-7815-72 RIVETED PLASTIC ASM, AVENGERS LE, -72 510-7815-73 RIVETED PLASTIC ASM, AVENGERS LE, -73 Part Number Description ITEM NO.
  • Page 54: Disc Scoop Assembly

    PARTS REFERENCE 5.31 DISC SCOOP ASSEMBLY 5.33 DISC SCOOP SPINNER ASSEMBLY 500-2521-00 511-9727-00 Part Number Description 511-9727-00 ASM, DISC SCOOP, SPINNER 511-9729-00 ASM, DISC SCOOP, LIFT FORK 232-5301-00 SCREW, 8-32 X 3/8" PPH SEMS 5.32 DISC SCOOP CRANK ASSEMBLY 511-9730-00 Part Number Description 535-2353-00...
  • Page 55: Disc Scoop Shaft Assembly

    PARTS REFERENCE 5.34 DISC SCOOP SHAFT 5.35 DISC SCOOP LIFT FORK ASSEMBLY ASSEMBLY 511-9728-00 511-9729-00 LOCTITE 222 LOCTITE 243 LOCTITE 243 Part Number Description 535-2356-00 BRACKET, LIFT FORK 545-5105-00 RUBBER BUMPER 237-5832-00 SCREW, 4-40 X 5/8" PPH SEMS Part Number Description 237-5976-01 SCREW, 6-32 X 1/4 HWH SWAGE...
  • Page 56: Left Ramp Assembly

    PARTS REFERENCE 5.36 LEFT RAMP ASSEMBLY 5.37 CENTER RAMP ASSEMBLY 500-2523-00 500-2524-00 Part Number Description Part Number Description 510-1031-00 RIVETED RAMP ASM, AVENGERS, LEFT 510-1032-00 RIVETED RAMP ASM, AVENGERS, CENTER 1 515-0215-00 LONG RANGE OPTO EMITTER ASSEMBLY 515-0215-00 LONG RANGE OPTO EMITTER ASSEMBLY 515-0215-01 LONG RANGE OPTO RECEIVER ASSEMBLY 1 515-0215-01...
  • Page 57: Right Ramp Assembly

    PARTS REFERENCE 5.38 RIGHT RAMP ASSEMBLY 5.39 RIGHT WIRE RAMP ASSEMBLY 500-2525-00 500-2547-00 DETAIL A Part Number Description SCALE 1 : 2 515-2328-00 WIRE RAMP, AVENGERS, RIGHT Part Number Description 180-5010-04 MICRO-SWITCH 510-1033-00 RIVETED RAMP ASM, AVENGERS, RIGHT 535-6539-00 SWITCH BODY PROTECT PLATE 515-0215-00 LONG RANGE OPTO EMITTER ASSEMBLY 237-5937-02...
  • Page 58: Subway Decal Assembly

    PARTS REFERENCE 5.40 SUBWAY DECAL ASSEMBLY 5.42 SUBWAY VUK ASSEMBLY 511-9746-00 500-2530-00 Part Number Description 545-1239-00 SUBWAY, AVENGERS 820-6953-00 DECAL, SUBWAY, AVENGERS 5.41 SUBWAY ENTRANCE OPTO LOCTITE 243 ASSEMBLY 511-5741-00 Part Number Description 535-2367-00 BRACKET, SUBWAY VUK 545-5105-00 RUBBER BUMPER 090-5001-ND COIL, 23-800, NO DIODE ITEM NO.
  • Page 59: Walking Lock Assembly

    PARTS REFERENCE 5.43 WALKING LOCK ASSEMBLY 5.44 WALKING LOCK TOP ASSEMBLY 500-2546-00 511-3004-00 Part Number Description Part Number Description 511-3004-00 ASM, WALK LOCK, TOP 535-2409-00 BRACKET, WALK LOCK, TOP 511-3005-00 ASM, WALKING LOCK, BOTTOM 240-5005-00 6-32 NYLON STOP NUT 240-5102-00 8-32 NYLON LOCK NUT 515-0215-00 LONG RANGE OPTO EMITTER ASSEMBLY...
  • Page 60: Walking Lock Bottom Assembly

    PARTS REFERENCE 5.45 WALKING LOCK BOTTOM 5.46 VUK FUNNEL ASSEMBLY ASSEMBLY 511-9734-00 511-3005-00 Part Number Description 535-2369-00 GUIDE, VUK EXIT, AVENGERS 545-5428-00 RUBBER BUMPER 511-5770-00 SPRING GATE, SIDE MOUNT 240-5005-00 6-32 NYLON STOP NUT 5.47 SPRING GATE ASSEMBLY 511-5770-00 Part Number Description 535-2417-00 BRACKET, COIL FRONT, PEMS...
  • Page 61: Up Post Assembly

    PARTS REFERENCE 5.48 UP POST ASSEMBLY 5.50 BACKPANEL ASSEMBLY 500-9914-00 500-2526-00 Part Number Description 535-9248-00 BRACKET 535-5203-03 COIL RETAINING BRACKET 090-5044-ND COIL 26-1200 - NO DIODE 545-5847-00 COIL SLEEVE 280-5014-00 ADJUSTABLE BUMPER/STOP 515-2073-00 PLUNGER ASSEMBLY, UP-POST , STAINLESS 1 ITEM # QTY PART # DESCRIPTION 535-9248-00 BRACKET...
  • Page 62: Specifications

    SPECIFICATIONS 6. SPECIFICATIONS 500-55R2-01 SPECIFICATIONS, MECHANICAL, GAME SETUP SPECIFICATIONS, ENVIRONMENT Specification Imperial Metric Minimum Maximum Weight 210 lbs 96 kg Temperature, Operating 32 ℉ / 0 ℃ 104℉ / 40 ℃ Max dimensions, leg lev- 78 x 27.75 x 57 in 198 x 70.5 x 145 cm Temperature, Storage 32 ℉...
  • Page 63: Warranty

    STERN PINBALL INC LIMITED WARRANTY disorientation, confusion, momentary loss of awareness, and loss of Stern Pinball Inc (‘SELLER’) warrants only to the initial purchaser of its consciousness or convulsions that can lead to injury from falling down or striking nearby objects.
  • Page 64 1-800-KICKERS AVENGERS INFINITY QUEST LE #500-55R2-01 AVENGERS INFINITY QUEST PREMIUM #500-55R3-01 PARTS.SERVICE@STERNPINBALL.COM MANUAL #780-50R2-00 WWW.STERNPINBALL.COM *780-50R2-00* FACEBOOK.COM/STERNPINBALL...
