TB-544 LCX DRAW WIRE INSTALLATION GUIDE

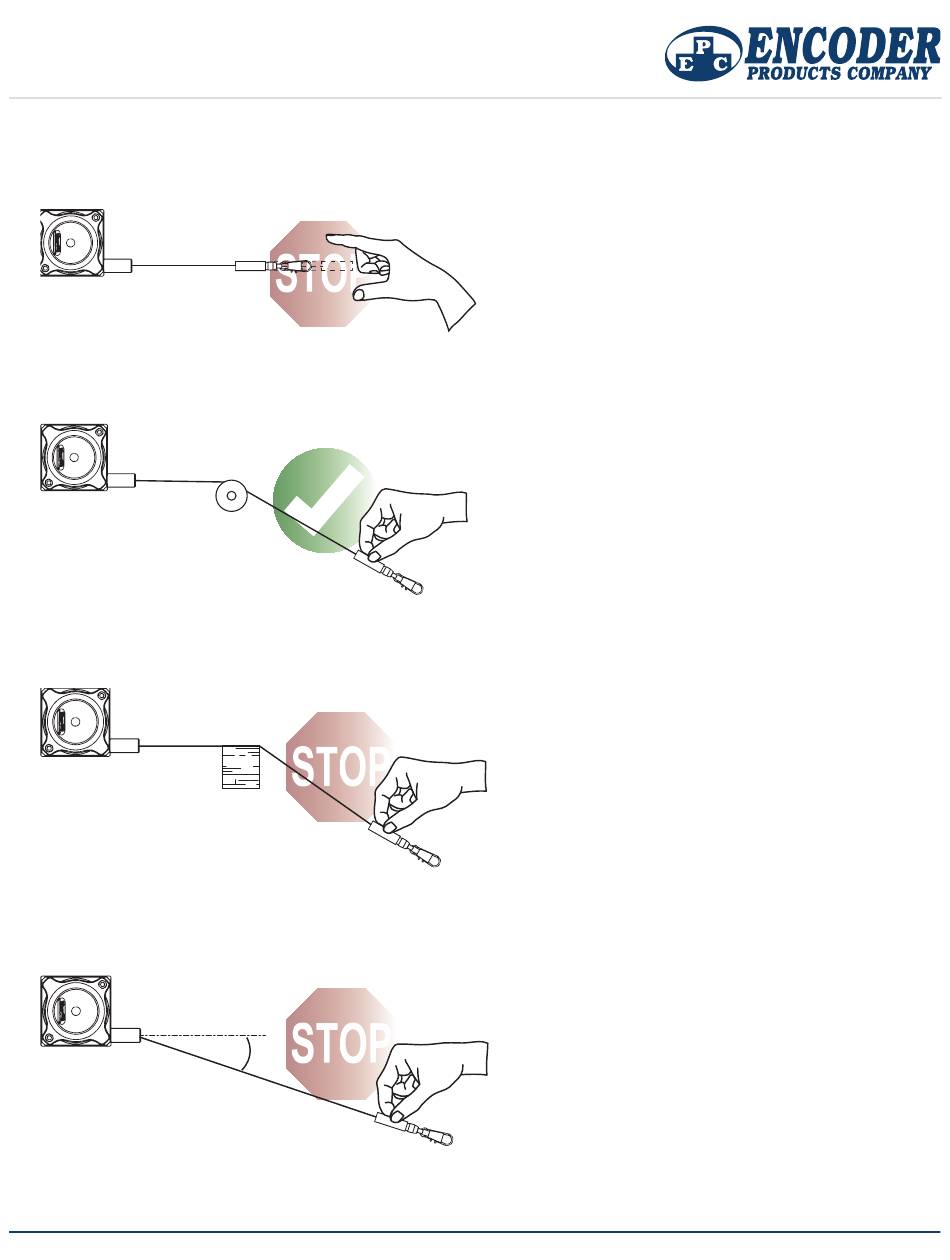

When installing or operating the draw wire unit, take care not to let the wire snap back accidentally or extract the wire more than the specified
measurement range, as this might destroy the draw wire unit and void the warranty.
Use a deflection pulley if required.
Avoid guiding the wire over edges or corners.
The maximum deviation off the exit axis is 3°. Avoid extracting the wire at an angle off the exit axis, since the service life of the draw wire unit
will be greatly reduced. If it is not possible to keep the wire within the specified limit of 3°, a deflection pulley must be used.
>3°
