TB-544 LCX DRAW WIRE INSTALLATION GUIDE
Mounting the LCX135

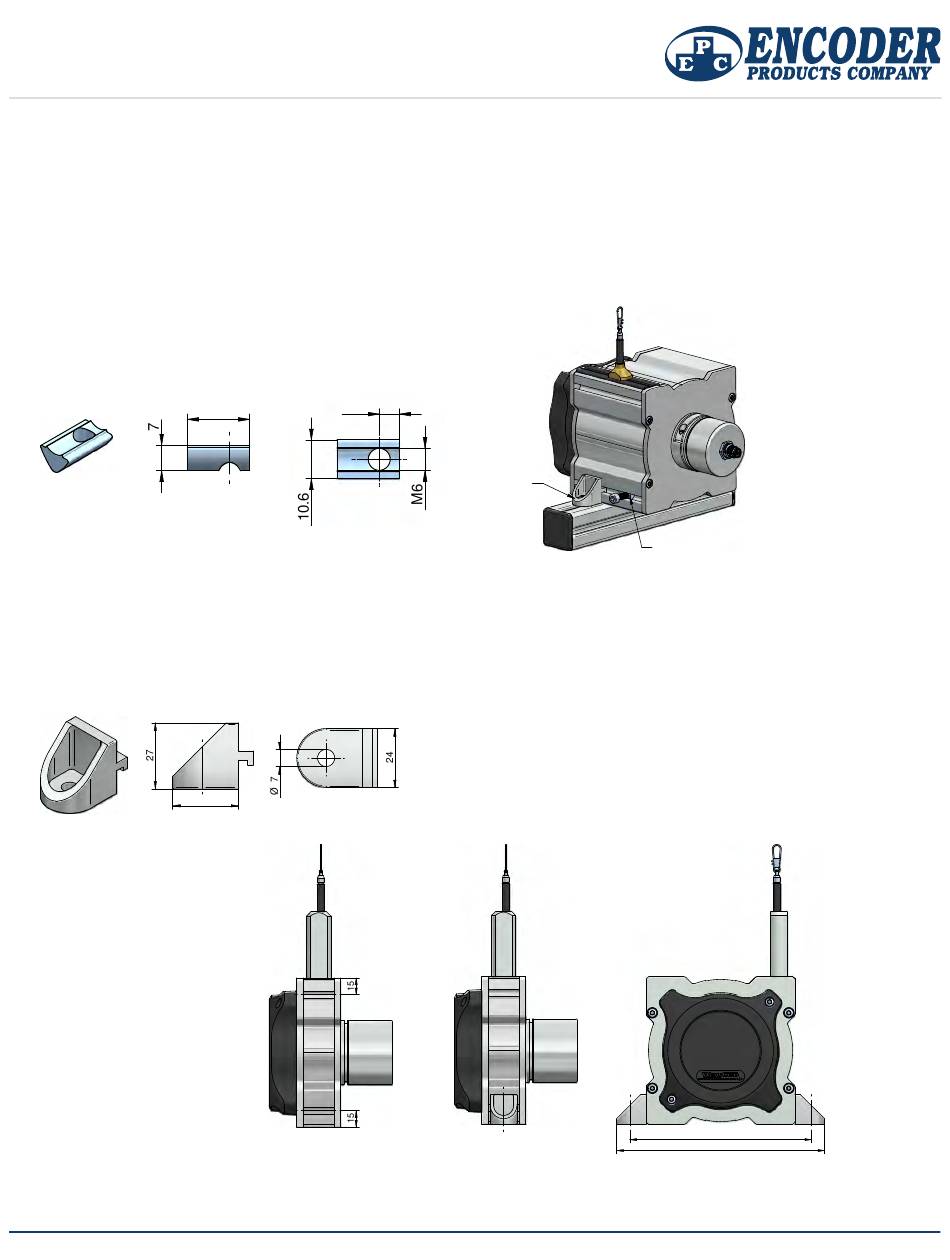

Step 1 Mounting via T-slot nuts
The included T-slot nuts can be easily inserted into the grooves of the sensor housing. The nuts have a M6 thread. Two (up to 20 m
measurement range) or four (more than 25 m measurement range) T-slot nuts are included in the package.
Step 2 Mounting via angle clamp brackets
The angle clamp brackets feature a bore for M6 screws to fix it on a plate, slab or a profile. Two (up to 20 m measurement range) or four (more
than 25 m measurement range) angle clamp brackets are included in the delivery.
Position of the grooves and angle
clamp brackets
