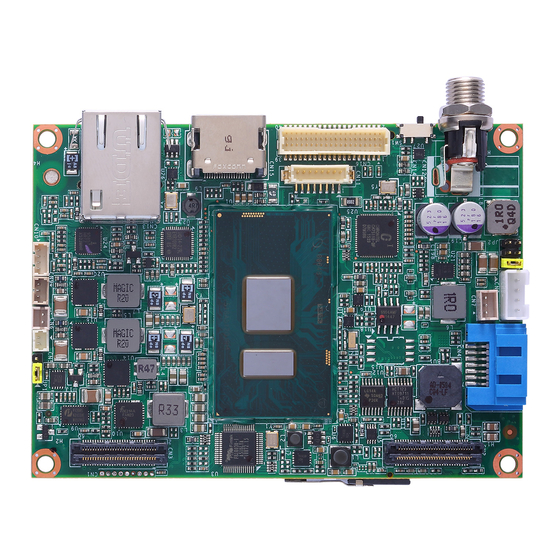

AXIOMTEK AX93276 Quick Installation Manual

Quick Start
Note: When powering on PICO880 for the first time, video device must be
plugged into DisplayPort (DP). Then, after first power on, you can set
HDMI on AX93276 as primary IGFX boot display from BIOS setting
The procedures required to power on PICO880 with AX93276
installed:
Require at least 60W DC power adapter. Make sure that all
(1).
necessary peripheral devices are plugged properly.
Check all jumper settings and make sure they are at default
(2).
settings; especially PICO880's JP2 (close).
To ensure normal functioning, DDR3L memory module must
(3).
be installed into connector SDIMM1 on PICO880 until fully
seated.
Note: It must be DDR3L memory module.
Install heatsink, heatspreader and AX93276 I/O board to
(4).
PICO880.

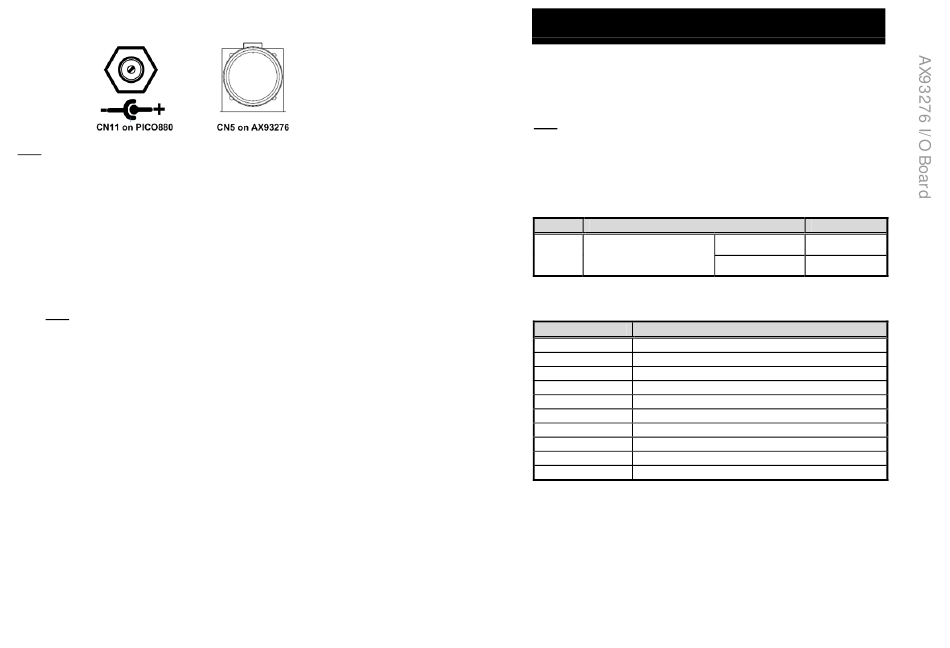

Firmly insert the DC adapter into CN11 on PICO880.
(5).
Press the system power switch (CN5) on AX93276 to start
(6).
PICO880.
4 94193276010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 January 2014
Printed in Taiwan
AX93276 Quick Installation Guide
Checklist
 I/O board x1
 Quick Installation Guide x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Jumper Settings
Before applying power to the AX93276, please make sure all of the jumpers
are in factory default positions.
Jumper Description
COM1 Data/Power Selection
JP1
Default: RS-232 Data
Connectors
Connector Description
CN1 Power Connector
CN2 High Speed Board to Board Connector 1
CN3 High Speed Board to Board Connector 2
CN4 LAN and USB 3.0 Connector
CN5 System Power Switch
CN6 USB 3.0 Stack Connector
CN7A~CN7B COM1 and COM2 D-Sub Connectors
CN8 HDMI Connector
CN9 System Reset Switch
D1 Power and HDD LED Indicator
94193276010E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 January 2014
Printed in Taiwan
 M3 Copper Tube x2
 Screw x2
Setting
CN7B Pin 1: DCD 3-5 Close
CN7B Pin 9: RI 4-6 Close
1
