AXIOMTEK ETM710 Series User Manual

Via v4 etx v3.0 som with multiple i/o features
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

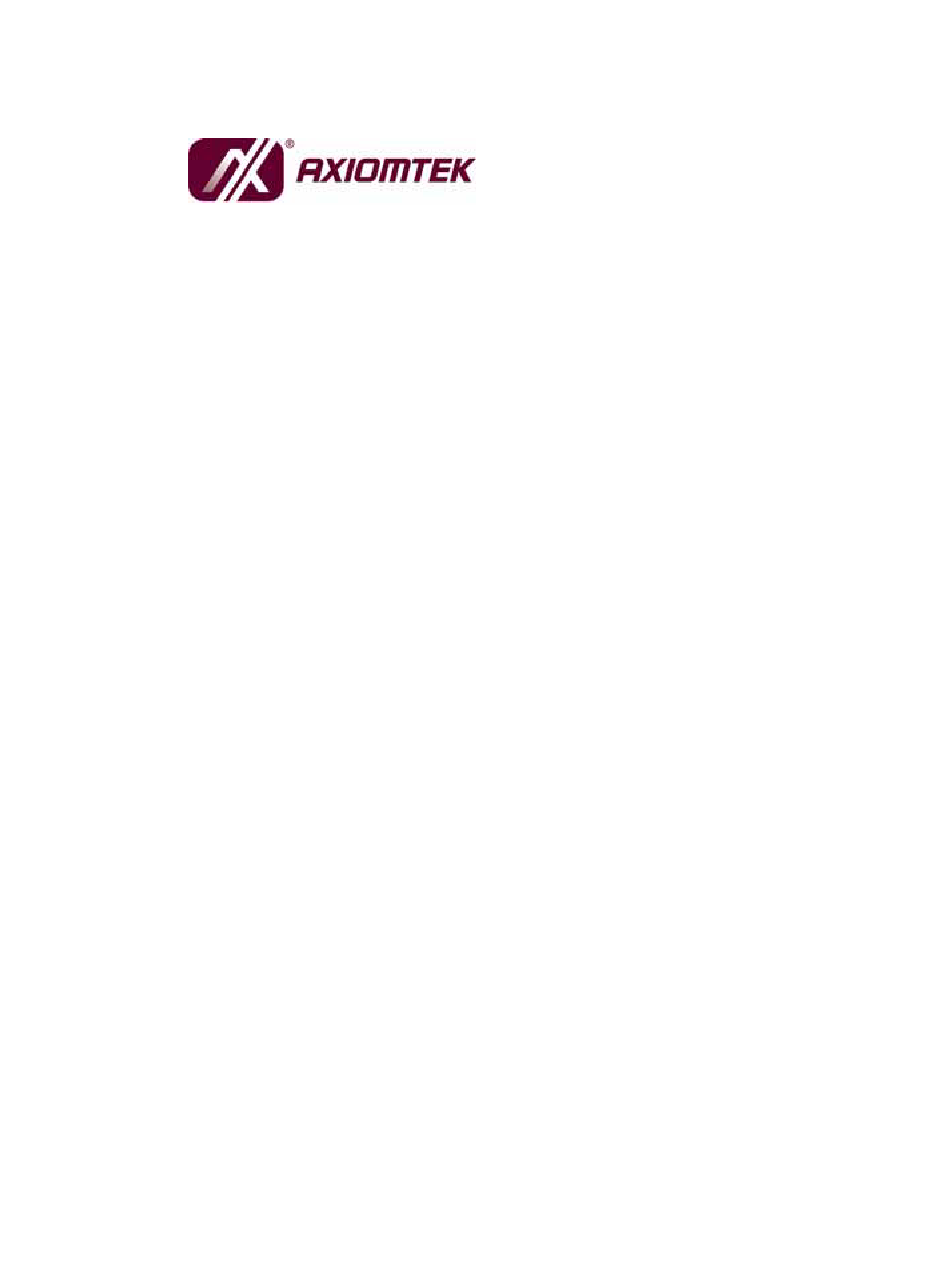

ETM710 Series
VIA V4 ETX v3.0 SoM
with Multiple I/O Features
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ETM710 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK ETM710 Series

Summary of Contents for AXIOMTEK ETM710 Series

  • Page 1 ETM710 Series VIA V4 ETX v3.0 SoM with Multiple I/O Features User’s Manual...
  • Page 2 AXIOMTEK does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document. AXIOMTEK does not make any commitment to update the information in this manual.

  • Page 3: Esd Precautions

    Wear a wrist-grounding strap, available from most electronic component stores, when handling boards and components. Trademarks Acknowledgments AXIOMTEK is a trademark of AXIOMTEK Co., Ltd. ® MS-DOS and Windows 95 are trademarks of Microsoft Corporation.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ........................ ii ESD Precautions ...................... iii Chapter 1 Introduction ................ 1 Specifications ....................2 Utilities Supported ..................3 Chapter 2 Board Layout and Pin Assignments ........ 5 Board Dimensions and Fixing Holes ............5 Pin Assignments................... 7 2.2.1 ETX Connector –X1: CNS3..............

  • Page 5: Chapter 1 Introduction

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual C h a p t e r 1 Introduction The ETM710 is a finest embedded ETX computer-on-module in the market, which makes a generic interface to connect the module to peripherals such as hard disk, mouse, and display. It supports VIA V4 Eden/C7 processors onboard and integrated VIA CX700 and ITE8888G chipsets to make the all-in-one single module as computing engine with excellent Multiple I/O, LVDS LCD, and one...

  • Page 6: Specifications

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Specifications CPU: VIA V4 Eden/C7 System Chipset: VIA CX700 and ITE8888G BIOS: Phoenix-Award BIOS, Y2K compliant 4Mbit Flash, DMI, Plug and Play SmartView for multiple LCD type selection, display mode option and application extension features RPL/PXE Ethernet Boot ROM “Load Optimized Default”...

  • Page 7: Utilities Supported

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Ethernet: Realtek RTL8139DL PCI Bus 10/100M Base-T Wake On LAN (via ATX power supply) Audio: HD Codec Audio MIC-in, Line-in, Line-out Power Management ACPI (Advanced Configuration and Power Interface) Form Factor: ETX form factor 114 mm x 95 mm NOTE: All specifications and images are subject to change without notice.
  • Page 8 ETM710 VIA V4 ETX v3.0 SoM User’s Manual MEMO Introduction...

  • Page 9: Chapter 2 Board Layout And Pin Assignments

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual C h a p t e r 2 Board Layout and Pin Assignments Board Dimensions and Fixing Holes Component Side Board Layout and Pin Assignments...
  • Page 10 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Solder Side Board Layout and Pin Assignments...

  • Page 11: Pin Assignments

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Pin Assignments 2.2.1 ETX Connector –X1: CNS3 Description Description PCICLK3 PCICLK4 PCICLK1 PCICLK2 PCI_REQ3# PCI_GNT3# PCI_GNT2# VCC3 PCI_REQ2# PCI_GNT1# PCI_REQ1# VCC3 PCI_GNT0# SERIRQ PCI_REQ0# PCI_AD0 VCC3 PCI_AD1 PCI_AD2 PCI_AD4 PCI_AD3 PCI_AD6 PCI_AD5 PCI_C/BE0# PCI_AD7 PCI_AD8...
  • Page 12 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Description Description PCI_PAR PCI_SERR# PCI_PERR# PCI_PME# USB2- PCI_LOCK# PCI_DEVSEL# PCI_TRDY# USB3- PCI_IRDY# PCI_STOP# PCI_FRAME# USB2+ PCI_AD16 PCI_C/BE2# PCI_AD17 USB3+ PCI_AD19 PCI_AD18 PCI_AD20 USB0- PCI_AD22 PCI_AD21 PCI_AD23 USB1- PCI_AD24 PCI_C/BE3# PCI_AD25 PCI_AD26 PCI_AD28 USB0+ PCI_AD27 PCI_AD29...

  • Page 13: Etx Connector -X2: Cns1

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 2.2.2 ETX Connector –X2: CNS1 Description Description ISA_SD14 ISA_SD15 ISA_SD13 MASTER# ISA_SD12 DREQ7 ISA_SD11 DACK7# ISA_SD10 DREQ6 ISA_SD9 DACK6# ISA_SD8 DREQ5 ISA_MEMW# DACK5# ISA_MEMR# DREQ0 ISA_LA17 DACK0# ISA_LA18 IRQ14 ISA_LA19 IRQ15 ISA_LA20 IRQ12 ISA_LA21 IRQ11...
  • Page 14 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Description Description ISA_SA10 REFRESH# ISA_SA11 DREQ1 ISA_SA12 DACK1# ISA_SA13 DREQ3 ISA_SA14 DACK3# ISA_SA15 IOR# ISA_SA16 IOW# ISA_SA18 ISA_SA17 ISA_SA19 SMEMR# IOCHRDY ISA_SD0 SMEMW# ISA_SD2 ISA_SD1 ISA_SD3 N0WS# DREQ2 ISA_SD4 ISA_SD5 IRQ9 ISA_SD6 ISA_SD7 IOCHK# RSTDRV...

  • Page 15: Etx Connector -X3: Cns4

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 2.2.3 ETX Connector –X3: CNS4 Description Description BLUE HSYNC GREEN VSYNC DDCK DDDA LVDSB_CLK- LVDSB_DATA3- LVDSB_CLK+ LVDSB_DATA3+ LVDSB_DATA1+ LVDSB_DATA2+ LVDSB_DATA1- LVDSB_DATA2- LVDSA_DATA3- LVDSB_DATA0+ LVDSA_DATA3+ LVDSB_DATA0- LVDSA_DATA2- LVDSA_CLK+ LVDSA_DATA2+ LVDSA_CLK- LVDSA_DATA0+ LVDSA_DATA1+ LVDSA_DATA0- LVDSA_DATA1- BLON# DIGON...
  • Page 16 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Description Description IRTX PD6/N.C RXD2 INIT#/DIR# RTS2# PD5/N.C DTR2# SLIN#/STEP# DCD2# PD4/DSKCHG# DSR2# PD3/RDATA# CTS2# PD2/WP# TXD2# PD1/TRK0# RI2# PD0/INDEX# RXD1 ACK#/DRV RTS1# BUSY#/MOT DTR1# PE/WDATA# DCD1# SLCT#/WGATE# DSR1# MSCLK CTS1# MSDAT TXD1# KBCLK RI1#...

  • Page 17: Etx Connector -X4: Cns2

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 2.2.4 ETX Connector –X4: CNS2 Description Description 5VSB PWGIN PS_ON SPEAKER PWRBTN# RTC_BATTERY RSMRST# ACTLED SPEEDLED I2CLK OVCR# EXTSMI# SMBDAT SMBCLK SMBDAT SMBALRT# DASP_S PIDE_CS3# PIDE_CS1# PIDE_A2# PIDE_A0# PIDE_A1# BATLOW# PIDE_INTRQ PIDE_ACK# PIDE_RDY PIDE_IOR# PIDE_IOW#...

  • Page 18: 7-Pin Sata Connectors: Cn1, Cn3

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Description Description PIDE_D14 PIDE_D1 PIDE_D13 PIDE_D2 PIDE_D12 PIDE_D3 PIDE_D11 PIDE_D4 PIDE_D10 PIDE_D5 PIDE_D9 PIDE_D6 RING# CBLID_P# LAN_RX- PIDE_D8 LAN_RX+ LAN_TX- PIDE_D7 LAN_TX+ HDRST# 2.2.5 7-pin SATA Connectors: CN1, CN3 These SATA connectors are for high-speed SATA interface ports and they can be connected to hard disk devices.

  • Page 19: Chapter 3 Hardware Description

    CPU. BIOS System BIOS used on the ETM710 Series is Phoenix-Award Plug and Play BIOS. The ETM710 Series contains a single 4Mbit Flash. System Memory The ETM710 Series industrial CPU card supports one 200-pin DDR2 SODIMM socket for a maximum memory of 1GB DDR SDRAMs. The memory module can come in sizes of 64MB, 128MB, 256MB, 512MB and 1GB.

  • Page 20: Input/Output (I/O) Port Address Map (Under Winxp)

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Input/Output (I/O) Port Address Map (Under WinXP) -- Input/Output (I/O) Map under XP OS (1) -- Hardware Description...
  • Page 21 ETM710 VIA V4 ETX v3.0 SoM User’s Manual -- Input/Output (I/O) Map under XP OS (2) -- Hardware Description...
  • Page 22 ETM710 VIA V4 ETX v3.0 SoM User’s Manual -- Input/Output (I/O) Map under XP OS (3) -- Hardware Description...

  • Page 23: Interrupt Request (Irq) Map (Under Winxp)

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Interrupt Request (IRQ) Map (Under WinXP) -- Interrupt Request (IRQ) Map under XP OS (1) -- Hardware Description...
  • Page 24 ETM710 VIA V4 ETX v3.0 SoM User’s Manual -- Interrupt Request (IRQ) Map under XP OS (2) -- Hardware Description...

  • Page 25: Memory Map (Under Winxp)

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Memory Map (Under WinXP) -- Memory Map under XP OS (1) -- Hardware Description...
  • Page 26 ETM710 VIA V4 ETX v3.0 SoM User’s Manual -- Memory Map under XP OS (2) -- Hardware Description...

  • Page 27: Chapter 4 Award Bios Utility

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual C h a p t e r 4 Award BIOS Utility The Phoenix-Award BIOS provides users with a built-in Setup program to modify basic system configuration. All configured parameters are stored in a battery-backed-up RAM (CMOS RAM) to save the Setup information whenever the power is turned off.

  • Page 28: Control Keys

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Control Keys Move cursor to the previous item Up arrow Move cursor to the next item Down arrow Move cursor to the item on the left hand Left arrow Move to the item in the right hand Right arrow Main Menu -- Quit and delete changes into CMOS Status Page Setup Menu and Option Page Setup...

  • Page 29: The Main Menu

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual The Main Menu Once you enter the Award BIOS CMOS Setup Utility, the Main Menu appears on the screen. In the Main Menu, there are several Setup functions and a couple of Exit options for your selection. Use arrow keys to select the Setup Page you intend to configure then press <Enter>...

  • Page 30: Standard Cmos Setup Menu

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Standard CMOS Setup Menu The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp>...
  • Page 31 ETM710 VIA V4 ETX v3.0 SoM User’s Manual IDE Channel 0 Master/IDE Channel 0 Slave/IDE Channel 1 Master/IDE Channel 1 Salve These items identify the types of each IDE channel installed in the computer. There are 45 predefined types (Type 1 to Type 45) and 2 user’s definable types (Type User) for Enhanced IDE BIOS.

  • Page 32: Advanced Bios Features

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Press <Esc> to return to the Main Menu page. Advanced BIOS Features This section allows you to configure and improve your system, to set up some system features according to your preference. Award BIOS Utility...
  • Page 33 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Hard Disk Boot Priority Scroll to this item and press <Enter> to view the Hard Disk Boot Priority sub menu for selecting boot device priority. Press <Esc> to return to the Advanced BIOS Features page. CPU L1 &...
  • Page 34 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Quick Power On Self Test This option speeds up Power on Self Test (POST) after you turn on the system power. If set as Enabled, BIOS will shorten or skip some check items during POST. The default setting is “Enabled”. Enable Quick POST Enabled Normal POST...
  • Page 35 ETM710 VIA V4 ETX v3.0 SoM User’s Manual 20 characters per second 24 characters per second 30 characters per second Typematic Delay (Msec) This option defines how many milliseconds must elapse before a held-down key begins generating repeat characters. The default value is “250”.

  • Page 36: Advanced Chipset Features

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Advanced Chipset Features This section contains completely optimized chipset’s features on the board that you are strongly recommended to leave all items on this page at their default values unless you are very familiar with the technical specifications of your system hardware.
  • Page 37 ETM710 VIA V4 ETX v3.0 SoM User’s Manual DRAM Clock/Drive Control Scroll to this item and press <Enter> to view the DRAM Clock/Drive Control sub menu. Current FSB/DRAM Frequency Those two items are read-only to show the current FSB and DRAM. DRAM Clock Use this item to adjust memory speed.
  • Page 38 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Bank Interleave Select 2-Bank or 4-Bank interleave for 64-Mb SDRAM. Press <Esc> to return to the Advanced Chipset Features page. AGP & P2P Bridge Control Scroll to this item and press <Enter> to view the AGP & P2P Control sub menu.
  • Page 39 ETM710 VIA V4 ETX v3.0 SoM User’s Manual CPU & PCI Bus Control Scroll to this item and press <Enter> to view the CPU & PCI Bus Control sub menu. Press <Esc> to return to the Advanced Chipset Features page. System BIOS Cacheable Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance.

  • Page 40: Integrated Peripherals

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Integrated Peripherals This section allows you to configure your SuperIO Device, IDE Function and Onboard Device. Award BIOS Utility...
  • Page 41 ETM710 VIA V4 ETX v3.0 SoM User’s Manual VIA OnChip IDE Device Scroll to this item and press <Enter> to view the VIA OnChip IDE Device sub menu. IDE DMA transfer access Automatic data transfer between system memory and IDE device with minimum CPU intervention.
  • Page 42 ETM710 VIA V4 ETX v3.0 SoM User’s Manual system automatically determines the best mode for each device. IDE Master/Slave UDMA Select the mode of operation for the IDE drive. Ultra DMA- 33/66/100/133 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver.
  • Page 43 ETM710 VIA V4 ETX v3.0 SoM User’s Manual VIA OnChip PCI Device Scroll to this item and press <Enter> to view the VIA OnChip PCI Device sub menu. Azalia HDA Controller Use this item to enable or disable the onboard Azalia HDA Audio function.
  • Page 44 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Super I/O Device Scroll to this item and press <Enter> to view the Super I/O Device sub menu. Onboard FDC Controller Select Enabled, if your system has a floppy disk controller (FDC) installed on the system board and you want to use it. If you install and-in FDC or the system has no floppy drive, select Disabled in this field.
  • Page 45 ETM710 VIA V4 ETX v3.0 SoM User’s Manual UAR2 Duplex Mode The second serial port offers these infrared interface modes: IrDA ASKIR IrDA-compliant serial infrared port Normalo (default value) NOTE: The UART Mode Select will not appear on the menu once you disable the setting of Onboard Serial Port 2.
  • Page 46 ETM710 VIA V4 ETX v3.0 SoM User’s Manual USB Device Setting Scroll to this item and press <Enter> to view the USB Device Setting sub menu. USB 1.0 Controller Enable this item if you are using the USB in the system. You should disable this item if a higher-level controller is added.

  • Page 47: Power Management Setup

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual Press <Esc> to return to the Integrated Peripherals page, and press it again to the Main Menu. Power Management Setup The Power Management Setup allows you to save energy of your system effectively. It will shut down the hard disk and turn OFF video display after a period of inactivity.
  • Page 48 ETM710 VIA V4 ETX v3.0 SoM User’s Manual hardware maintains all system contexts. [S3 (STR)] The S3 sleep mode is a lower power state where the information of system configuration and open applications/files is saved to main memory that remains powered while most other hardware components turn off to save energy.
  • Page 49 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Moden Use IRQ If you want an incoming call on a modem to automatically resume the system from a powersaving mode, use this item to specify the interrupt request line (IRQ) used by the modem. You might have to connect the fax/modem to the board Wake On Modem connector for working this feature.
  • Page 50 ETM710 VIA V4 ETX v3.0 SoM User’s Manual Wake Up Events Scroll to this item and press <Enter> to view the Wake Up Events sub menu. PS2KB Wakeup Select The item specifies how the system will be awakened from power saving mode when input signal of the PS2 keyboard is detected.
  • Page 51 ETM710 VIA V4 ETX v3.0 SoM User’s Manual PowerOn by PCI Card When setting to [Enabled], this setting allows your system to be awakened from the power saving modes through any event on PCI PME (Power Management Event). Modem Ring Resume This item enables the modem ring to wake up the computer system from a power saving mode.

  • Page 52: Pnp/Pci Configuration Setup

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 4.10 PnP/PCI Configuration Setup This section describes the configuration of PCI (Personal Computer Interconnect) bus system, which allows I/O devices to operate at speeds close to the CPU speed while communicating with other important components.
  • Page 53 ETM710 VIA V4 ETX v3.0 SoM User’s Manual disappear, as the BIOS automatically assigns them. The default value is “Manual”. IRQ Resources When resources are controlled manually, assign each system interrupt to one of the following types in accordance with the type of devices using the interrupt: Legacy ISA Devices compliant with the original PC AT bus specification, requiring a specific interrupt (such as IRQ4 for serial...

  • Page 54: Frequency/Voltage Control

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 4.11 Frequency/Voltage Control This section is to control the CPU frequency and Supply Voltage, DIMM OverVoltage and AGP voltage. CPU Clock Ratio Use this item to select the CPU’s frequency. Auto Detect PCI Clk The enabled item can automatically disable the clock source for a PCI slot without a module, to reduce EMI (ElectroMagnetic Interference).

  • Page 55: Load Optimized Defaults

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 4.12 Load Optimized Defaults This option allows you to load your system configuration with default values. These default settings are optimized to enable high performance features. To load CMOS SRAM with SETUP default values, please enter “Y”. If not, please enter “N”.

  • Page 56: Set Supervisor/User Password

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 4.13 Set Supervisor/User Password You can set a supervisor or user password, or both of them. The differences between them are: Supervisor password: You can enter and change the options on the setup menu. User password: You can just enter, but have no right to change the options on the setup menu.

  • Page 57: Save & Exit Setup

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 4.14 Save & Exit Setup This section allows you to determine whether or not to accept your modifications. Type “Y” to quit the setup utility and save all changes into the CMOS memory. Type “N” to bring you back to the Setup utility. Award BIOS Utility...

  • Page 58: Exit Without Saving

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual 4.15 Exit Without Saving Select this option to exit the Setup utility without saving changes you have made in this session. Type “Y”, and it will quit the Setup utility without saving your modifications. Type “N” to return to the Setup utility.

  • Page 59: Appendix Watchdog Timer

    ETM710 VIA V4 ETX v3.0 SoM User’s Manual A p p e n d i x Watchdog Timer Watchdog Timer Setting The watchdog timer makes the system auto-reset while it stops working for a period. The integrated watchdog timer can be set up as system reset mode by program.
  • Page 60 ETM710 VIA V4 ETX v3.0 SoM User’s Manual ↓ WDT counting re-set timer: O 2E F4 O 2F M; M=00, 01, 02…FF (See below table) IF to disable WDT: O 2E 30 O 2F 00; Can be disable at any time Timeout Value Range 1 to 255 Minute / Second...
