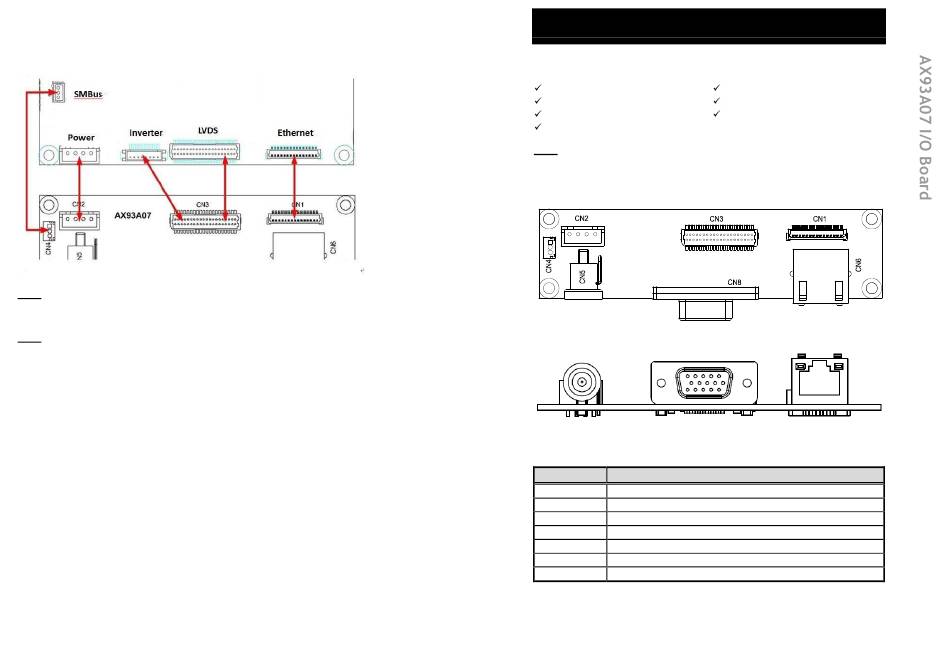

Assembly Drawing -2
Connect Pico-ITX SBC to AX93A07 I/O board by following below drawing:
Note: In order to avoid damage to the hardware, properly connect CN3 (on
AX93A07) to LVDS and inverter connectors on Pico-ITX SBC using a Y
cable.
Note: The AX93A07 only supports VGA monitor with the resolution of
1024x768.
4
94193A07020E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A3 December 2017
Printed in Taiwan
AX93A07 Quick Installation Guide
Checklist
I/O Board x1
Quick Installation Guide x1
Power Cable x1
LAN Cable x1
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.
Board Layout
Top View
Side View
Connectors
Connector
Description
CN1
Ethernet Board to Board Connector
CN2
DC Power Output Connector
CN3
LVDS Input Connector
CN4
SMBus Connector
CN5
DC Jack Power Input Connector w/ Screw
CN6
RJ-45 Ethernet Port
CN8
D-Sub VGA Output Connector
94193A07020E
©
Copyright 2017 Axiomtek Co., Ltd.
Version A3 December 2017
Printed in Taiwan
Bracket x1
SMBus Cable x1
LVDS to VGA Cable x1
1
