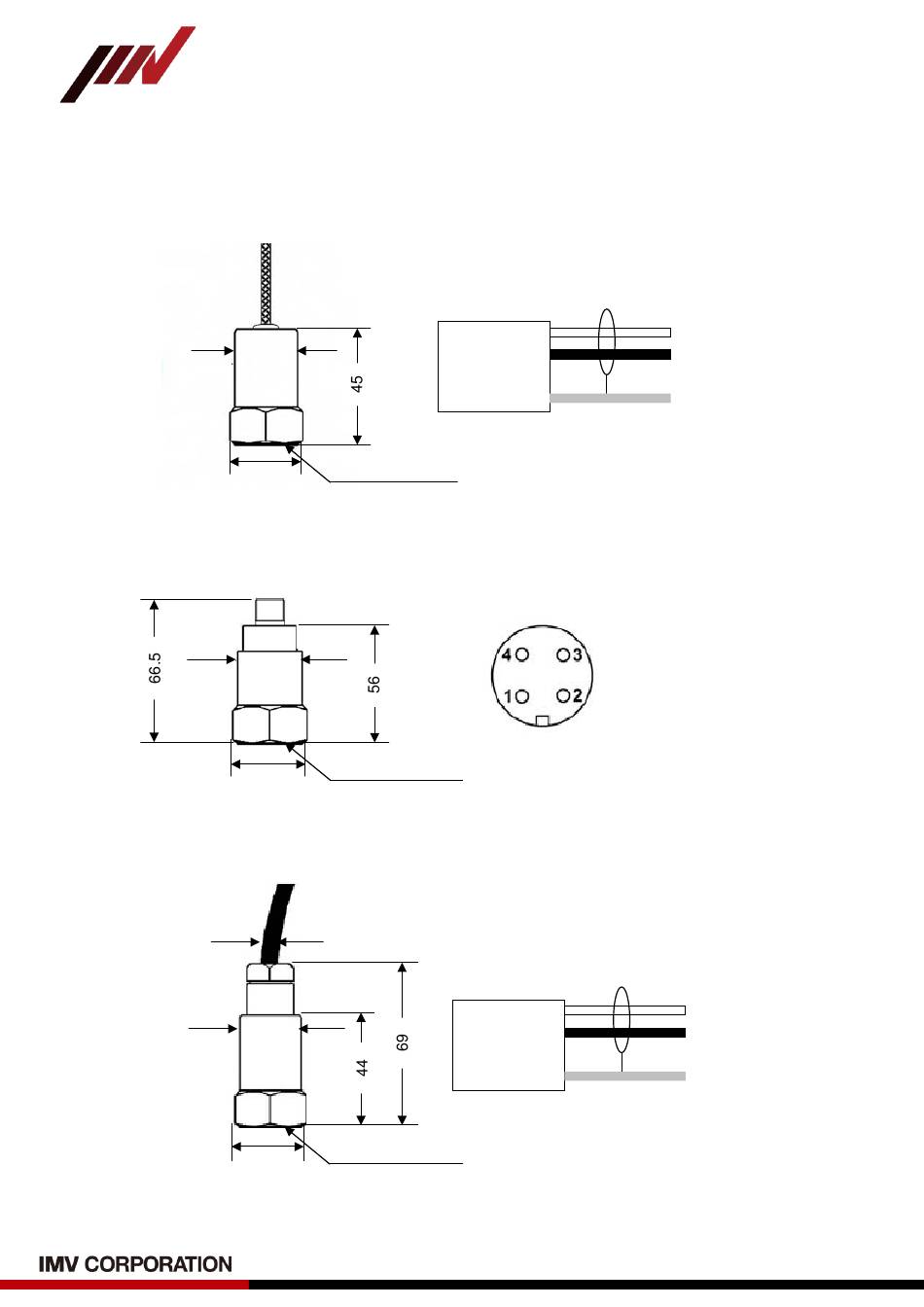

5. Outline Dimensional Drawing
(Detail Reference: "4. Specifications")
□ Drip-Proof Direct-Connect Type
φ 27.5
HEX 28
Sensor Body
□ Water-Proof Connector Type
φ 27.5
HEX 28
Sensor Body
□ Water-Resistant Type
φ 5.2
φ 27.5
HEX 28
Sensor Body
W5/8 depth 6mm
W5/8 depth 6mm
W5/8 depth 6mm
－ 5 －
White： 15 to 30VDC
Black： 0V
Silver
Cable
Pin1： no-connection
Pin2： 15 to 30VDC (White)
Pin3： no-connection
Pin4： 0V (Black)
Connector Shape
White： 15 to 30VDC
Black： 0V
Silver
Cable
VP-422 Specifications Rev3.2
