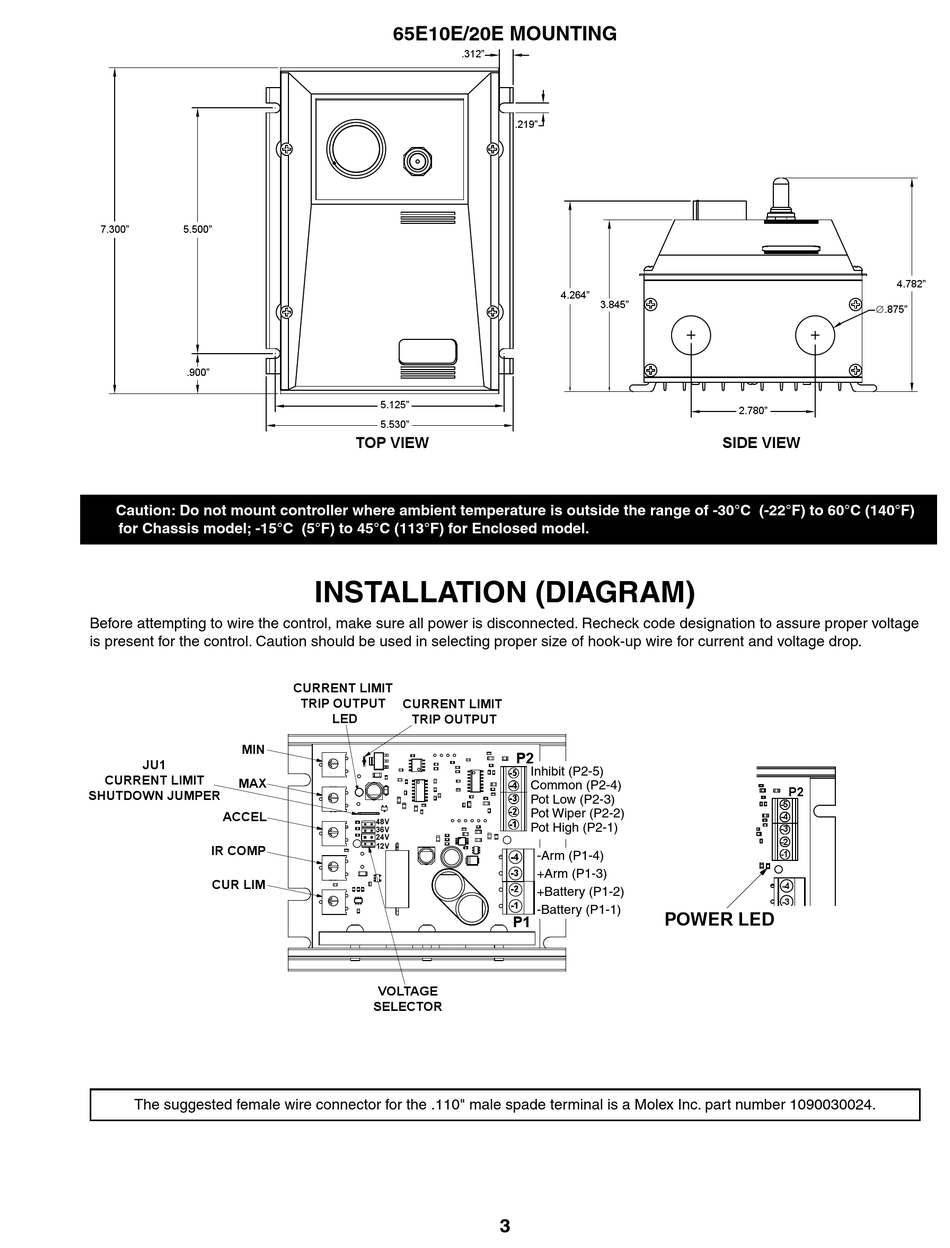

Installation (Diagram) - DART Controls 65E Series Instruction Manual

7.300" 5.500"
.900"
Caution: Do not mount controller where ambient temperature is outside the range of -30°C (-22°F) to 60°C (140°F)
for Chassis model; -15°C (5°F) to 45°C (113°F) for Enclosed model.
Before attempting to wire the control, make sure all power is disconnected. Recheck code designation to assure proper voltage
is present for the control. Caution should be used in selecting proper size of hook-up wire for current and voltage drop.
MIN
JU1
CURRENT LIMIT
MAX
SHUTDOWN JUMPER
ACCEL
IR COMP
CUR LIM
The suggested female wire connector for the .110" male spade terminal is a Molex Inc. part number 1090030024.
65E10E/20E MOUNTING
.312"
5.125"
5.530"
TOP VIEW

INSTALLATION (DIAGRAM)

CURRENT LIMIT
TRIP OUTPUT
CURRENT LIMIT
LED
TRIP OUTPUT
48V
36V
24V
12V
VOLTAGE
SELECTOR
.219"
4.264"
3.845"
P2
Inhibit (P2-5)
-5
Common (P2-4)
-4
-3
Pot Low (P2-3)
-2
Pot Wiper (P2-2)
-1
Pot High (P2-1)
-Arm (P1-4)
-4
+Arm (P1-3)
-3
-2
+Battery (P1-2)
-1
-Battery (P1-1)
POWER LED
P1
3
4.782"
.875"
2.780"
SIDE VIEW
P2
-5
-4
-3
-2
-1
-4
-3
