Standard Features; Mounting Dimensions - DART Controls 65E Series Instruction Manual

Provides smooth variable speed capability for mobile, solar-powered and other DC powered equipment
●
Maintains variable speed control as batteries discharge
●
Adjustable maximum speed, minimum speed, current limit, IR compensation, and motor acceleration
●
Inhibit terminal permits optional start-stop without breaking battery lines
●
Speed potentiometer, knob, and dial plate included
●
Increases range or running time of battery operated equipment through high efficiency
●
Enclosed model is NEMA 4X rated
●
Wide 12-48VDC source power input; up to 20A continuous output current
●
High (18KHz) switching frequency for quiet operation
●
Improved efficiency (lower voltage drop across control)
●
Current Limit Lock Out or High Limit - user selectable
●
Solid state Current Limit Output
●
Wide temperature range for outdoor applications (-30°C (-22°F) to 60°C (140°F) for Chassis model; -15°C (5°F) to
●
45°C (113°F) for Enclosed model)
0-10VDC Input Follower Signal capability
●
Optional source power Under Voltage Lockout (UVL) Option - protects battery source from deep cycle discharge
●
Optional remote Power and Current Limit LED driver output for chassis models only
●
Power and Current Limit LED's are located in the cover on Enclosed models only
●
.188" DIA.
(8 SLOTS)

STANDARD FEATURES

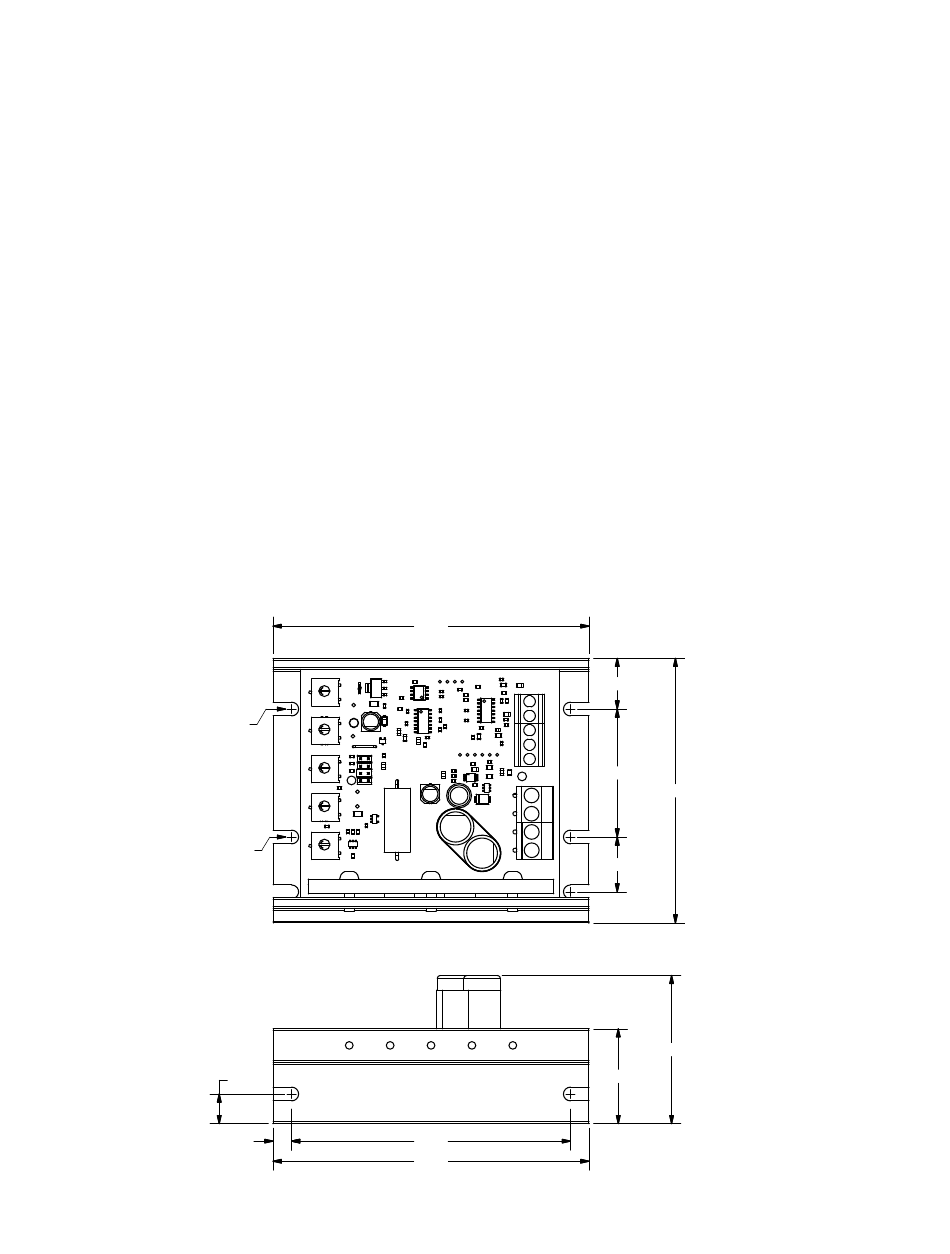

MOUNTING DIMENSIONS

65E10C/20C MOUNTING
11/32"
SLOT
DEPTH
TOP VIEW
.405
.250
4.250
P2
-5
-4
-3
-2
-1
-4
-3
-2
-1
P1
3.750
4.250
SIDE VIEW
2
.694
1.750
3.620
.750
2.026
1.295
