DART Controls 13DVA Series Instruction Manual

Variable speed control

Hide thumbs

page of 88

/ 88
Bookmarks

Quick Links

Download this manual

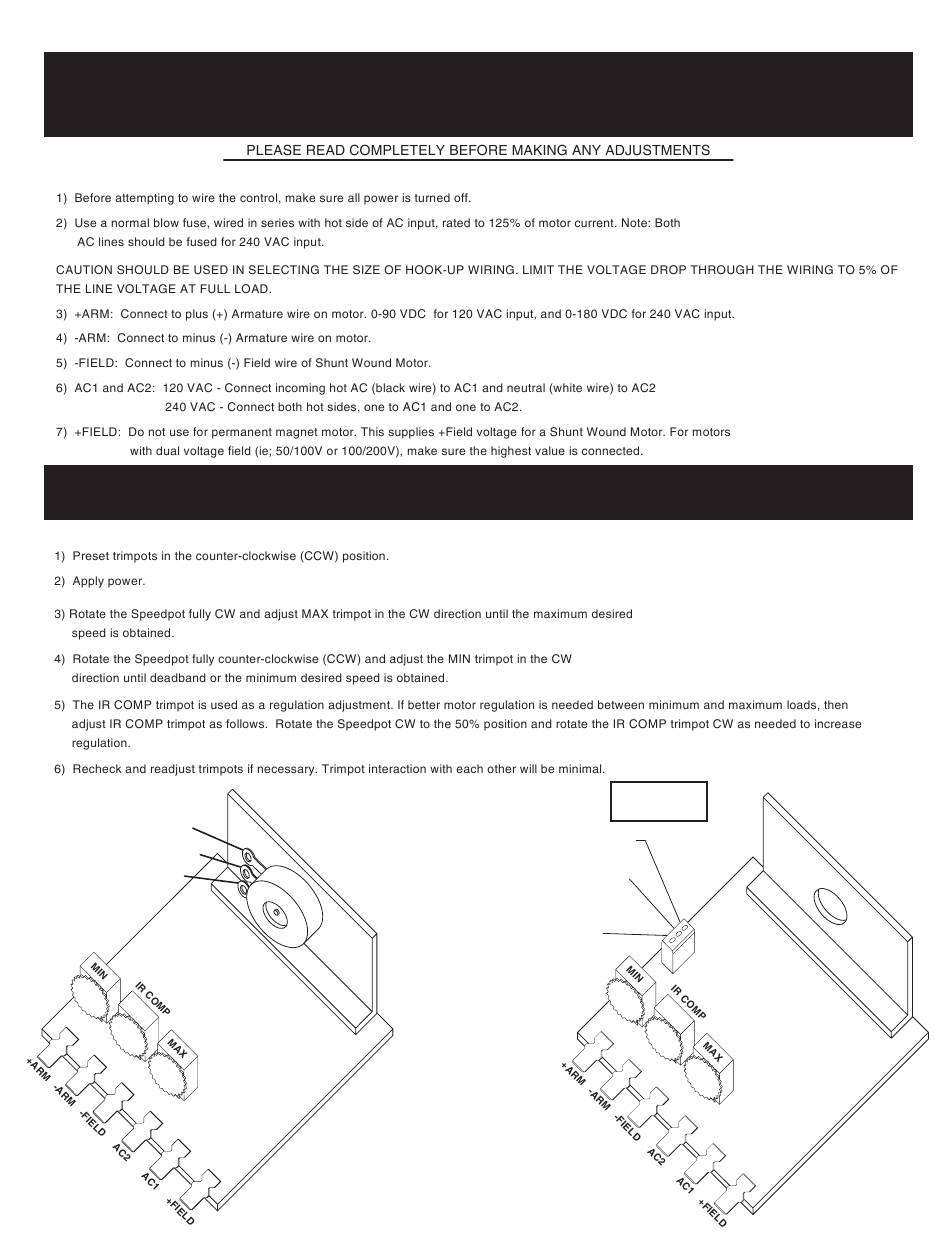

MODEL 13DVA Rev.A / 15DVA Rev.A HOOK-UP

WARNING

IMPROPER INSTALLATION OR OPERATION OF THIS CONTROL MAY RESULT IN INJURY TO PERSONNEL OR ELECTRONIC FAILURE. THE

CONTROL MUST BE INSTALLED AND GROUNDED IN ACCORDANCE WITH LOCAL, STATE, AND NATIONAL SAFETY CODES. AT NO TIME

SHOULD THE CIRCUIT CONTINUITY BE CHECKED BY SHORTING TERMINALS WITH A SCREWDRIVER OR OTHER METAL DEVICE.

HOOK-UP & TERMINAL IDENTIFICATION

CAUTION: DO NOT ATTEMPT TO PERFORM A HI-POT TEST ACROSS AC LINES WITH CONTROL IN CIRCUIT.

THIS WILL RESULT IN IMMEDIATE OR LONG TERM DAMAGE TO THE CONTROL.

ADJUSTMENTS

-TS OPTION

TO REMOTE

SPEEDPOT

SPEEDPOT HI

SPEEDPOT LO

(orange wire)

SPEEDPOT WIPER

SPEEDPOT LO

(red wire)

SPEEDPOT HI

(white wire)

A-1-2718B-A

LT01
