DAYLIGHT SENSOR

The model NXDS Daylight Sensor will self configure to Load A (red switch wire and violet dimming wire) in Test Mode connected to a room controller
The daylight sensor will become active 30 seconds after the load has been turned on. While the unit is in Test Mode, the photocell operation can be
verified by observing Load A lighting while alternately covering the photocell (Load A light will be ON and bright if dimming enabled) or exposing
the photocell to bright light (Load A light will be OFF or dimmed if so enabled). The above process will confirm that the Daylight Sensor and Room
Controller are functioning. The Daylight Sensor must be calibrated in order to meet project specific requirements. This can often be done using
Manual Configuration. To meet requirements for specific foot candle settings, the NX Device Setup App or NXAC-120 Area Controller can be used.

MANUAL CONFIGURATION

The process of manual configuration allows certain functions to be adjusted using only the A and B pushbuttons and LED indicators on the Room
Controller. The functions that can be adjusted are:
1. Assign loads to buttons and stations
2. Configure loads for manual ON (vacancy mode) or automatic ON operation
3. Configure loads to respond to the photocell
4. Calibrate the photocell
ENTER MANUAL CONFIGURATION MODE
To enter manual configuration mode, simultaneously press and hold buttons A and B on the Room Controller until the A and B LEDs start to
alternately blink. Release buttons A and B. The room controller will now be in configuration mode. Load A will be ON and all other loads will be OFF.
Note, while in configuration mode no more than one load will ever be on and the A and B buttons on the room controller will not control the loads.
Hint: If more than one load is on or pressing the A or B button switches the associated load, you likely did not press both buttons exactly together
when entering configuration mode. Repeat the process to enter manual configuration mode.
EXIT MANUAL CONFIGURATION MODE
To exit configuration mode, simultaneously press and immediately release buttons A and B. The room controller will resume normal operation.
ENTER MANUAL CONFIGURATION MODE FROM A SWITCH
Remove the faceplate from any wall switch and locate the rectangular opening in the plastic bezel marked "SVC PIN". Use a thin object such as a
straightened paper clip to press the recessed configuration button for 5 seconds. Note that the button is located slightly offset from the opening in
the bezel. The LED marked "SVC" will blink while the configuration button is being pressed. Release the configuration button and note that one load
turns on and all other loads turn off indicating that the room is in manual configuration mode.
Hint: You may find it more convenient to remove the plastic bezil from the switch during programming. Simply pry off using the notch at the bottom.
To reattach, insert the tabs at the top and snap into place at the bottom.
EXIT MANUAL CONFIGURATION MODE FROM A SWITCH
Press the configuration button for five seconds. Note that the LED marked "SVC" will blink while the configuration button is being pressed. Release
the configuration button. The loads in the room will restore to the levels they were prior to entering manual configuration mode.
Copyright © 2018 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
™
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | (866) 898-0131 - fax www.hubbellcontrolsolutions.com
affiliation with or endorsement by such respective owners.

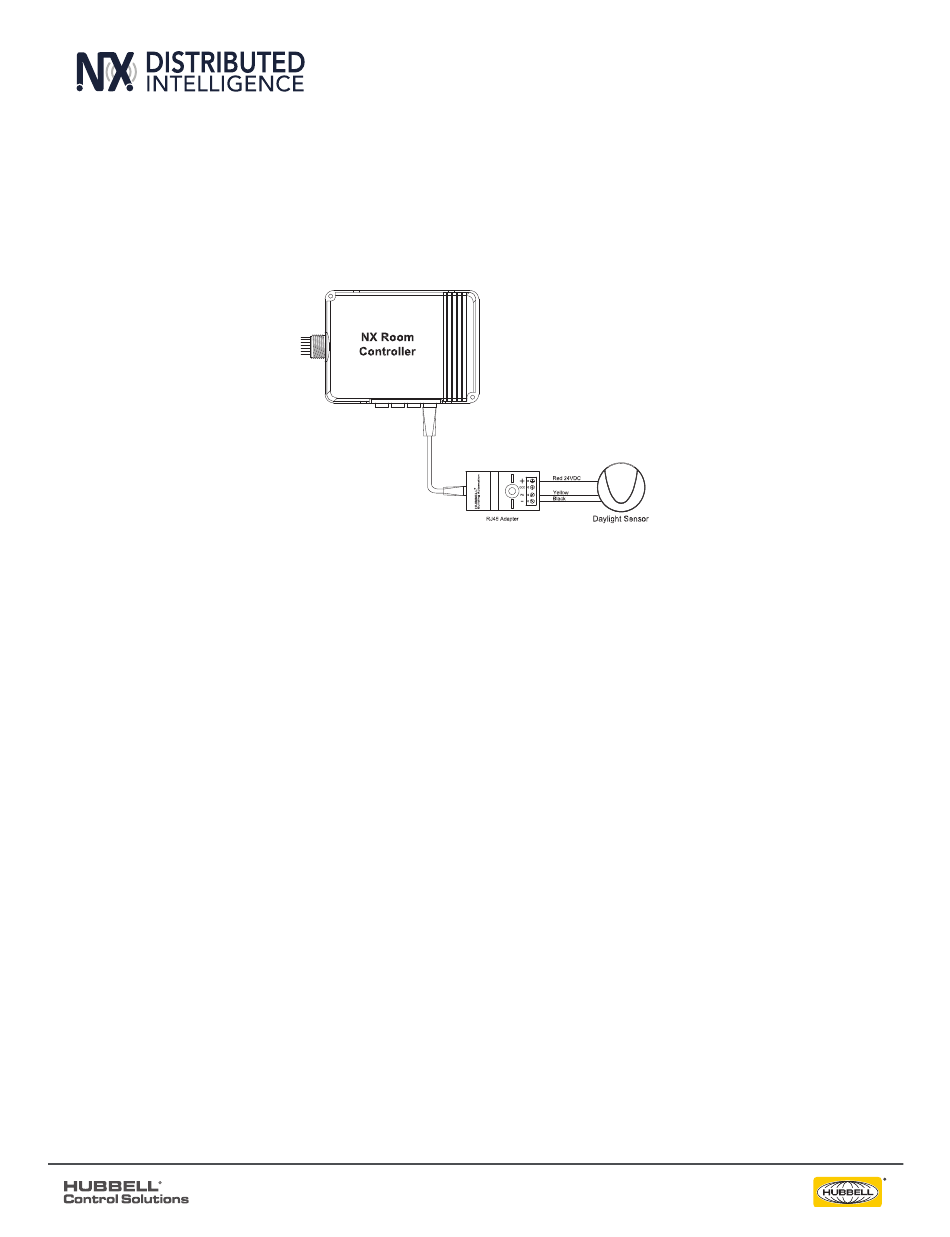

Figure 4
