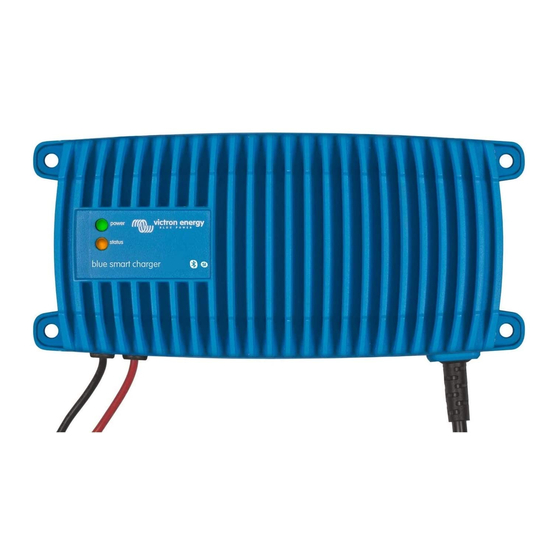

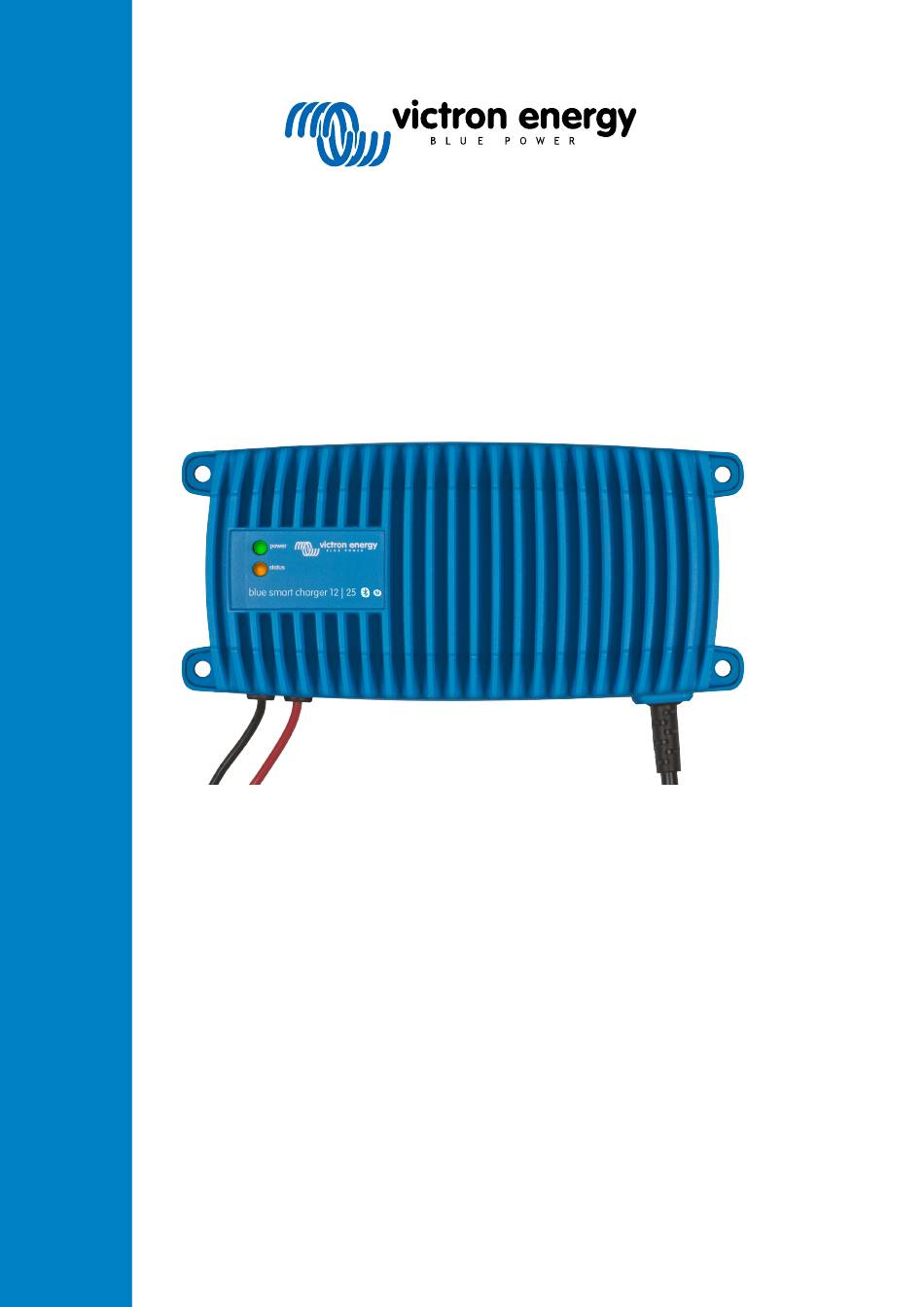

- Page 1 ENGLISH Blue Smart IP67 Charger 12V - 7/13/17/25A | 24V - 5/8/12A | 230/240VAC Rev. 00 27/09/2020...
-
Page 2: Table Of Contents
Blue Smart IP67 Charger Table of Contents 1. Safety instructions ........................1 2. Quick start guide ........................2 3. Features ..........................4 4. Operation ..........................6 4.1. Charge algorithm ......................6 4.2. Temperature compensation ....................8 4.3. Commencing a new charge cycle ..................9 4.4. -
Page 3: Safety Instructions
Blue Smart IP67 Charger 1. Safety instructions CAUTION: CAREFULLY READ AND FOLLOW ALL SAFETY INSTRUCTIONS • Ensure the area around the battery and charger is properly ventilated. • Do not cover or place any objects on top of the charger. -
Page 4: Quick Start Guide
Blue Smart IP67 Charger 2. Quick start guide Connect DC cables to the charger and then the battery or batteries; ensure that there is a good electrical connection and keep the terminals away from any surrounding objects that could cause a short circuit. - Page 5 Blue Smart IP67 Charger When the STATUS (yellow) LED is illuminated the charger has moved into float stage (absorption stage is complete); the battery will be fully (100%) charged and is ready to be returned into service. When the STATUS (yellow) LED is off the charger has moved into storage mode (float stage is concluded); to maintain the battery at full charge, the battery can be left on continuous charge for an extended duration.
-
Page 6: Features
Blue Smart IP67 Charger 3. Features a. Bluetooth setup and monitoring (Using VictronConnect) Easily setup, monitor or update the charger firmware using the VictronConnect app and a Bluetooth enabled device (such as a mobile phone or tablet). b. Multi-stage charge algorithm The multi-stage charge algorithm is specifically engineered to optimise each recharge cycle and charge maintenance over extended periods. - Page 7 Blue Smart IP67 Charger A specific mode to use the charger as a DC power supply; to power equipment at a constant voltage with or without a battery connected. Page 5 Features...
-
Page 8: Operation
Blue Smart IP67 Charger 4. Operation 4.1. Charge algorithm The Victron blue smart charger range are intelligent multi-stage battery chargers, specifically engineered to optimise each recharge cycle and charge maintenance over extended periods. The multi-stage charge algorithm includes the individual charge stages described below: Bulk The battery is charged at maximum charge current until the voltage increases to the configured absorption voltage. - Page 9 Blue Smart IP67 Charger State Power / Charge Stage Slow blinking Absorption / Recondition / Refresh (orange) Illuminated Float / Power supply mode Storage Page 7 Operation...
-
Page 10: Temperature Compensation
Blue Smart IP67 Charger 4.2. Temperature compensation The Victron blue smart charger range will automatically compensate the configured charge voltage based on ambient temperature (except for Li-ion mode or if manually disabled). The optimal charge voltage of a lead acid battery varies inversely with battery temperature; automatic temperature-based charge voltage compensation avoids the need for special charge voltage settings in hot or cold environments. -
Page 11: Commencing A New Charge Cycle
Blue Smart IP67 Charger 4.3. Commencing a new charge cycle A new charge cycle will commence when: a. Bulk stage is complete and the current output increases to the maximum charge current for four seconds (due to a simultaneously connected load) b. -
Page 12: Estimating Charge Time
Blue Smart IP67 Charger 4.4. Estimating charge time A lead acid battery is at approximately 80% state of charge (SOC) when the bulk charge stage is completed. The bulk stage duration T can be calculated as T = Ah / I, where I is the charge current (excluding any loads) and Ah is... -
Page 13: Setup
Blue Smart IP67 Charger 5. Setup 5.1. Overview There are 3 easily selectable integrated charge modes that are suitable for most common battery types, as well as an optional recondition stage that can be included (except for Li-ion mode). Any settings made are stored and will not be lost when the charger is disconnected from mains power or the battery. -
Page 14: Using Victronconnect
Blue Smart IP67 Charger 5.2. Using VictronConnect With the IP67 blue smart charger range, selection of an integrated charge mode and other general settings must be made with a Bluetooth enabled device (such as a mobile phone or tablet); using the VictronConnect app. - Page 15 Blue Smart IP67 Charger e. During initial connection a ‘Bluetooth pairing request’ prompt will appear requesting the Bluetooth PIN code; enter the default PIN code 000000. Access the settings menu by selecting the ‘setting’ icon (gear) in the top right corner.
-
Page 16: Bluetooth
Blue Smart IP67 Charger 5.3. Bluetooth 5.3.1. Changing the PIN code To prevent an unauthorised Bluetooth connection, it is highly recommended to change the default PIN code. To change the Bluetooth PIN code: a. Complete initial Bluetooth pairing and connection using the default PIN code (000000) b. - Page 17 Blue Smart IP67 Charger e. Enter the current and new PIN code (twice), then select OK; avoid using an obvious PIN code that is easy for someone else to guess, such as 111111 or 123456. Page 15 Setup...
-
Page 18: Resetting The Pin Code
Blue Smart IP67 Charger 5.3.2. Resetting the PIN code If the PIN code is forgotten or lost, it can be easily reset to the default 000000 using the VictronConnect app. Using VictronConnect To reset the Bluetooth PIN code: a. Locate the blue smart charger in the LOCAL page and select the ‘device options’ icon (three vertical dots) on the right side of the description. -
Page 19: Disabling Bluetooth
Blue Smart IP67 Charger 5.3.3. Disabling Bluetooth It is possible to totally disable Bluetooth communication if desired. Typically, there is no need to disable Bluetooth since unauthorised access is protected with a PIN code, but certain situations may warrant it for an even higher level of security. - Page 20 Blue Smart IP67 Charger Option #2: Disabled (Permanent and Irreversible) CAUTION: This option will permanently disable Bluetooth; use with extreme caution, as this procedure is irreversible. To disable Bluetooth permanently: a. Complete initial Bluetooth pairing and connection using the default PIN code (000000) or the current PIN code set.
- Page 21 Blue Smart IP67 Charger A four digit code is provided to avoid Bluetooth being permanently disabled accidentally, if you are sure that you want to permanently disable Bluetooth enter the code, then select ‘OK’. This is the last chance to abort; after Bluetooth has been permanently disabled it is irreversible and cannot be re-enabled later.
-
Page 22: Re-Enabling Bluetooth
Blue Smart IP67 Charger 5.3.4. Re-enabling Bluetooth If Bluetooth was disabled using option #2 ‘Disabled’, this is irreversible, and Bluetooth cannot be re-enabled. If Bluetooth was disabled using option #1 ‘Enabled for 30 seconds’, it is possible to re-enable Bluetooth. -
Page 23: System Reset
Blue Smart IP67 Charger 5.4. System reset It is possible to perform a full system reset to restore all charger/battery related settings to their default value; using the VictronConnect app. Note that this does not reset any Bluetooth related settings, such as the PIN code or pairing information. -
Page 24: Monitoring
Blue Smart IP67 Charger 6. Monitoring The charger operation and recharge statistics can be closely monitored live or post charging with a Bluetooth enabled device (such as a mobile phone or tablet) using the VictronConnect app. There are 3 different overview screens available (STATUS, GRAPH and HISTORY), each displaying different monitoring or historical data;... -
Page 25: Graph Screen
Blue Smart IP67 Charger 6.2. Graph screen The GRAPH screen provides an easy to understand graphical representation of each charge stage with respect to battery voltage and charge current. The active charge stage is also highlighted and stated below, along with a brief explanation. -
Page 26: History Screen
Blue Smart IP67 Charger 6.3. History screen The HISTORY screen is a very powerful reference as it contains historical usage data over the charger’s lifetime and detailed statistics for the last 40 charge cycles (even if the charge cycle is only partially completed). - Page 27 Blue Smart IP67 Charger a. Charge cycle statistics Cycle overview Expandable bar chart showing the time spent in each charge stage and the charge capacity provided (in Ah) during each charge stage ii. Status Confirms if the charge cycle was successfully completed or if it was ended early/interrupted for some reason, including the reason/cause iii.
-
Page 28: Advanced Configuration
Blue Smart IP67 Charger 7. Advanced Configuration In specific use cases where the integrated charge modes are not suitable/ideal for the battery type being charged or the battery manufacturer recommends specific charge parameters and fine tuning is desired, advanced configuration is possible with a Bluetooth enabled device (such as a mobile phone or tablet) using the VictronConnect app. - Page 29 Blue Smart IP67 Charger The settings in the advanced menu (with expert mode disabled) include: a. Battery preset The ‘Battery preset’ dropdown allows selection from the following options: Built-in preset Selection of a standard integrated pre-set (same as the general settings menu) ii.
-
Page 30: Expert Mode Settings
Blue Smart IP67 Charger 7.2. Expert mode settings Expert mode expands the advanced settings menu even further to include more specialised configuration settings. Page 28 Advanced Configuration... - Page 31 Blue Smart IP67 Charger To access expert mode and expand the advanced settings menu, enter the advanced setting menu and enable the ‘Expert mode’ switch. The additional settings in the advanced menu with expert mode enabled include: a. Charge voltage BatterySafe The BatterySafe setting allows the BatterySafe voltage control to be enabled or disabled.
-
Page 32: Power Supply Function
Blue Smart IP67 Charger 7.3. Power supply function The Victron blue smart charger range are also suitable for use as a DC power supply, to power equipment without a battery connected (or while also connected to a battery). While it’s still possible to use the charger as a power supply without changing any settings, a dedicated ‘Power supply’ mode exists for this purpose/usage. -
Page 33: Technical Specifications
Blue Smart IP67 Charger 8. Technical specifications Blue Smart IP67 Charger 12V 7/13/17/25A 24V 5/8/12A Input voltage 230VAC Efficiency 93% / 93% / 95% / 95% 94% / 96% / 96% Standby power consumption 0.5W Minimum battery voltage Starts charging from 0V (dead battery) Charge voltage 'absorption' Normal: 14.4V... -
Page 34: Warranty
Victron Energy to make such repairs. Victron Energy is not liable for any consequential damages arising from the use of this product. The maximum liability of Victron Energy under this limited warranty shall not exceed the actual purchase price of the product. Page 32...
