Do you have a question about the SensoWash i Plus and is the answer not in the manual?
Questions and answers
Duc
February 12, 2025
How to pair removecontrol ( supply ) with the toilet via bluetooth
1 comments:
Mr. Anderson
February 12, 2025
To pair the DURAVIT SensoWash i Plus toilet with the remote control via Bluetooth:
1. Ensure that both SensoWash® and Bluetooth are switched on. 2. Download the “SensoWash” app from the Play Store (Android) or App Store (iOS). 3. Follow the step-by-step instructions in the app to connect it to the product.
This will establish the Bluetooth connection between the toilet and the remote control.
Contents 1. Brief overview .................... 3 Toilet unit ..................3 Remote control .................3 App ....................3 Functional area .................4 Right product side................4 Left product side ................5 2. Description of symbols ................6 3. For your safety ................... 7 Normal Use ..................7 Safety instructions ................7 4.
Page 4
7. Cleaning and care ..................23 Cleaning ..................23 Care ....................24 Manual cleaning mode (spray wand and nozzle) .........24 Self-cleaning (spray wand and nozzle) ..........25 Manual cleaning (odor extraction strainer) .........25 Holiday mode ..................25 Water filter ..................26 Descaling .....................26 8. Disposal ....................27 9.

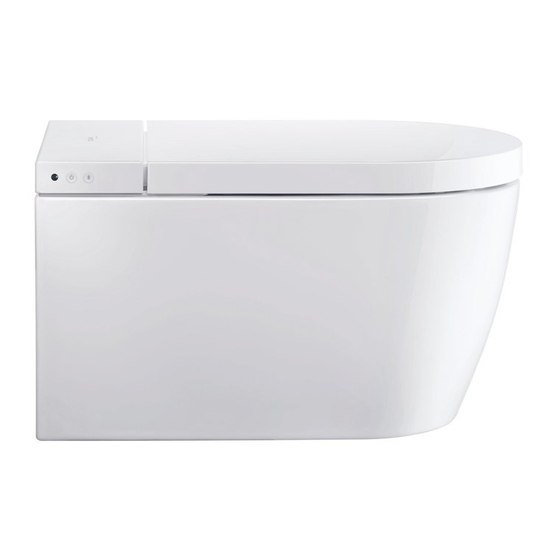

1. Brief overview 1.3 App 1.1 Toilet unit Seat sensor Menu Add/delete device Auto opening lid Ladywash Seat heating Warm air dryer Night light Power/status indication (LED) Rearwash Bluetooth Odor extraction Full flush Eco flush Integrated flushing system Open/close lid Full flush Stop 1.2 Remote control...
1.4 Functional area Spray wand Odor extraction strainer Warm air dryer Spray nozzle Night light 1.5 Right product side Descaling connection Stop valve: open Right side panel — closed Water filter...
2. Description of symbols The following warning signs warn you of dangerous situations and their severity: Indicates a hazardous situation which, if not avoided, could result WARNING in death or serious injury. Indicates a hazardous situation which, if not avoided, may result in CAUTION minor or moderate injury.
These operating instructions correspond to the device’s state of technology at the time of printing. Duravit reserves the right to make changes in terms of further development. 3.1 Normal Use...
Page 10
Do NOT use the product if it is not working properly. > Disconnect from the power supply immediately. Close the stop valve to interrupt the water supply. Contact help@duravit.com. > Avoid malfunctions and damage to the product as a result of im- proper use.
Page 11
> Repairs must be carried out by qualified electricians or technicians. > Improperly performed repairs can lead to accidents, damage and malfunctions. > Do NOT use attachments not recommended by Duravit. Use of batteries Risk of fatal injury if swallowed/Chemical burn...
Page 12
CAUTION Damage to health caused by leaking battery acid > Avoid contact with skin, eyes and mucous membranes if battery acid has leaked. > In case of contact with the acid, flush the affected areas with large amounts of clean water and consult a doctor immediately. >...
The preceding legal communication refers to the radio communica- tion operated under the provisions of the telecommunication law. Low-power RF motors are subject to interference with legal commu- nications or radiation motor equipment for industrial, scientific and medical radio waves. 4.
Page 14
Operating Options The full range of functions is available whether the product is opera- ted via remote control or app. Functions are set according to default settings Table 2: Default settings). Download app to make adjustments on the extended setting range ( Ch.
Page 15
Operating Options Controlled via basic range extended range Confirmation tone • Holiday mode • Manual cleaning mode • Self-cleaning • Descaling • Reset default setting • Table 1: Functions and settings Default Settings setting range default setting Full flush ~4.4 L per flush (Lpf) Eco flush 3.0/3.1 L per flush (Lpf) Auto flush...
4.3 LED indication Power button Red light Indicates stand-by mode. Switch SensoWash on to activate seat unit ® Ch. 5: Switch SensoWash on/off). ® Green light Indicates on mode. Energy saving mode is off. Orange light Indicates on mode. Energy saving mode is on. Flashing Malfunction.
5. Initial operation Activate/deactivate SensoWash ® Requirement: SensoWash must be connected to the main power supply. ® cato Indi Trip > Remove side > Press main switch > Attach side panel. to activate/deacti- panel. vate seat unit. SensoWash will start a self-check for about 15 seconds when it is connected to the ®...
Download app Search for “SensoWash“ in Play Store (Android) or App Store (iOS). Pairing app SensoWash is connected to the app via bluetooth. SensoWash and bluetooth ® ® have to be switched on ( Cover: ) to establish the connection. Follow step-by-step instructions in app to connect app to the product.
6. Operating Use this QR-Code to see a video of the operating functions or visit www.duravit.com/vid_sensowash_i_plus. Open/close lid The SensoWash lid opens/closes automatically when a person approaches/leaves the ® toilet. Alternatively open/close lid via remote control or app. NOTICE Damage of seat and lid! Lid can be damaged if it is opened/closed manually.
Activate full flush Enables a water consumption of 4.4 Lpf. > Press icon shown to flush the toilet. Activate full flush + Pre-Flush (deactivate/activate) + Auto-Flush (deactivate/activate) Activate eco flush Enables a water consumption of 3.0/3.1 Lpf. > Press icon shown to flush the toilet with eco flush.
Activate/deactivate Rearwash Gentle and safe rear cleansing. > Press icon shown > Rearwash is > Press stop to end to activate Rear- active, the spray or after 2 min. wash. wand extracts auto stop. slowly. SensoWash automatically cleans the retracted spray wand when the seat sensor is ®...
SensoWash automatically cleans the retracted spray wand when the seat sensor is ® activated and also before and after washing functions are used. Activate Ladywash Adjust spray wand position, adjust water spray intensity, adjust water temperature + Comfortwash (deactivate/activate) Activate/deactivate warm air dryer Pleasant drying through warm air after washing function.
Adjust spray wand position (Rearwash) Adjust spray wand position (Ladywash) Adjust water spray intensity Water spray intensity individually different levels (low/medium/high). > Press minus to > LEDs indicate > Press plus to decrease spray setting. increase spray intensity. intensity. Adjust water spray intensity (Rearwash) Adjust water spray intensity (Ladywash) Adjust water temperature Water...
If you choose level off, the water has the temperature of inlet water and the LEDs are off. Adjust water temperature (Rearwash) Adjust water temperature (Ladywash) Activate odor extraction Odor extraction with long-lasting, maintenance-free catalytic filter. It will be terminated automatically when washing or warm air dryer functions are activated and will automa- tically start again after using them.
Damage to surface due to incorrect cleaning. Abrasive or aggressive cleaning agents may damage and/or scratch the surface. > Use cleaning agent recommended by Duravit Table 4: Cleaning recommenda- tions) and a soft cleaning cloth. Spray can penetrate into very small openings and gaps and damage the surface.
Cleaning recommendations Surface Cleaning agent Equipment Cleaning Ceramic (daily acidic vinegar or cloth, sponge or cleaning) citrus based clea- brush ning agent (pH 1-4) Ceramic (stub- stainless steel cloth, sponge or born dirt) cleaner, car polish brush > Clean the surface with or a ceramic hob a soft damp cloth.
Self-cleaning (spray wand and nozzle) SensoWash automatically cleans the retracted spray wand when the seat sensor is ® activated and also before and after washing functions are used. > Activate additional self-cleaning via app. Self-cleaning ( pray wand and nozzle) Manual cleaning (odor extraction strainer) Clean the odor extraction strainer regularly or when it gets clogged.
> Check the water quality in your region. Duravit recommends the installation of a water softener with water hardness ≥ 14° dH (2.5 mmol/l). > Make sure to descale the product regularly ( Table: Descaling cycles). The app will send an automatic reminder.
® If your unit does still not work properly after following the instructions men- tioned below, contact help@duravit.com. Have the article and serial number ready. These can be found on the nameplate on the back of the operating in- structions and in the app ( App: Menu - Device Guide - Device management - Device information).
Page 30
LED flashes red, Malfunction. > Deactivate seat unit. green or orange > Close stop valve. or an indication tone > Contact help@duravit. is audible. com. General problems Unit does not work. Seat unit is not switched on > Activate seat unit.
Page 31
Power or water supply > Pour a bucket of wa- failure. ter (8l) into the toilet. > Add more water if the water level is too low. > Contact help@duravit. com. Auto flush does not Auto flush deactivated. > Activate Auto flush. work.
Page 32
Odor extraction Odor extraction Auto odor extraction is This is normal. starts automatically. activated. Odor extraction continues > Contact help@duravit. to run when washing or com. warm air dryer function is active. Odor extraction stops Function automatically This is normal.
Seat unit did not detect > Approach again (ap- automatically when approaching person. prox. 1m distance). someone approaches. Malfunction. > Contact help@duravit. com. App does not work. App and product are not > Connect product to connected. app. > Make sure that pai- ring is successful.
Page 34
620000 .. 2 .. 03.0 3.1 Lpf 620000 .. 1 .. 1321 3.0 Lpf (Taiwan models) Pre-flush 0.5 Lpf Protection degree IP X4, Protection against water spray from all sides. Warranty Find our General Terms and Conditions (GTC) at www.pro.duravit.com/gtc...
Need help?
Do you have a question about the SensoWash i Plus and is the answer not in the manual?
Questions and answers
How to pair removecontrol ( supply ) with the toilet via bluetooth
To pair the DURAVIT SensoWash i Plus toilet with the remote control via Bluetooth:
1. Ensure that both SensoWash® and Bluetooth are switched on.
2. Download the “SensoWash” app from the Play Store (Android) or App Store (iOS).
3. Follow the step-by-step instructions in the app to connect it to the product.
This will establish the Bluetooth connection between the toilet and the remote control.
This answer is automatically generated
