Summary of Contents for DURAVIT SensoWash i

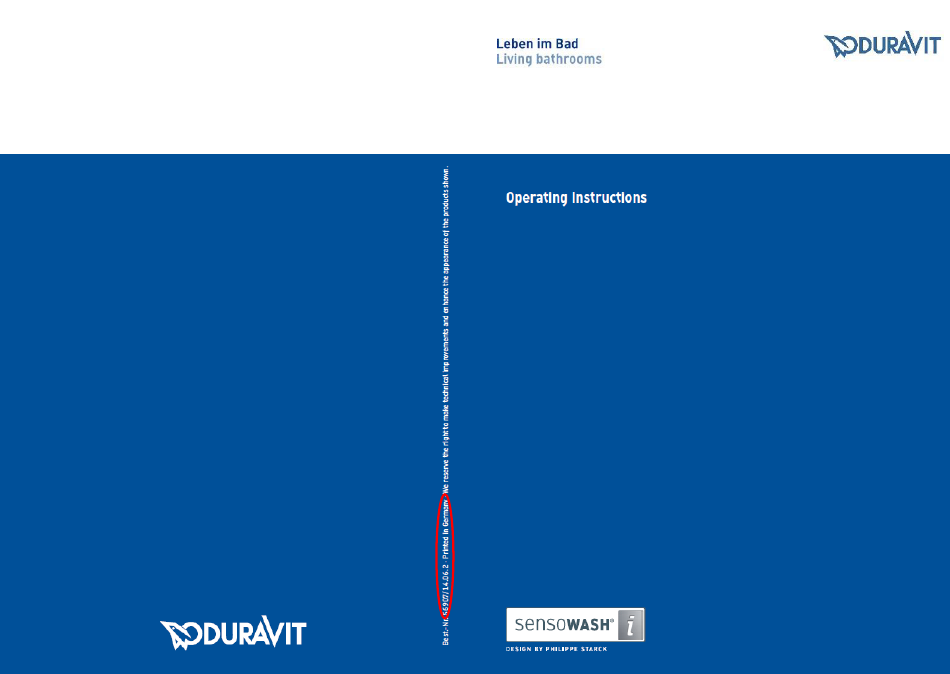

- Page 1 HEADQUARTERS Duravit AG Werderstr. 36 78132 Hornberg Germany Phone +49 7833 70 0 Fax +49 7833 70 289 info@duravit.com www.duravit.com SensoWash ® www.sensowash.com...
-
Page 3: Table Of Contents
Contents 1. Brief overview..................... 5 1.1 Toilet unit....................5 1.2 Remote control..................5 1.3 Functional area..................6 1.4 Right product side................. 6 1.5 Left product side .................. 7 2. Description of Symbols................8 3. For your safety.................... 8 3.1 Normal Use................... 8 3.2 Safety instructions................ - Page 4 7.2 Seat and lid..................15 Opening and closing of seat and lid by remote control......15 Opening and closing of seat and lid by „Auto opening“......16 7.3 Shower functions................. 16 Activating / deactivating „Rearwash“............16 Activating / deactivating „Ladywash“............16 Activating / deactivating „Comfortwash“..........
- Page 7 Rearwash and Ladywash cleansing functions with an ® integrated flushing system. Its use is limited exclusively to enclosed spaces. Any other usage will be deemed as not corresponding with normal usage. Duravit undertakes no liability for abnormal usage. 3.2 Grounding instructions This product must be grounded.
- Page 8 Disconnection device having a contact separation in all poles that provide full disconnection under overvoltage category III conditions must be incorporated in the fixed wiring in accordance with the wiring rules.The nominal cross-sectional area of the conductors should be AWG16(1.5mm ), and the spec of wire shall be at least H05VV-F or above.
-
Page 9: Remote Control
The new hose-sets supplied with the appliance are to be used and the old hose-sets should not be reused. • Do not use attachments not recommended by Duravit. Use of batteries Health damage > Avoid contact with skin, eyes and mucous membranes if battery acid has leaked. - Page 10 > In case of contact with the acid, flush the affected areas with large amounts of clean water and consult a doctor immediately. • Keep batteries out of the reach of small children. Batteries can be life-threatening if swallowed. If a battery has been swallowed, call for medical assistance immediately.
- Page 11 • Consult the dealer or an experienced radio/TV technician for help. SAVE THESE INSTRUCTIONS The shower functions terminate automatically after 3 minutes, the warm air dryer after 5 minutes or all functions immediately when the user press the „Stop“ button on the remote control or leaves the seat.
- Page 12 Forward and backward movement of spray wand during use of shower, a pulsating water jet can additionally be activated.
- Page 13 Enables a water consumption of 1.1gal /4.2 lpf (liter per flush). Enables a water consumption of 0.8gal /3.0 lpf. Auto flush is only working when the user is seated for more than 6 seconds, 10 seconds after leaving the toilet it flushes automatically. (Default setting: „Off”) Do not flush the toilet continuously.
-
Page 14: Seat And Lid
To indicate any remote controlled command and the activating/deactivating of the seat sensor. (Default setting: „On“) See chapter 4.1 „Seat and lid“. II.) Auto energy saving mode If all functions have been inactive and there is no human movement detected for 48 hours, the „Auto energy saving mode“... -
Page 15: Ladywash
If the remote control is not available or the batteries are empty then basic functions can also be switched on or off from the side control buttons. SensoWash® automatically cleans the retracted spray wand when the seat sensor is activated, and both before and after washing. - Page 16 7.2 Seat and lid Note! Damage of seat and lid > Open and close seat and lid only via remote control. > Do not apply excessive force on the seat and lid.
- Page 20 How to save energy see chapter 7.7 „Settings“. Auto flush is only triggered when the user is seated for more than 6 seconds.
- Page 22 See chapter 7.2 „Seat and lid“.
-
Page 23: Flushing Functions
To change the point of time of the „Timed energy saving mode“, deactivated the „Timed energy saving mode“ and set it according to your desired time again. To deactivate the seat heating permanently see chapter 7.5. See chapter 7.6 „Flushing functions“. 8. - Page 24 Detergent should NOT be left in any gaps after cleaning. Note! Yellow discoloration due to incorrect cleaner > Do not use abrasive cleaning agents or cleaning agents containing chlorine or acid. > Only use cleaning agents and equipment which is intended for this area of application. >...
- Page 25 The spray wand retracts automatically after 3 minutes or when the seat sensor is activated. Self-cleaning of the spray wand Clean the spray wand regularly, or immediately if it is soiled. > Press the „Stop“ button and hold this pressed. Now press the ”Comfortwash“ button on the remote control.
-
Page 26: Full Flush
can also soak a cloth in the cleaner then place it on the soiled area. > Rinse with clean warm water to remove all traces of the cleaner (when detergent evaporates, the fumes may seep into the top unit and cause damage to the product). >... -
Page 27: Auto Flush
Note! “Auto flush” in case of water supply failure Turn off If the water supply fails, please set the “Auto flush” function to “OFF”, see chapter 4.3. > Change new remote control If the remote control is lost or faulty, a new remote control needs to be changed and matched. Do not to activate the seat sensor while doing the match. - Page 28 8.9 Dismantle and assemble the side panels the side panel by hand along the arrowhead. > Pull Move up the side panel till the hook of the side panel is removed from the frame. > Take away the side panel. >...
- Page 29 10. Troubleshooting support If your unit does still not work properly after following the instructions mentioned below, contact your local customer service. Have the article and serial number ready. These can be found on the label behind the side panel on the left. Problem Potential cause Solution...
-
Page 30: Energy Saving Mode
The batteries are flat. > Change the batteries. The battery connections > Insert the batteries are reversed. the correct way round. The contact between > Make sure the battery the battery and the spring contact is good. battery spring is poor. The remote control is >... - Page 31 intensity is not clogged. filter. stable. The water The water >Adjust the water temperature is not temperature has temperature to warm enough. been set to "Off" or “Medium“ or “High“. "Low". The water The water filter is > Clean the water temperature is not clogged.
- Page 32 Warm air dryer The warm air dryer The warm air dryer > Adjust the warm temperature is not temperature has air dryer temperature warm enough. been set to "Off" or to “Medium“ or "Low". “High“. The warm air dryer The function This is normal.
- Page 33 The place around the > Clean the area of the seat sensor is dirty or seat sensor. wet. Seat sensor may continuously detect a “person”. Problem Potential cause Solution Night light The night light does not The night light has been This is normal.
-
Page 34: Operating
activated and before/after washing. 11. Technical Data Article number 620000 00 100 1300 Rated voltage 120 V Frequency 60 Hz Nominal power consumption 1080 w Standby power consumption < 1.0 W Maximum current 10 A Net weight 106lb (48 Kg) Heat output •...
