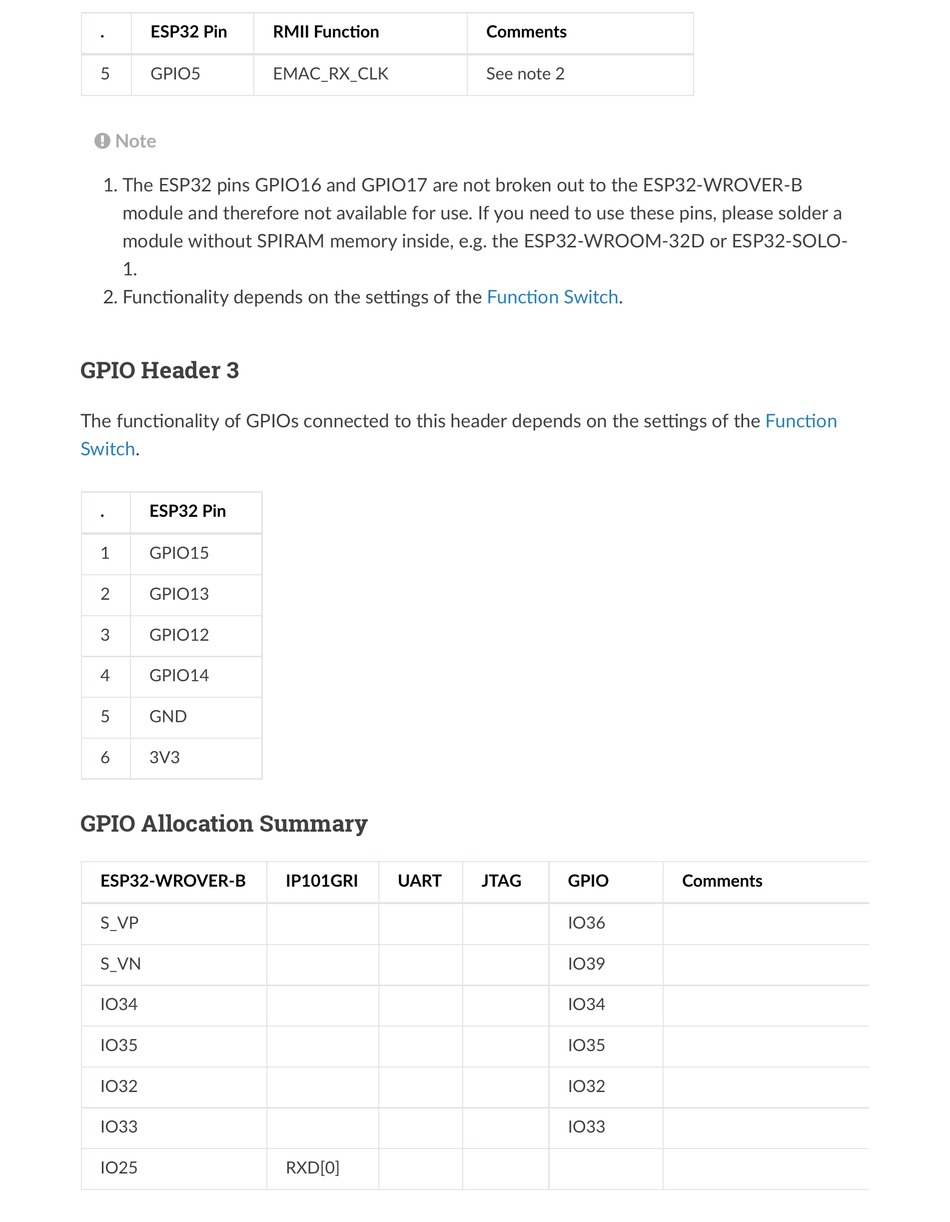

Espressif ESP32-Ethernet-Kit Getting Started Manual page 8

. ESP32 Pin
5 GPIO5
 Note
1. The ESP32 pins GPIO16 and GPIO17 are not broken out to the ESP32-WROVER-B
module and therefore not available for use. If you need to use these pins, please solder a
module without SPIRAM memory inside, e.g. the ESP32-WROOM-32D or ESP32-SOLO-
1.
2. Func onality depends on the se ngs of the
GPIO Header 3
The func onality of GPIOs connected to this header depends on the se ngs of the
Switch.
. ESP32 Pin
1 GPIO15
2 GPIO13
3 GPIO12
4 GPIO14
5 GND
6 3V3
GPIO Allocation Summary
ESP32-WROVER-B
S_VP
S_VN
IO34
IO35
IO32
IO33
IO25
RMII Func on
EMAC_RX_CLK
IP101GRI UART
RXD[0]
Comments
See note 2
Func on Switch.
JTAG GPIO
IO36
IO39
IO34
IO35
IO32
IO33
Func on
Comments
